INSTALLATION
INSTRUCTIONS
OUTDOOR GAS GRILL VGBQ-T SERIES CART ASSEMBLY
Retain for Future Reference
VIKING RANGE CORPORATION
111 Front Street
Greenwood, Mississippi (MS) 38930 USA
(662) 455-1200
BEFORE INSTALLING GRILL TO CART: Remove drip tray, grill grates, flavor grids, and warming racks from the grill.
IMPORTANT: PLEASE READ AND FOLLOW
1. Before beginning, please read these instructions completely and carefully.
2. Do not remove permanently affixed labels, warnings, or plates from product.

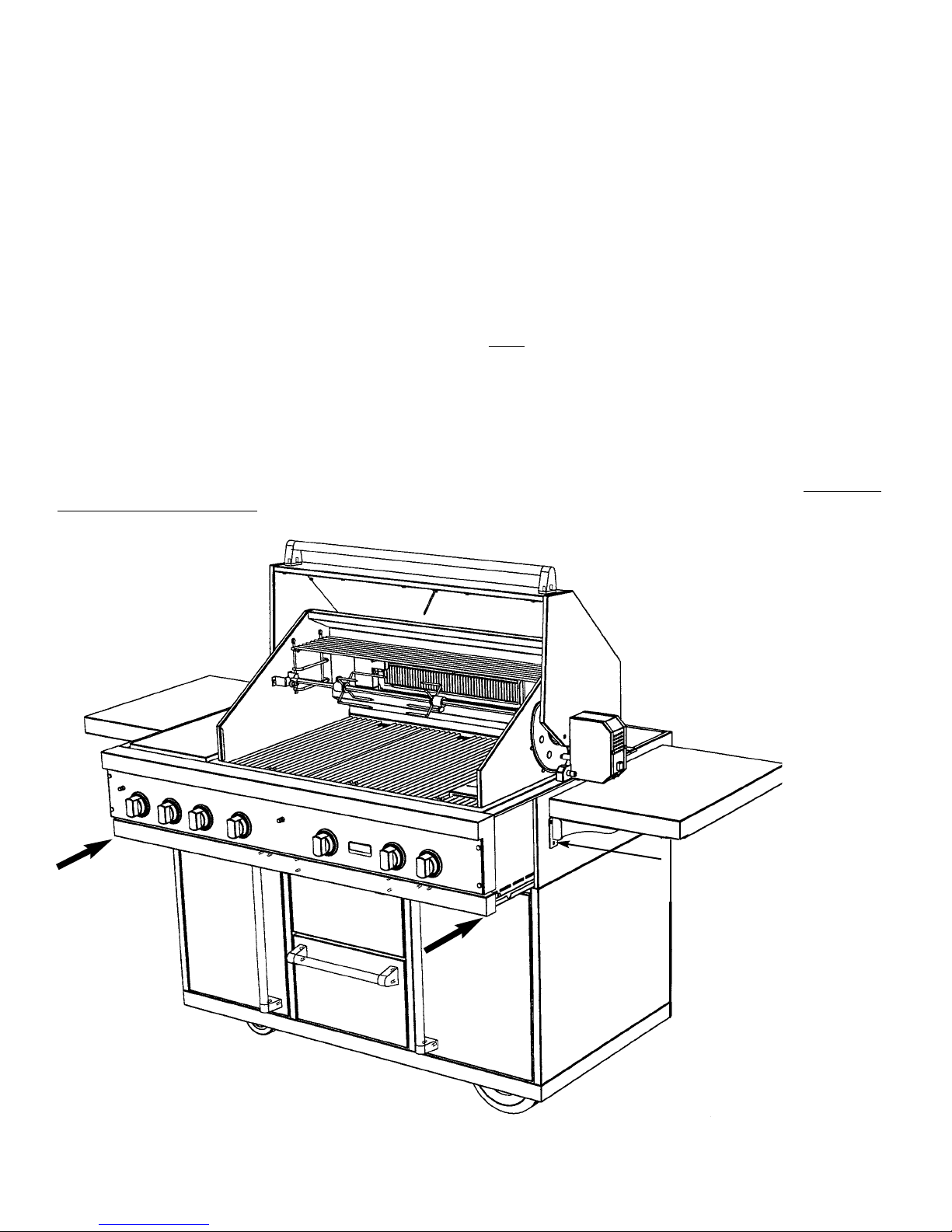

To mount grill to cart:
Always wear gloves when handling the gas grill. Although the grill is deburred prior to shipment, some edges may
still be sharp enough to cause injury during handling. With a minimum of two (2) people, place the grill in the cart with
about 3 to 4 inches hanging out the front making sure that the male fitting on the bottom of the grill is inside the cart.
Push the grill back until the front sides of the cart are flush with the back of the landing ledge on the grill. Be careful:
the grill unit is very heavy!
To remove side shelves:
The side shelves on the cart can be removed if needed. This must be done before installing the grill on the cart.
With the shelf in the up position, remove the screws in the shelf support bracket. This will allow you to remove both
the brackets and the shelf.
support bracket
screws
2

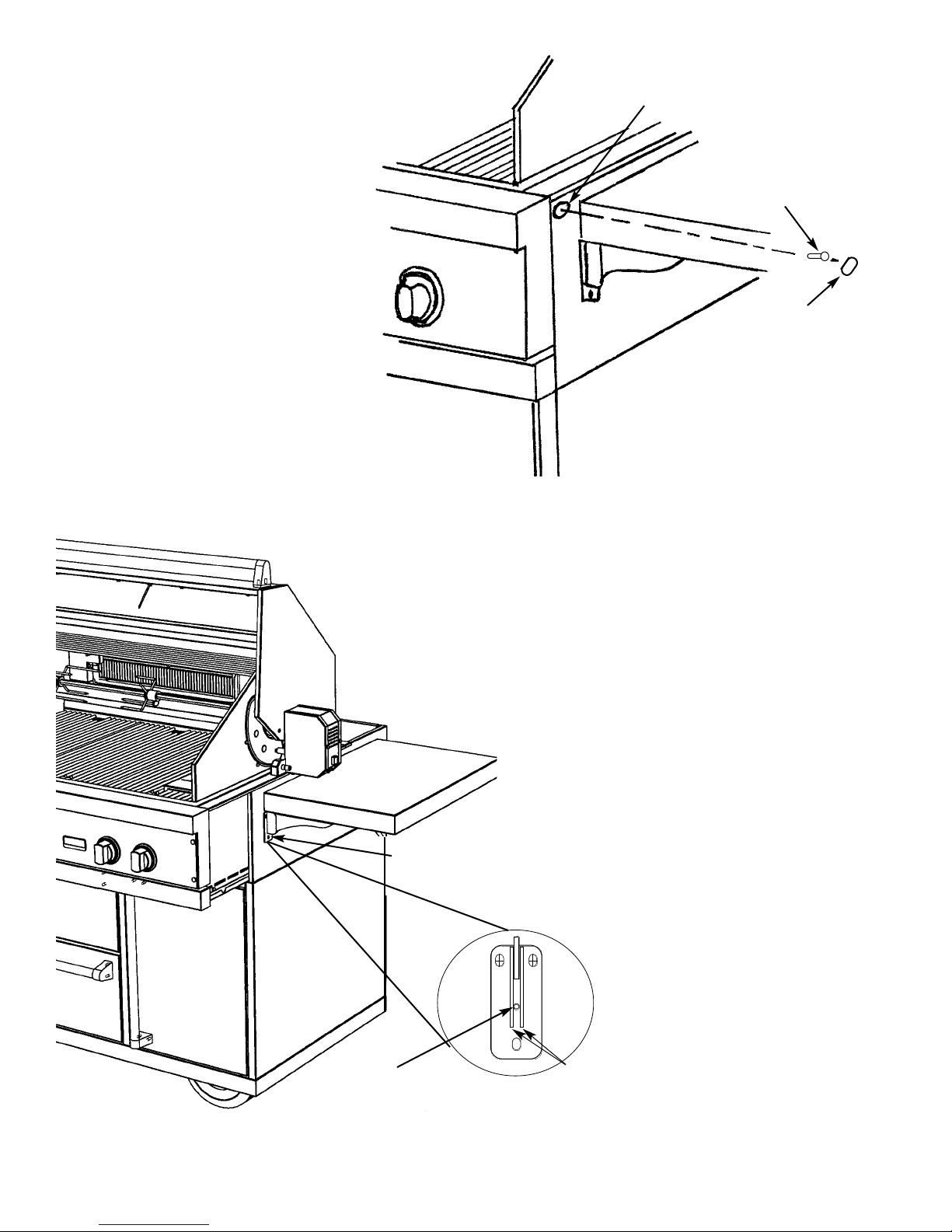

Attaching the grill to the cart
Once the grill has been mounted on
the cart, the back of the landing
ledge should be flush with the front
sides of the cart. The 5/8” (1.6 cm)
hole on the top front corners of the
cart should be aligned with the
receiving holes in the grill heat
shields. If your grill does not have
the receiving holes in the heat shield,
you will need to drill them out with a
9/64” (.14 cm) drill bit. With the grill
and cart mounted together, place the
drill bit in the 5/8 hole and center in
the 1/4”x3/8” slot. Drill through the
heat shield. Take the #10X3/4” (1.9
cm) sheet metal screws (A) supplied
with the cart and attach the cart sides
to the grill. After securing the grill to
the cart, snap the hole covers (B)
supplied with the cart into the 5/8”
(1.6 cm) holes in the cart corners.
support bracket
screws
SShheellff
aaddjjuussttmmeenntt
ssccrreeww
Front View
SSuuppppoorrttss
Leveling the Side Shelves
To level the side shelves, lift the shelf so that the
shelf adjustment screw is visible between the two
supports on the shelf brackets. Turn the screw
with a 3/32” (.2 cm) allen wrench counter clockwise
to raise the shelf and clockwise to lower the shelf.
5/8” (1.6 cm) dia. hole
(A) #10X3/4” (1.9 cm)
sheet metal screw
(B) 5/8” (1.6 cm)
hole cover

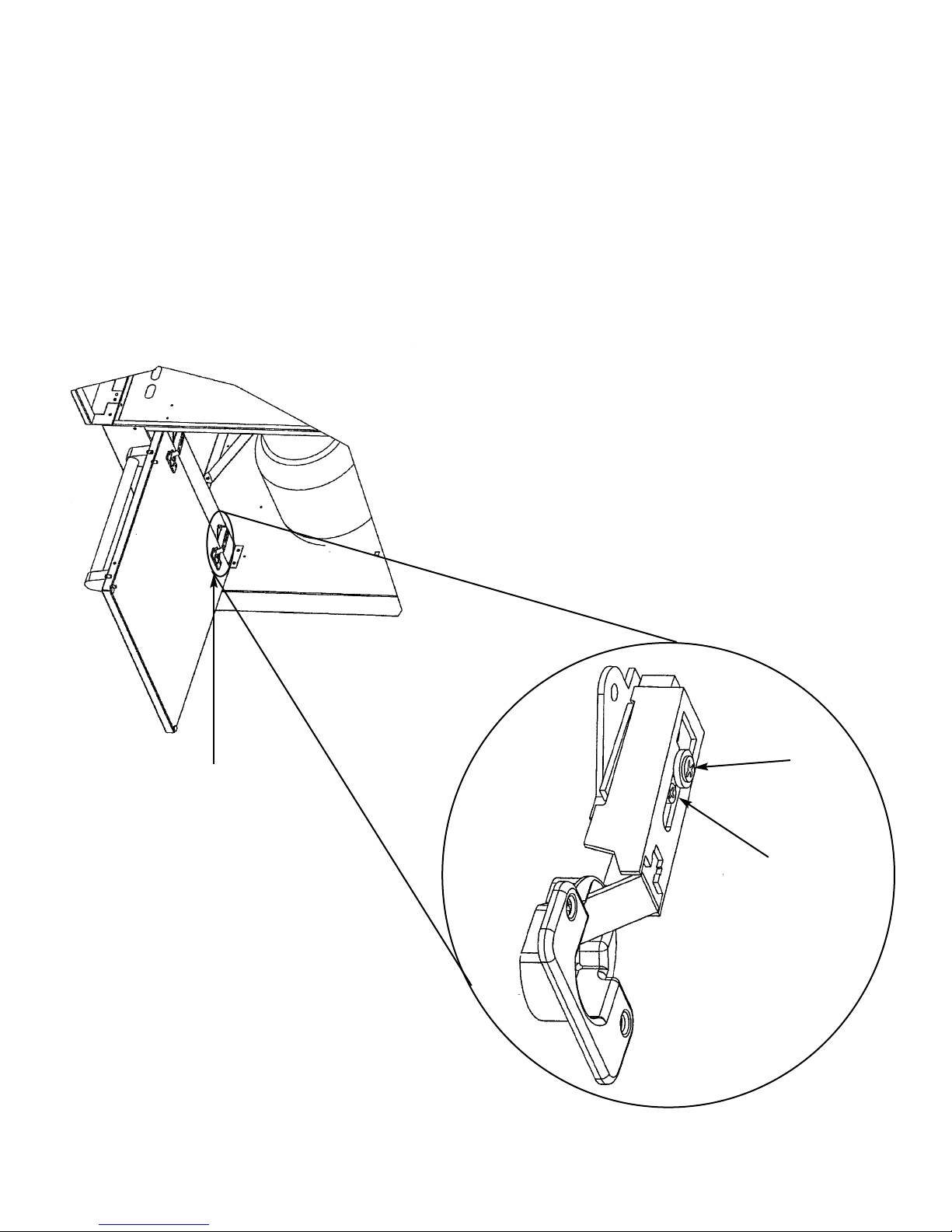

Cart Door Adjustment
The cart doors come adjusted from the factory. Depending on how level the surface the cart is being placed on, the
door(s) may need to be adjusted after teh grill is assembled on the cart.
There are two adjustment screws on the hinge receiver.
1) The front screw is used to center the door in the opening. Turning the front screws in or out will center the door in
the frame.
2) The back screw is used to align the front of the door with the cart frame and secure the door to the cart. Slightly
loosen the screw and slide the door in or out. Retighten the screw to secure the door.
DDoooorrHHiinnggee
((22ppllaacceess))
BBaacckk
SSccrreeww
FFrroonntt
SSccrreeww
3
4

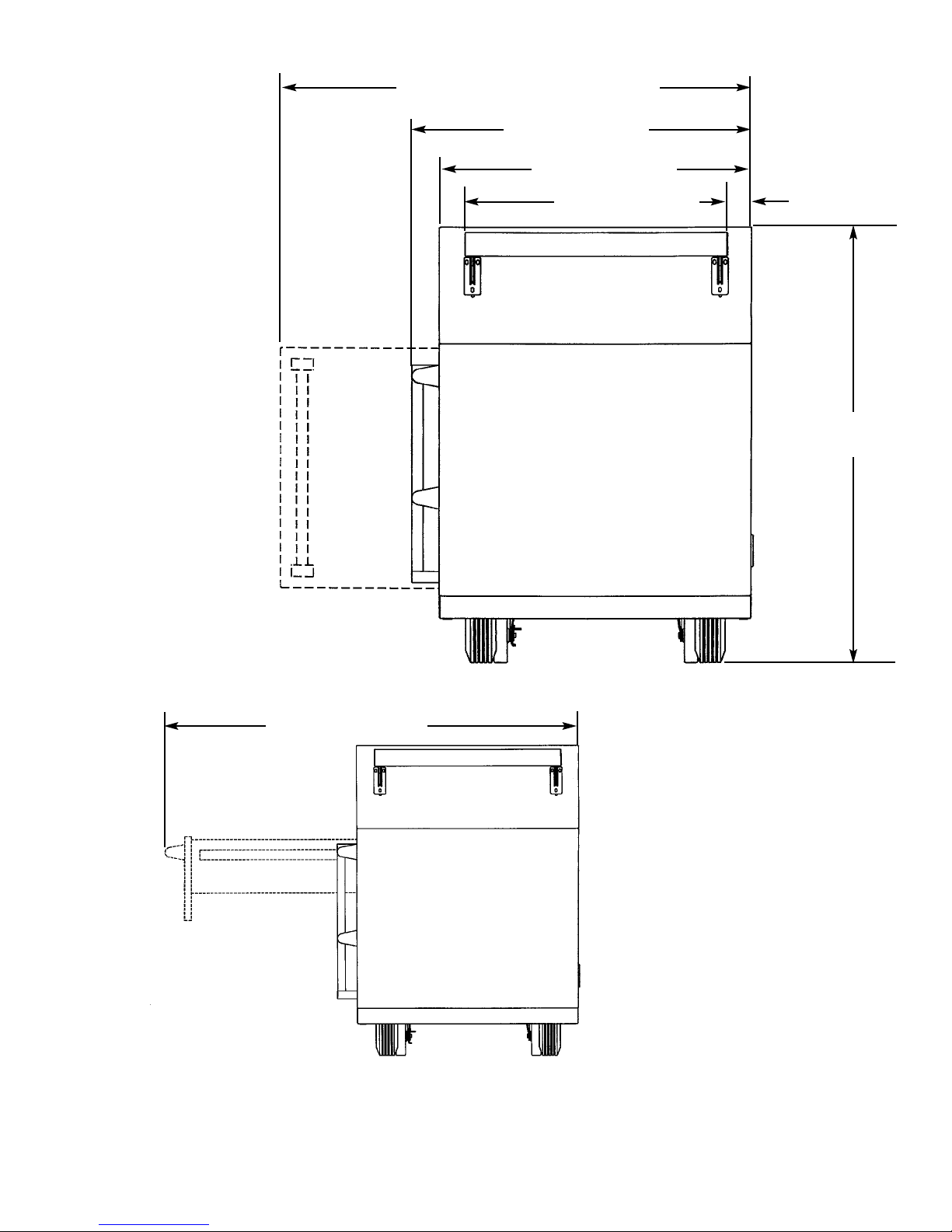

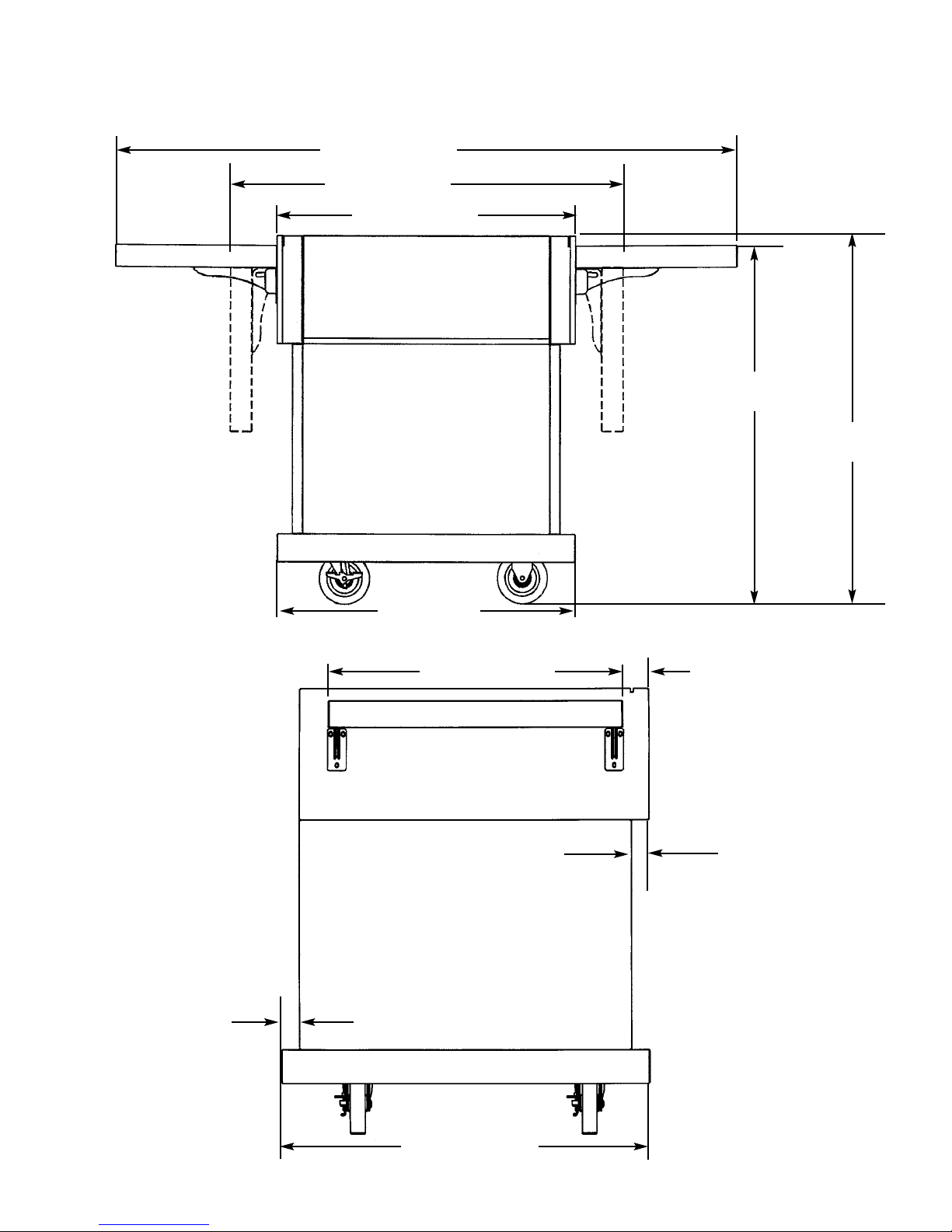

CART DIMENSIONS
3300””WW..CCaarrtt--FFrroonntt
3300””WW..CCaarrtt--SSiiddee
61 1/2” (156.2 cm)
38 3/4” (98.4 cm)
29 3/8” (75.6 cm)
36 1/2”
(92.7 cm)
37 1/2””
(95.3 cm)
30 1/16” (76.4 cm)
3/4”
(1.9 cm)
3/4”
(1.9 cm)
2 1/4”
(5.7 cm)
30” (76.2 cm)
23 7/8” (60.6 cm)
Front of Cart
5

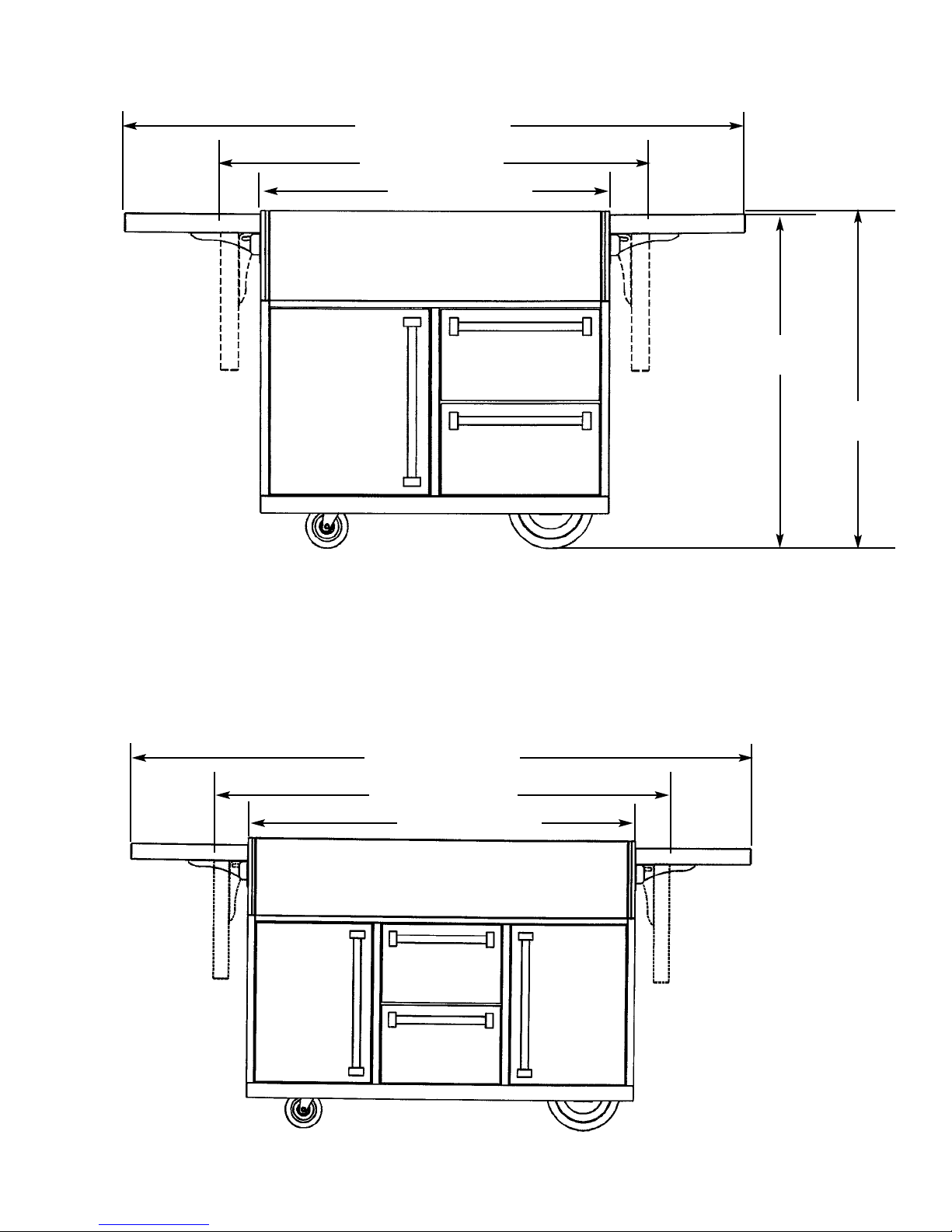

4411””WW..CCaarrtt--FFrroonntt
5533””WW..CCaarrtt--FFrroonntt
73 3/16” (185.9 cm)
50 1/2” (128.3 cm)
41 1/16” (104.3 cm)
85 1/4” (216.5 cm)
62 9/16 ” (158.9 cm)
53 1/8” (134.9 cm)
37 1/8”
(94.3 cm)
37 5/8””
(95.6 cm)
4411””WW..aanndd5533””WW..
CCaarrtt--SSiiddee
41” W. Cart - 45 7/8” (116.5 cm)
53” W. Cart - 43 1/16” (109.4 cm)
31 1/16” (78.9 cm)
28 9/16” (72.5 cm)
23 7/8” (60.6 cm)
37 5/8”
(95.6 cm)
2 1/4”
(5.7 cm)
53 1/16” (134.8 cm)
F20110C
Specifications subject to change
For more product information, call 1-888-VIKING1 (845-4641), or visit the Viking web site at
http://www.vikingrange.com
(PS0803VR)
