Viking DVGBQ300T Manual de usuario

Professional Performance for the Home TM

Viking outdoor gas grills

Professional-type cooking power

■ 6,5 kW stainless steel grill burners

■ Extra-deep sealed burner box keeps heat contained in

burner area, allowing easier temperature maintenance

■ Rotisseries are standard on all models; the rotisserie system

consists of a 4 kW Gourmet-Glo™ infrared rear burner, a

heavy-duty rotisserie motor, stainless steel 1,3 cm rotisserie

rods, and two rotisserie forks

■ Removable smoker tray accommodates wood chips or

large wood chunks

■The smoker tray can be replaced with grilling grate for

use of entire grill surface

■ Push-button electronic ignition powered by a 9-volt

battery provides a positive, consistent, and continuous

spark for easy grill lighting

■ Stainless steel flavour-generator plates catch drippings,

generate smoke, minimise flare-ups, and allow for better

heat control

DVGBQ 76 cm, 104 cm, AND 135 cm WIDTHS

Outdoor gas grills

New and improved smoker tray features

its own adjustable burner underneath.

■ Stainless steel warming rack can easily be adjusted to three

different positions, allowing use of additional accessory racks

■ Thermometer located on canopy indicates the best zones

for warming, smoking, and grilling

Solid Viking construction

■ Double wall construction insulates hood to help keep

heat inside

■ All models can be built into any type of enclosure without

the need of an insulated jacket – a Viking exclusive

Easy maintenance and cleanup

■ New and improved grease management system consists

of full-width removable stainless steel drip tray with

individual removable trays within the main tray

■ Burners are equipped with stainless steel drip guards to

combat burner clog and to aid grease management

Grease management system channels liquids

to the removable pan(s) in the pullout drip tray.

The DVGBQ also includes the following feature

on select models

■ Side burners – a double configuration 4 kW side burner is

available on 104 cm and 135 cm wide models

Optional accessories

The following accessories are available separately and

do not come standard with DVGBQ gas grills

■ Stainless steel carts

•Available for all models (EBQC300T1SS, EBQC410T1SS,

EBQC530T1SS); all sizes roll easily on inboard locking

casters and 25 cm rubber wheels, allowing unit to fit flush

against wall

■ Stainless steel access doors – available in double and

single versions (AD2820TSS, AD1620TSS)

■ Portable griddle (PGD) – cast-aluminum with non-stick

finish; designed to fit over side burners

Custom-made grill covers are available

for all grills – both built-in and cart models.

■ Wok grate (WGT-BK) – use in place of “V” grate on side

burners for wok cooking

■ Rotisserie basket – cook food on rotisserie without spearing,

wiring, or tying; available in 15 cm and 20 cm widths

■ Rotisserie forks (RFK) – two additional rotisserie forks

available (two forks are supplied standard with all grills)

■ Warming rack (WR2TSS, WR3TSS, WR4TSS) – additional

warming rack available in all sizes

■ Covers – heavy-duty, custom-made for Viking grills

■ Professional five-piece barbecue tool set (F80041)

Optional rotisserie basket may be used

to cook food with no spearing or wiring.

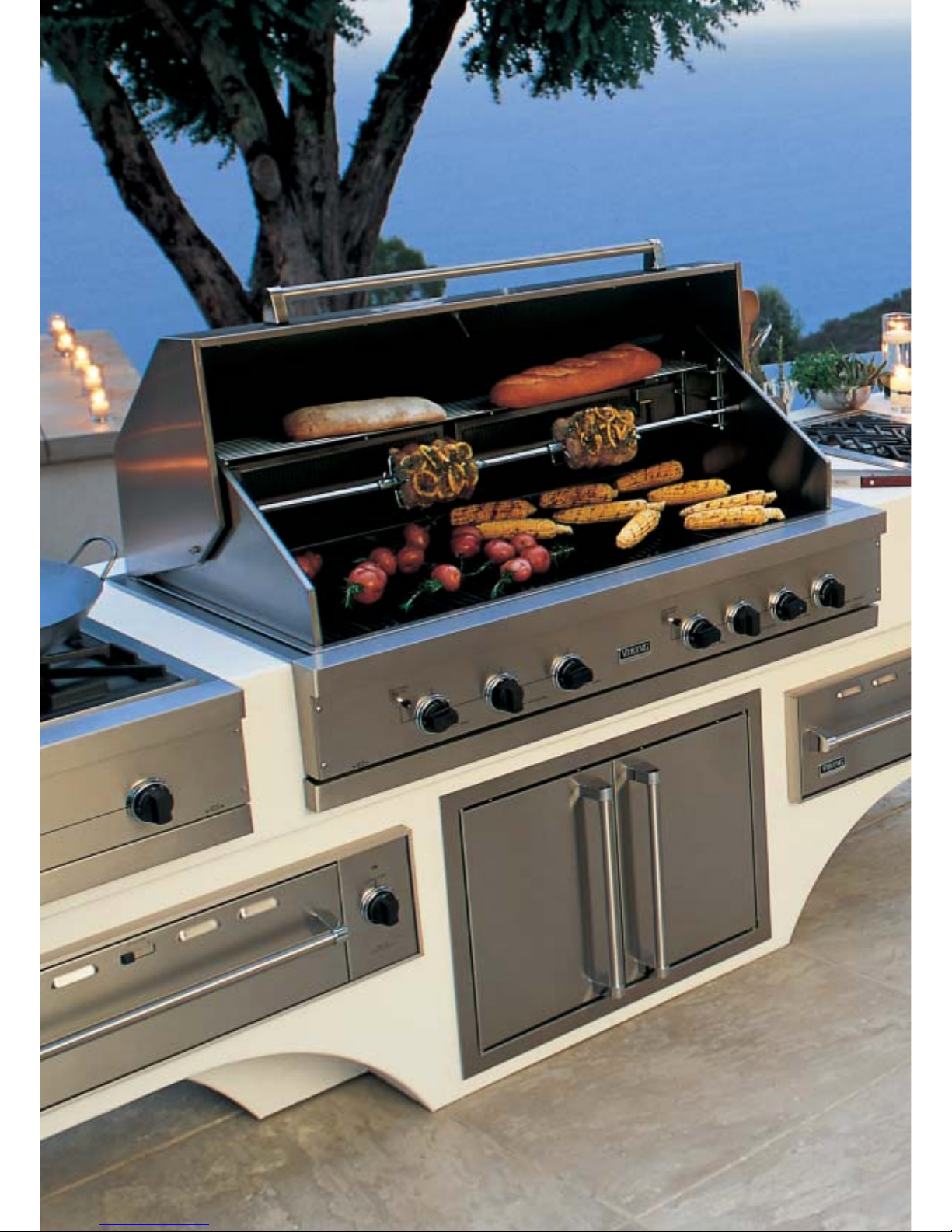

Access doors provide attractive storage

space underneath built-in units.

Surface configurations

DVGBQ300-2RTL

76 cm wide with two grill areas

3.632 cm2

104 cm wide with three grill areas

5.394 cm2

DVGBQ410-3RTL

104 cm wide with double side burners

and two grill areas – 3.632 cm2

DVGBQ412-2RTL

135 cm wide with four grill areas

7.246 cm2

DVGBQ530-4RTL

135 cm wide with double side burners and

three grill areas – 5.394 cm2

DVGBQ532-3RTL

OUTDOOR GAS GRILLS

104,6 cm

74,9 cm

Overall Width

Overall Depth

Cutout Width

Cutout Depth

Smoker Burner Rating

Infrared Burner Ratings

Description

Cutout Height

Gas Requirements

Electrical Requirements

Grill Burner Rating

Approximate Shipping

Weight

72,7 cm 102,2 cm

26,0 cm

83,2 cm

71,1 cm

Propane G31/Butane G30: Installer to equip with high-capacity hose/regulator assembly for connec-

tion to standard 5-6 kg gas cylinder. Shipped LP (propane); field convert to butane with kit LKQ15.

146 kg DVGBQ410T

171 kg

DVGBQ412T

158 kg

9-volt DC battery for electronic ignition

240V/50 Hz; 61,0 cm grounded plug attached to rotisserie motor

DVGBQ300T

4,0 kW LP

DVGBQ410T

4,0 kW LP

DVGBQ412T

4,0 kW LP

3,1 kW LP

Side Burner Rating

(if applicable)

4,0 kW LP

6,5 kW LP

135,1 cm

DVGBQ300T

76 cm wide

DVGBQ410T/DVGBQ412T

104 cm wide

DVGBQ530T/DVGBQ532T

135 cm wide

132,7 cm

DVGBQ530T

221 kg

DVGBQ532T

207 kg

DVGBQ530T

4,0 kW LP

DVGBQ532T

4,0 kW LP

Basic specifications – outdoor gas grills

F60069 0203-UK

Viking Europe SAS

3 Avenue des Vosges

F-67000 Strasbourg

France

For product information,

call: + 33 (0) 3 90 221 080,

or e-mail: [email protected]

Specifications subject to change without notice.

Not all models available for sale in all markets.

Bradshaw Appliances, Ltd.

Kenn Road

Clevedon, Bristol B521 6LH

England, United Kingdom

Tel: 012 75 343 000

Fax: 012 75 343 454

e-mail: info@bradshaw.co.uk

www.bradshaw.co.uk
