Installation
GUIDE
7 SERIES
Multi-Unit Refrigeration Connector Kit
CKVBI
2
Parts included Tools Needed
Heater (1)
Center Trim Brackets (2)
Center Trim (1)
Top Connecting Plate (1)
Rear Connecting Plate (1)
1/4”-20 x 3/4”Connecting Plate Fasteners (6)
#8-18 x 1/2”Heater Fasteners (3)
Drill (Not to be used on the leveling feet)
Drill Bits - 3”Phillips (PH2), Torx (T15 & T20)
1/4”& 5/16”Hex Drive
Rubber Mallet
3/8”Wrench
1/8”Allen Wrench
Parts Included____________________________________________________________________________________________2
Tools Needed ____________________________________________________________________________________________2
Cutout dimensions________________________________________________________________________________________3
Specications ____________________________________________________________________________________________4
Anti-tip location __________________________________________________________________________________________7
Preparing Units for Installation ______________________________________________________________________________8
Installation ______________________________________________________________________________________________10
Table of Contents

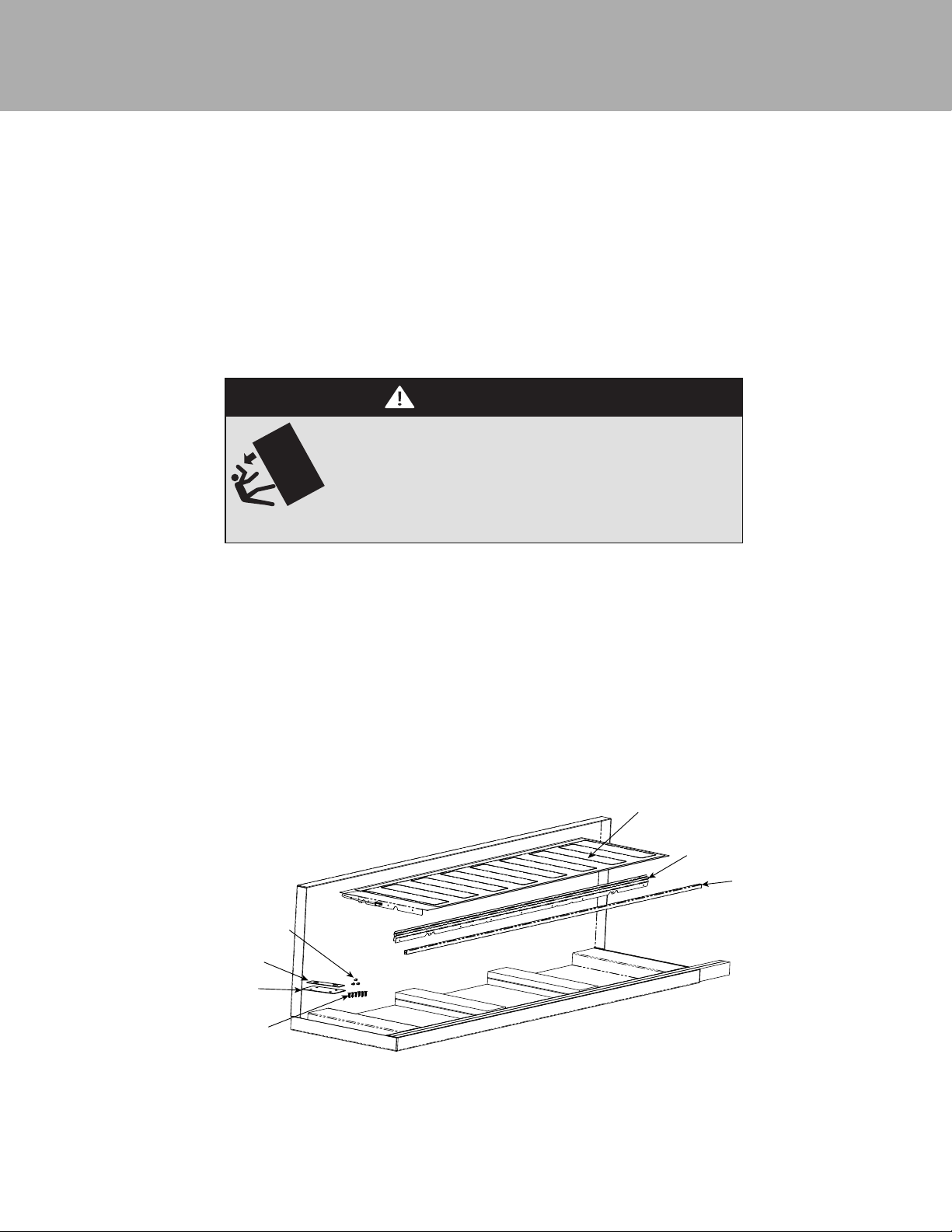

NOTE: These instructions include information on how to install multiple 7 Series refrigeration units. For information on
dimensions, specications, and installation of single units, please refer to the installation guide included with the appliances.
WARNING
TIP OVER HAZARD
Appliance is top heavy and tips easily when not completely
installed. Keep doors closed until appliance is completely installed
and secured per installation instructions.
Use two or more people to move and install appliance. Failure to do
so can result in death or serious injury.
8-18 x 1/2”Heater Fasteners (Item 7)
Rear Connecting Plate (Item 5)
Top Connecting Plate (Item 4)
1/4”-20 x 3/4”Connecting Plate
Fasteners (Item 6)
Heater (Item 1)
Center Trim Brackets (Item 2)
Center Trim (Item 3)
3
Cutout Dimensions
Can be located on either side
84”
(213.4 cm) min.
opening height
85-3/16”
(216.3cm) max.
opening height
*Refer to Specification
chart for
specific Models
25”
(63.5 cm)
Electric Outlet Location
Water Line Entry Area
3”
(7.6 cm)
6”
(15.2 cm)
5/8”
(1.6 cm)
*Cutout
Width
1/2”
(1.3 cm)
15-1/2”
(39.4 cm)
4-1/4”
(10.8 cm)
+
leveling
dimension
*Note: For all models, 3” back from the front of the cabinet
on both sides needs to be nished like the outside of the
cabinets
*
4
Specications
Refer to Installation Guides included with unit for individual dimensions.
Below is a common install chart for reference.
Size Combination Cabinet Cutout Width Cabinet Cutout Height
(same for all)
Cabinet Cutout Depth
(same for all)
Optional
Kickplate
18”W / 24”W Models 42”(106.7 cm)
84”(213.4 cm) min
85-3/16”(216.3 cm) max
25”
(63.5 cm)
TKK742SS
18”W / 30”W Models 48”(121.9 cm) TKK748SS
18”W / 36”W Models 54”(137.2 cm) TKK754SS
24”W / 24”W Models 48”(121.9 cm) TKK748SS
24”W / 30”W Models 54”(137.2 cm)” TKK754SS
24”W / 36”W Models 60” (152.4 cm) TKK760SS
30”W / 30”W Models 60”(152.4 cm) TKK760SS
30”W / 36”W Models 66”(167.6 cm) TKK766SS
36”W / 36”W Models 72”(182.9 cm) TKK772SS
For muti-unit installation, add the width of the units together for cabinet cutout width.
For example: 18”+ 24”+ 24”= 66”W.
5
Anti-tip Location
C
C
Cabinet
Rear
Floor A
Cabinet
Opening
Dimension A = Cabinet opening minus the refrigerator height + 1-1/4" (3.2 cm)
Ex. - Cabinet opening height - 85”
Minimum refrigerator height (sitting on rollers) - 83 15/16”
A = 85”- 83-15/16” +1-1/4” = 2-5/16”
Anti-tip Bracket
The anti-tip bracket has several holes set up on a grid in order to better
locate a wall stud. At least 4 places must be used. Anti-tip Bracket must
be centered in cutout - side to side.
NOTE: Number and type of fasteners must be suitable in order to
prevent tipping. For example: use wood screws into wall studs or
masonry anchors if attaching to stone, brick or concrete.
If a wall stud can not be found or when
installing the 18”model, use the lower
section of the bracket and mount to the
base board
6
Preparing Units for Installation
Before removing units from pallet, remove the side trim from each unit, install center trim brackets and connection heater (steps 1
thru 4). Make sure units are unplugged and powered o.
Look closely at the trim already installed on the unit.
If the trim resembles that in Trim A, it will need to be
removed and replaced with Trim B. If the trim already
resembles Trim B, leave as is.
REMOVE TRIM A INSTALL TRIM B
A
A
7
Preparing Units for Installation
3. Fasten heater (Item #1) to the three mounting holes on top of the right hand unit using the #8-18 x 1/2”fasteners (Item #7)
provided.
4. Plug heater terminal into right hand unit using the plug located next to the unit on/o switch.
8
Installation
WARNING
TIP OVER HAZARD
Appliance is top heavy and tips easily when not completely
installed. Keep doors closed until appliance is completely installed
and secured per installation instructions.
Use two or more people to move and install appliance. Failure to do
so can result in death or serious injury.
5. Remove units from pallets and position together
outside of the cabinet so that top connecting plate
(Item #4) can be installed. If installing on uneven
surfaces, use unit leveling feet to adjust units to that
they are at the same height.
7. Fasten rear connecting plate (Item #5) to the
threaded mounting holes provided on the
rear of the unit using the 1/4”-20 x 3/4”(Item
#6) fasteners. DO NOT install using a drill.
Use manual allen wrench. (See Illustration B).
Loosely attach the bracket allowing it to pivot.
Tightening the screws will result in the bracket
bending and causing misalignment of the rear
of the units.
6. Install top connecting plate to the threaded
mounting holes provided on the top of the
cabinet using the 1/4”-20 x 3/4”(Item #6)
fasteners. DO NOT install using a drill. Use
manual allen wrench. (See Illustration A)
A.
B.
*
A.
B.
Note: *If one or both units have (4)
screw holes, attach using the top
two holes.
9
Installation
8. If unit leveling feet were used, lower units back onto rollers. Plug in electrical supply and roll connected units into cabinet
cutout. Units must be plugged into separate electric outlets. Connect water supply to each unit.
9. Lift units to desired height using 5/16”socket and hand ratchet. DO NOT USE A DRILL-(refer to lift pattern diagram below to
ensure that units are gradually lifted together.) **IMPORTANT** - Only make 4 turns at a time with the hand ratchet**. Attach
units to cabinet side trim and fasteners included with the units. Install stainless magnetic side trim once fastened. (Use
installation guide included with individual units as a reference.)
.125”
WHEN INSTALLED
2
7
6
3
4
5
8
1
FRONT FRONT
REARREAR
Lift Pattern Diagram
10
Installation
10. Remove plastic lm from center trim before installing. Install center connecting trim (Item #3) in between the two units by
pressing it in. Trim should be even with the top of the units. If needed, tap connecting trim gently into place with rubber
mallet.
NOTE: Open both doors to install the trim. When installed, the
face of the trim should be ush with the breaker frame.
11. Once the connection to the heater and the unit installation is complete, you will need to enable the heater which was plugged
into the right hand unit. (Step 4 on page 7).
To enable the heater, on the control panel* of the
right hand unit, press the VAC and UP arrow key and
hold for 5 seconds. You will hear an alarm beep once
when it accepts the entry.
*NOTE: Control panel may vary depending on model
being installed.
