ViewSonic VP191b Manual de usuario

ViewSonic®

- User Guide

- Guide de l'utilisateur

- Bedienungsanleitung

- Guía del usuario

- Guida dell'utente

- Guia do usuário

- Användarhandbok

- Käyttöopas

- Podręcznik użytkownika

- Használati útmutató

- Pyководство польэователя

- Uživatelská píruka

- ユーザーズガイド

- 使用手冊

- 사용자 안내서

VP191b/VP191s

LCD Display

Get other manuals https://www.bkmanuals.com

ViewSonic VP191b/VP191s

Content

Compliance Information.............................................................................. 1

Important Safety Instructions...................................................................... 2

Product Registration................................................................................... 3

For Your Records ....................................................................................... 3

Getting Started

Package Contents ...................................................................................... 4

Precautions ................................................................................................ 4

Quick Installation ........................................................................................ 5

Landscape/Portrait Modes.......................................................................... 6

To Raise and Lower the display.................................................................. 6

Installation of Wall Mount (Optional)........................................................... 7

Using the LCD Display

Setting the Timing Mode............................................................................. 8

OSD and Power Lock Settings................................................................... 8

Adjusting the Screen Image ....................................................................... 9

Main Menu Controls ................................................................................. 10

Other Information

Specifications ........................................................................................... 15

Troubleshooting........................................................................................ 16

Customer Support .................................................................................... 17

Cleaning the LCD Display ........................................................................ 18

Limited Warranty ...................................................................................... 19

Get other manuals https://www.bkmanuals.com

ViewSonic VP191b/VP191s 1

Compliance Information

For U.S.A.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Warning

To assure continued FCC compliance, the user must use grounded power supply cord and the

cables which are included with the equipment or specified. Also, any unauthorized changes or

modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate this device.

For Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing

Equipment Regulations.

Cet appareil numeique de la Classe B repecte toutes les exigences du Reglement sur le materiel

brouilleur du Canada.

CE Conformity for European Countries

CE Conformity

The device complies with the requirements of the EEC directive 89/336/EEC as

amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic

compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to

“Safety.”

Get other manuals https://www.bkmanuals.com

ViewSonic VP191b/VP191s 2

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

devices (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug

has two blades with one wider than the other. A grounding type plug has two blades and a

third grounding prong. The wide blade or the third prong are provided for your safety. If

the provided plug does not fit into your outlet, consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure that the

power outlet is located near the unit so that it is easily accessible.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the unit. When a cart is used, use caution when moving the cart/unit combination

to avoid injury from tip-over

13. Unplug this unit when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the unit has

been damaged in any way, such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the unit, the unit has been exposed to rain or moisture,

does not operate normally, or has been dropped.

Get other manuals https://www.bkmanuals.com

ViewSonic VP191b/VP191s 3

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of

Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and

DDC are trademarks of VESA.

ENERGY STAR®is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR®partner, ViewSonic Corporation has determined that this product meets

the ENERGY STAR®guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or consequential damages resulting from

furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right

to change product specifications without notice. Information in this document may change

without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any

purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The

ViewSonic®Wizard CD-ROM also provides an opportunity for you to print the registration

form, which you may mail or fax to ViewSonic.

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of this

product properly at the end of its useful life. For TCO'03 recycling information, please refer to

our website:

1. USA: www.viewsonic.com/pdf/recyclePlus.pdf

2. Europe: www.viewsoniceurope.com

3. Taiwan: recycle.epa.gov.tw

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

ViewSonic VP191b/s

VLCDS25973-2W/3W

VP191b/s-2_UG_ENG Rev. 1A 12-06-04

__________________________________

Get other manuals https://www.bkmanuals.com

ViewSonic VP191b/VP191s 4

Getting Started

Congratulations on your purchase of a ViewSonic®LCD display.

Important! Save the original box and all packing material for future shipping needs.

NOTE: The word “Windows” in this user guide refers to the following Microsoft operating

systems: Windows ‘95, Windows NT, Windows ‘98, Windows 2000, Windows Me

(Millennium), and Windows XP.

Package Contents

Your LCD display package includes:

• LCD display

• Power cord

• Video cables (VGA and DVI)

• ViewSonic Wizard CD-ROM

• Perfect PortraitTM software CD-ROM (VP191b/VP191s)

NOTE: The CD jacket contains the Quick Start Guide, and the CD includes the User Guide

PDF files and INF/ICM display optimization files. The INF file ensures compatibility with

Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-

screen colors. ViewSonic recommends that you install both files.

Precautions

• Sit at least 18” from your LCD display.

•Avoid touching the screen. Skin oils are

difficult to remove.

•Never remove the rear cover. Your LCD

display contains high-voltage parts. You

may be seriously injured if you touch

them.

• Avoid exposing your LCD display to direct

sunlight or another heat source. Orient

your LCD display away from direct

sunlight to reduce glare.

• Always handle your LCD display with

care when moving it.

• Place your LCD display in a well

ventilated area. Do not place anything on

your LCD display that prevents heat

dissipation.

• Ensure the area around the LCD display is

clean and free of moisture.

• Do not place heavy objects on the LCD

display, video cable, or power cord.

• If smoke, abnormal noise, or strange odor

is present, immediately switch the LCD

display off and call your dealer or

ViewSonic. It is dangerous to continue

using the LCD display.

Get other manuals https://www.bkmanuals.com

ViewSonic VP191b/VP191s 5

Quick Installation

1. Connect power cord and AC/DC

adapter

2. Connect video cable

• Make sure both the LCD display and

computer are turned OFF

• Remove rear panel covers if necessary

• Connect the video cable from the LCD

display to the computer

Macintosh users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the video

cable into the adapter.

To order a ViewSonic®Macintosh adapter,

contact ViewSonic Customer Support.

3. Turn ON LCD Display and computer

Turn ON the LCD display, then turn ON

the computer. This sequence (LCD display

before computer) is important.

NOTE: Windows users may receive a

message asking them to install the INF

file. This is on the CD.

4. Insert the ViewSonic Wizard CD into

the computers CD drive.

Follow the on-screen instructions. If your

computer does not have a CD-ROM drive,

see “Customer Support” on page 17.

• Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-

start: double-click on the CD-ROM icon in

the Windows Explorer, then double-click

on viewsonic.exe.

• Follow the on-screen instructions.

5. Windows users: Set the timing mode

(resolution and refresh rate)

Example: 1280 x 1024 @ 60 Hz.

For instructions on changing the resolution

and refresh rate, see the graphic card’s user

guide.

Installation is complete. Enjoy your new

ViewSonic, LCD display.

To be best prepared for any future

customer service needs: print this user

guide and write the serial number in “For

Your Records” on page 3. (See back of

LCD display.)

You can register your product online at the

website for your region. See the Customer

Support table in this guide.

The ViewSonic Wizard CD-ROM also

provides an opportunity for you to print

the registration form which you may mail

or fax to ViewSonic.

DVI-D

D-SUB 2

D-SUB 1

AC IN

Power Switch

Power Code

AC Outlet

(Wall Socket) Computer Power Cord

Get other manuals https://www.bkmanuals.com

ViewSonic VP191b/VP191s 6

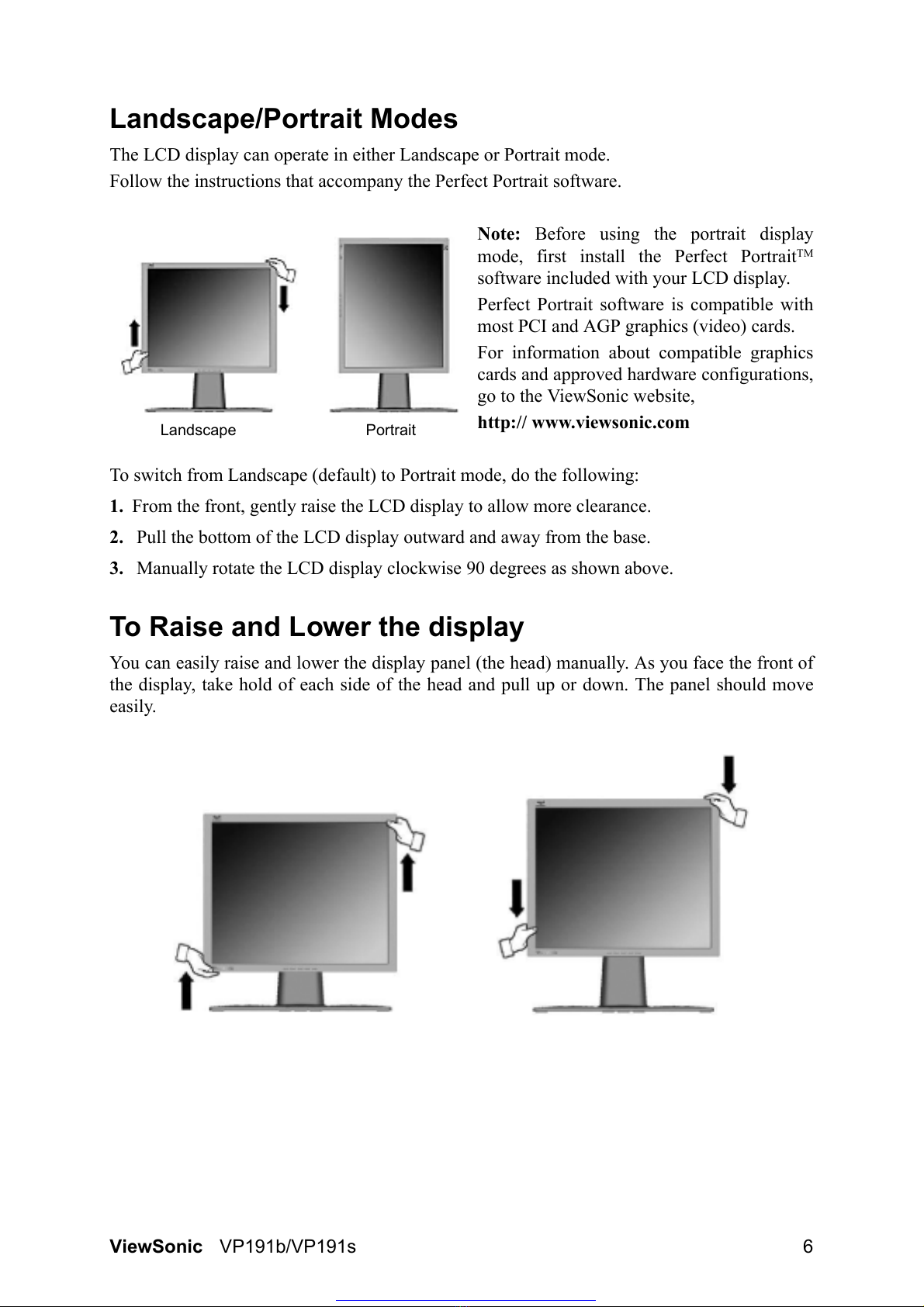

Landscape/Portrait Modes

The LCD display can operate in either Landscape or Portrait mode.

Follow the instructions that accompany the Perfect Portrait software.

Note: Before using the portrait display

mode, first install the Perfect PortraitTM

software included with your LCD display.

Perfect Portrait software is compatible with

most PCI and AGP graphics (video) cards.

For information about compatible graphics

cards and approved hardware configurations,

go to the ViewSonic website,

http:// www.viewsonic.com

To switch from Landscape (default) to Portrait mode, do the following:

1. From the front, gently raise the LCD display to allow more clearance.

2. Pull the bottom of the LCD display outward and away from the base.

3. Manually rotate the LCD display clockwise 90 degrees as shown above.

To Raise and Lower the display

You can easily raise and lower the display panel (the head) manually. As you face the front of

the display, take hold of each side of the head and pull up or down. The panel should move

easily.

Landscape Portrait

Get other manuals https://www.bkmanuals.com

ViewSonic VP191b/VP191s 7

Installation of Wall Mount (Optional)

To obtain a wall-mounting kit, contact ViewSonic or your local dealer. Refer to the instructions

that come with the base mounting kit. To convert your LCD display from a desk-mounted to a

wall-mounted display, do the following:

1. Disconnect Power.

2. Lay the LCD display face down on a towel or

blanket.

3. Pull the back plate away from the head of the

LCD display. Let the plate hang on the neck of the

LCD display as shown on the left. Notice the four

screws.

4. Remove the four screws from the back plate.

5. Attach the mounting bracket from the VESA

compatible wall mounting kit (100 mm x 100 mm

distance).

6. Attach the LCD display to the wall, following

the instructions in the wall-mounting kit.

Remove

four

screws

Get other manuals https://www.bkmanuals.com

ViewSonic VP191b/VP191s 8

Using the LCD Display

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the screen image and

minimizing eye strain. The timing mode consists of the resolution (example 1280 x 1024) and

refresh rate (or vertical frequency; example 75 Hz). After setting the timing mode, use the

OnView®controls to adjust the screen image.

For the best picture quality set your LCD display timing mode to:

VESA 1280 x 1024 @ 60Hz.

To set the Timing Mode:

1. Set the resolution: Right-click on the Windows desktop > Properties > Settings > set the

resolution.

2. Set the refresh rate: See your graphic card's user guide for instructions.

WA R N IN G : Do not set the graphics card in your computer to exceed the maximum refresh

rate of 75Hz; doing so may result in permanent damage to your LCD display.

OSD and Power Lock Settings

•OSD Lock: Press and hold [1] and the up arrow Sfor 10 seconds. If any buttons are

pressed the message OSD Locked will display for 5 seconds.

•OSD Unlock: Press and hold [1] and the up arrow Sagain for 10 seconds.

•Power Button Lock: Press and hold [1] and the down arrow Tfor 10 seconds. If the

power button is pressed the message Power Button Locked will display for 5 seconds. With

or without this setting, after a power failure, your LCD display’s power will automatically

turn ON when power is restored.

•Power Button Unlock: Press and hold [1] and the down arrow Tagain for 10 seconds.

Get other manuals https://www.bkmanuals.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de ViewSonic

ViewSonic

ViewSonic VX1935wm Manual de usuario

ViewSonic

ViewSonic VA2246m-LED Manual de usuario

ViewSonic

ViewSonic VG910B - 19" LCD Monitor Manual de usuario

ViewSonic

ViewSonic airpanel V110 Instrucciones de instalación

ViewSonic

ViewSonic VG730M - 17" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VA1703w-1 Manual de usuario

ViewSonic

ViewSonic CDP3235 Manual de usuario

ViewSonic

ViewSonic VP2365WB - 23" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VS18563 Manual de usuario

ViewSonic

ViewSonic VP2655WB - 26" LCD Monitor Manual de usuario

ViewSonic

ViewSonic P90F Manual de usuario

ViewSonic

ViewSonic VG2027wm Manual de usuario

ViewSonic

ViewSonic VA903MB - 19" LCD Monitor Manual de usuario

ViewSonic

ViewSonic PT770 - 17" CRT Display Manual de usuario

ViewSonic

ViewSonic IFP50-3 Series Manual de usuario

ViewSonic

ViewSonic VA1918wm Manual de usuario

ViewSonic

ViewSonic Optiquest Q170 Manual de usuario

ViewSonic

ViewSonic E651 Manual de usuario

ViewSonic

ViewSonic G70F - 17" CRT Display Manual de usuario

ViewSonic

ViewSonic E70mb Manual de usuario

ViewSonic

ViewSonic VG510s Manual de usuario

ViewSonic

ViewSonic XG321UG Manual de usuario

ViewSonic

ViewSonic LCD Display VS11280 Manual de usuario

ViewSonic

ViewSonic PD2211 Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
