ViewSonic ND4200 Manual de usuario

ViewSonic ND4200/ND5000 i

ViewSonic and the three birds logo are registered trademarks of ViewSonic Corporation.

Tivella and the Tivella logo are trademarks of Tivella, Inc.

Cisco is a registered trademark and this document may include service marks of

Cisco Systems, Inc. and/or its affiliates in the U.S. and other countries.

Corporate names and trademarks are the property of their respective companies.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors

or omissions contained herein; nor for incidental or consequential damages resulting

from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves

the right to change product specifications without notice. Information in this

document may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means,

for any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it

becomes available, please register your product on the Internet at:

www.viewsonic.com.The ViewSonic product also comes with a CD-ROM that has

a registration form that you can print and mail or fax to ViewSonic Corporation.

Product disposal at end of product life

ViewSonic is concerned about the preservation of our environment. Please dispose of

this product properly at the end of its useful life. Your local waste disposal company

may provide information about proper disposal.

For Your Records

Model Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

ND4200

ND5000

VS10713 for ND4200

VS10714 for ND5000

ND4200/ND5000_UG_ ENG_Rev1A 11 May 2006

_______________

Contents

ViewSonic ND4200/ND5000 ii

INTRODUCTION

Packaged Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Two Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . 2

Two Modes of Communication . . . . . . . . . . . . . . . . . . . . 3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

SETTING UP THE NETWORK DISPLAY

Connect to a Switch or Router . . . . . . . . . . . . . . . . . . . . 7

Connect External Speakers (optional) . . . . . . . . . . . . . . 9

Turn Power On to the Network Display . . . . . . . . . . . . . 9

MANAGEMENT

Startup URLs/Network Configuration . . . . . . . . . . . . . . .11

Browser Configuration . . . . . . . . . . . . . . . . . . . . . . . . . .12

VNC client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Video/Audio Configuration . . . . . . . . . . . . . . . . . . . . . . .15

TAS Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

System Services Configuration . . . . . . . . . . . . . . . . . . . .17

FTP server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

ViewSonic ND4200/ND5000 iii

ACTIONS

Video Multicast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Video HTTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

VNC client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Transparency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Go to URL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

ADMINISTRATION

Advanced Video Configuration . . . . . . . . . . . . . . . . . . . 25

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Save Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Firmware Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

HELP

Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

About . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

APPENDIX

Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

ViewSonic ND4200/ND5000 1

INTRODUCTION

Thank you for buying the ViewSonic®Network Display. This section introduces

you to the ND4200/ND5000 Network Display.

Packaged Contents

Please check that all the following items are in the package:

Optional Accessories

The accessories listed below are available at viewsonic.com

• USB Wi-Fi adapter

• Wall mount kit

• Detachable speakers

Requirements

The ND4200/ND5000 Network Display requires:

•ViewSonic ND4200/ND5000 Network Display connected to AC power and a

network or internet connection

• Streaming video server and/or live encoder

• Wireless network connection if using the ND4200/ND5000 wireless support

option

ND4200/ND5000 Network Display

Remote Control

with two AA batteries

ViewSonic CD

Quick Start Guide AC Power Cord

Quick Start Guide

ViewSonic ND4200/ND5000 2

Two Modes of Operation

Standalone

The setup allows the ND4200/ND5000 Network Display to act as an independent

network device controlled by one server.

TAS Managed

You can purchase Tivella Administration Server (TAS) separately through Tivella

(www.tivella.com or a Tivella dealer/reseller). A TAS server should be used to

configure and manage multiple Network Displays remotely. TAS provides

centralized scheduling of video content presentation on multiple Network Displays,

as well as management and seamless operation of a Cisco®ACNS Content

Distribution Networking infrastructure if one is installed. This configuration greatly

reduces maintenance overhead, when TAS and the Network Display are connected

to the network (LAN/WAN) with the TAS acting as a manager for multiple Network

Displays.

ND4200/ND5000

Network Display Switch or

Router

Ethernet cable

PC to

access

TAS

ND4200/ND5000

Network Display Switch or Router

PC to

control

TAS

ViewSonic ND4200/ND5000 3

Two Modes of Communication

There are two modes of communication with the ND4200/ND5000 Network

Display: an HTTP web interface and a Telnet advanced command line interface. This

document focuses on the web interface only.

Features

• Bright plasma type display ideal for advertisement and video playback

• Integrated display for A/V IP delivery

• Multiple Network Displays can be daisy chained with different IP addresses

• Supports scheduling of different video content across multiple displays

• No need for additional external PC or set-top box with a switch

• Remote management controll and status reporting

• MPEG A/V decoding, MPEG 1/2/4, WMV9, Macromedia Flash

• Auto-MDIX (no crossover cabling)

• Powerful combination of the Sigma Design®EM8621L and the Freescale®

MPC8247 for smooth playback

• Can be installed with an optional wall mount

• Uses Tivella®content management software

• Devices can be remotely controlled from virtually anywhere with a network or

internet connection

• Wireless Ethernet support eliminates the need to run cables to an existing

network

• Remote management allows you to adjust the screen and see valuable

information without being physically in front of the unit

• Network ready, easy installation

• Optional local content buffering or storing in CF card

ViewSonic ND4200/ND5000 4

Front View

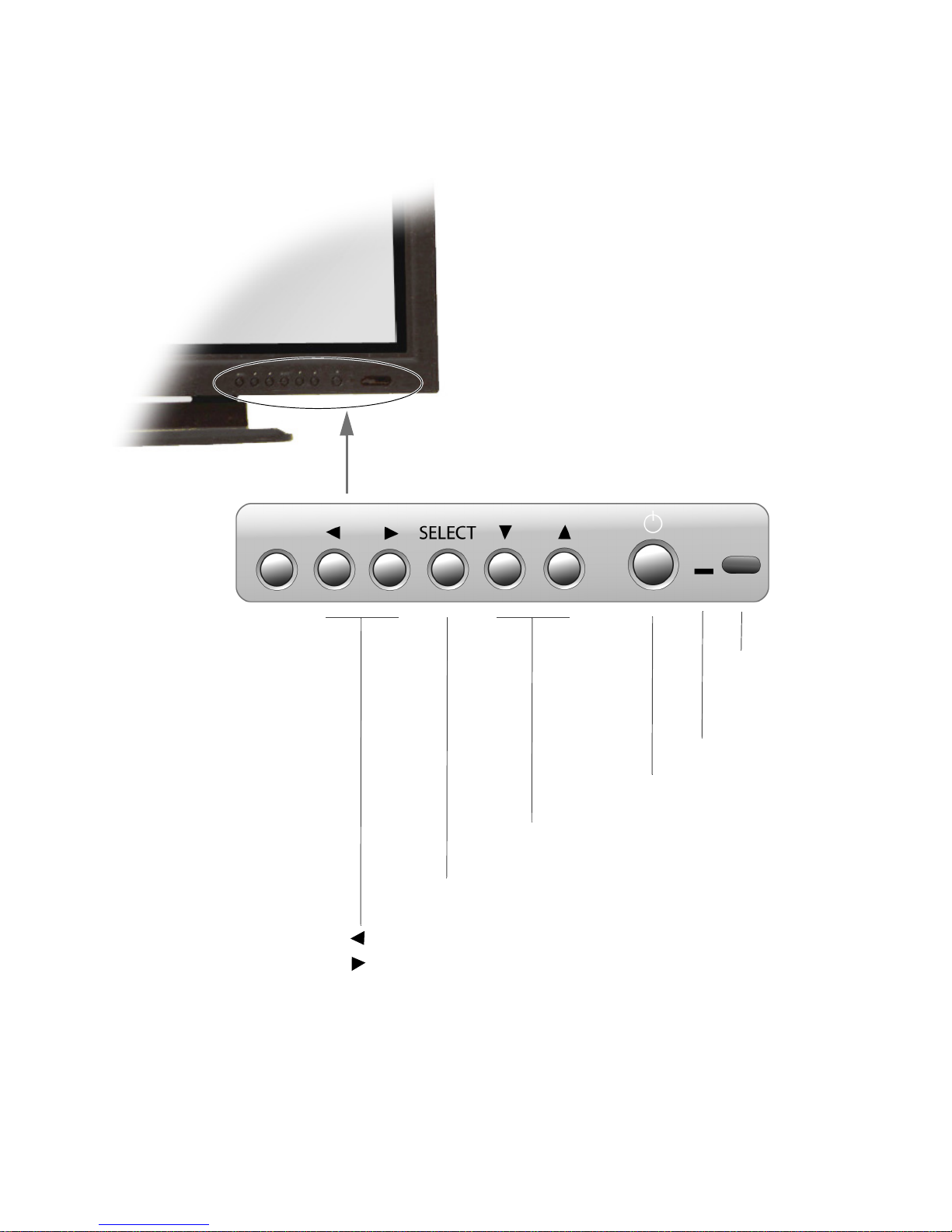

VOLUME decrease

VOLUME increase

CHANNEL

Up / Down

SELECT items

on a menu

Remote

Control IR

Sensor

POWER LED

POWER ON/OFF

Standby/ON

ViewSonic ND4200/ND5000 5

Back View

Side View

Power button

Hand grip

ViewSonic ND4200/ND5000 6

Remote Control

POWER button

On/Standby
