GT775 Color Monitor

SonicTron®

User’s Guide

Guide de l’utilisateur

Bedienungsanleitung

(Latin American Spanish)

(Italian)

(Brazilian Portuguese)

(Swedish)

(Russian)

(Japanese)

(Traditional Chinese -Taiwan)

(Simplified Chinese - China)

(Korean)

ViewSonic GT775

For your records

The serial number of this product is on the back of the monitor.Write the serial

number in the space below and keep this guide as a permanent record of your

purchase to aid in identification in the event of theft or loss.

Product Name: ViewSonic GT775

Model Number: VCDTS 21397-2

Serial Number: ______________________

Purchase Date: ______________________

IBM XT, AT, 386, 486, Power PC, and PS/2 are registered trademarks and/or trademarks of

International Business Machines Corporation.

Pentium is a trademark of Intel Corporation.

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Windows is a registered trademark of Microsoft Corporation.

ViewSonic, OnView, ViewMatch, SonicTron, ViewMeter, and ARAG are registered trademarks of

ViewSonic Corporation. Display Suite is a trademark of ViewSonic Corporation.

VESA and EDID are registered trademarks of the Video Electronics Standards Association (VESA).

DPMS and DDC are trademarks of VESA.

ENERGY STA R is a registered trademark of the U.S. Environmental Protection Agency (EPA).

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this

material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to

change product specifications without notice. Information in this document may change without

notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from ViewSonic Corporation.

ViewSonic GT775

Safety Guidelines

Caution: Use a power cable that is properly grounded. Always use the AC cords listed

below for each area:

USA . . . . . . . . . . . . . . . . . . . . . . . . UL

Canada . . . . . . . . . . . . . . . . . . . . . CSA

Germany . . . . . . . . . . . . . . . . . . . . VDE

Switzerland . . . . . . . . . . . . . . . . . . SEV

Britain . . . . . . . . . . . . . . . . . . . . . . . BASEC/BS

Japan . . . . . . . . . . . . . . . . . . . . . . . Electric Appliance Control Act

In other areas, use AC cord which meets local safety standards.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules.These limits are designed to provide

reasonable protection against harmful interference in a residential installation.This

equipment generates, uses, and can radiate radio frequency energy, and if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause unacceptable interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

●Consult your dealer or an experienced radio/TV technician for help.

FCC Warning:

To assure continued FCC compliance, the user must use a grounded power

supply cord and the provided shielded video interface cable with bonded

ferrite cores. Also, any unauthorized changes or modifications to this monitor

would void the user’s authority to operate this device.

Power Supply Cord (USA)

For units with 100-120V input voltage in the USA, use the following:

UL Listed and CSA CertifiedType SVT or SJT No. 18/3 AWG rated 125VAC 7A minimum.

One end terminated in a molded on parallel blade, grounding attachment cap or hooded

attachment cap (15A, 125V configuration), other end terminated in a molded on appliance

coupler.

Department of Industry Canada (IC) Compliance Notice

This digital apparatus does not exceed the Class B limits for radio noise emissions from

digital apparatus set out in the Radio Interference Regulations of the Canadian Department

of Communications.

DOC avis de conformation

Cet appareil est bien conforme à la directive communautaire No 82/499/CEE.

CE Certification

This device complies with the requirements of the EEC directive 89/336/EEC

with regard to "Electromagnetic compatibility."

4Getting Started

ViewSonic GT775

CONTENTS

Getting Started

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unique Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Cleaning the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Quick Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Plug & Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

DDCTM Diagnostic Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Operation

Front Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

OnView®Main Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Technical Data

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Factory Preset Timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting

Problem Solving Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . back cover

ViewSonic GT775

Getting Started

Congratulations on your purchase of a ViewSonic GT775 SonicTron®

monitor. Important! Save the original box and all packing material for

future shipping needs.

NOTE: The word "Windows" in this user's guide refers to the following Microsoft

operating systems: Windows 95, Windows 98, Windows NT (5.0).

Package Contents

Your ViewSonic GT775 package includes the following:

•ViewSonic GT775 monitor

•Video cable with 15 pin mini D-sub connector

•Power cord

•User’s guide

•Software diskette or CD-ROM which includes:

•ViewSonic®monitor installation file (VS*.inf — Windows Information

for Plug & Play). (See page 8.)

•Macintosh adapter

Unique Features

•Provides sharp, flicker-free images resulting from a high resolution, high

contrast 17" (16.0" diagonal viewable) SonicTron®color CRT, with

0.25mm aperture grille pitch utilizing non-interlaced technology.

•Displays VGA, SVGA, and high resolution video modes up to 1600 x 1280

for IBM or PC compatibles, as well as resolutions up to 1280 x 1024 for

Power Macintosh®and Macintosh compatibles.

•Has ARAG®treatment, reducing glare, reflection, and eye strain.

•Certified by TCO '95 — This monitor complies with the world's strictest

standards on low radiation, safety, ergonomics, recycling and power

management. Saves costs through automatic power saving modes that

reduce cooling requirements while ensuring user peace of mind and is

environmentally friendly.

•Conforms to VESA®DPMSTM standards and controls energy consumption

when the monitor is not in use.

•Equipped with DDC1TM and DDC2BTM for Plug & Play compatibility.

•Complies with ENERGY STAR®guidelines. As an ENERGY STAR partner,

ViewSonic has designed this product to meet the ENERGY STAR guidelines

for energy efficiency.

6Getting Started

ViewSonic GT775

Cleaning the Monitor

• MAKE SURE THE MONITOR IS TURNED OFF.

• NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE

SCREEN OR CASE.

To clean the screen

1Wipe the screen with a clean, soft, lint-free cloth. This removes dust and

other particles.

2If still not clean, apply a small amount of non-ammonia, non-alcohol

based glass cleaner onto a clean, soft, lint-free cloth, and wipe the

screen.

To clean the case

1Use a soft, dry cloth.

2If still not clean, apply a small amount of a non-ammonia, non-alcohol

based, mild non-abrasive detergent onto a clean, soft, lint-free cloth,

then wipe the surface.

DISCLAIMER

ViewSonic does not recommend the use of any ammonia or alcohol-based cleaners

on the monitor screen or case. Some chemical cleaners have been reported to

damage the screen and/or case of the monitor.ViewSonic will not be liable for damage

resulting from use of any ammonia or alcohol-based cleaners.

Precautions

•For the best viewing conditions, sit at least 18" from the monitor.

• AVOID TOUCHING THE SCREEN WITH YOUR FINGERS. Oils from the

skin are difficult to remove.

•NEVER REMOVE THE REAR COVER. The monitor contains high-voltage

parts. You may suffer serious injury if you touch these parts.

• Avoid exposing the monitor to direct sunlight or another heat source. The

monitor should be facing away from direct sunlight to reduce glare.

•Choose a well ventilated area to position your monitor. Do not place anything

on the monitor that prevents adequate dissipation of heat.

•Ensure the area around the monitor is clean and free of moisture.

•Keep the monitor away from magnets, motors, transformers, speakers, and

televisions.

•Do not place heavy objects on the monitor, video cable, or power cord.

•If smoke, abnormal noise, or strange odor is present, immediately switch the

monitor off and call your dealer or ViewSonic®. It is dangerous to continue

using the monitor.

• Always handle the monitor with care when moving it.

ViewSonic GT775

Getting Started

ViewSonic

VIDEO

INPUT

LINE

INPUT

DOWN

ABC

8Getting Started

ViewSonic GT775

Plug & Play with Windows®

Plug and Play was designed to simplify the installation and configuration of

hardware, such as your monitor, printer, modem, etc.

After turning on your monitor, Windows either "detects" or "does not detect"

your monitor. If your monitor was not detected, make certain that the

following two files have been installed from the diskette/CD-ROM included

with your monitor onto your hard drive.

• VS*.INF (Windows Information for Plug & Play) file, and

• VS*.ICM (ICC Profile for Color Calibration) file.

From the diskette

1With your computer on, insert

the diskette into the

computer's disk drive.

2Click the Windows Start menu

button.

3Select Run.

4Type in A:\install.exe if your

disk drive is A.

Type in B:\install.exe if your

disk drive is B.

5Click OK and follow the

instructions.

6Restart your computer for the

installation to take effect.

From ViewSonic®Display SuiteTM

CD-ROM

1With your computer on, insert the

CD into the CD-ROM drive.

2Wait for the CD to automatically

start.

3Select Windows Plug & Play.

4Select Install.

5Restart your computer for the

installation to take effect.

Note: Windows '98 will automatically

load VS.INF and VS.ICM files.

Restarting your computer will not be

necessary.

DDC Diagnostic Utility

If you have an IBM or compatible computer, you can use the DDC Diagnostic

Utility to test the communication between your monitor and the DDC-

compatible* graphics card in your computer. To install the DDC Diagnostic

Utility, use the ViewSonic diskette or CD-ROM included with your monitor.

•From the diskette, run install.exe.

•From the CD-ROM, press the Test Plug & Play button.

For more information on the DDC Utility, refer to the readme.txt file on the

CD-ROM or diskette. If your monitor still fails to be detected, call customer

support. (See back cover of this manual.)

If you followed the above instructions, and Windows does not detect your

monitor, the DDCTM Diagnostic Utility may provide a solution.

*Some older computer systems are not compatible with the DDC standard. If your

monitor is displaying a monochrome image or the wrong resolution, call customer

support for a non-DDC adapter. If you upgrade to a DDC-compatible system later

and want to use Plug & Play, remove the adapter.

ViewSonic GT775

Operation

Adjust your ViewSonic GT775 monitor using the buttons on the Front Control

Panel to access the Main Menu and the Control Screens (see pages 10-13).

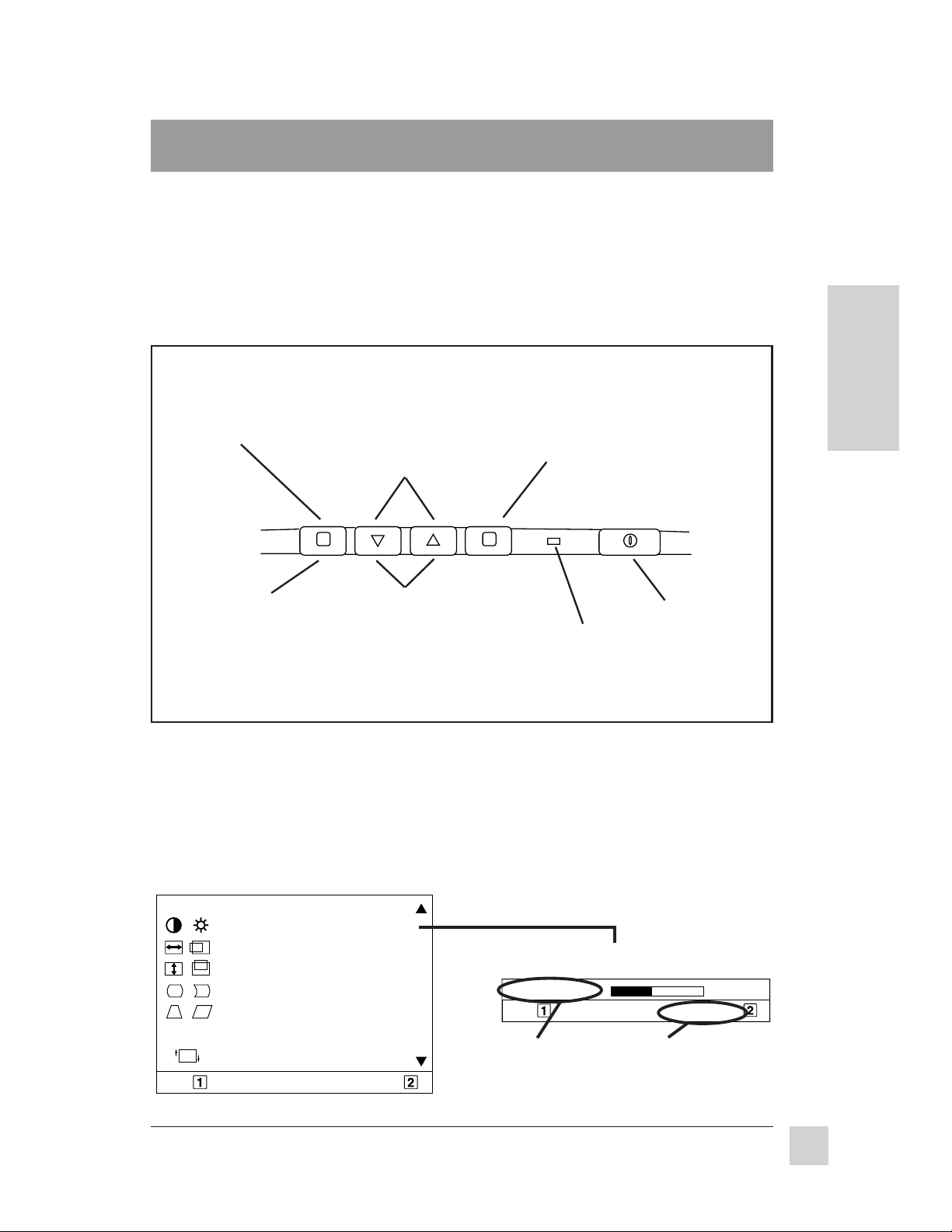

Front Control Panel

To adjust the monitor, follow the numbered steps in sequence as shown below.

OnView® Main Menu, part 1

Power light:

Green = on

Orange = power saving

mode

Press [▼] to

decrease, [▲] to

increase value of

Active Control.

Press [▼] to scroll down,

[▲] to scroll up Main

Menu to highlight name

of Control Screen to be

displayed.

Press Button [1]

to exit Control

Screen or Main

Menu and save

adjustments.

Press Button [2] to select

the control you want to

adjust. See the example

below.

➌

➎

➋

➍

➊

Press Button

[1] to display

Main Menu

Power

On/Off

Button *

EXIT: SELECT:

CONTRAST / BRIGHTNESS

H. SIZE / POSITION

V. SIZE / POSITION

PINCUSHION

TRAPEZOID / PARALLEL

HOURGLASS / CUPID BOW

TILT

Main Menu [1]

EXIT: BRIGHTNESS:

CONTRAST 40

Example of a Control Screen

Active control --

Press [▼]or [▲]

to adjust.

Press button [2] to

toggle this control to

active status

* The monitor automatically degausses each time you turn it on, removing the build-up

of magnetic fields that can affect color purity and convergence. To prevent possible

damage, wait 20 minutes between turning the monitor off and on again. See page 13

for information on how to manually degauss the monitor.

1 2

10 Operation

ViewSonic GT775

CONTRAST adjusts foreground white level of the screen image.

[▼] to decrease contrast or [▲] to increase contrast.

BRIGHTNESS adjusts background black level of the screen image.

[▼] to decrease brightness or [▲] to increase brightness.

H. SIZE (Horizontal Size) adjusts the width of the screen image. [▼]

decreases width, [▲] increases width.

H. POSITION (Horizontal Size) moves the screen image l

eft or right.

[▼] moves screen left, [▲] moves screen right.

V. SIZE (Vertical Size) adjusts the height of the screen. [▼]

decreases screen height, [▲] increases screen height.

V. POSITION (Vertical Size) moves the screen up and down. [▼]

moves screen down, [▲] moves screen up.

PINCUSHION straightens vertical sides of the screen. [▼] curves

vertical edges inward, [▲] curves vertical edges outward.

PIN BALANCE curves the vertical edges of the screen to the right or

left. [▼] curves vertical edges to the left, [▲] curves vertical edges to

the right.

TRAPEZOID makes vertical edges of the screen image parallel.

[▼] narrows top and widens bottom, [▲] widens top and narrows

bottom.

PARALLEL (Parallelogram) slants vertical edges of the screen to the

left or right. [▼] slants vertical edges to left, [▲] slants vertical edges to

right.

NOTE: Use HOURGLASS and CUPID BOW only if PINCUSHION and PIN BALANCE do

not completely straighten the vertical edges of the screen image (see below).

HOURGLASS straightens the curve at the top or bottom of vertical

edges of the screen image (appearing as "bulges"). [▼] straightens

bottom portion of vertical edges, [▲] straightens top portion of

vertical edges.

CUPID BOW straightens the slight curve along the vertical edges of

the screen image (appearing as small "ripples"). [▼] straightens

bottom portion of vertical edges, [▲] straightens top portion of

vertical edges.

TILT rotates entire screen image. [▼] rotates screen image counter-

clockwise, [▲] rotates screen image clockwise.

OnView Main Menu, part 1, continued

To exit the OnView®menu or screen & save changes, press button [1].

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de ViewSonic

ViewSonic

ViewSonic E790 - 19" CRT Display Manual de usuario

ViewSonic

ViewSonic PF790 - 19" CRT Display Manual de usuario

ViewSonic

ViewSonic VX500 - 15" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VX2255WMH Manual de instrucciones

ViewSonic

ViewSonic VX2640W - 26" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VX2250wm-LED Manual de usuario

ViewSonic

ViewSonic G810 - 21" CRT Display Manual de usuario

ViewSonic

ViewSonic VA2746MH-LED Manual de usuario

ViewSonic

ViewSonic VS12844 Manual de usuario

ViewSonic

ViewSonic VG930M - 19" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VP191b-1 Manual de usuario

ViewSonic

ViewSonic E90FMB - 19" CRT Display Manual de usuario

ViewSonic

ViewSonic VX2255wmb-4 Manual de usuario

ViewSonic

ViewSonic VP920B - ThinEdge - 19" LCD Monitor Manual de usuario

ViewSonic

ViewSonic Optiquest Q7 VS10807 Manual de usuario

ViewSonic

ViewSonic VS15882 Manual de usuario

ViewSonic

ViewSonic VG712b Manual de usuario

ViewSonic

ViewSonic VS11201 Manual de usuario

ViewSonic

ViewSonic ViewPanel VP151 Manual de usuario

ViewSonic

ViewSonic VS11369 Manual de usuario

ViewSonic

ViewSonic EP1020r Manual de usuario

ViewSonic

ViewSonic Q51 Manual de usuario

ViewSonic

ViewSonic VA2033-LED Manual de usuario

ViewSonic

ViewSonic VA2406m-LED Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
