ViewSonic G70m/G70mb Manual de usuario

G70m / Color Monitor

G70mb

With Plug and Play

Full 17" (16.0" Diagonal Viewable)

User Guide

Guide de l’utilisateur

Bedienungsanleitung

(International Spanish)

(Italian)

(Brazilian Portuguese)

(Swedish)

(Russian)

(Polish)

(Japanese)

(Trad. Chinese)

Simp. Chinese)

(Korean)

(Arabic)

ViewSonic G70m/G70mb

Getting Started

For Your Records

Write the Serial Number (see back of ViewPanel) and the Purchase Date in the

spaces below. Keep this User Guide as a permanent record of your purchase to

help with identification in the event of theft or loss.

Product Name: ViewSonic G70m/G70mb

Model Number: VCDTS21581-2/3

Document Number: G70m/G70mb_UG_162 (Rev.1B)

Serial Number: __________________

Purchase Date: __________________

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of

Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and

DDC are trademarks of VESA.

ENERGY STA R is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STA R®partner, ViewSonic Corporation has determined that this product

meets the ENERGY STA R ®guidelines for energy efficiency.

Disclaimer: ViewSonic®Corporation shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or consequential damages resulting from

furnishing this material, or the performance or use this product .

In the interest of continuing product improvement, ViewSonic Corporation reserves the right

to change product specifications without notice. Information in this document may change

without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any

purpose without prior written permission from ViewSonic Corporation.

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The

ViewSonic Wizard CD-ROM also provides an opportunitiy for you to print the regisntration

form, which you may then mail or fax to ViewSonic.

Product Registration

2Getting Started

ViewSonic G70m/G70mb

CONTENTS

For Your Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Getting Started

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Quick Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Using the Monitor

Setting the Timing Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Adjusting the Screen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Other Information

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Customer Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Cleaning the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Appendix

Power Cord Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

FCC Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

CE Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

ViewSonic G70m/G70mb

Getting Started

Congratulations on your purchase of a Graphics Series ViewSonic G70m/

G70mb color monitor. Important! Save the original box and all packing

material for future shipping needs.

NOTE: This product was designed for operation in the magnetic fields of the

hemisphere where it was purchased. Also, the word "Windows®" in this user

guide refers to the following Microsoft®operating systems: Windows '95,

Windows '98, Windows 2000, Windows NT (4.0).

Package Contents

Your ViewSonic G70m/G70mb package includes:

•For best viewing conditions sit at

least 18" from the monitor.

•AVOID TOUCHING THE

SCREEN WITH YOUR FINGERS.

Oils from the skin are difficult to

remove.

•NEVER REMOVE THE REAR

COVER. The monitor contains

high-voltage parts. You may suffer

serious injury if you touch these

parts.

•Avoid exposing the monitor to

direct sunlight or another heat

source. The monitor should be

facing away from direct sunlight

to reduce glare.

•Always handle your monitor with

care when moving it.

Precautions

•Choose a well ventilated area to

position your monitor. Do not place

anything on the monitor that prevents

adequate dissipation of heat.

•Ensure the area around the monitor is

clean and free of moisture.

•Keep the monitor away from

magnets, motors, transformers,

speakers, and televisions.

•Do not place heavy objects on the

monitor, video cable, or power cord.

•If smoke, abnormal noise, or strange

odor is present, immediately switch

the monitor off and call your dealer

or ViewSonic. It is dangerous to

continue using the monitor.

Getting Started

•ViewSonic G70m/G70mb monitor

with attached video cable

•Power cord

•Audio cable

•Microphone cable

IMPORTANT: The supplied INF file assures compatibility with Windows

operating systems, and the ICM file (Image Color Matching) ensures accurate

on-screen colors. ViewSonic®recommends that you install both files.

•Setup Guide

•ViewSonic Wizard CD-ROM

(incudes User Guide PDF file and

INF/ICM Display Optimization

files)

4Getting Started

ViewSonic G70m/G70mb

Installation is complete! Enjoy your

new G70m/G70mb Monitor!

To be best prepared for any future

customer service needs: print this user

guide and write the serial number in

“For Your Records” on page 1. (See

back of monitor.)

To register your product go online to

www.viewsonic.com.

Quick Installation

1 Connect video cable

Make sure both the monitor and

computer are powered OFF. Connect

the video cable to the computer.

Macintosh®users: Connect a

Macintosh adapter to the video cable,

then to the computer. To order a

Macintosh adapter contact ViewSonic

(see Customer Support).

2Connect power cord

Connect the power cord from a

properly grounded AC outlet to the

monitor.

3 Power-ON monitor and computer

Power-ON the monitor, then power-

ON the computer. This sequence

(monitor before computer) is very

important.

NOTE: At this point Windows®98

users may receive a message asking

them to install the M70/M70B’s INF

file.

4 Install Display Optimization

files (INF and ICM files)

(1) Insert the ViewSonic Wizard CD-

ROM into your computer’s CD-ROM

drive.

NOTE: If your computer does not

have a CD-ROM drive, see Customer

Support in this manual.

4 Install Display Optimization files

(continued)

(2) Wait for the CD-ROM to auto-start.

NOTE: If the CD-ROM does not auto-

start: double-click on the CD-ROM icon

in Windows Explorer, then double-click

on install.exe.

(3) Follow the on-screen instructions.

5 Audio Installation (optional)

•Speakers: Connect audio cable

(limecolored cable) to the

AUDIO OUT port of your computer's

sound card, then to the monitor's

AUDIO IN port (see illustration below).

•Microphone: Connect audio cable (pink

colored cable) to the MIC IN port of

your computer's sound card, then to

the monitor's MIC OUT port (see

illustration below).

6 Use the OnView®controls to adjust

the screen image.

See Using the Monitor (page 5).

Power cords

Video cable

Wall

socket

Microphone

OUT: Connect

to Mic IN port of

computer's

sound card

Audio IN:

Connect to

Audio OUT

port of

computer's

sound card

Microphone IN

(side of monitor):

Connect external

microphone

Audio OUT

(side of monitor):

Connect head-

phones or external

speakers

ViewSonic G70m/G70mb

Using the Monitor

Setting the timing mode is important for maximizing the quality of the screen

image and minimizing eye strain. The timing mode consists of the resolution

(example 1024 x 768) and refresh rate (or vertical frequency--example 75

Hertz). After setting the timing mode, use the OnView®controls (pages 7-9) to

adjust the screen image.

The recommended timing mode for this monitor is:

VESA

1024 x 768 @ 75Hz

To set the Timing Mode:

1Set the resolution: Right-click on the Windows®desktop > Properties >

Settings > Desktop Area > set the resolution.

2Set the refresh rate: See your graphic card's user guide for instructions.

NOTE: To minimize the adjustments required for an optimal screen image,

select a timing mode from the Preset Timing Modes table below.

Preset Timing Modes

VGA 640 x 400 @ 70Hz

VESA 640 x 480 @ 75, 85Hz

VESA 800 x 600 @ 75Hz

VESA 800 x 600 @ 85Hz

VESA 1024 x 768 @ 60, 75, 85Hz

VESA 1280 x 1024 @ 60 Hz

Macintosh®640 x 480 @ 67Hz

Macintosh 832 x 624 @ 74.6Hz

Macintosh 1024 x 768 @ 75Hz

WARNING: Do NOT set the graphics card in your computer to exceed the

maximum refresh rate for each resolution (see below). Doing so may result in

permanent damage to your monitor.

Maximum Refresh Rates

(NI= Non Interlaced)

Using the Monitor

Setting the Timing Mode

1280 x 1024 NI @ 66Hz

1024 x 768 NI @ 87 Hz

800 x 600 NI @ 110Hz

640 x 480 NI @ 120 Hz

ViewSonic G70m/G70mb

Using the Monitor6

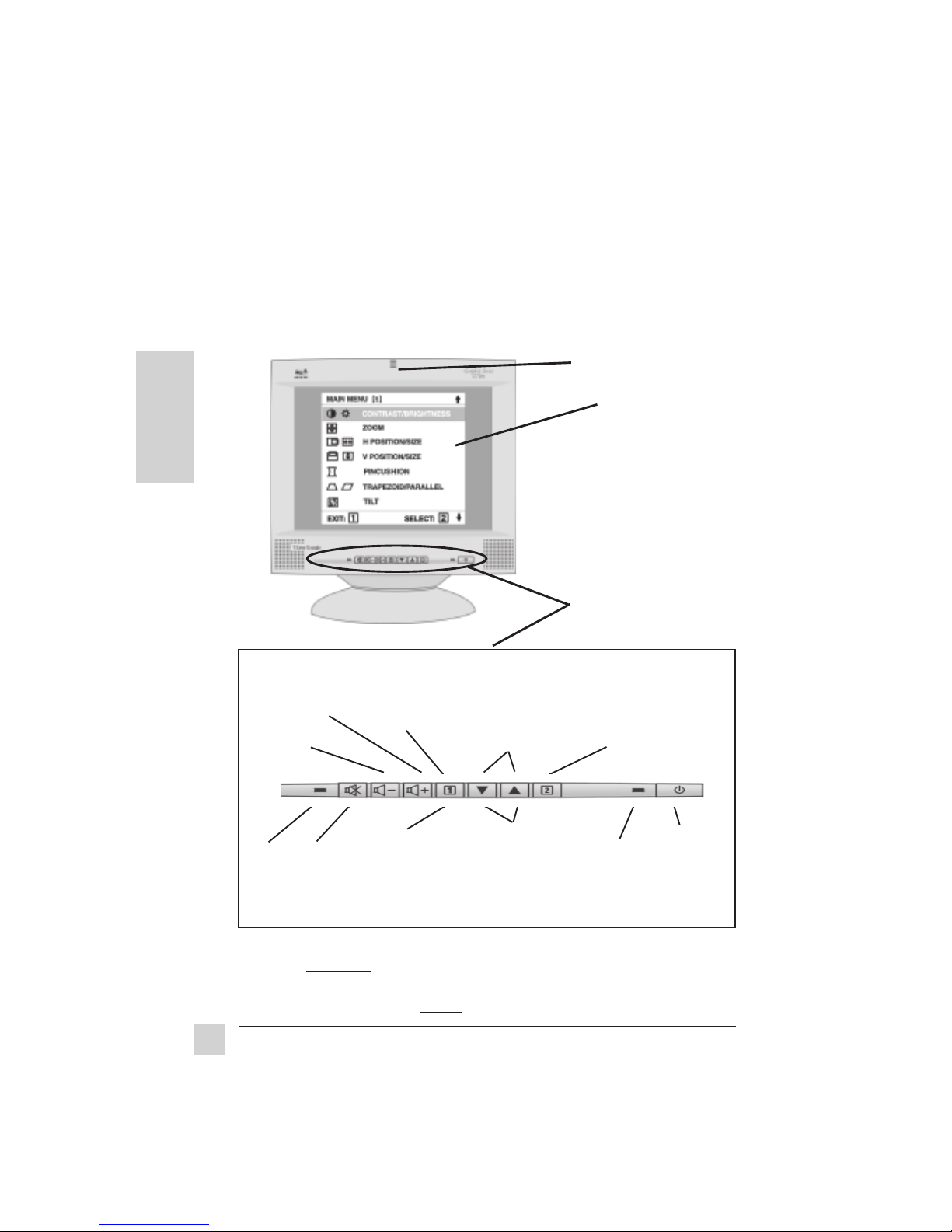

Main Menu

Front Control Panel

To adjust the screen image, follow the instructions in steps through ➏

below. You will use the buttons of the Front Control Panel to adjust the

OnView®controls, which are displayed on the Main Menu (shown below). The

OnView controls are explained on pages 7-9.

Adjusting the Screen Image

* The monitor automatically

degausses

each time you turn it on, removing the buildup of magnetic

fields that can affect color purity and convergence. To prevent possible damage, if you turn the

monitor off, then immediately on again, wait 20 minutes before doing this again. Do not turn the

monitor on and off repeatedly. To manually degauss the monitor, see the instructions on page 8.

➊

Power light:

Green = On

Orange = Power

Saving

Mode

[▼] and [▲]

decreases or

increases value

of the selected

control

[▼] and [▲] scrolls

up and down Main

Menu to highlight

control (or control

pair)

Button [1] exits

control screen or

Main Menu and

saves adjustments

Button [2]

displays

control screen

for highlighted

control

➌

➎

➋➍

➏

➊

Power

On/Off

Button [1]

displays

Main Menu

Muted-

Audio

Light

Mutes

Audio

Decreases

Audio

Volume

Increases

Audio

Volume

Internal Microphone

ViewSonic G70m/G70mb

Using the Monitor

CONTRAST adjusts foreground white level of screen

image. Press [▼] or [▲] to adjust.

BRIGHTNESS adjusts background black level of screen

image. Press [▼] or [▲] to adjust.

ZOOM expands and contracts the entire screen image. Press

[▼] to contract the image, and [▲] to expand the image.

H. POSITION (Horizontal Position) moves screen image

left or right. [t] moves screen image left, [s] moves screen

image right.

H. SIZE (Horizontal Size) adjusts width of screen image.

[▼] decreases width, [▲] increases width.

V. POSITION (Vertical Position) moves screen image up

and down. [▼] moves screen down, [▲] moves screen up.

V. SIZE (Vertical Size) adjusts height of screen image.

[▼] decreases height, [▲] increases height.

PINCUSHION straightens vertical sides of screen image.

[▼] curves vertical edges inward, [▲] curves vertical edges

outward.

PIN BALANCE curves the screen's vertical edges to the left

or right. [▼] curves vertical edges to left, [▲] curves

vertical edges to right.

OnView

Controls

ViewSonic G70m/G70mb

Using the Monitor8

To exit the Main Menu & save changes, press button [1].

TRAPEZOID

makes vertical edges of screen image parallel.

[▼]narrows top and widens bottom, [▲] widens top and narrows

bottom.

PARALLELOGRAM

slants vertical edges of screen image to left

or right. [▼] slants vertical edges to left, [▲] slants vertical edges to

right.

TILT

rotates entire screen image. [▼] rotates screen image counter-

clockwise. [▲] rotates screen image clockwise.

DEGAUSS There are two ways to degauss the monitor;

automatically by turning the monitor on, or manually by selecting

the Degauss control from the OnView Main Menu.

Important: Do not degauss repeatedly. Doing so can be harmful

to the monitor. Wait at least 20 minutes (before selecting this

control again.

VIEWMATCH®COLOR

provides four color adjustment options:

three preset color temperatures and USER COLOR which allows

you to adjust red and blue (green is fixed).

Press [▼] or [▲] to select one of the three color temperatures

shown below, then press [2] to activate it. Selecting and activating

USER COLOR displays the screen shown below.

NOTE: The factory setting for the monitor is 9300K, the color

temperature most frequently used in rooms with fluorescent lights.

From this

screen,

press button

[2] to select

Red or Blue,

then press

[▼] or [▲] to

adjust.

USER COLOR

ViewSonic G70m/G70mb

Using the Monitor

V. MOIRE reduces horizontal interference patterns that appear as

ripples, waves, or unwanted background color textures. Interference

patterns of this type are most noticeable when viewing images

having closely spaced lines or finely detailed patterns.

Press [▼] or [▲] to minimize interference patterns.

H. MOIRE reduces vertical interference patterns that appear as

ripples, waves, or unwanted background color textures. Interference

patterns of this type are most noticeable when viewing images

having closely spaced lines or finely detailed patterns.

Press [▼] or [▲] to minimize interference patterns.

LANGUAGE allows you to choose from among five languages for

the OnView menus and adjustment screens; English,

French, German, Italian, and Spanish. To select a language,

press button [2]. To exit this screen, press button [1].

OSD POSITION allows you to move any OnView screen (menu or

adjustment screen) up, down, left, or right. Press button [2] to

select Vertical OSD or Horizontal OSD.

MEMORMEMOR

MEMORY RECALLY RECALL

Y RECALLY RECALL

Y RECALL returns adjustments back to factory settings

only if the monitor is operating in a factory preset mode (page 11).

Exception: This control does not affect changes made with the

UserUser

User color control, which allows you to adjust red, green, and

blue individually.

VIEWMETER®displays the frequency signal input (horizontal

scan and refresh rate) coming from the graphics card in your

computer.

NOTE: See your graphics card's user guide for more details.

To exit the OnView®menu & save changes, press button [1].

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de ViewSonic

ViewSonic

ViewSonic VX2450w-LED Manual de usuario

ViewSonic

ViewSonic VX2781-2K-PRO Manual de usuario

ViewSonic

ViewSonic VG3248-2K Manual de usuario

ViewSonic

ViewSonic E90F - 19" CRT Display Manual de usuario

ViewSonic

ViewSonic VA2430-h Manual de usuario

ViewSonic

ViewSonic NextVision VPW450HD Manual de usuario

ViewSonic

ViewSonic PT770 - 17" CRT Display Guía del administrador

ViewSonic

ViewSonic VX2458-C-MHD Manual de usuario

ViewSonic

ViewSonic VP930b-3 Manual de usuario

ViewSonic

ViewSonic TD2420 Manual de usuario

ViewSonic

ViewSonic VA2037-LED Manual de usuario

ViewSonic

ViewSonic VS12319 Manual de usuario

ViewSonic

ViewSonic PD0711 Manual de usuario

ViewSonic

ViewSonic VG510b, VG510s Manual de usuario

ViewSonic

ViewSonic E70FSB-2 - E 70F+SB - 17" CRT Display Manual de usuario

ViewSonic

ViewSonic VX922-1 Manual de usuario

ViewSonic

ViewSonic VX2768-2KPC-mhd Manual de usuario

ViewSonic

ViewSonic ViewPanel VP230mb Manual de usuario

ViewSonic

ViewSonic ViewPanel VG175 Manual de usuario

ViewSonic

ViewSonic G810 - 21" CRT Display Manual de usuario

ViewSonic

ViewSonic N4200W - NextVision - 42" LCD Flat Panel... Manual de usuario

ViewSonic

ViewSonic VS11803 Manual de usuario

ViewSonic

ViewSonic VS11305 Manual de usuario

ViewSonic

ViewSonic VX3211-mh Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
