ViewSonic G220F - 21" CRT Display Manual de usuario

User Guide

Guide de l’utilisateur

Bedienungsanleitung

Guía del usuario

Guida dell'utente

Guia do usuário

Användarhandbok

Käyttöopas





With Plug & Play

✘

21" (20" Viewable Diagonal)

G220f

G220fb

Color Monitor

Panduan Pengguna

Contents

04/10/04DViewSonic G220f 1

Product Registration..............................................................2

For Your Records ..................................................................2

Getting Started

Package Contents .................................................................3

Precautions ...........................................................................3

Quick Installation ...................................................................4

Using the Monitor

Setting the Timing Mode .......................................................5

Adjusting the Screen Image ..................................................6

Main Menu Controls ..............................................................8

Other Information

Specifications ......................................................................11

Troubleshooting...................................................................12

Customer Support ...............................................................13

Cleaning the Monitor ...........................................................14

Limited Warranty .................................................................15

Appendix

Safety Guidelines ................................................................16

Compliance Information for U.S.A.......................................17

CE Conformity for Europe ...................................................17

ViewSonic G220f 2

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft

Corporation in the United States and other countries.

ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of

ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC

are trademarks of VESA.

ENERGY STAR®is a registered trademark of the U.S. Environmental Protection Agency (EPA).

As an ENERGY STAR®partner, ViewSonic Corporation has determined that this product meets the

ENERGY STAR®guidelines for energy efficiency.

Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions

contained herein; nor for incidental or consequential damages resulting from furnishing this mate-

rial, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right to

change product specifications without notice. Information in this document may change without

notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any purpose

without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes available,

please register your product on the Internet at: www.viewsonic.com.The ViewSonic®Wizard CD-

ROM also provides an opportunity for you to print the registration form, which you may mail or fax

to ViewSonic.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

ViewSonic G220f/fb

VCDTS23852-1/-2

A-CD-G220f/fb-1

_______________

Product disposal at end of product life

ViewSonic is concerned about the preservation o our environment. Please dispose o this product

properly at the end o its useul lie. For TCO'03 recycling information, please refer to our website:

1. USA: www.viewsonic.com/pdf/recyclePlus.pdf

2. Europe: www.viewsoniceurope.com

3. Taiwan: recycle.epa.gov.tw

ViewSonic G220f 3

Getting Started

Congratulations on your purchase of a ViewSonic®color monitor. Important!

Save the original box and all packing material for future shipping needs.

NOTE: The word “Windows” in this user guide refers to the following Microsoft

operating systems: Windows 95, Windows NT, Windows 98, Windows 2000,

Windows Me (Millennium), and Windows XP.

Package Contents

Yo u r package includes:

• Color monitor

• DB-15 video cable

• Power cord

• ViewSonic Wizard CD-ROM

NOTE: The CD jacket contains the Quick Start Guide, and the CD includes the

User Guide PDF files and INF/ICM display optimization files. The INF file

ensures compatibility with Windows operating systems, and the ICM file (Image

Color Matching) ensures accurate on-screen colors. ViewSonic recommends that

you install both files.

Precautions

• For best viewing conditions sit at least

18" from the monitor.

• AVOID TOUCHING THE SCREEN

WITH YOUR FINGERS. Oils from the

skin are difficult to remove.

• NEVER REMOVE THE REAR

COVER. The monitor contains high

voltage parts. You may suffer serious

injury if you touch these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source,

including an open flame. The monitor

should be facing away from direct

sunlight to reduce glare.

• Always handle your monitor with care

when moving it.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that prevents adequate

dissipation of heat.

• Ensure the area around the monitor is

clean and free of moisture.

• Keep the monitor away from magnets,

motors, transformers, speakers, and

televisions.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, abnormal noise, or strange

odor is present, immediately switch the

monitor off and call your dealer or

ViewSonic. It is dangerous to continue

using the monitor.

ViewSonic G220f 4

Quick Installation

1 Connect power cord

Connect the power cord to a properly

grounded AC outlet.

2 Connect video cable

Make sure both the monitor and computer

are turned OFF.

Connect the video cable to the computer.

Macintosh®users: Models older than G3

require a Macintosh adapter. Attach the

adapter to the computer and plug the

video cable into the adapter.

To order a ViewSonic®Macintosh

adapter, contact ViewSonic. See

“Customer Support”on page 13.

3 Turn ON monitor and computer

Turn ON the monitor, then turn ON the

computer. This sequence (monitor before

computer) is very important.

NOTE: At this point Windows users may

receive a message asking them to install

the INF file.

4 Install Display Optimization

files (INF and ICM files)

(1) Insert the ViewSonic Wizard CD-

ROM into your computer’s CD-ROM

drive.

Important: If your computer does not have a

CD-ROM drive, see “Customer Support”in

this user guide.

(2) Wait for the CD-ROM to auto-start.

If the CD-ROM does not auto-start: double-

click on the CD-ROM icon in Windows

Explorer, then double-click on

viewsonic.exe.

(3) Follow the on-screen instructions.

5 Windows users: Set the Timing

Mode (resolution and refresh rate)

Example: 1600 x 1200 @ 75 Hz.

For instructions on changing the resolution

and refresh rate, see the graphic card’s user

guide.

Installation is complete. Enjoy your new

ViewSonic color monitor.

To be best prepared for any future customer

service needs: print this user guide and write

the serial number in “For Your Records” on

page 2. (See back of monitor.) To register

your product go online to

www.viewsonic.com.

The ViewSonic Wizard CD-ROM also

provides an opportunity for you to print the

registration form which you may mail or fax

to ViewSonic.

AC Outlet

Video Cable

Power Cord

ViewSonic G220f 5

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the

screen image and minimizing eye strain. The timing mode consists of the

resolution (example 1600 x 1200) and refresh rate (or vertical frequency;

example 75 Hz). After setting the timing mode, use the OnView®controls

to adjust the screen image.

For the best picture quality set your monitor timing mode to:

VESA 1600 x 1200 @ 75 Hz or 85 Hz

To set the Timing Mode:

1Set the resolution: Right-click on the Windows desktop > Properties >

Settings > set the resolution.

2Set the refresh rate: See your graphic card's user guide for instructions.

WARNING: Do not set the graphics card in your computer to exceed the

maximum refresh rate; doing so may result in permanent damage to your CRT

display.

ViewSonic G220f 6

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OnView®

controls which display on the screen. The OnView controls are explained at the

top of the next page and are defined in “Main Menu Controls”on page 8.

Main Menu with control options

Power ON/OFF

Power Light

Front Control Panel

shown below in detail

Displays the Main Menu.

Also saves changes and exits the Main Menu.

Scrolls up/down menu options.

Also adjusts the displayed control.

Displays the highlighted control screen.

Also, toggles between pairs of controls on some

control screens.

Status line at the bottom of the menu

shows what to do next. For example

from Main Menu 1, button [1] EXITs

the menu. Button [2] SELECTs a

highlighted control (or pair of

controls).

ViewSonic G220f 7

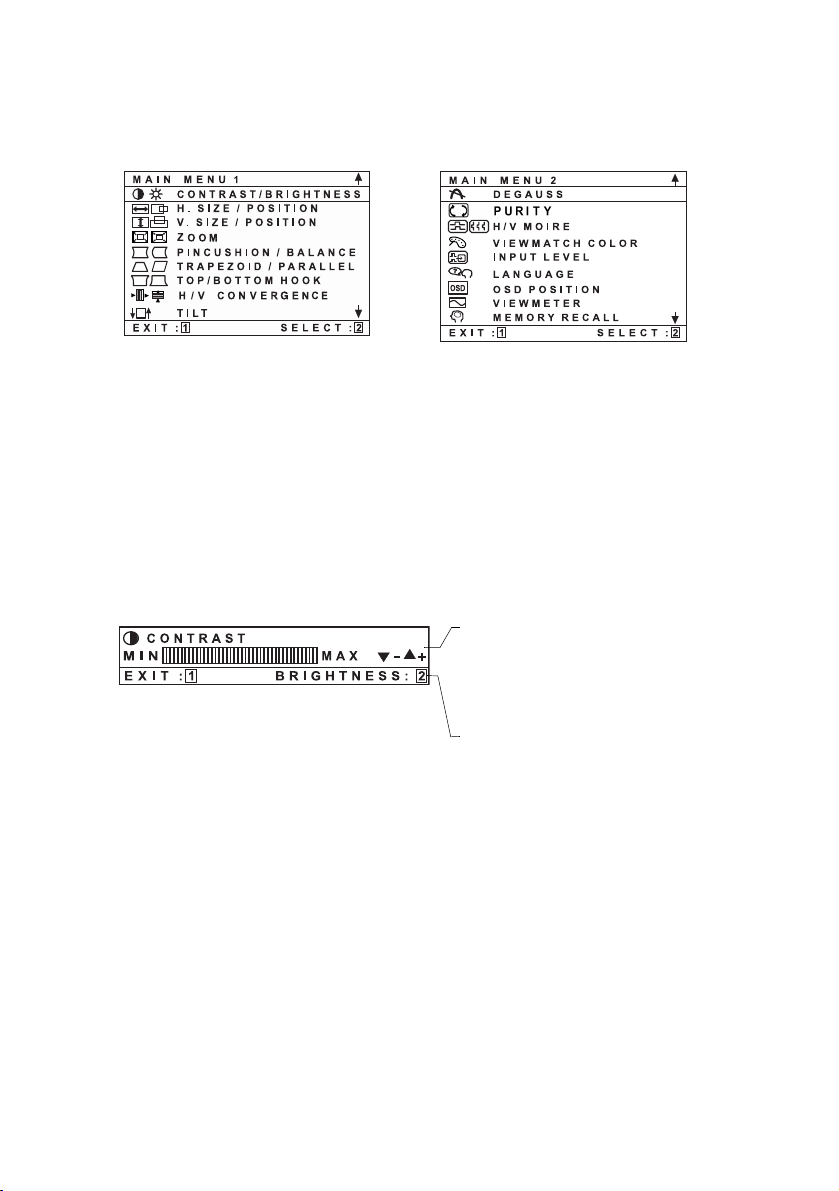

Do the following to adjust the screen image:

1To display the Main Menu, press button [1].

2To select a control you want to adjust, press the arrow buttons on the front

control panel of your monitor and scroll through the choices. When the

control you want is highlighted, press button [2].

NOTE: Some controls on the Main Menu are listed in pairs, such as

Contrast/Brightness. Display control screen (sample shown in step 3 below).

Press button [2] to toggle to the next control in the pair.

3To adjust the selected control, such as CONTRAST in the sample below,

press the arrow buttons.

4To save the control setting and Exit the menu press button [1] twice.

The bottom part of the screen

tells you what to do next: press

button [1] on your monitor to exit,

or button [2] to display the

Brightness control screen.

The down button [▼] on your

monitor decreases, the up button

[▲] increases.

ViewSonic G220f 8

Main Menu Controls

Adjust the menu items shown below by using the Up and Down buttons on the

control panel on the front of your monitor.

Control Explanation

Contrast adjusts the difference between the image

background (black level) and the foreground (white level).

Brightness adjusts the background black level of the screen

image.

Horizontal Size adjusts width of the screen image.

Horizontal Position moves the screen image left or right.

Vertical Size adjusts the height of the screen image.

Vertical Position moves the screen image up or down.

Zoom expands and contracts the entire screen image.

Pincushion curves the vertical sides of the screen image.

Pin Balance curves the vertical edges of the screen image to

the left or right.

Trapezoid adjusts the top and bottom of the screen image

until they have equal length.

Parallel slants the vertical edges of the screen image until

they are parallel.

Top Hook adjusts the top corners of the screen image.

Bottom Hook adjusts the bottom corners of the screen

image.

H. Convergence (Horizontal Convergence) adjusts vertical

color alignment. Use this control when red or blue borders

are present around the vertical segments of black letters on a

white background.

ViewSonic G220f 9

V. C o nv e r g e n c e (Vertical Convergence) adjusts horizontal

color alignment. Use this control when red or blue borders

are present around the horizontal segments of black letters

on a white background.

Tilt rotates the entire screen image.

Degauss removes the build-up of magnetic fields that can

cause irregular colors to appear around the edges of screen

images. There are two ways to degauss the display:

automatically by turning the monitor on, or manually by

selecting the Degauss control from the menu.

With Degauss selected from the menu, press button [2] to

degauss the monitor manually.

Important: Do not degauss repeatedly. Doing so can be

harmful to the display. Wait at least 20 minutes before

selecting this control again.

V. Moire (Vertical Moire) reduces horizontal interference

patterns that appear as ripples, waves, or unwanted

background color textures. Interference patterns of this type

are most noticeable when viewing images having closely

spaced lines or finely detailed patterns.

H. Moire (Horizontal Moire) reduces vertical interference

patterns that appear as ripples, waves, or unwanted

background color textures. Interference patterns of this type

are most noticeable when viewing images having closely

spaced lines or finely detailed patterns.

Control Explanation

Purity adjusts the uneven color of the screen image.

NOTE: If one area of a color appears darker than another

area, first use the DEGAUSS feature. If color is still uneven,

use the PURITY control.

Otros manuales para G220F - 21" CRT Display

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de ViewSonic

ViewSonic

ViewSonic ViewPanel VE150 Manual de usuario

ViewSonic

ViewSonic VA2759 Manual de usuario

ViewSonic

ViewSonic va1616w-8 Manual de usuario

ViewSonic

ViewSonic VG2439m-LED Manual de usuario

ViewSonic

ViewSonic VX2370S-LED Manual de usuario

ViewSonic

ViewSonic VG2028wm Manual de usuario

ViewSonic

ViewSonic VA2465S Manual de usuario

ViewSonic

ViewSonic Optiquest V75 Manual de usuario

ViewSonic

ViewSonic G90m Manual de usuario

ViewSonic

ViewSonic VP211B - 21.3" LCD Monitor Manual de usuario

ViewSonic

ViewSonic ViewBoard IFP70 Series Manual de usuario

ViewSonic

ViewSonic LCD Display VS11280 Manual de usuario

ViewSonic

ViewSonic VX1932WM-LED - 19" LCD Monitor Manual de usuario

ViewSonic

ViewSonic CD4233 Manual de usuario

ViewSonic

ViewSonic PerfectFlat E90fB-4 Manual de usuario

ViewSonic

ViewSonic VX500+ Manual de usuario

ViewSonic

ViewSonic VA702-1 Manual de usuario

ViewSonic

ViewSonic PD1233 Manual de usuario

ViewSonic

ViewSonic VS18454 Manual de usuario

ViewSonic

ViewSonic VG275 Manual de usuario

ViewSonic

ViewSonic VP231WB - 23" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VA2202-a Manual de usuario

ViewSonic

ViewSonic VX2262WM - 22" LCD Monitor Guía de solución de problemas

ViewSonic

ViewSonic VA1912W - 19" LCD Monitor Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
