ViewSonic®

E50/E50B

CRT Monitor

Model No. : VS10623

ViewSonic E50/E50B

Contents

Compliance Information ................................................................................. 1

Important Safety Instructions .......................................................................... 2

Declaration of RoHS Compliance ................................................................... 3

Product Registration ........................................................................................ 4

Getting Started

Package Contents ........................................................................................... 5

Precautions ..................................................................................................... 5

Quick Installation ............................................................................................. 6

Using the Monitor

Setting the Timing Mode ................................................................................. 7

Adjusting the Screen Image ............................................................................ 8

Main Menu Controls ........................................................................................ 10

Other Information

Speciﬁcations .................................................................................................. 12

Troubleshooting .............................................................................................. 13

Customer Support ........................................................................................... 14

Cleaning the Monitor ....................................................................................... 15

Limited Warranty ............................................................................................. 16

ViewSonic E50/E50B 1

Compliance Information

FCC Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the

party responsible for compliance could void your authority to operate the equipment.

For Canada

• This Class B digital apparatus complies with Canadian ICES-003.

• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CE Conformity for European Countries

The device complies with the requirements of the EEC directive 89/336/EEC as

amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic

compatibility”, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to

“Safety.”

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and

Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment as unsorted

municipal waste, but use the return and collection systems according to local law.

ViewSonic E50/E50B 2

Important Safety Instructions

1. Read these instructions completely before using the equipment.

2. Keep these instructions in a safe place.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this equipment near water. Warning: To reduce the risk of fire or electric

shock, do not expose this apparatus to rain or moisture.

6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the Display” in

this guide for further instructions.

7. Do not block any ventilation openings. Install the equipment in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

devices (including ampliﬁers) that produce heat.

9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type

plug. A polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade and the third prong are

provided for your safety. If the plug does not ﬁt into your outlet, consult an electrician for

replacement of the outlet.

10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the

point where if emerges from the equipment. Be sure that the power outlet is located near

the equipment so that it is easily accessible.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with a cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this equipment when it will be unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Service is required when the unit has

been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid

is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if

the unit does not operate normally or has been dropped.

ViewSonic E50/E50B 3

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive 2002/95/EC

of the European Parliament and the Council on restriction of the use of certain hazardous

substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply

with the maximum concentration values issued by the European Technical Adaptation

Committee (TAC) as shown below:

Substance Proposed Maximum

Concentration Actual Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex of the RoHS

Directives as noted below:

Examples of exempted components are:

1. Mercury in compact ﬂuorescent lamps not exceeding 5 mg per lamp and in other lamps not

speciﬁcally mentioned in the Annex of RoHS Directive.

2. Lead in glass of cathode ray tubes, electronic components, ﬂuorescent tubes, and electronic

ceramic parts (e.g. piezoelectronic devices).

Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more

lead).

4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium

containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by

weight.

ViewSonic E50/E50B 4

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of

Microsoft Corporation in the United States and other countries.

ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association. DPMS and

DDC are trademarks of VESA.

ENERGY STAR® is a registered trademark of the U.S. Environmental Protection Agency

(EPA).

Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or

omissions contained herein; nor for incidental or consequential damages resulting from

furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves the right

to change product specifications without notice. Information in this document may change

without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for any

purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it becomes

available, please register your product on the Internet at: www.viewsonic.com. The

ViewSonic® Wizard CD-ROM also provides an opportunity for you to print the registration

form, which you may mail or fax to ViewSonic®.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

E50/E50B

ViewSonic 15” CRT Monitor

VS10623

E50/E50B-7_UG_ENG Rev. 1B 02-08-07

_____________________________________

Product disposal at end of product life

The lamp in this produc contains mercury. Please dispose of in accordance with local, state or

federal laws.

ViewSonic is concerned about the preservation of our environment. Please dispose of this

product properly at the end of its useful life.

ViewSonic E50/E50B 5

Getting Started

Congratulations on your purchase of a ViewSonic® color monitor.

Important! Save the original box and all packing material for future shipping needs.

Note : The word “Windows” in this user guide refers to the following Microsoft operating

systems: Windows 95, Windows NT, Windows 98, Windows 2000, Windows ME

(Millennium), and Windows XP.

Package Contents

Your package includes:

• Color monitor

• DB-15 video cable

• Power cord

• ViewSonic® CD-ROM Wizard

• Quick Start Guide

Note : The CD includes the User Guide PDF ﬁles and INF/ICM display optimization ﬁles.

The INF ﬁle ensures compatibility with Windows operating systems, and the ICM ﬁle (Image

Color Matching) ensures accurate on-screen colors. ViewSonic® recommends that you install

both ﬁles.

Precautions

• For best viewing conditions sit at least

18” from the monitor.

• Avoid touching the screen with your

fingers. Oils from the skin are difficult

to remove.

• Never remove the rear cover. The

monitor contains high voltage parts. You

may suffer serious injury if you touch

these parts.

• Avoid exposing the monitor to direct

sunlight or another heat source,

including an open flame. The monitor

should be facing away from direct

sunlight to reduce glare.

• Always handle your monitor with care

when moving it.

• Place your monitor in a well ventilated

area. Do not place anything on the

monitor that prevents adequate

dissipation of heat.

• Ensure the area around the monitor is

clean and free of moisture.

• Keep the monitor away from magnets,

motors, transformers, speakers, and

televisions.

• Do not place heavy objects on the

monitor, video cable, or power cord.

• If smoke, on abnormal noise, or a

strange odor is present, immediately

switch the monitor off and call your

dealer or ViewSonic®. It is dangerous to

continue using the monitor.

ViewSonic E50/E50B 6

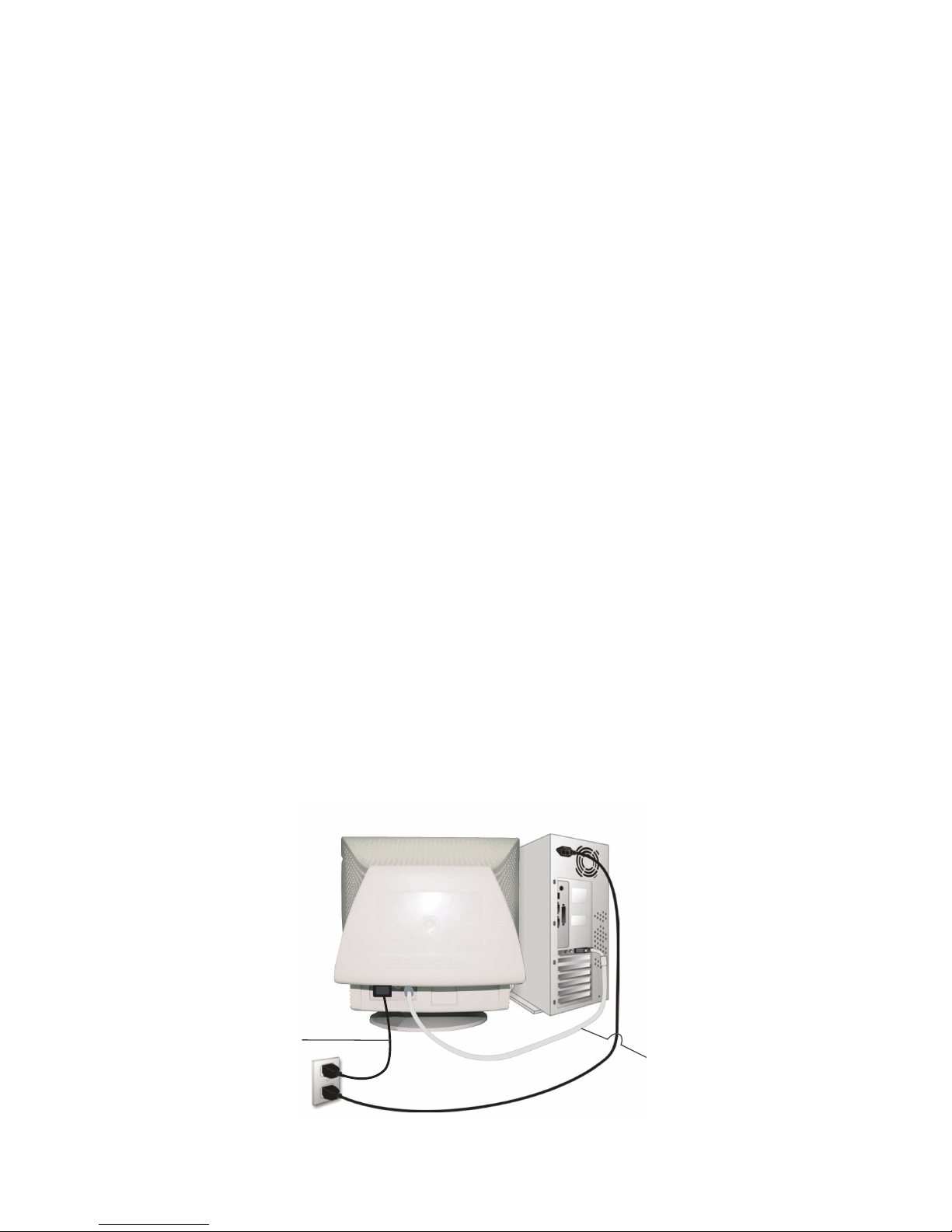

Quick Installation

1. Connect power cord

Connect the power cord to a properly

grounded AC outlet.

2. Connect video cable

• Make sure both the monitor and

computer are turned OFF.

• C on nect the v ideo cable t o t he

computer.

Macintosh® users: Models older than

G3 require a Macintosh adapter. Attach

the adapter to the computer and plug

the video cable into the adapter.

To order a ViewSonic® Macintosh

adapter, contact ViewSonic.

See “Customer Support” on page 14.

3. Turn ON monitor and computer

Turn ON the monitor, then turn ON

the computer. This sequence (monitor

before computer) is very important.

Note : At this point Windows users

may receive a message asking them to

install the INF ﬁle.

4. Install Display Optimization files

(INF and ICM ﬁles)

Insert the ViewSonic® Wizard CD-

ROM into your computer’s CD-ROM

drive.

Note : If your computer does not have a

CD-ROM drive, see “Customer Support”

on page 14.

Wait for the CD-ROM to auto-start.

Note : If the CD-ROM does not auto-

start:

double-click on the CD-ROM icon in

Windows Explorer, and then double-

click on viewsonic.exe.

Follow the on-screen instructions.

5. Windows users: Set the Timing Mode

(resolution and refresh rate)

Example: 800 x 600 @ 85Hz.

For instructions on changing the

resolution and refresh rate, see the

graphic card’s user guide.

Installation is complete. Enjoy your

new ViewSonic® color monitor.

To be best prepared for any future

customer service needs: print this user

guide and write the serial number in

“For Your Records” on page 4. (See

back of monitor.)

To register your product go online to

www.viewsonic.com.

The ViewSonic® Wizard CD-ROM also

provides an opportunity for you to print

the registration form which you may

mail or fax to ViewSonic®.

Video cable

Power cord

AC wall outlet

ViewSonic E50/E50B 7

Using the Monitor

Setting the Timing Mode

Setting the timing mode is important for maximizing the quality of the screen image and

minimizing eye strain. The timing mode consists of the resolution (example 800 x 600) and

refresh rate (or vertical frequency; example 85 Hz). After setting the timing mode, use the

OSD (On Screen Display) controls to adjust the screen image.

For the best picture quality set your monitor timing mode to:

VESA 800 x 600 @ 85 Hz.

To set the Timing Mode:

1. Set the resolution:Right-click on the Windows desktop > Properties > Settings > set the

resolution.

2. Set the refresh rate:See your graphic card’s user guide for instructions.

Note : The refresh rate should already be set if you have done the CD installation (or refer to

your graphics card documentation).

ViewSonic E50/E50B 8

Adjusting the Screen Image

Use the buttons on the front control panel to display and adjust the OSD controls. The OSD

controls are explained at the top of the next page and are deﬁned in “Main Menu Controls” on

page 10.

ViewSonic

Main Menu

With OSD controls

Front Control Panel

shown below in detail

Scrolls through menu options

and adjusts the displayed control

Press this key to either bring up the OSD

setup or select an item on the menu

Power LED

Green = ON

Orange = Power Saving

Power

On/Off

Save change/exit Main Menu

Otros manuales para E50 - 15" CRT Display

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de ViewSonic

ViewSonic

ViewSonic CDE3203 Manual de usuario

ViewSonic

ViewSonic VPW425 - 42" Plasma TV Manual de usuario

ViewSonic

ViewSonic VS11661 Manual de usuario

ViewSonic

ViewSonic VX2780-2K Manual de usuario

ViewSonic

ViewSonic VP920B - ThinEdge - 19" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VG700 - 17" LCD Monitor Manual de usuario

ViewSonic

ViewSonic ViewBoard ID710 Manual de usuario

ViewSonic

ViewSonic VX2776-2K-PRO-2 Manual de usuario

ViewSonic

ViewSonic VX2781-2K-PRO Manual de usuario

ViewSonic

ViewSonic VE500 - 15" LCD Monitor Manual de usuario

ViewSonic

ViewSonic A91f - 19" CRT Monitor Manual de usuario

ViewSonic

ViewSonic VX2458-C-MHD Manual de usuario

ViewSonic

ViewSonic VS17484 Manual de usuario

ViewSonic

ViewSonic VA2736-H Manual de usuario

ViewSonic

ViewSonic VG181 Manual de usuario

ViewSonic

ViewSonic Q2162WB - Optiquest - 21.6" LCD Monitor Manual de usuario

ViewSonic

ViewSonic VX2728J-2K Manual de usuario

ViewSonic

ViewSonic VS11964 Manual de usuario

ViewSonic

ViewSonic VE910 Manual de usuario

ViewSonic

ViewSonic VA1932wa Manual de usuario

ViewSonic

ViewSonic Q7 Manual de usuario

ViewSonic

ViewSonic ViewBoard IFP50 Series Manual de usuario

ViewSonic

ViewSonic GS790 - 19" CRT Display Manual de usuario

ViewSonic

ViewSonic VX3267U-2K Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
