1INTRODUCTION

VMP72 is a high-definition multimedia player and streamer connecting to the

external USB hard drives and your HD TV, bringing PC and internet entertainment

to the living room. VMP72 is also a BitTorrent downloader with built-in BitTorrent

engine. It downloads media files into the attached USB hard drives corresponding

to the BitTorrent seeds already saved on the USB drive. Playing and downloading

your favorite media files is now PC-free. It supports most video/audio/image

formats so you do not need to convert downloaded media to another format. You

can plug in your USB devices to the VMP72 to play music, movies and pictures on

TV by following the on-screen display (OSD) menu. The VMP72 can also access

the shared folders on the remote PCs through the intranet (local area network)

and play the digital media files there on your TV. It supports high-definition

media playback with HDMI output.

Package content

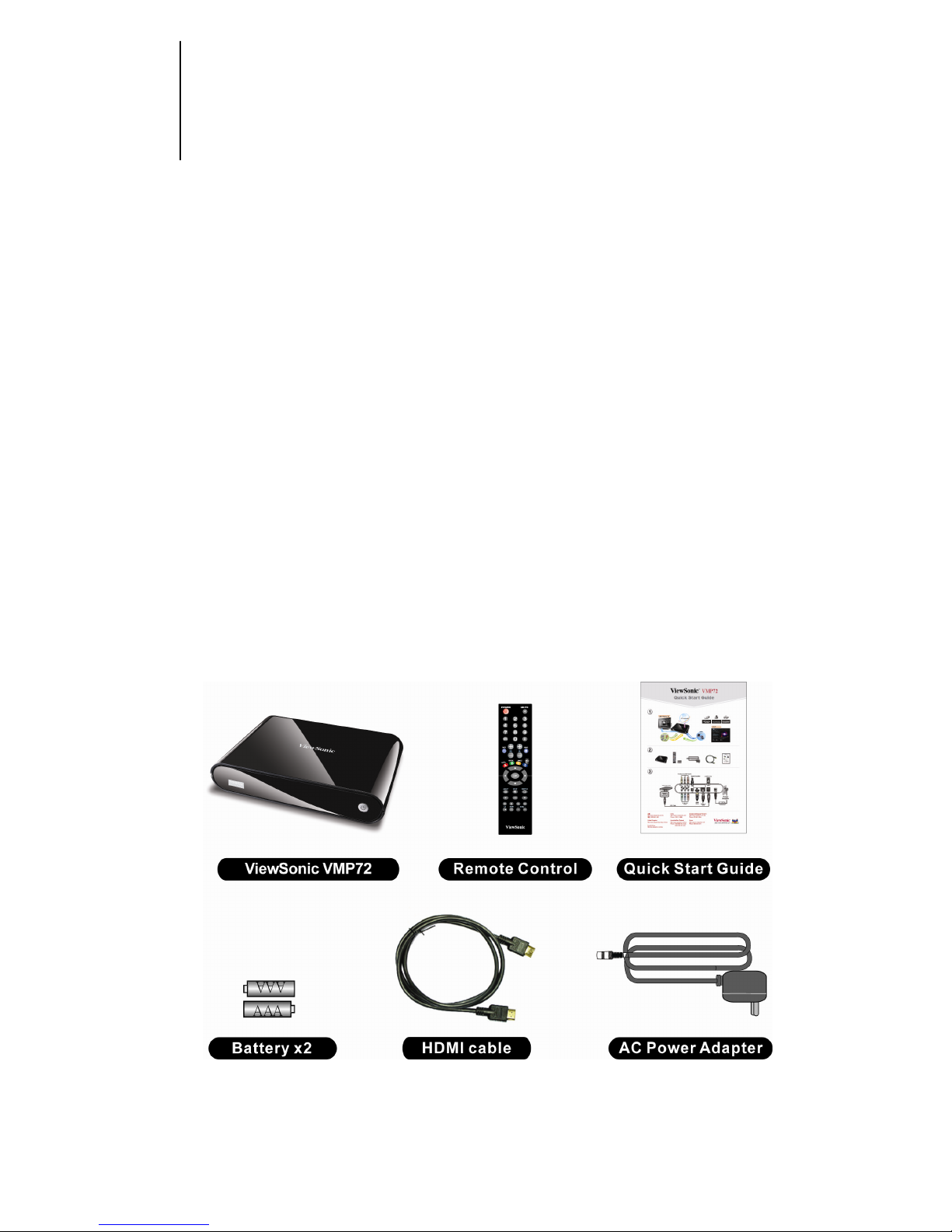

Please make sure the following items are included within your new VMP72

package. VMP72 might not be compatible with some accessories made by other

manufacturers. We highly recommend that you use only the specific accessories

we suggest.

9LHZ6RQLF VMP72

Specification

Interfaces

Video Output HDMI、YPbPr、Composite Video

Audio Output Audio L/R、S/P DIF (Optical)

Data Transfer USB x 2、Ethernet Port

General Specifications

MPEG1 (AVI/MKV/TS/DAT/MPG/MPEG/VOB)

MPEG2

(MKV/DAT/MPG/MPEG/VOB/ISO/IFO/TS/TP)

/M2TS

MPEG4 (AVI/MP4/MKV/MOV/WMV/ASF)

DivX 3/4/5/6、Xvid (AVI/MKV/MP4/MOV)

H.264/AVC

(TS/AVI/MP4/MKV/MOV/FLV)/M2TS

VC-1 (TS/AVI/ASF/WMV)/M2TS

WMV9 (ASF/WMV)

Video

Real Video 8/9/10 (RM/RMVB)

Audio

MP3、MPEG Audio、Dolby Digital、DTS 、

WMA、PCM、LPCM、ADPCM、FLAC、WAV、

AAC、RA、OGG、MKA

Photo HD JPEG、GIF、PNG、BMP、TIF、TIFF

Subtitle SRT、SMI、SUB、SSA、IDX+SUB

Support Media

Format

USB Device

File Systems

EXT3、NTFS、FAT16/32

Decoding

Up to 1080p (RMVB up to 720p)

Output Up to 1080p

Dimension 204 mm× 145.4 mm× 40 mm (8.0 x 5.7 x 1.6 inch)

Power Supply 100~240V ±10% input voltage/ 12V @ 2A

9LHZ6RQLF VMP72

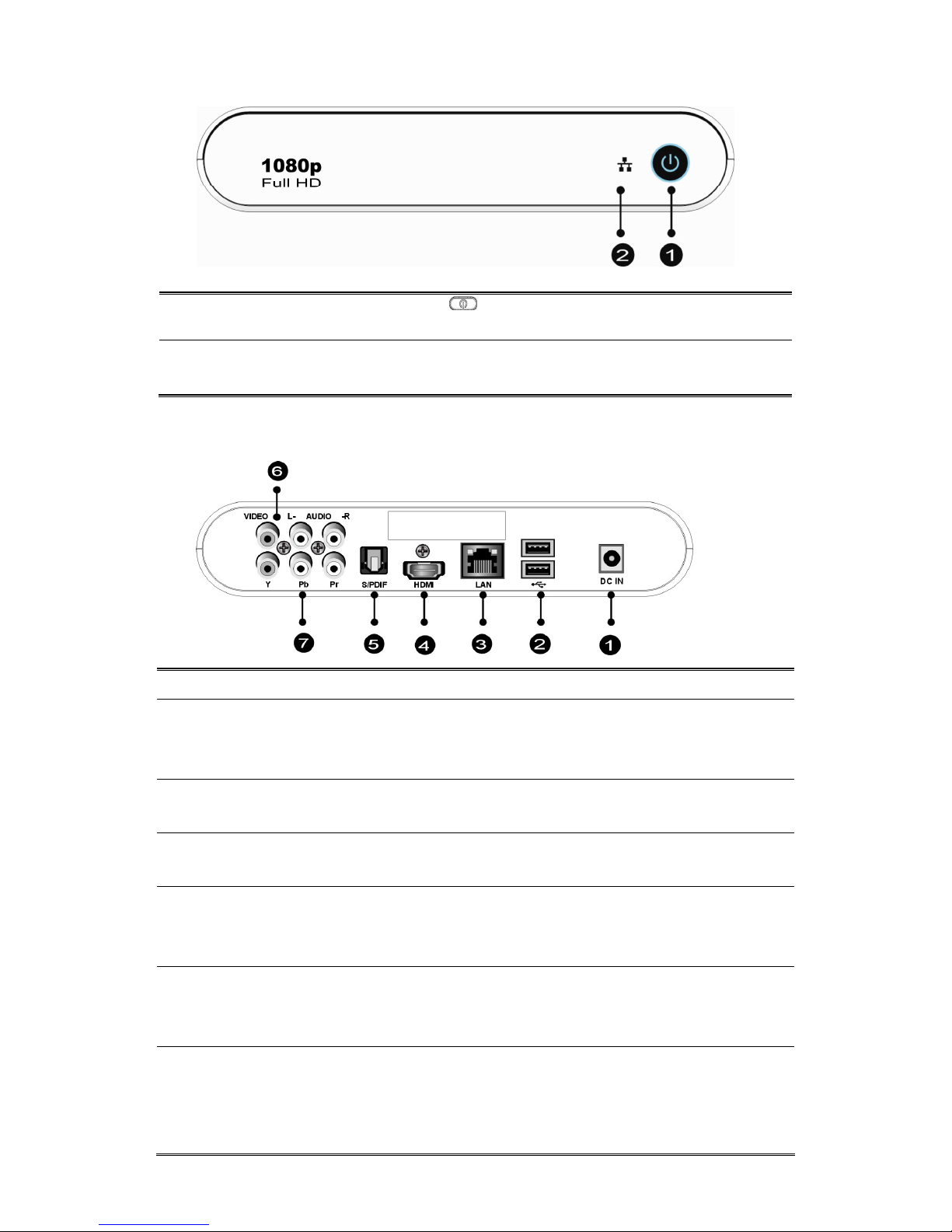

Front View

Back View

① Power Press to turn the VMP72 on.

② Network LED The LED blinks when VMP72 accesses to

Network.

①DC IN Connects to the DC output of the power adapter.

②USB Port

Plug the supported USB devices into USB ports,

such as USB hard drives, cameras, camcorders

and wireless USB dongles.

③LAN

Connects to the RJ-45 Ethernet 10/100 based

network. Not compatible with the telephone line.

④HDMI OUT

Connects to the HDMI jack on the display; a

single cable transmits both audio and video data.

⑤S/PDIF

Connects the VMP72 to a display that has an

optical digital audio port, using an optical digital

audio (also called S/PDIF) cable.

⑥AUDIO L/R/ VIDEO Connects to the display with the VIDEO IN/

AUDIO L/R IN jacks on the display using VIDEO

(Yellow)/ AUDIO L (White)/R (Red) cables.

⑦Y/Pb/Pr

Connect to a Y/Pb/Pr-compatible display using

three video (Y/Pb/Pr) and two audio jacks

(AUDIO L/R), through a component video cable

with green, blue, and red connectors.

9LHZ6RQLF VMP72

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor multimedia de ViewSonic

ViewSonic

ViewSonic VS12765 Manual de usuario

ViewSonic

ViewSonic ViewPoP P203 Manual de usuario

ViewSonic

ViewSonic VMP72 Guía de referencia

ViewSonic

ViewSonic VS13920 Manual de usuario

ViewSonic

ViewSonic NMP760 Manual de usuario

ViewSonic

ViewSonic CD-1010 Manual de usuario

ViewSonic

ViewSonic EP1052T-H Manual de usuario

ViewSonic

ViewSonic NMP620-P10 Manual de usuario

ViewSonic

ViewSonic NMP-530 - Digital Multimedia Receiver Manual de usuario

ViewSonic

ViewSonic VMP50 Manual de usuario

ViewSonic

ViewSonic NMP660 Manual de usuario

ViewSonic

ViewSonic NMP-530 - Digital Multimedia Receiver Manual de usuario

ViewSonic

ViewSonic NMP-700 Manual de usuario

ViewSonic

ViewSonic NMP-500 Manual de usuario

ViewSonic

ViewSonic NMP-550 Manual de usuario

ViewSonic

ViewSonic NMP309-W Manual de usuario

ViewSonic

ViewSonic VMP50 Manual de usuario

ViewSonic

ViewSonic NMP599-W-2 Manual de usuario

ViewSonic

ViewSonic NMP-302w Manual de usuario

ViewSonic

ViewSonic VMP74 Manual de usuario

ViewSonic

ViewSonic NMP599-W Manual de usuario

ViewSonic

ViewSonic VMP73 Manual de usuario

ViewSonic

ViewSonic NMP-600 - Network Media Player Connects Manual de usuario

ViewSonic

ViewSonic VS18646 Manual de usuario

Manuales populares de Reproductor multimedia de otras marcas

Visual Land

Visual Land Impulse Manual de usuario

limHD

limHD 200i Manual de usuario

Transcend

Transcend DMP10 Manual de usuario

Philips

Philips GoGear Muse SA2MUS08 Manual de usuario

Fantec

Fantec MM-HDRL Manual de usuario

Dune HD

Dune HD Duo 4K Manual de usuario

IAdea

IAdea HMP-505S Manual de usuario

Camos

Camos MMS-1000 Manual de usuario

Energy

Energy 75 Series Manual de usuario

Z3 Technology

Z3 Technology DME-03 Manual de usuario

Sony

Sony SVR-2000 Guía del usuario

Meicheng

Meicheng HD-1080K12 Manual de usuario

DENAFRIPS

DENAFRIPS ARCE Manual de usuario

Topaz

Topaz CMS Media Player Instrucciones de uso

InFocus

InFocus LightCast Manual de usuario

IconBiT

IconBiT XDS1003D Manual de usuario

Quanmax

Quanmax QDSP-2090 Series Manual de usuario

Samsung

Samsung MP-80S Manual de usuario
