ViewSonic N3260w/N3760w/N4060w
Contents
Compliance Information .................................................................................. 1
Important Safety Instructions .......................................................................... 2
Copyright Information ...................................................................................... 3
Product Registration ........................................................................................ 3
Antenna Installation Instructions ..................................................................... 4
Cleaning the LCD Display ............................................................................... 4
Getting Started
Package Contents ........................................................................................... 5
Front View of the Product ................................................................................ 6
Rear View of the product ................................................................................. 7
Remote Control ............................................................................................... 8
Notes on the Remote Control ......................................................................... 10
Installation ....................................................................................................... 11
Cable connections ........................................................................................... 12
OSD Functions
Image Adjustment ........................................................................................... 14
Audio Adjustment ............................................................................................ 15
Screen Adjustment .......................................................................................... 16
Setup Adjustment ............................................................................................ 17
Options Adjustment ......................................................................................... 19
Appendix
Specifications .................................................................................................. 21
Troubleshooting .............................................................................................. 23
Customer Support ........................................................................................... 24
Limited Warranty ............................................................................................. 25
N3260w-1P(0927).indd 2 2005/9/28 ､U､ﾈ 02:49:24
ViewSonic N3260w/N3760w/N4060w 1
ENGLISH
Compliance Information
CE Conformity for European Countries
In Europe you must use a cord set which is appropriate for the receptacles in your country.
The cord set is HAR-Certified, and a special mark that will appear on the outer sheath, or on
the insulation of one of the inner conductors.
AC Plug cord precautions for the United Kingdom
For your safety please read the following text carefully.
If the fitted moulded plug is unsuitable for the socket outlet then the plug should be cut off and
disposed of safely.
There is a danger of severe electrical shock if the cut off plug is inserted into an appropriate
socket.
CE Conformity for European Countries
CE Conformity
The device complies with the requirements of the EEC directive 89/336/EEC as
amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic
compatibility”, and 73/23/EEC as amended by 93/68/EEC Art.13 with regard
to “Safety.”
User Information for all Countries
Notice: Use the cables which are included with the unit or specified.
The “HD ready” Logo is a trademark of EICTA.
WOW, technology is incorporated under license from SRS Labs, Inc.
is a trademark of SRS Labs, Inc.
N3260w-1P(0927).indd 1 2005/9/28 ､U､ﾈ 02:49:24
ViewSonic N3260w/N3760w/N4060w 2
Important Safety Instructions
1. Read these instructions completely before using the equipment.
2. Keep these instructions in a safe place.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean with a soft, dry cloth. If further cleaning is required, see “Cleaning the Display” in
this guide for further instructions.
7. Do not block any ventilation openings. Install the equipment in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
devices (including amplifiers) that produce heat.
9. Do not attempt to circumvent the safety provisions of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade and the third prong are
provided for your safety. If the plug does not fit into your outlet, consult an electrician for
replacement of the outlet.
10. Protect the power cord from being tread upon or pinched, particularly at the plug, and the
point where if emerges from the equipment. Be sure that the power outlet is located near
the equipment so that it is easily accessible.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the equipment. When a cart is used, use caution when moving the cart/
equipment combination to avoid injury from tipping over.
13. Unplug this equipment when it will be unused for long periods of time.
14. Refer all servicing to qualified service personnel. Service is required when the unit has
been damaged in any way, such as: if the power-supply cord or plug is damaged, if liquid
is spilled onto or objects fall into the unit, if the unit is exposed to rain or moisture, or if
the unit does not operate normally or has been dropped.
N3260w-1P(0927).indd 2 2005/9/28 ､U､ﾈ 02:49:24
ViewSonic N3260w/N3760w/N4060w 3
ENGLISH
Copyright Information
Copyright © ViewSonic® Corporation, 2005. All rights reserved.
ViewSonic®, the three birds logo, OnView, ViewMatch, and ViewMeter are registered
trademarks of ViewSonic Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from
furnishing this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right
to change product specifications without notice. Information in this document may change
without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
Product Registration
To meet your future needs, and to receive any additional product information as it becomes
available, please register your product on the Internet at: www.viewsonic.com.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
N3260w
ViewSonic LCD TV Display
VS10576
N3260w-1E_UG_ENG Rev. 1A 07-26-05
_________________________________
_________________________________
Poduct disposal at end of product life
ViewSonic® is concerned about the preservation of our environment. Please dispose of this
product properly at the end of its useful life. Your local waste disposal company may provide
information about proper disposal.
The lamp in this product contains mercury. Please dispose of properly in accordance with
environmental laws of your location.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
N3260w / N3760w / N4060w
ViewSonic LCD TV Display
VS10847-1P / VS10848-1P / VS10846-1P
N3260w-1P_UG_ENG Rev. 1A 08-11-05
N3760w-1P_UG_ENG Rev. 1A 08-11-05
N4060w-1P_UG_ENG Rev. 1A 08-11-05
N3260w-1P(0927).indd 3 2005/9/28 ､U､ﾈ 02:49:25
ViewSonic N3260w/N3760w/N4060w 4
Antenna Installation Instructions
1 Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product be sure the antenna or cable system is
grounded to avoid voltage surges and built-up static charges. Article 810 of the National Electrical Code,
ANS I /NFPA 70, provides information with regard to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
2 Lightning
For added protection for this product during a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line surges. Do not disconnect the antenna or the power
cord during a heavy storm as lightning may strike while you are holding the cable cord, causing serious injury.
Turn off your LCD and wait for the weather to improve.
3 Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light
or power circuits. When installing an outside antenna system, extreme care should be taken to keep from
touching the power lines or circuits as contact with them may be fatal.
Cleaning the LCD Display
• Make sure the LCD Display is turned off.
• Never spray or pour any liquid directly onto the screen or case.
To clean the screen:
1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles.
2. If still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft,
lint-free cloth, and wipe the screen.
To clean the case:
1. Use a soft, dry cloth.
2. If still not clean, apply a small amount of non-ammonia, non-alcohol based, mild non- abrasive detergent
onto a clean, soft, lint-free cloth, then wipe the surface.
Disclaimer
ViewSonic does not recommend the use of any ammonia or alcohol-based cleaners on the LCD screen or case.
Some chemical cleaners have been reported to damage the screen and/or LCD case. ViewSonic will not be
liable for damage resulting from use of any ammonia or alcohol-based cleaners.
N3260w-1P(0927).indd 4 2005/9/28 ､U､ﾈ 02:49:25
ViewSonic N3260w/N3760w/N4060w 5
ENGLISH
Getting Started
Congratulations on your purchase of a ViewSonic LCD TV display. Important! Save the
original box and all packaging material for future shipping needs.
Package Contents
Please confirm that the following accessories are present when you unpack the box:
LCD TV
Remote Control (batteries included)
Power Cable
AV Cable
Color Quick Start Guide
User Guide
Non-Grounded AC Power Adapter for United Kingdom
Non-Grounded AC Power Adapter for Continental Europe
N3260w-1P(0927).indd 5 2005/9/28 ､U､ﾈ 02:49:25
ViewSonic N3260w/N3760w/N4060w 6
Front View of the Product
1
2
3
4
5
6
7
8
CH /
Changes the channel.
VOL +/–
Used for changing the volume.
MENU
Display menu screen.
SOURCE
Switch between display input sources.
POWER
Turns the TV on and off. A green light indicates that TV is on and red that it is off.
EARPHONE
Used for connecting headphones to the TV.
Power indicator LED
GREEN shall apply during all operational states (i.e. with image present), Orange
shall apply DPMS State for RGB/DVI (HDMI). RED shall apply when the product
in stand-by mode.(DPMS state only in PC mode)
SPEAKERS
Audio output.
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
..............................................................................................
ViewSonic
7
8 8
Power Lock
Press MENU and VOL ＋ buttons at the same time can lock the function of Power button.
OSD Lock
Press VOL− and VOL ＋ buttons at the same time can lock the function of MENU button.
1
2
3
4
5
6
N3260w-1P(0927).indd 6 2005/9/28 ､U､ﾈ 02:49:27
ViewSonic N3260w/N3760w/N4060w 7
ENGLISH
Rear View of the Product
1
2
3
4
5
6
7
8
S / AV - IN
Connects to the audio and S-Video or AV output jack of your A/V device.
HDTV 1 / HDTV 2
Connects to the audio and component video output jacks of your A/V device.
A/V OUT
Decodes the signal input via AV-IN and outputs from VIDEO OUT to display
another image on second TV.
HDMI ANALOG AUDIO - IN
Connects to the HDMI audio output of your PC or A/V device.
PC Audio - IN
Connects to the audio output (earphone jack) of your PC or portable computer.
ANT
Connects to your UHF antenna or coaxial cable a from local TV.
PC - IN
Connects to your VGA output of your PC or portable computer.
HDMI - IN
Connects to your HDMI output of A/V device.
N3260w-1P(0927).indd 7 2005/9/28 ､U､ﾈ 02:49:30
ViewSonic N3260w/N3760w/N4060w 8

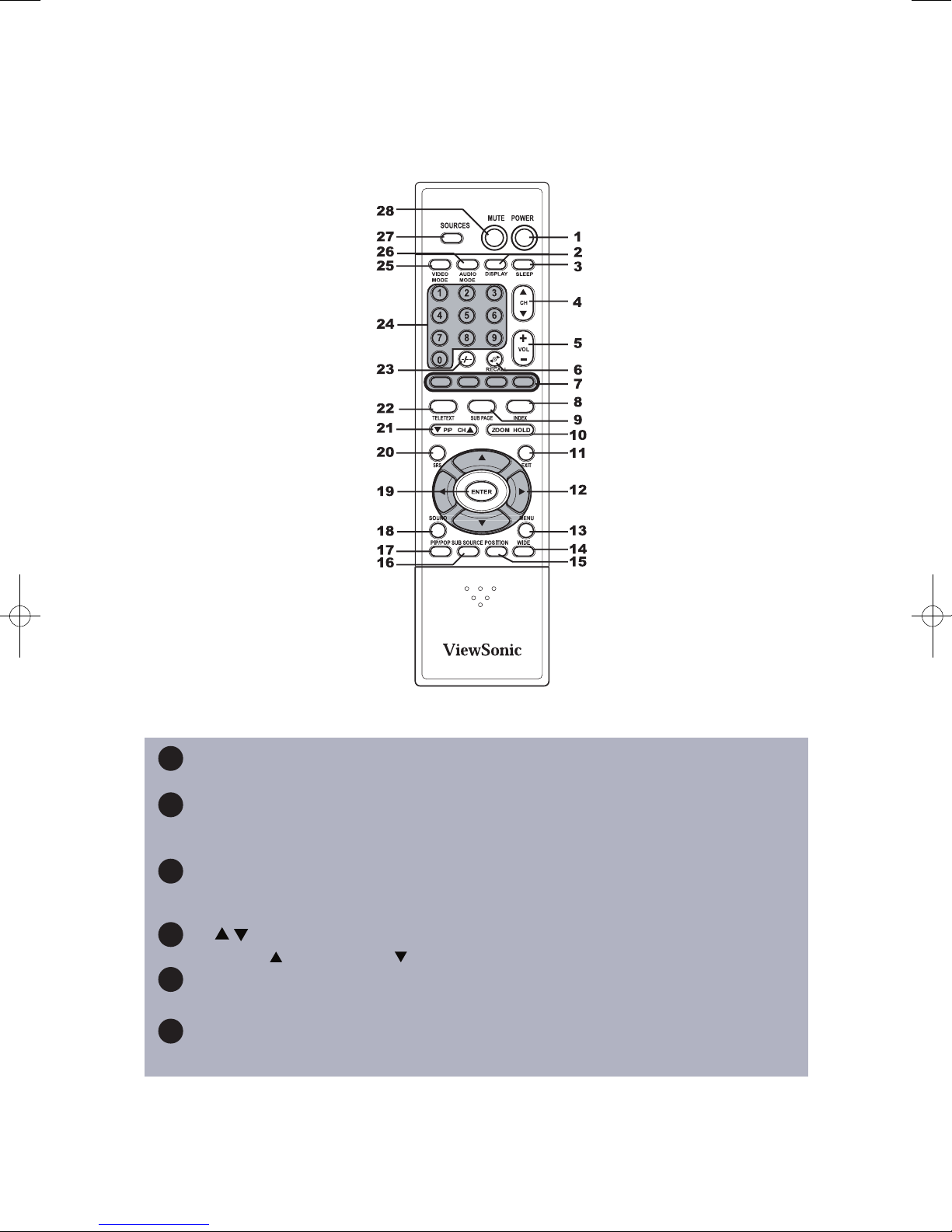

Remote Control
2
3
4
5
6
1 POWER
Turns power on or off.
DISPLAY
Press repeatedly to display current time, channel number, or video input
signal.
SLEEP
Press repeatedly to set the off timer to 15 through 120 minutes. The TV enters
stand-by mode after the specified time interval.
CH
Increases or decreases the channel number.
VOL – / +
Increases (+) or decreases (–) the volume.
RECALL
Switches to the previously viewed channel.
N3260w-1P(0927).indd 8 2005/9/28 ､U､ﾈ 02:49:31
Este manual sirve para los siguientes modelos
5
Tabla de contenidos
Otros manuales de Televisor LCD de ViewSonic
ViewSonic
ViewSonic N3000W - NextVision - 30" LCD TV Manual de usuario
ViewSonic
ViewSonic VIEWSONIC N3290W Manual de usuario
ViewSonic
ViewSonic N2010 Manual de usuario
ViewSonic
ViewSonic N3752w - 37" LCD TV Manual de usuario
ViewSonic
ViewSonic VS12119-1M Manual de usuario
ViewSonic
ViewSonic N4790P - 47" LCD TV Manual de usuario
ViewSonic
ViewSonic VT2430-1M Manual de usuario
ViewSonic
ViewSonic VS11620-1M Manual de usuario
ViewSonic
ViewSonic N2600W Manual de usuario
ViewSonic
ViewSonic NextVision N2700w Manual de usuario
ViewSonic
ViewSonic VIEWSONIC N3290W Manual de usuario
ViewSonic
ViewSonic N3250w-G VS10769-1G Manual de usuario
ViewSonic
ViewSonic N4066w Manual de usuario
ViewSonic
ViewSonic VT2230 - 22" LCD TV Manual de usuario
ViewSonic
ViewSonic N3235w - 32" LCD TV Manual de usuario
ViewSonic
ViewSonic N4290p Manual de usuario
ViewSonic
ViewSonic N4261w-1M Manual de usuario
ViewSonic
ViewSonic N2010 Manual de usuario
ViewSonic
ViewSonic VS12676-1M Manual de usuario
ViewSonic
ViewSonic VT1901LED Manual de usuario
