Service instructions

for contractors

Vitodens 200-W

Type WB2B, 4.8 to 35.0 kW

Wall mounted gas fired condensing boiler

Natural gas and LPG version

For applicability, see the last page

VITODENS 200-W

5692 672 GB 5/2008 Please keep safe.

Please follow these safety instructions closely to prevent accidents and

material losses.

Safety instructions explained

Danger

This symbol warns against the

risk of injury.

!Please note

This symbol warns against the

risk of material losses and

environmental pollution.

Note

Details identified by the word "Note"

contain additional information.

Target group

These instructions are exclusively

designed for qualified personnel.

&Work on gas equipment must only

be carried out by a qualified gas fit-

ter.

&Work on electrical equipment must

only be carried out by a qualified

electrician.

&The system must be commissioned

by the system installer or a qualified

person authorised by the installer.

Regulations

Observe the following when working

on this system

&all legal instructions regarding the

prevention of accidents,

&all legal instructions regarding

environmental protection,

&the Code of Practice of relevant

trade associations,

&all current safety regulations as

defined by DIN, EN, DVGW, TRGI,

TRF, VDE and all locally applicable

standards.

If you smell gas

Danger

Escaping gas can lead to

explosions which may result in

serious injury.

&Never smoke. Prevent naked

flames and sparks. Never

switch lights or electrical

appliances ON or OFF.

&Close the gas shut-off valve.

&Open windows and doors.

&Remove all people from the

danger zone.

&Notify your gas or electricity

supplier from outside the

building.

&Shut off the electricity supply

to the building from a safe

place (outside the building).

If you smell flue gas

Danger

Flue gas can lead to life-threa-

tening poisoning.

&Shut down the heating sys-

tem.

&Ventilate the boiler room.

&Close all doors leading to the

living space.

Safety instructions

5692 672 GB

Working on the system

&When using gas as fuel, also close

the main gas shut-off valve and

safeguard against unauthorised

reopening.

&Isolate the system from the power

supply and check that it is no longer

'live', e.g. by removing a separate

fuse or by means of a main isolator.

&Safeguard the system against

unauthorised reconnection.

!Please note

Electronic modules can be

damaged by electro-static dis-

charges.

Touch earthed objects, such as

heating or water pipes, to dis-

charge static loads.

Repair work

!Please note

Repairing components which

fulfil a safety function can com-

promise the safe operation of

your heating system.

Replace faulty components

only with original Viessmann

spare parts.

Ancillary components, spare and

wearing parts

!Please note

Spare and wearing parts which

have not been tested together

with the heating system can

compromise its function. Instal-

ling non-authorised compo-

nents and non-approved

modifications/conversion can

compromise safety and may

invalidate our warranty.

For replacements, use only ori-

ginal spare parts from

Viessmann or those which are

approved by Viessmann.

Safety instructions (cont.)

Safety instructions

5692 672 GB

Commissioning, inspection, maintenance

Steps - commissioning, inspection and maintenance................................... 5

Further details regarding the individual steps .............................................. 7

Coding

Code 1........................................................................................................ 36

Code 2........................................................................................................ 39

Resetting codes to their delivered condition ................................................ 58

Service scans

Service level overview ............................................................................... 59

Temperatures, boiler coding card and brief scans ....................................... 60

Checking outputs (relay test) ...................................................................... 63

Scanning operating conditions and sensors ................................................ 65

Troubleshooting

Fault display ............................................................................................... 67

Fault codes................................................................................................. 69

Repairs ...................................................................................................... 79

Function description

Constant temperature control unit ............................................................... 90

Weather-compensated control unit.............................................................. 91

Extensions for external connections (accessories) ...................................... 94

Control functions ........................................................................................ 98

Remote control DIP switches ...................................................................... 104

Electronic combustion control unit............................................................... 105

Designs

Connection and wiring diagram –internal connections ................................ 107

Connection and wiring diagram –external connections ............................... 109

Parts lists .................................................................................................. 111

Commissioning/service reports ............................................................... 117

Specification............................................................................................. 118

Certificates

Declaration of conformity ............................................................................ 119

Manufacturer's certificate according to the 1st BImSchV [Germany]............. 120

Keyword index .......................................................................................... 121

Index

5692 672 GB

For further information regarding the individual steps, see the page indicated

Commissioning steps

Inspection steps

Maintenance steps Page

!!!



•01. Filling the heating system ................................................. 7

•02. Venting the boiler.................................................................. 8

•03. Venting the heating system............................................... 8

•04. Filling the siphon with water............................................. 9

•05. Checking the power supply connection

• • 06. Setting the time and date (if required) –only for

weather-compensated control units.............................. 10

•07. Selecting the language (if required) –only for

weather-compensated control units.............................. 10

• • 08. Checking the gas type......................................................... 11

•09. Gas type conversion (only for operation with LPG).12

••• 10. Function sequence and possible faults ....................... 12

••• 11. Checking the static and supply pressure ................... 14

•12. Setting the maximum output ........................................... 16

••• 13. Checking all connections on the heating water

side and DHW side for leaks

•14. Checking the balanced flue system for tightness

(annular gap check) ............................................................. 16

• • 15. Burner removal ..................................................................... 17

• • 16. Checking the burner gasket and the burner gauze

assembly .................................................................................. 19

• • 17. Checking and adjusting the ignition and ionisation

electrodes ................................................................................ 20

• • 18. Cleaning the heating surfaces and installing the

burner........................................................................................ 20

• • 19. Checking the condensate drain and cleaning the

siphon........................................................................................ 22

• • 20. Checking the neutralising system (if installed)

Steps - commissioning, inspection and maintenance

Commissioning, inspection, maintenance

5692 672 GB

Commissioning steps

Inspection steps

Maintenance steps Page

!!!



•21. Flow limiter (only for gas combi boilers) ..................... 22

• • 22. Checking the diaphragm expansion vessel and

system pressure.................................................................... 23

••• 23. Checking the function of all safety valves

••• 24. Checking the tightness of electrical connections

••• 25. Checking all gas equipment for tightness at

operating pressure .............................................................. 23

••• 26. Flue gas emissions test...................................................... 23

••• 27. Checking the external LPG safety valve (if

installed)

•28. Matching the control unit to the heating system ...... 25

•29. Adjusting the heating curves (only for weather-

compensated control units).............................................. 29

•30. Connecting the control unit to the LON system

(only for weather-compensated control units) .......... 32

•31. Instructing the system user .............................................. 34

•32. Scanning and resetting the "Service" display ........... 34

Steps - commissioning, inspection and . . . (cont.)

Commissioning, inspection, maintenance

5692 672 GB

Filling the heating system

!Please note

Unsuitable fill water increases the level of deposits and corrosion and

may lead to boiler damage.

&Thoroughly flush the entire heating system prior to filling it with water.

&Only use fill water of potable quality.

&Soften fill water with hardness exceeding 3.0 mol/m

, e.g. using a

small softening system for heating water (see Viessmann Vitoset price

list).

&An antifreeze additive suitable for heating systems can be mixed with

the fill water. The antifreeze manufacturer must verify its suitability.

1. Check the inlet pressure of the dia-

phragm expansion vessel.

2. Close the gas shut-off valve.

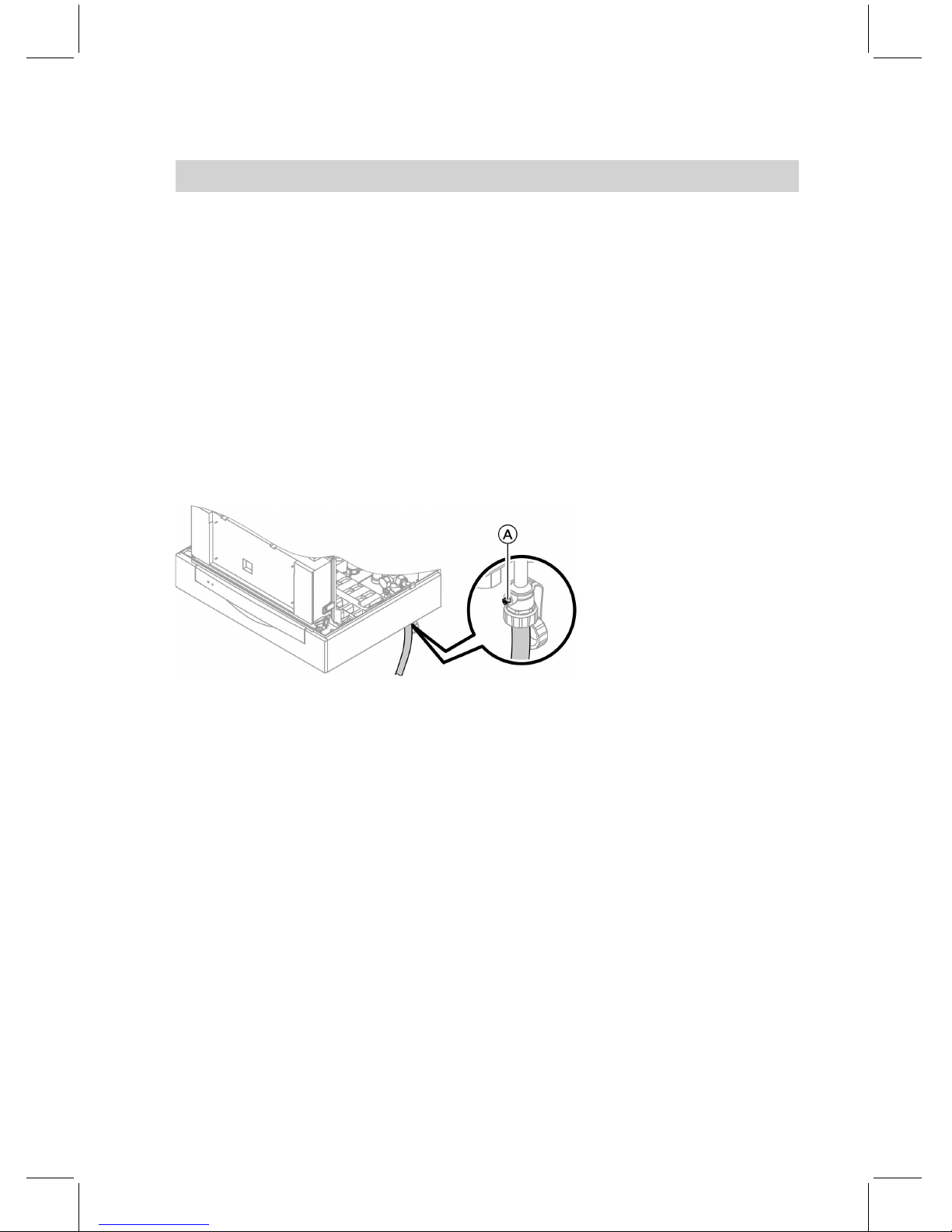

3. Fill the heating system via the boil-

er fill & drain valve Ain the heat-

ing return (at the connection set or

on site). (Minimum system pres-

sure > 1.0 bar).

Note

If the control unit has not been

switched ON prior to filling the sys-

tem, then the servomotor of the

diverter valve will still be in its cen-

tral position, and the system will be

completely filled.

4. If the control unit had already been

switched ON before filling began:

Switch ON the control unit and acti-

vate the fill program via coding

address "2F:2".

5. Close boiler fill & drain valve A.

6. Close the shut-off valves on the

heating water side.

Further details regarding the individual steps

Commissioning, inspection, maintenance

5692 672 GB

Venting the boiler

1. Close the shut-off valves on the

heating water side.

2. Connect the drain hose between

top valve Band a drain outlet.

3. Open valves Aand Band vent

using mains pressure until no more

air noise is audible.

If required, move the 3-way valve

into its central position to achieve

complete venting. For this, set

code "2F:2".

4. Close valves Aand Band open

the heating water shut-off valves.

Venting the heating system

1. Close the gas shut-off valve and

switch ON the control unit.

Further details regarding the individual steps (cont.)

Commissioning, inspection, maintenance

5692 672 GB

2. Activate the venting program via

coding address "2F:1" in code 1.

Note

To call up code 1 and for setting the

coding address, see page 36.

For function and sequence of the

venting program, see page 99.

Whilst the venting program runs,

the display shows "EL" (constant

temperature control unit) or

"Entlüftung" (Venting) (weather-

compensated control unit).

3. Check the system pressure.

Filling the siphon with water

1. Remove retaining clip Aand

siphon B.

2. Fill siphon Bwith water.

3. Fit siphon Band secure with

retaining clip A.

Further details regarding the individual steps (cont.)

Commissioning, inspection, maintenance

5692 672 GB

Setting the time and date (if required) –only for weather-

compensated control units

Note

&During commissioning, or after a

prolonged time out of use, it may be

necessary to reset the time and

date, if the time flashes in the dis-

play.

&When the unit is first taken into

operation the display is in German

(default language setting):

Time (see step 1)

Date (see step 2)

Press the following keys:

1. a/bfor the current time.

2. dto confirm; "Datum" is dis-

played.

3. a/bfor the current date.

4. dto confirm.

Selecting the language (if required) –only for weather-com-

pensated control units

Note

When the unit is first taken into opera-

tion the display is in German (default

language setting):

Select heating circuit (see step 1.)

Outside temperature (see step 3.)

Press the following keys:

1. c"Heizkreis wählen" (select

heating circuit) is displayed.

2. dto confirm; wait approx. 4 s.

Further details regarding the individual steps (cont.)

Commissioning, inspection, maintenance

5692 672 GB

Otros manuales para Vitodens 200-W System

Tabla de contenidos

Otros manuales de Caldera de Viessmann

Viessmann

Viessmann VITOROND 200 Manual de instrucciones

Viessmann

Viessmann VITOPLEX 100 Instrucciones de funcionamiento

Viessmann

Viessmann VITOROND 200 Instrucciones de funcionamiento

Viessmann

Viessmann Vitocrossal 200 CM2 Series Manual de usuario

Viessmann

Viessmann VITODENS 050-W Guía rápida

Viessmann

Viessmann VITOCELLV 300 Instrucciones de funcionamiento

Viessmann

Viessmann Vitocrossal 300 CU3A Guía del usuario

Viessmann

Viessmann VITOPLEX 200 Type SX2A Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 100-W Guía rápida

Viessmann

Viessmann Vitodens 200-W B2HA series Guía del usuario

Viessmann

Viessmann Vitoflex 300-RF 150 Guía de instalación y uso

Viessmann

Viessmann VITOCROSSAL 200 Manual de usuario

Viessmann

Viessmann Vitoladens 300-C Guía de inicio rápido

Viessmann

Viessmann VITOLIGNO 300-C Manual de usuario

Viessmann

Viessmann Vitocrossal Instrucciones de funcionamiento

Viessmann

Viessmann VITOCROSSAL 300 Manual de usuario

Viessmann

Viessmann Vitodens 222-F Manual de usuario

Viessmann

Viessmann VITOPLEX 100 Instrucciones de funcionamiento

Viessmann

Viessmann Vitotron 100 Instrucciones de funcionamiento

Viessmann

Viessmann Vitoladens 300-C Manual de usuario

Viessmann

Viessmann VITOLADENS 300-T Instrucciones de funcionamiento

Viessmann

Viessmann VITOLADENS 300-W Guía rápida

Viessmann

Viessmann Vitodens 200-W B2HA series Manual de usuario

Viessmann

Viessmann KOB PYROT KRT SERIES Manual de instrucciones

Manuales populares de Caldera de otras marcas

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manual de usuario

Radijator

Radijator BIO max 23.1 Manual de usuario

Brunner

Brunner BSV 20 Manual de usuario

Buderus

Buderus Logamax GB062-24 KDE H V2 Manual de usuario

Potterton

Potterton 50e Hoja de datos

UTICA BOILERS

UTICA BOILERS TriFire Manual de usuario

Joannes

Joannes LADY Series Manual

ECR International

ECR International UB90-125 Manual de instrucciones

Froling

Froling FHG Turbo 3000 Manual de usuario

Froling

Froling P4 Pellet 8 - 105 Manual de usuario

U.S. Boiler Company

U.S. Boiler Company K2 Manual de usuario

Henrad

Henrad C95 FF Manual de usuario

NeOvo

NeOvo EcoNox EF 36 Manual de usuario

Potterton

Potterton PROMAX SL 12 Manual de usuario

Eco Hometec

Eco Hometec EC 25 COMPACT Manual de usuario

Baxi

Baxi Prime 1.24 Manual de usuario

REXNOVA

REXNOVA ISA 20 BITHERMAL Manual de usuario

Radiant

Radiant R2K 55 Manual
