Introduction

Established in 1917, Viessmann draws on more than 90 years of experience in the

development and manufacture of heating systems and due to its high commitment to

quality, it is Europe's single largest brand in heating technology. Viessmann is a third

generation family business and as such is able to hold true to its principles of innovation,

efﬁciency and sustainability; which is a signiﬁcant reason behind Viessmann's

continuing success.

Viessmann's domestic product range has been built around a long established reputation for

high quality commercial heating systems. Viessmann has utilised its extensive knowledge

and expertise to develop domestic heating products that deﬁne the quality benchmark

for other brands. Viessmann manufactures all of its own products and most controllers

to ensure that the drive for quality remains throughout the entire range and that there are

additional beneﬁts from combining its heating technologies. Viessmann produces and sells

products in the following sectors: high efﬁciency boilers, both domestic and commercial;

solar thermal ﬂat plate and tube collectors and PV panels; air source and ground source heat

pumps; biomass boilers; and CHP units for commercial and domestic use, using a number of

fuels including biogas.

However the principles of innovation, efﬁciency and sustainability don't only apply to

products, but extend to all areas of the business. Viessmann's head ofﬁce and production

facility in Allendorf, Germany, was restructured in 2007 and energy use was aligned with

European climate change goals, of a 20% reduction in energy usage and CO2 emissions

and a transfer of 20% of energy production into renewables, by 2020. In 2009, under the

umbrella of the 'Efﬁciency Plus' project, Viessmann achieved its goal of saving 40% of oil,

gas and electricity through the use of renewable energy while at the same time reducing

CO2emissions by a third. Almost all measures to improve efﬁciency and renewable

substitution were achieved with commercially available products made by members of the

Viessmann Group; whether these were Solar panels, CHP units, Oil or Biomass boilers.

As a result of our efforts, Viessmann has been presented with the 2009 German

Sustainability Award, Deutscher Nachhaltigkeitspreis in the category "Most Sustainable

Production facility" for the main factory in Allendorf where high efﬁciency gas boilers for

the UK are manufactured. This award honours the company's achievement of combining

economic success with social responsibility and environmental conservation. Hence

Viessmann products contribute to reducing the carbon footprint of UK homes even before

they are installed.

Leading heating technology from Europe's largest brand -

manufactured in Germany's most sustainable factory

Viessmann

Komplettprogramm IC

Farbe und Größe

der Icon z.T. modifiziert

Überarbeitung Häuser

08. 07.

Beachte: Der Schriftzug

”Effizienz Plus” ist als

Marke zu betrachten

und somit im Detail

typografisch manuell

ausgeglichen, eine

Angabe zu Schriftgröße,

Laufweite enthält daher

minimale Abweichungen.

Bitte auch als Bild bzw.

Marke verwenden !!!

Effizienz:

Univers 67 bold condensed

VH 48 Pt, Laufweite 60

Farbe: Vitorange

Plus

Univers 67 bold condensed

VH 48 Pt, Laufweite 30

Farbe HKS 92, 80 % auf Weiß

auf hellem Fond 10 0%

Zeilenabstand: 46 pt

Contents

Vitodens 100-W Combi from page 4

Vitodens 100-W System

Vitodens 100-W Compact

Vitodens 200-W Combi from page 10

Vitodens 200-W System

Storage combi units from page 14

Vitodens 222-F

Vitodens 242-F

Boiler accessories from page 18

Flues from page 20

Controls from page 28

Cylinders from page 32

Solar from page 38

Support services page 45

Training academy from page 46

Vitodens technical speciﬁcation from page 50

High efﬁciency boilers

2/3

Gas condensing

technology

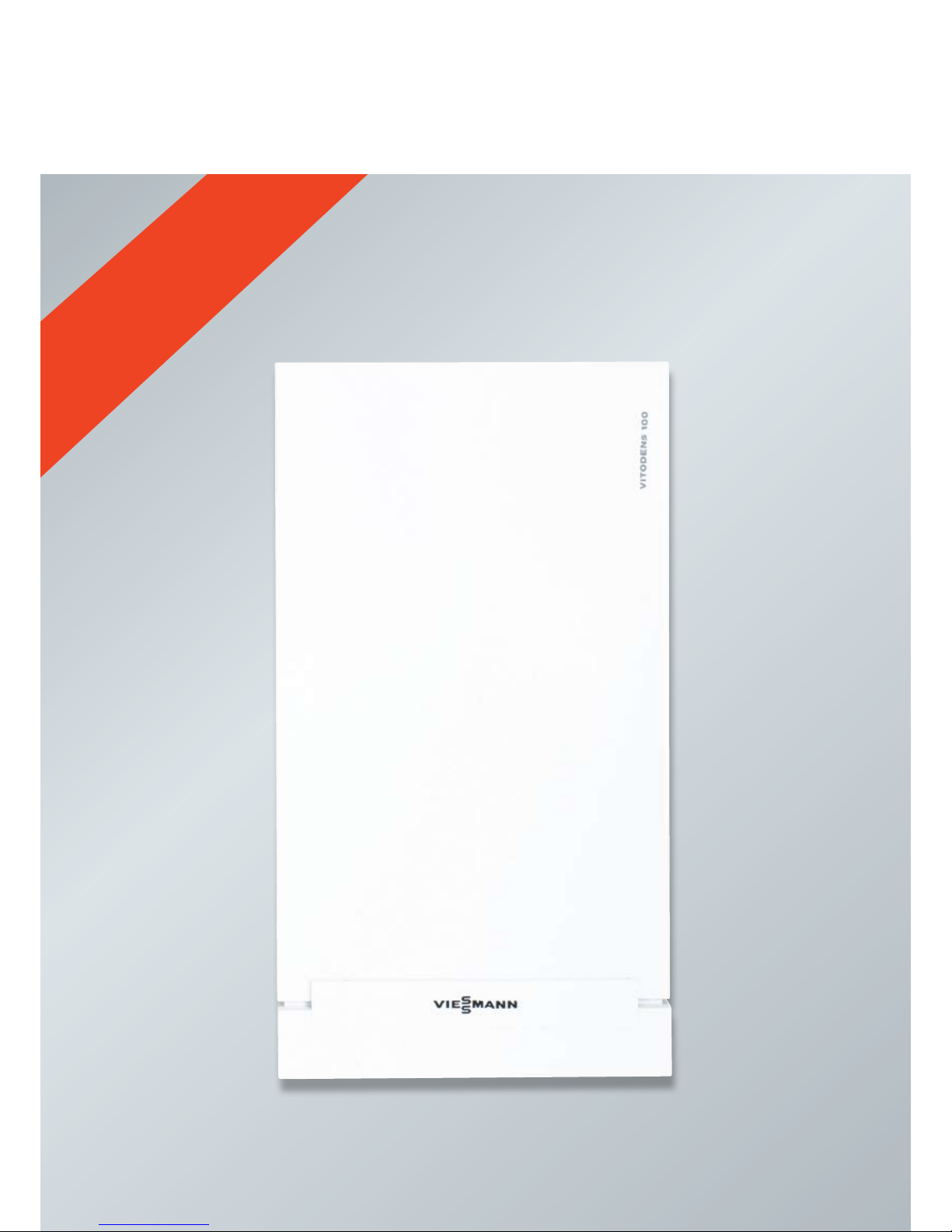

Vitodens 100-W Combi

Comprehensive

warranty as standard

VITODENS 100-W COMBI

The Vitodens 100-W high efﬁciency

gas condensing boiler, manufactured by

Viessmann in Germany, is loaded with

features for easy installation, high efﬁciency

and impressive fuel savings.

MatriX cylinder burner

Patented technology, manufactured

by Viessmann

Inox-Radial heat exchanger

Excellent corrosion resistance

Self-cleaning

Counteracts dirt and sludge deposits

10 year warranty against corrosion

Integral Grundfos AquaBloc hydraulic unit

For easy service and maintenance

Take advantage of these beneﬁts

Heating circuit pump and integral

expansion vessel

For natural gas and LPG (conversion kit

part no. 7828769)

Permissible boiler operating pressure 3 bar

SEDBUK (2005) seasonal efﬁciency 90%

Modulation ratio of 1:3, e.g. 9 kW to 26 kW

Room thermostatic and weather

compensated control unit options

DHW ﬂow rate of up to 14 l/min

Pre-heat facility for better hot

water comfort

Comprehensive ﬂue options

Easy installation

Safety valves and ﬁttings

Fully assembled and wired

Boiler ﬂue connection

Hydraulic accessories

Gas tap

Installation aids are available such as

pre-plumbing jig and rear-piping frames,

please see boiler accessories

DHW output range

Boilers within the range offer the following

outputs of 26 kW, 30 kW, 35 kW

Controls

User control interface with large LCD

Plug in controls for wireless operation

Optional weather compensation control

for additional gas savings of up to 12%

Warranty

5 year comprehensive warranty

as standard

10 year warranty on the Inox-Radial

heat exchanger

Wall mounted gas ﬁred condensing boiler, with modulating MatriX cylinder burner

and Inox-Radial heat exchanger, for open and balanced ﬂue operation with integral

expansion vessel.

Inox-Radial heat exchanger

4/5

Gas condensing

technology

Vitodens 100-W System

Comprehensive

warranty as standard

VITODENS 100-W SYSTEM

The Vitodens 100-W high efﬁciency gas

condensing boiler, manufactured by Viessmann

in Germany, is loaded with features for easy

installation, high efﬁciency and impressive

fuel savings.

MatriX cylinder burner

Patented technology, manufactured

by Viessmann

Inox-Radial heat exchanger

Excellent corrosion resistance

Self-cleaning

Counteracts dirt and sludge deposits

10 year warranty against corrosion

Integral Grundfos AquaBloc hydraulic unit

For easy service and maintenance

Take advantage of these beneﬁts

Heating circuit pump and three-way diverter

valve (4-pipe connection)

For natural gas and LPG (conversion kit part

no. 7828769)

Permissible boiler operating pressure 3 bar

SEDBUK (2005) seasonal efﬁciency 90.3%

Modulation ratio of 1:3, e.g. 9 kW to 26 kW

Room thermostatic and weather

compensated control unit options

Compatible with solar thermal panels

Easy installation

Safety valves and ﬁttings

Fully assembled and wired

Boiler ﬂue connection

Hydraulic accessories

Gas tap

Installation aids are available such as

pre-plumbing jig and rear-piping frames,

please see boiler accessories

Installation with a Vitocell 200 or 300

cylinder meets G3 Building Regulations

without the need for an energy cut-off

valve and cylinder overheat thermostat;

these are now built into the boiler. Instead

a DHW temperature sensor (sensor part

no. 7179114) ﬁtted to the cylinder takes

over the hot water control

Optional sub-mounted mixer kit ideal for

UFH installations (only in conjunction with

Vitotronic 200)

CH output range

Boilers within the range offer the following

outputs of 26 kW, 30 kW, 35 kW

Controls

User control interface with large LCD

Plug in controls for wireless operation

Optional weather compensation control for

additional gas savings of up to 12%

Warranty

5 year comprehensive warranty

as standard

10 year warranty on the Inox-Radial

heat exchanger

Wall mounted gas ﬁred condensing system boiler, with modulating MatriX cylinder

burner and Inox-Radial heat exchanger, for open and balanced ﬂue operation with

integral expansion vessel.

MatriX cylinder burner

100-W showing components

DHW

sensor

Vitotrol 100

Radiator

4-pipe hydraulic system schematic

6/7

Gas condensing

technology

Vitodens 100-W Compact

Comprehensive

warranty as standard

VITODENS 100-W COMPACT

With a depth of only 285 mm the Vitodens

100-W Compact boiler is perfectly suited for

integration into standard kitchen cupboards.

It can also be used in a vast number of other

applications where there is only limited

space available.

MatriX cylinder burner

Patented technology, manufactured

by Viessmann

Inox-Radial heat exchanger

Excellent corrosion resistance

Self-cleaning

Counteracts dirt and sludge deposits

10 year warranty against corrosion

Take advantage of these beneﬁts

For natural gas and LPG (conversion kit

part no. 7828769)

Permissible boiler operating pressure 3 bar

SEDBUK (2005) seasonal efﬁciency 90.8%

Modulation ratio of 1:3

Room thermostatic and weather

compensated control unit options

Easy installation

Depth of only 285 mm for installation

into standard kitchen wall units

No pump over run required

CH output range

Boilers within the range offer the following

outputs of 13 kW, 16 kW, 19 kW, 26 kW

Warranty

5 year comprehensive warranty

as standard

10 year warranty on the Inox-Radial

heat exchanger

Wall mounted gas ﬁred condensing boiler, with modulating MatriX cylinder burner

and Inox-Radial heat exchanger, for open and balanced ﬂue operation and open

vented heating systems.

Compact dimensions suitable

for standard kitchen wall units

8/9

Gas condensing

technology

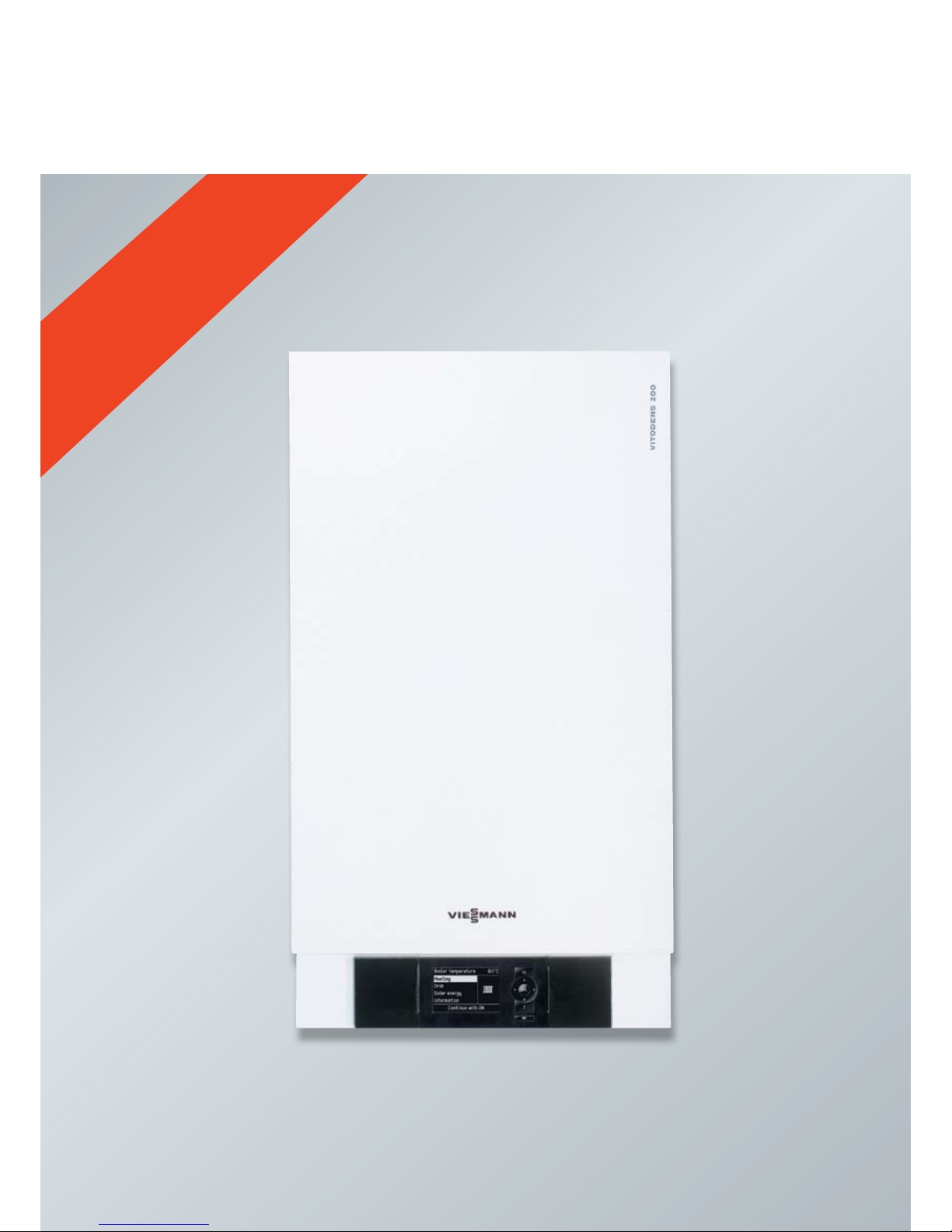

Vitodens 200-W Combi

3 year comprehensive

warranty as standard

5 years if ﬁtted by a Viessmann

trained installer

Otros manuales para Vitodens 100-W

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Caldera de Viessmann

Viessmann

Viessmann Vitodens 100 Guía rápida

Viessmann

Viessmann VITODENS 200 Manual de usuario

Viessmann

Viessmann Vitocrossal CRU 800 Instrucciones de funcionamiento

Viessmann

Viessmann VITODENS 200 Instrucciones de funcionamiento

Viessmann

Viessmann VITOROND 100 VR1 40 Guía rápida

Viessmann

Viessmann VITODENS 050-W Guía rápida

Viessmann

Viessmann Vitocell 340-M Instrucciones de funcionamiento

Viessmann

Viessmann VITOCROSSAL 300 Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 200-W B2HA series Guía rápida

Viessmann

Viessmann Vitodens 111-W Guía de inicio rápido

Viessmann

Viessmann Vitodens 200-W B2HA 100 Manual de instrucciones

Viessmann

Viessmann VITORONDENS 200-T Instrucciones de funcionamiento

Viessmann

Viessmann VITOCELL 300B Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 222-F Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 100-W B1HA Guía del usuario

Viessmann

Viessmann VITOCROSSAL 300 Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 200-W WB2B Series Manual de usuario

Viessmann

Viessmann VITOLIGNO 300-P Instrucciones de funcionamiento

Viessmann

Viessmann Vitopend 200-W Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 200-W System Guía rápida

Viessmann

Viessmann VITOFLEX 300-UF Manual de usuario

Viessmann

Viessmann Vitogas 200-F GS2 Instrucciones de funcionamiento

Viessmann

Viessmann Vitodens 200-W System Guía rápida

Viessmann

Viessmann VITOCELL 100-B Manual de instrucciones

Manuales populares de Caldera de otras marcas

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manual de usuario

Radijator

Radijator BIO max 23.1 Manual de usuario

Brunner

Brunner BSV 20 Manual de usuario

Buderus

Buderus Logamax GB062-24 KDE H V2 Manual de usuario

Potterton

Potterton 50e Hoja de datos

UTICA BOILERS

UTICA BOILERS TriFire Manual de usuario

Joannes

Joannes LADY Series Manual

ECR International

ECR International UB90-125 Manual de instrucciones

Froling

Froling FHG Turbo 3000 Manual de usuario

Froling

Froling P4 Pellet 8 - 105 Manual de usuario

U.S. Boiler Company

U.S. Boiler Company K2 Manual de usuario

Henrad

Henrad C95 FF Manual de usuario

NeOvo

NeOvo EcoNox EF 36 Manual de usuario

Potterton

Potterton PROMAX SL 12 Manual de usuario

Eco Hometec

Eco Hometec EC 25 COMPACT Manual de usuario

Baxi

Baxi Prime 1.24 Manual de usuario

REXNOVA

REXNOVA ISA 20 BITHERMAL Manual de usuario

Radiant

Radiant R2K 55 Manual
