TECHNICAL MANUAL

EDITION 1.1

VANDAL RESISTANT

AUDIO AND VIDEO

DOOR ENTRY SYSTEMS

PAGE 2 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1

PAGE 3 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1

CONTENTS

PAGE

Manual introduction 4

System introduction 4

System components 4 – 11

Vandal resistant panel layouts 5

Accessories 12

Installation 12 – 14

Cable size guide 13 – 14

Audio system block diagram 14

Video system block diagram 15

Testing the installation 15

Panel care 15

Accessories connection guide 16

Single entrance single button audio wiring diagram 17

Single entrance multiple button audio wiring diagram 18

Two entrance audio wiring diagram 19

Single entrance video system wiring diagram 20

Two entrance video system wiring diagram 21

Audio system trouble shooting guide 22

Video system trouble shooting guide 23

PAGE 4 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1

MANUAL INTRODUCTION

The information in this manual is intended as an installation and commissioning guide for

the standard range of vandal resistant door panels, to be used with standard AC buzzer

telephones or with vandal resistant video panels using the Art.890 controller. This manual

should be read carefully before the installation commences. Any damage caused to the

equipment due to faulty installations where the information in this manual has not been

followed is not the responsibility of Videx Security Ltd.

VIDEX run free training courses for engineers who have not installed this system before.

Technical help is also available on 0191 224 3174 during office hours or via e-mail

[email protected].

SYSTEM INTRODUCTION

This system can be used for single entrances or multiple entrances. The system has no

limit on the number of apartments for which it can control or the number of entrance points

that can be connected together, although we suggest using this system on small to

medium sized installation of no more than 20 apartments and three entrances.

SYSTEM COMPONENTS

A standard audio system will comprise of a door panel, power supply and audio

telephones. A standard video system will comprise of a door panel, video controller, power

supply, video splitters and videophones. The individual parts are described below.

DOOR PANELS

A vandal resistant door panel will consist of an amplifier module, button connector board

and ‘n’ number of buttons.

Speech volume adjustments are carried out at the door panel using a small trimmer driver.

Connection Function Connection Function

1 Receive speech from apartment LOCK Spare connector terminals

2 Transmit speech to apartment CB Common of call buttons

3 +12Vdc input A Spare connection terminal

4 0V (Ground) 1 Call button 1 connection

2 Call button 2 connection

3 Call button 3 connection

4 Call button 4 connection

Camera module (Art.830 & 830C) 5 Call button 5 connection

Connection Function

6 Call button 6 connection

I +20Vdc input 200mA (400mA - 830C) 7 Call button 7 connection

F1 0V 8 Call button 8 connection

V Centre core of coax video cable 9 Call button 9 connection

M Screen of coax video cable 10 Call button 10 connection

SB +8-12Vdc camera heater TRADE Trade button connections

Adjustment for

speech volume level

at the door station

Adjustment for

speech volume at the

apartment

Amplifier module (Art.437 or Art.537) Connector PCB (CB)

PAGE 5 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1

VANDAL RESISTANT PANEL LAYOUT AND SIZES

Standard audio panels

Other standard panel sizes:-

1 – 10 button with video [180mm (W) x 256mm (H) x 50mm (D)]

11 – 20 button + video [200mm (W) x 350mm (H) x 50mm (D)]

1 – 10 button + proximity [180mm (W) x 256mm (H) x 50mm (D)]

11 – 20 button + proximity [200mm (W) x 350mm (H) x 50mm (D)]

1 – 10 button + codelock [180mm (W) x 256mm (H) x 50mm (D)]

11 – 20 button + codelock [200mm (W) x 420mm (H) x 50mm (D)]

1 – 10 button + video & proximity [200mm (W) x 350mm (H) x 50mm (D)]

1 – 10 button + video & codelock [200mm (W) x 420mm (H) x 50mm (D)]

1 BUTTON = C

2 BUTTON = B, D (Note: Also available in 125mm 220mm panel style)

3 BUTTON = A, C, E

4 BUTTON = B, D, G, I

5 BUTTON = A, C, E, G, I

6 BUTTON = A, C, E, F, H, J

7 BUTTON = A, B, C, D, E, G, I

8 BUTTON = A, B, C, D, E, G, H, I

9 BUTTON = A, B, C, D, E, F, G, I, J

10 BUTTON = A, B, C, D, E, F, G, H, I, J

11 BUTTON = A, C, E, F, H, J, K, M, O, Q, S

12 BUTTON = A, C, E, F, H, J, K, M, O, P, R, T

13 BUTTON = A, C, E, F, H, J, K, M, O, P, Q, S, T

14 BUTTON = A, C, E, F, H, J, K, M, O, P, Q, R, S, T

15 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O

16 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, R

17 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, Q, S

18 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, R, T

19 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, S, T

20 BUTTON = A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T

PAGE 6 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1

AUDIO SYSTEM POWER SUPPLY

Art.520M

The standard power supply is the Art.520M. Outputs of 12Vdc (200mA), 8Vdc (300mA)

and 13Vac (1A) are available. The dc outputs are designed to power the amplifier modules

only and can not be used to power other devices such as code locks, lock releases etc.

These items must be connected to the AC output of this power supply.

VIDEO SYSTEM POWER SUPPLY AND CONTROL UNIT

Art.890

The 890 control unit is used on video systems. Its functions include call tone generation,

voltage regulation and switching to both door panels and videophones, lock release control

and camera recall. The Art.890 requires both 13Vac and 24Vac to operate.

CONNECTIONS

Terminal Function

+12 12Vdc output (200mA Max.)

+8 8Vdc output (300mA Max.)

- 0V (Ground)

~ 13Vac (1A Max.)

230 Mains in (Live connection)

0 Mains in (Neutral connection)

Terminal Function

~ & ~ Power input 24Vac

~& ~ Power input 13Vac

1 Switched 20Vdc to videophones (Only on during a call)

2 Switched negative from videophones to activate lock

3 Receive speech from videophone

4 Transmit speech to videophone

5 Ground for speech circuits

6 Ground for video circuits

TV1 Camera recall facility

T Electronic call tone output for call buttons

A 13Vac output for ac lock release

+8 8Vdc output 200mA max.

F Ground for door panel speech circuits

E Push button commons for AC calling

I Switched 20Vdc for camera (Only on during a call)

G2 Receive speech from door panel

H1 Transmit speech to door panel

F1 Negative supply for camera unit

F2 Switched negative (Switches off when lock released)

SE Switched negative to lock

+12V 12Vdc output 200mA max.

V & M Coax in from camera (V=Centre core, M=Screen)

V & M Coax out to videophones (V=centre core, M=Screen)

For more information

on the Art.890 please

see the Videx Video

technical manual

Fuse

compartment

PAGE 7 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1

Art.850

The 850 transformer includes a 13Vac (1A max.) output and a 24Vac (1A max.) output.

Each of the two outputs is individually fused.

CONNECTIONS

Art. 893N

Art.701

20Vdc 800mA continuous 1A surge PSU and is used as a booster

supply or when more than two videophones are required in an

apartment. This power supply only has an output when either a 0V

is applied to –C or when a voltage is applied to +C. At all other

times the + output is switched off.

Connection Function

230V~ 0 Mains voltage input

+ Switched 20Vdc output (Triggered by –C or +C)

- 0V

-C 0V trigger input (From 4V to 0V)

+C + volts trigger input (From 8V up to 30V)

D+ Switched +20Vdc output via diode

BST/GMT digital time clock. This time clock operates from a 12Vac

or dc power supply. The output is a dry contact relay. When used

with this system the trade button input is used. This allows the dry

contact relay to drive the lock release directly. The relay can be

programmed to release the lock for 1 – 99 seconds.

Connection Function

+ 12Vac or dc voltage input

- 0V

TR Trade button input (Switched 0V)

C Common connection on relay

NO Normally open connection on relay

NC Normally closed connection on relay

For more information see time clock instruction sheet

Terminal Function

24V 24V ac output

13V 13V ac output

230V Live mains connection In

0 Neutral mains connection In

Fuse

compartment

PAGE 8 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1

CONNECTIONS

Connection Function

- 0V connection from PSU

~ 13Vac supply input

A1 Current sensing path for call

A2 from door A

B1 Current sensing path for call

B2 from door B

1 Receive speech from telephone

2 Transmit speech to telephone

5 Lock trigger from telephone

1A Transmit speech to door A

1B Transmit speech to door B

2B Receive speech from door A

2B Receive speech from door B

5A Lock trigger to door A

5B Lock trigger to door B

LA LED command (Speech open to door A)

LB LED command (Speech open to door B)

R Reset signal (To other Art.502’s)

CONNECTIONS

Connection Function

1 13Vac supply input

2 0V connection

3 Current sensing path for call

4 from door A

5 Current sensing path for call

6 from door B

R Reset signal (To reset other Art.892’s)

7 Receive speech from videophone

8 Transmit speech to videophone

9 Lock release command from Art.890

10 Centre core of coax to apartments

11 Screen of coax to apartments

12 Switched 20Vdc from Art.890

7A Transmit speech to door A

7B Transmit speech to door B

8A Receive speech from door A

8B Receive speech from door B

9A Lock trigger to door A

9B Lock trigger to door B

10A Centre core of coax from door A camera

10B Centre core of coax from door B camera

11A Screen of coax from door A camera

11B Screen of coax from door B camera

12A 20Vdc to power camera at door A

12B 20Vdc to power camera at door B

Art.502

The Art.502 is a two door

switching relay for an audio

system. One unit is required for a

two door system, one unit per door

is required for a three or more door

system. The Art.502 switches both

audio and lock release request to

the door that calls. The relay stays

latches at the last door called.

Art.892

The Art.892 is a two door

switching relay for a video system.

One unit is required for a two door

system, one unit per door is

required for a three or more door

system. The Art.892 switches

audio, video and lock release

request to the door that calls. The

relay stays latches at the last door

called.

PAGE 9 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1

AUDIO TELEPHONES

Art.3101

Art.3021

Art.3102

The Art.3101 AC buzzer phone includes a lock release push button

and spare dry contact push to make button for other services.

Smart line AC buzzer phone includes a lock release

push button.

CONNECTIONS:-

Function

1 Transmit speech to the door panel

2 Receive speech from the door panel

3 0V

4 Not used (Electronic call tone input)

5 Lock trigger (Switched 0V)

6 Call line (13Vac input to trigger buzzer)

8 Dry contact switch

The Art.3102 AC buzzer telephone includes a lock release push

button and spare dry contact push to make button for other services.

Additionally it includes a slide mute switch to turn the phone off when

the tenant does not want to be disturbed.

CONNECTIONS:-

Function

1 Transmit speech to the door panel

2 Receive speech from the door panel

3 0V

4 Not used

5 Lock Trigger (Switched 0V)

6 Call line (13Vac input to trigger buzzer)

8 Dry contact switch

PAGE 10 of 24 AUDIO/VIDEO VANDAL RESISTANT TECHNICAL MANUAL VER1.1

VIDEOPHONES

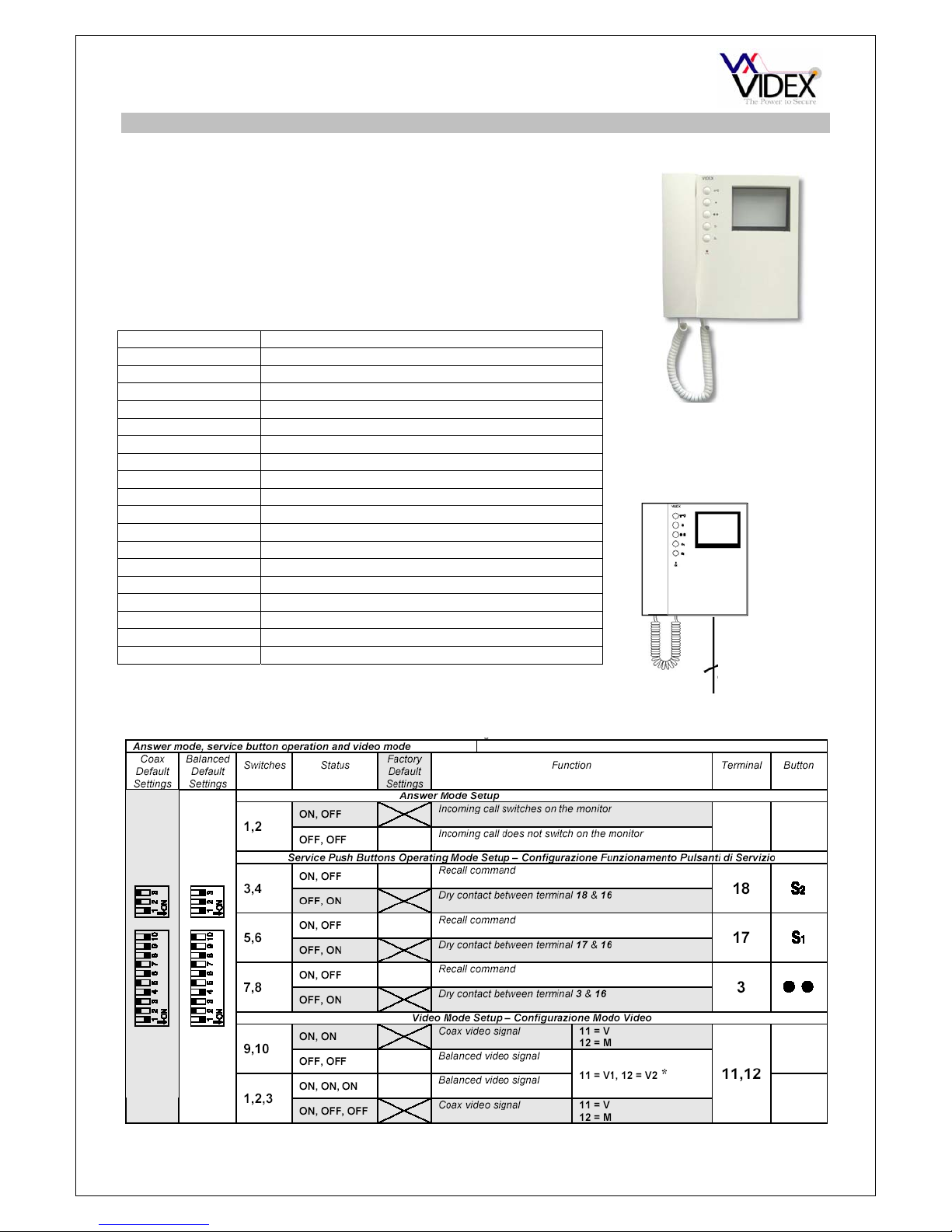

Art.3312

DIP SWITCH SETTINGS

The Art.3312 (3412 for colour) includes a lock release push

button, camera recall button and three dry contact push to

make spare push buttons for other services. Coax and non-

caox video can be used by setting the relevant dip-

switches. An Art.3980 back plate is required with this

videophone.

CONNECTIONS:-

Function

1 +12V out to power video splitter

2 Camera recall

3 Spare button

4 +20V power input

5 Door release command

6 Transmit speech to door panel

7 Receive speech from door panel

8 Speech Ground

9 Video power ground

10 Local call tone input

11 Coax centre core

12 Coax Screen

13 Speech common for intercommunicating systems

14 Call tone input

15 Speech ground for intercommunicating systems

16 Common of spare buttons

17 Spare button

18 Spare button

9 + Coax

11 cores

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de intercomunicación de Videx

Videx

Videx VRVK Series Manual del sistema

Videx

Videx Videokit CVK4K Manual de usuario

Videx

Videx Kristallo Series Manual de usuario

Videx

Videx Audiokit 4K Series Manual de usuario

Videx

Videx 4000 Series Manual de usuario

Videx

Videx VK4K/3656 Series Manual del sistema

Videx

Videx ESVK/6788 Series Manual del sistema

Videx

Videx VRVK 6358 Manual del sistema

Videx

Videx 5178 Manual de usuario

Videx

Videx DIGITAL GSM DOOR INTERCOM SYSTEM Manual de usuario

Videx

Videx 4900 - 4900M Manual de usuario

Videx

Videx VK6N Series Manual de usuario

Videx

Videx 6200 Series Manual de usuario

Videx

Videx 4000 Series Manual de usuario

Videx

Videx 8KC/3012 Manual de usuario

Videx

Videx IP videokit IPVK/6296 Series Manual del sistema

Videx

Videx CVR4KV Manual de usuario

Videx

Videx VK4K/6458 Series Manual de usuario

Videx

Videx KRV98 Manual de instrucciones

Videx

Videx VIDEOKIT Series Manual de usuario

Videx

Videx ESVK/KRV782 Series Manual del sistema

Videx

Videx ESVK Series Manual del sistema

Videx

Videx IPVK KRISTALLO Manual del sistema

Videx

Videx VK4K/5456 Series Manual del sistema

Manuales populares de Sistema de intercomunicación de otras marcas

Bticino

Bticino LINEA 3000 Manual de usuario

MSI

MSI MSI-140 Manual de usuario

golmar

golmar Stadio Plus Manual de usuario

CyberData

CyberData 011211 series Manual

Vidos

Vidos duo M1021 Manual de usuario

Vimar

Vimar ELVOX 7539/E Manual de usuario

SSS Siedle

SSS Siedle BTSV 850-03 Manual de usuario

Dahua

Dahua VTO Series Manual de usuario

Elvox

Elvox 5651 Manual de usuario

Rocom

Rocom Doortello Business FW T2.05W2.04 Manual de usuario

Viking

Viking E-35-EWP Manual de usuario

Safeguard Supply

Safeguard Supply LRA-EX1000 Manual de usuario

SSS Siedle

SSS Siedle BFCV 850 Series Manual de usuario

GRD

GRD MAX V2 Manual de usuario

Alecto

Alecto ADI-250 Manual de usuario

Aiphone

Aiphone IE-8MD Manual de usuario

Perel

Perel EDB4 Manual de usuario

Bticino

Bticino Classe 300 Manual de usuario
