Videx 3000 Series Manual de usuario

TECHNICAL SUPPORT

Tel: 0191 224 3174

Fax: 0191 224 4938

Email: [email protected]

Web: www.videxuk.com

SERIES

3000

CALL TONE VOLUME ADJUSTMENT

In every situation

Move the volume switch to the

lower position to set the call

tone volume to low.

Move the volume switch to the

middle position to set the call

tone volume to medium and to

the upper position to set the call

tone volume to high.

2 3

Door Open

button

Handset

speaker

Handset

microphone

Audiophone

Handset

Handset cord

Front cover

retaining

screw

3 level (low, medium

and high) call tone

volume switch

OVERVIEW

2305 BUS relay

activation button

3183

3000 Series Audiophone

QUICK GUIDE

ART. 3183

3000 Series full base "true" 2 wire BUS digital audiophone which incorporates

an electronic call tone with an adjustable 3 level volume control. It also

includes a "door open" push button and a secondary push button to activate

a BUS relay unit (Art.2305).

For use on the "true" 2 wire VX2300 digital audio and video system.

Call tone adjustment: 3 level (low, medium and high) call tone switch.

Intercommunicating setup: 1 internal 3 way dip-switch to set the

intercommunication mode.

QG_3183_V.1.0_08/19

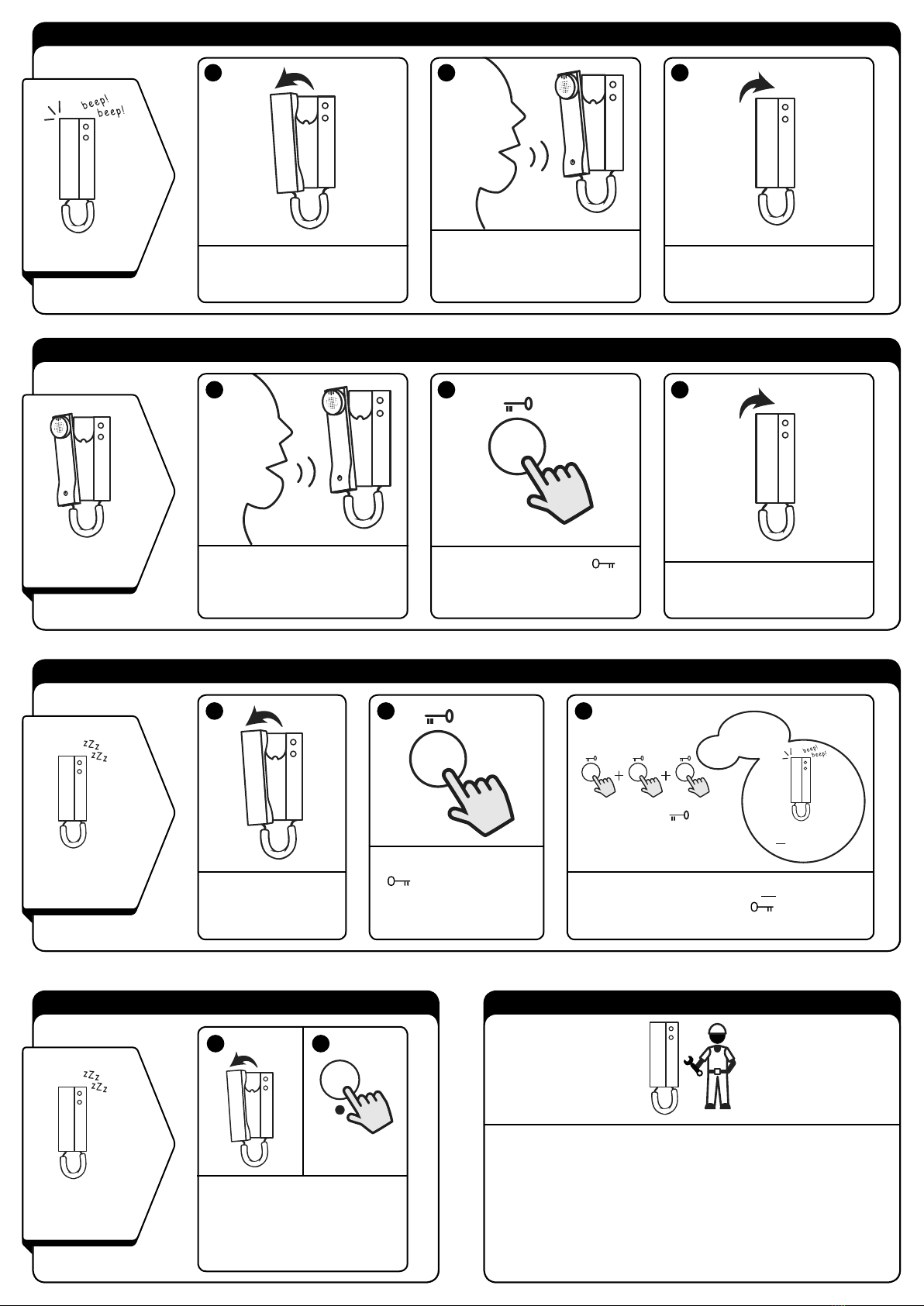

ANSWERING A CALL

TO OPEN THE DOOR

To answer an incoming call

pick up the handset.

With the handset lifted a

conversation with the caller

can begin.

To end the call replace the

handset back on the cradle.

During a call

During a conversation, with

the handset lifted. To end the call replace the

handset back on the cradle.

During a

conversation

12 3

SECONDARY PUSH BUTTON (IF ART.2305 AVAILABLE) TECHNICAL ADVICE

When the system

is in standby

Pick up the handset. Press the

secondary button as many times as

the ID of the BUS relay to enable (if

an Art.2305 was setup during the

installation, refer to Art.2305 manual).

For further technical advice and assistance on the

installation of this product please contact Videx technical on

tel: 0191 224 3174.

For any sales advice and assistance please contact Videx

sales on tel: 0191 238 8324.

To download a copy of this quick guide visit the Videx

website: www.videxuk.com

Press the lock button

to operate the lock.

X3 if Art.2305

ID = 3

INTERCOMMUNICATING CALL

Pick up the handset.

Press the lock button 3 times

extension ID.3

or phone ID.3

will ring

i.e. if calling extension ID.3 or phone ID.3,

press the lock button 3 times.

132

When the system

is in standby

Press the lock button

as many times as

the extension ID*1or

phone ID*2.

*1If setup for local intercommunication mode (i.e. communication between phones in the same apartment) extension ID's 1 - 4 can be called.

*2If setup for external intercommunication mode (i.e. communication between phones in dierent apartments) phone ID's 1 up to the max. phone ID used on the system.
