Victor VCT12103A Manual de usuario

Instruction Manual

Manuel d'instructions

Manual de Instrucciones

SERIES 1210-3A

10-DIGIT BIG LCD DISPLAY

2-COLOR

Printing Calculator

SERIE 1210-3A

GRAND AFFICHAGE A CRISTAUX LIQUIDES DE 10 CHIFFRES

2 COULEURS

Calculatrices Imprimantes

SERIE 1210-3A

12 DÍGITOS, CON LCD GRANDE

2 COLORES

Calculadora de Impresión

PREFACE

Congratulations on your choice of a Victor electronic

calculator. Careful design, quality materials, painstaking

workmanship, and advanced research and productions

facilities have given you a calculator that, with proper care,

will provide years of trouble-free service. To assure future

optimum performance, ask your Victor representative about

low cost protection offered by Victor's Extended Guarantee

Protection Program.

This operating manual describes the features and operation

of the Victor 1210-3A and 1212-3A. Where applicable,

differences in these two models are noted. This calculator

also features the four basic arithmetic operations, grand

total, sigma, percentage, percent of change, change sign,

item count, non-date add functions, programmable tax rate,

back space, cost, sell, margin, and four key memory

functions. The Victor 1210-3A and 1212-3A also have

calendar and clock features.

NEW ANITMICROBIAL PROTECTION

Your Victor calculator has been engineered with an

Antimicrobial agent that protects the calculator against the

growth of microbes and bacteria.

Did you know that viruses can live for up to 72 hours on

common surfaces, such as desks, phones, and calculators?

How do you protect your calculator? Surprisingly, with silver.

This precious metal is a natural germ-fighter, using its ions to

attack microbes. This silver is so safe and effective that it

has been EPA-approved for use in a wide range of

applications. One of those applications is within your own

Victor Antimicrobial calculators. Now you can reduce

microbes on your desktop environment while maximizing

your calculating power

TABLE OF CONTENTS

Operations and General Maintenance

Replacing the ink roller

Loading Paper

Display Symbols

Keyboard Diagrams

Keyboard Layout

Slide Switch Features

Key Features

Date and Time Functions

Application Examples

Setting the Date and Time

Warranty

SPECIFICATION

Display

Printing Speed

Printing Paper

Power Sources

Ambient Temperature

Power Consumption

Dimension

Ink Roller

Printing Color

Weight

: 10 digits, large LCD display

: 2.1 lines/second.

: Width 58mm (2 ¼ inch), MAX

: AC 110-120,220-230 or 240V,50/60Hz,

with an AC adaptor 6V DC, 300mA or

400mA.

:Or DC-Four AA size manganese dry

batteries (UM-3)

: 0° ~ 40°C (32° ~ 104°F)

: 1.6W

: 260mm(L) × 198mm(W) × 65mm(H)

: IR-40T

: 2-color (minus and negative in red)

: 660g

PREPARATION

A. Power source

This unit receives its operating power with an AC adaptor 6V DC,

300mA or 4 AA size manganese dry batteries (UM-3).

When Power is in ON position, pressing [D/#] key will only print

the digits displayed in the front display panel.

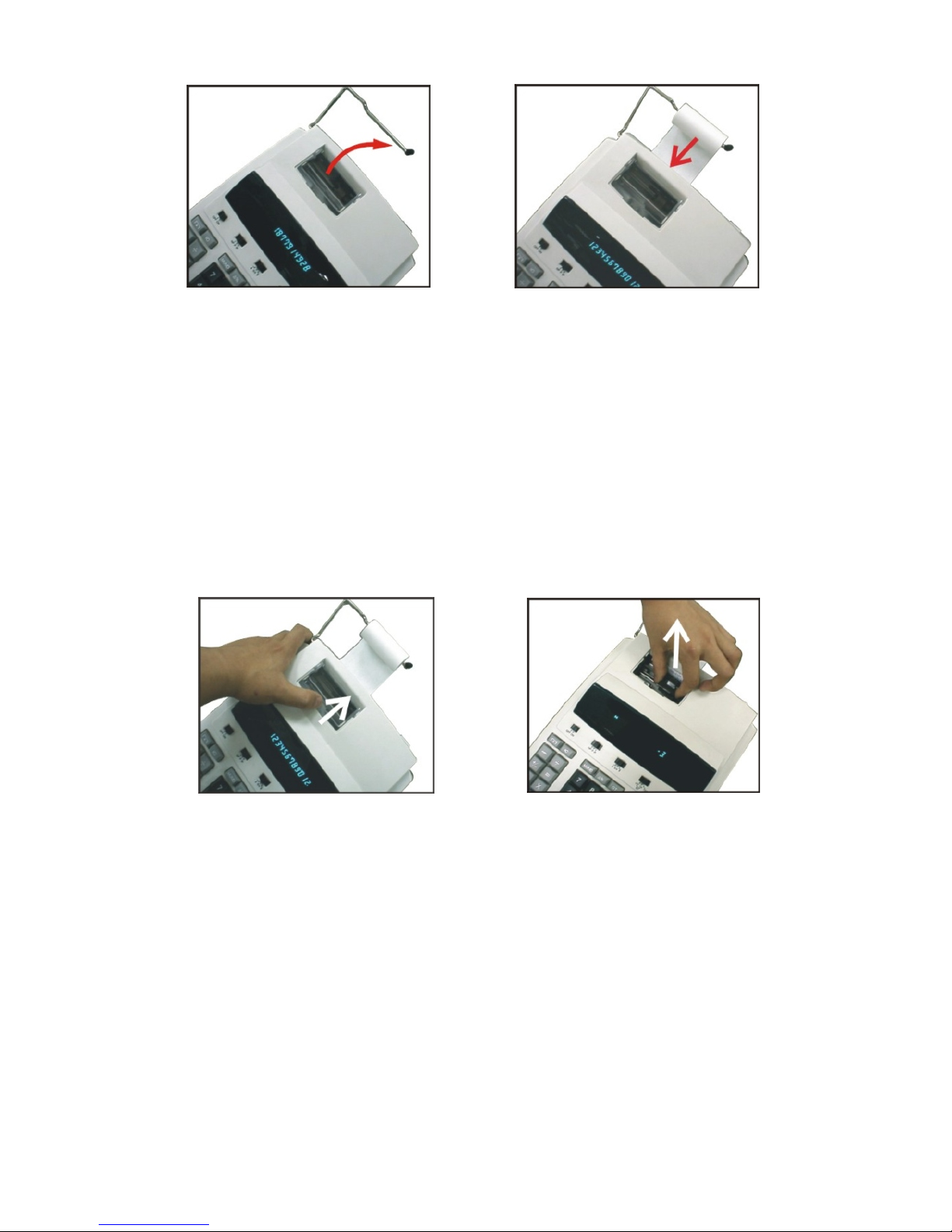

B. Loading Paper

Place paper holder into position (Fig.I).

Install the paper roll on the holders.

Insert the paper end into printer slot (Fig.II).

Press [ ] key to feed the paper to an adequate length

Fig. I Fig. II

If the printing becomes faint, the ink roller may need to be replaced.

C. Replacing the lnk Rller

1) Turn the power off.

2) Open the printer cover(Fig.III)

3) Remove the old ink roller by pulling it up (Fig.IV).

4) Insert the new ink roller IR40T in the compartment and

gently press it down until it snaps into place.

Fig. III Fig. IV

CAUTION: Turn the power off before replacing ink roller.

KEY IDENTIFICATION

OFF NP P IP

(OFF) Display OFF, whiles time/date memory

will remain.

(NP P IP) Switch to choose Printer OFF, Printer ON

or Printer item count mode.

GT TAX SET

( ∑ ) The calculator automatically adds the

result of multiplication/division to the total

time. Obtain the multiplication/division

result by pressing = key.

(GT) Grand Total Memory selectable switch.

(TAX SET) Selects set mode for tax rate.

∑

▲5/4▼

(▲) An answer is rounded up.

(5/4) An answer is rounded off.

(▼) An answer is rounded down.

A 0 2 3 4 F

Decimal set

(A) accoutant,Fixed (0,2,3,4),(F)floating

[0]~ [9] [00] :Numeral keys

[.] :Decimal point key

[+] :Add key

[-] :Subtract key

[×] :Multiplication key

[÷] :Division key

[=] :Equal key

[%±] :Percent key

[MS] :Memory subtotal recall key

[MT] :Memory total clear key

[M+] :Memory plus key

[M-] :Memory minus key

[D/#]:Date/Number key print key

[ ] :Paper feed key

[ /S] :Subtotal key

[C/CE] :All clear/Clear entry

[ ]:Back space key

[ ] :Inverts sign of the displayed number at

key entry

[TAX+] or [TAX-] :TAX+ Calculates the tax amount, using

The stored rate, and adds it to the

Original price before tax

:TAX- Calculates the amount of tax

to be deducted (using the stored tax

Rate) and subtracts it from the

displayed value to find the pre-tax

sales amount

:Prints TAX / Included TAX (TAX=3)

A TAX+ = A(3/100)

= A+(A(3/100))

:Prints TAX / Included TAX(TAX=3)

A TAX- = A - A (1+3/100)

= A / (1+3/100)

[∆%] :Prints difference (Computes the %

Of change between two values)

A ∆% B = B - A

= (B - A) / A

A ∆% B +/- = - (B + A)

= - (B + A) / A

[*/T] :Total key

[COST] [MARGIN] [SELL] :Used for calculating the cost,

selling price and profit margin

amount. Enter the value of any 2

items to obtain the balance

value item. (e.g. enter the value

of the cost and the selling price

to obtain the profit margin.)

[GT] :In Grand total mode, adds the

total register to the

GT register by the (*/T) key

[TIME] :Displays date or time

[SET] :Used to set the date and time in

calendar & clock mode

[AM/PM] :Used to switch between AM or

PM at clock mode time setting

[12/24] :Used to switch between 12 or 24

hour at clock mode time setting

[FORMAT] :Used to select date format

between “YYYY/MM/DD”,

“DD/MM/YYYY” or

“MM/DD/YYYY” at calendar mode

DISPLAY SYMBOL

MEMORY : A number has been stored in

memory

ERROR : Error or overflow of capacity

– : The display value is negative

GT :A number has been stored in

Grand Total

TAX+,TAX-,TAX% :Performance of tax calculation

SELL,COST,MARGIN% :Performance of cost,sell,and

Profit Margin calculation

DATE AND TIME FUNCTION

Set Date and Time

1) Press TIME/DATE and then SET. (The first digit of the month

will flash.)

2) Enter the month MM using the number keys. (The first digit of

the date will flash.)

3) Enter the date DD using the number keys. (The first digit of

the year will flash.)

4) Enter the year YYYY using the number keys. (The first digit of

the month will flash.)

5) Press SET to confirm the date.

6) Press TIME/DATE and then SET. Enter the time using the

number keys and press 12/24 to switch between 12-hour or

24-hour clock.

7) Press AM/PM to toggle morning or afternoon and press SET

To confirm the time.

The TIME/DATE key is used to display the

Time or Date.

Depressing the TIME/DATE key once displays

the dateMM-DD-YYYY.

Depressing the TIME/DATE key a second time

displays the time , HH-MM-SS.

When displaying the Date or Time the = key

becomes a key to enter or exit the date or

time set mode.

When displaying the Time the ÷ key becomes

a key to toggle between the 12(AM/PM) or 24

hour clock mode.

When displaying the Time in the set mode the

× key becomes a key to toggle between AM

and PM when in the 12 hour time mode.

DATE FORMAT: While displaying the date, depressing the %±

key allows changingthe date format mode from MM-DD-YYYY to

DD-MM-YYYY or YYYY-MM-DD. The default date format is

MM-DD-YYYY.

How to set date:

Oct.29,2001

0 3 4 5

(Hold for 3 seconds)

How to set time:

a) 3:45AM

b) 3:45PM

c) 15:45

MM-DD-YYYY

“M”M-DD-YYYY

10-“D”D-YYYY

10-29-“2”YYY

“1”0-29-2001

10-29-2001

HH-MM-SS

“H”H-MM

“0”3-45

03-45-00

“0”3-45

03-45-00

15-45-00

C/CE

AM/PM

÷÷

12/24

SET

=SET

Problem Operation Read-out

2001

(Hold for 3 seconds)

SET

REPLACING THE BACK-UP BATTERY:

1) Using a screwdriver remove the three screws on the back cover

of the calculator.

2) To separate the front and back cover halves, carefully insert and

twist a flat-blade screwdriver between them.

3) Use a flat-blade screwdriver to gently pry out the battery.

4) Position the new battery so the positive (+) side is up. Slide one

edge of the battery under the tab on the battery holder, then

press the battery into place.

5) Snap the cover halves back together. Then reinsert and tighten

the screws.

NOTE: Memory backup battery retains the tax rate, calendar and

clock setting,

when the power is off or even when the AC cord is

disconnected.

Battery: 1 Lithium battery (Type: CR 2032)

Battery life: Backup time 1000 hours

RESETRESET

RESET:

Electromagnetic interference or electrostatic discharge may cause

the display to malfunction or the contents of the memory to be

lost or altered. Should this occur, use the tip of a ball point pen

(or similar sharp object) to press the [RESET] button on the bottom

of the calculator. After resetting, be sure to set the tax rate, time

and date again.
