1.0 PRODUCT DESCRIPTION

Available Sizes by Component

• Series AH1 Braided Hose: 31, 36, 48, 60, 72"/790, 914, 1220, 1525, 1830 mm. Note: length includes adapter

nipple and 5.75"/140 mm straight reducer.

• Sprinkler Reducers: ½" and ¾"/15 and 20 mm sprinkler connections and 5.75"/140 mm, 9"/230 mm, 13"/330 mm

straight lengths and short, long 90º elbows. Note: The short 90° elbow is typically used with concealed sprinklers

while the long 90º elbow is typically used in the installation of recessed pendent sprinklers.

• Adapter Nipples: 1"/25 mm NPT or BSPT adapter nipples for attaching to pipe and ﬁttings outlined in NFPA

standards. ¾"/20 mm NPT or BSPT available for VdS. 1 ¼"/ 32mm BSPT available for LPCB.

• Brackets:

• Style AB1 for suspended and hard-lid ceilings, allows installation before ceiling tiles in place

• Style AB2 for suspended and hard-lid ceilings, allows for vertical sprinkler adjustment, and installation before

ceiling tiles in place

• Style AB3 for surface mount applications, wood, metal and block walls

• Style AB4 for hard-lid ceilings with hat furring channel grid systems, allows for vertical sprinkler adjustment

• Style AB6 for cold storage applications, refer to submittal 10.90

• Style AB7 for suspended and hard-lid ceilings

• Style AB7 Adjustable for suspended and hard-lid ceilings

• Style AB8 for hard-lid ceilings with CD 60/27 proﬁle metal studs (regionally available)

• Style AB9 for hard-lid ceilings with hat furring channel grid systems

• Style AB10 for Armstrong®TechZone™ceilings

Maximum Working Temperature

• 225°F/107°C

Maximum Working Pressure

• 200 psi/1375 kPa (FM Approval)

• 175 psi/1206 kPa (cULus Listed)

• 1600 kPa/232 psi (VdS/LPCB Approved)

Victaulic®Vic-Flex™ Sprinkler Fittings

Series AH1 Braided Flexible Hose 10.95

System No. Location

Submitted By Date

Spec Section Paragraph

Approved Date

victaulic.com 2

victaulic.com

1.0 PRODUCT DESCRIPTION (Continued)

Connections

• To adapter nipple (inlet) via 1"/25.4 mm NPT or BSPT male thread

• To adapter nipple (inlet) via ¾"/20 mm BSPT male thread(VdS only)

• To sprinkler head (outlet) via ½" or ¾"/15 mm or 20 mm

Minimum Bend Radius

• 7"/178 mm (FM Approval)

• 3"/76.2 mm (cULus Listed)

• 3"/76.2 mm (VdS/LPCB Approved)

Maximum Allowable Sprinkler K-Factors

• FM (½"/15mm reducer) K5.6/8,1 (S.I.),(¾"/20mm reducer) K14.0/20,2 (S.I.)

• cULus (½"/15mm reducer) K8.0/11,5 (S.I.),(¾"/20mm reducer) K14.0/20,2 (S.I.)

• VdS/LPCB (½"/15mm reducer) K5.6/8,1 (S.I.),(¾"/20mm reducer) K8.0/11,5 (S.I.)

2.0 CERTIFICATION/LISTINGS

3.0 SPECIFICATIONS – MATERIAL

Series AH1

• Flexible Hose: 300-series Stainless Steel

• Collar/Weld Fitting: 300-series Stainless Steel

• Gasket Seal: Victaulic EPDM

• Isolation Ring: Nylon

• Nut and Nipple: Carbon Steel, Zinc Plated

• Reducer (½ or ¾"): Carbon Steel, Zinc-Plated

Brackets: Carbon Steel, Zinc-Plated

victaulic.com 3

victaulic.com

4.0 DIMENSIONS

Product Details - Series AH1Braided Hose

5Item Description

1 Flexible Hose

2 Isolation Ring

3 Gasket

4 Nut

5 Branch Line Nipple

6 Braid

7 Collar/Weld Fitting

Hose Length Dimensions

Hose Length A B

inches

31/790 25.25/641 31/790

36/915 31.25/794 36/915

48/1220 42.25/1073 48/1220

60/1525 54.25/1378 60/1525

72/1830 66.25/1683 72/1830

Standard Reducer

5.75"/140 mm straight reducer

Optional Reducers

9.0"/229 mm straight reducer

13.0"/330 mm straight reducer

Short 90° elbow reducer Long 90° elbow reducer

NOTE

• The Short 90° elbow reducer is typically used with concealed sprinklers while the longer 90 elbow is typically used in the installation of recessed pendent

sprinklers.

2.62"/

66.5 mm

4.83"/

122.7 mm

6.57"/

166.9 mm

2.62"/

66.5 mm

–

––

–

victaulic.com 4

victaulic.com

4.1 DIMENSIONS

VicFlex Brackets

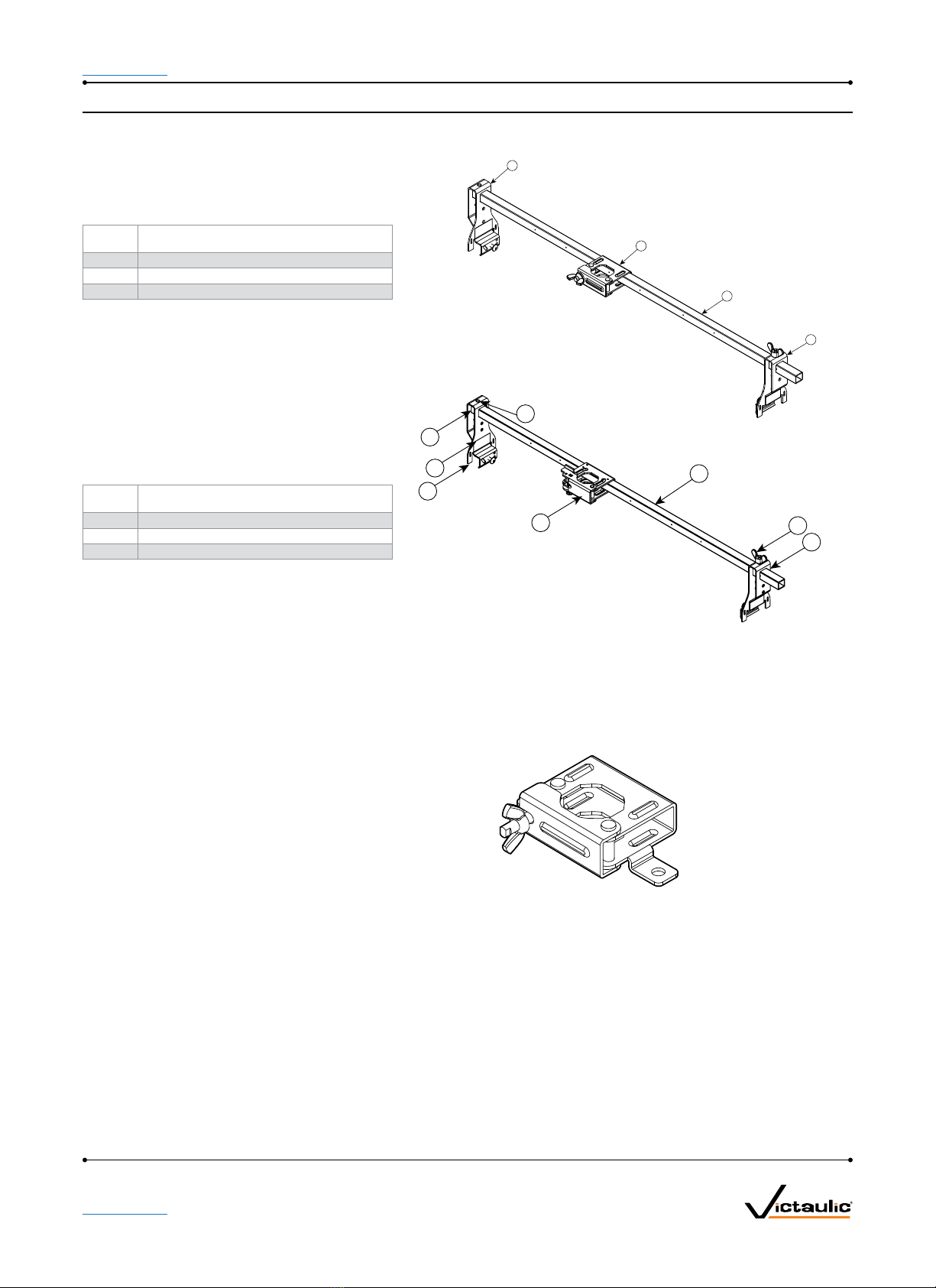

Style AB1

• Suspended Ceilings

• Hard-Lid Ceilings (FM Only)

Item Description

1 24"/610 mm or 48"/1220 mm Square Bar*

2 Patented Center Bracket

3 End Bracket

*Both sizes FM/VdS/LPCB approved, cULus listed

Style AB2

• Suspended Ceilings

• Hard-Lid Ceilings

Item Description

1 24"/610 mm or 48"/1220 mm Square Bar*

2 Patent-Pending adjustable Center bracket

3 End Bracket

*Both sizes FM/VdS/LPCB approved, cULus listed

Style AB3

• Surface Mount Applications

• FM Approved

victaulic.com 5

victaulic.com

4.2 DIMENSIONS

VicFlex Brackets

Style AB4

• Hard-Lid Ceilings with Hat furring

channel grid system

Item Description

1 24"/610 mm or 48"/1220 mm Square Bar*

2 Patent-Pending adjustable Center bracket

3 End Bracket for Hat Furring Channel

*Both sizes FM/VdS approved, cULus listed

Style AB7

• Suspended Ceilings

• Hard-Lid Ceilings

Item Description

1 24"/610 mm or 48"/1220 mm Square Bar*

2 Patented 1-Bee2® Center Bracket

3 End Bracket

*Both sizes FM/VdS approved.

Style AB7 Adjustable

• Suspended Ceilings

• Hard-Lid Ceilings

Item Description

1 700mm or 1400 mm Square Bar*

2 Patented 1-Bee2® Center Bracket

3 End Bracket (adjustable)

*Both sizes FM/VdS approved.

victaulic.com 6

victaulic.com

4.3 DIMENSIONS

VicFlex Brackets

Style AB8

• Hard-Lid Ceilings

Item Description

1 700mm or 1400 mm Square Bar*

2 Patent-pending adjustable center bracket

3 *Both sizes FM/VdS

*Both sizes FM/VdS approved.

Style AB9

• Hard-Lid ceilings with Hat furring channel

grid system

Item Description

1 24"/610 mm or 48"/1220 mm Square Bar*

2 Patented 1-Bee2® Center Bracket

3 End Bracket for Hat Furring Channel

*Both sizes FM/VdS approved.

Style AB10

• Suspended ceilings

• Armstrong®TechZone™

Item Description

1 6"/152 mm Square Bar*

2 Patented 1-Bee2® Center Bracket

3 End Bracket

*FM/VdS approved, cULus listed.

victaulic.com 7

victaulic.com

4.4 DIMENSIONS

CLEARANCES ABOVE CEILING

Series AH1 Braided Hose and Style AB1 Bracket

Suspended Ceiling Grid with Recessed Sprinkler Suspended Ceiling Grid with Concealed Sprinkler

V2707 MAX. EXTENSION

See chart

See Chart

V2707 ¾"/19 mm MAX. RECESS

4.4"/

113 mm

1.7"/43 mm

Typical ceiling grid

24"/610 mm

or 48"/1219 mm

on Center

/"/16 mm

Typical

ceiling tile

See note Finished

ceiling face

Bracket assembly

Style AB1

2/"/60 mm

max. hole

2"/51 mm

min. hole

See chart

See Chart

V3802 ½"/12.7 MM MAX. RECESS V3802 MAX. EXTENSION

1.7"/43 mm

Typical ceiling grid

24"/610 mm or 48"/1219 mm

on Center

/"/15.9 mm

Typical

ceiling tile

See note

Finished

ceiling face

2/"/68.3 mm

max. hole

2/"/60.3 mm

min. hole

Bracket Assembly

Style AB1

4.4"/113 mm

V2707 ¾"/19mm Max. Recess V3802 ½"/12.7mm Max. Recess

Hose Clearance Chart Hose Clearance Chart

Dimension Dimension

inches

RMinimum

Bend Radius

100

125

150

175 RMinimum

Bend Radius

100

125

150

175

A Min. 10.75

273

11.75

298.5

12.75

324

13.75

349

14.75

375

15.75

400 A Min. 10.1

269

11.1

281

12.1

307

13.1

333

14.1

358

15.1

383

Suspended Ceiling Grid with Recessed Sprinkler with

90° Elbow (Long)

Suspended Ceiling Grid with Concealed Sprinkler with

90° Elbow (Short)

See Chart

4.4"/

113 mm

1.7"/43 mm

Typical ceiling grid

24"/610 mm

or 48"/1219 mm

on Center

/"/16 mm

Typical

ceiling tile

See note

Finished

ceiling face

Bracket assembly

Style AB1

V2707 MAX. EXTENSIONV2707 ¾" /19 mm MAX. RECESS

2/"/60 mm

max. hole

2"/51 mm

min. hole

See note

Finished

ceiling face

Bracket Assembly

Style AB1

24"/610 mm or

48"/1219 mm on Center

2⁄"/68 mm

max. hole

2⁄"/60 mm

min. hole

See Chart

⁄"/16 mm

Typical ceiling

tile

4.4"/

113 mm

1.7"/43 mm

Typical ceiling grid

V2707 ¾"/19mm Max. Recess V3802 ½"/12.7mm Max. Recess

Hose Clearance Chart Hose Clearance Chart

Dimension Dimension

inches

A Min. 8

200 A Min. 5.8

147

victaulic.com 8

victaulic.com

4.5 DIMENSIONS

CLEARANCES ABOVE CEILING

Series AH1 Braided Hose and Style AB2 Bracket

Hard-lid Ceiling with Concealed Sprinkler Hard-lid Ceiling with Recessed Sprinkler

See chart

Finished

ceiling face

2¾"/68 mm

max. hole

2⁄ "/59 mm

min. hole

3.5"/

89 mm

16"/406 mm Stud C/C

1.8"/

45 mm

2" × 4" Stud

Bracket assembly

Style AB2

#10 Screw

See chart

Finished

ceiling face

2⁄"/60 mm

max. hole

2"/51 mm

min. hole

3.5"/

89 mm

16"/406 mm Stud C/C

1.8"/

45 mm

2" × 4" Stud

Bracket assembly

Style AB2

#10 Screw

V2707 MAX. EXTENSION

See chart

V2707 ¾"/19 mm MAX. RECESS

V3802 ½"/12.7mm Max. Recess V2707 ¾"/19mm Max. Recess

Hose Clearance Chart Hose Clearance Chart

Dimension Dimension

inches

RMinimum

Bend Radius

100

125

150

175 RMinimum

Bend Radius

100

125

150

175

A Min. 7.63

193

8.63

218

9.63

244

10.63

269

11.63

295

12.63

320 A Min. 6.13

155

7.13

180

8.13

206

9.13

231

10.13

256

11.13

282

NOTE

• Variations of ceiling grids, sprinkler heads, brackets, and hoses are permitted but may result in clearance differences from the ﬁgures above.

Hard-lid Ceiling Grid with Concealed Sprinkler with

90° Elbow (Short)

Hard-lid Ceiling with Recessed Sprinkler with

90° Elbow (Long)

See chart

Finished

ceiling face

2¾"/68 mm

max. hole

2⁄ "/59 mm

min. hole

3.5"/

89 mm

16"/406 mm Stud C/C

1.8"/

45 mm

2" × 4" Stud

Bracket assembly

Style AB2

#10 Screw

See chart

Finished

ceiling face

2⁄"/60 mm

max. hole

2"/51 mm

min. hole

3.5"/

89 mm

16"/406 mm Stud C/C

1.8"/

45 mm

2" × 4" Stud

Bracket assembly

Style AB2

#10 Screw

V2707 MAX. EXTENSIONV2707 ¾"/19 mm MAX. RECESS

V3802 ½"/12.7mm Max. Recess V2707 ¾"/19mm Max. Recess

Hose Clearance Chart Hose Clearance Chart

Dimension Dimension

inches

A Min. 5

127 A Min. 3.63

victaulic.com 9

victaulic.com

4.6 DIMENSIONS

CLEARANCES WITHIN SIDEWALL

Series AH1 Braided Hose and Style AB2 Bracket

Horizontal Sidewall Sprinkler Horizontal Sidewall Sprinkler with 90° Elbow (Long)

See chart

Finished

sidewall face

2⁄ "/60 mm

max. hole

2"/51 mm

min. hole

3.5"/

89 mm

16"/406 mm Stud C/C

1.8"/

45 mm

2" × 4" Stud

Bracket assembly

Style AB2

#10 Screw

See chart

Finished

sidewall face

2⁄ "/60 mm

max. hole

2"/51 mm

min. hole

3.5"/

89 mm

16"/406 mm Stud C/C

1.8"/

45 mm

2" × 4" Stud

Bracket assembly

Style AB2

#10 Screw

V2707 ¾"/19mm Max. Recess V2707 ¾"/19mm Max. Recess

Hose Clearance Chart Hose Clearance Chart

Dimension Dimension

inches

RMinimum

Bend Radius

100

125

150

175 A Min. 3.63

A Min. 6.13

155

7.13

180

8.13

206

9.13

231

10.13

256

11.13

282

victaulic.com 10

victaulic.com

4.7 DIMENSIONS

CLEARANCES ABOVE CEILING

Series AH1 Braided Hose and Style AB4 Bracket

Hat Furring Channel Grid with Recessed Sprinkler

See chart

See Chart

V2707 ¾"/19.1 MM MAX. RECESS V2707 MAX. EXTENSION

/"/23 mm

Typical ceiling grid

Typical 16"/406 mm –

24"/610 mm on Center

/"/15.9 mm

Typical

ceiling tile

See note

Finished

ceiling face

2/"/60 mm

max. hole

2"/51 mm

min. hole

V2707 ¾"/19mm Max. Recess

Hose Clearance Chart

Dimension

inches

RMinimum

Bend Radius

100

125

150

175

A Min. 10.3

262

11.3

287

12.3

313

13.3

338

14.3

363.5

15.3

389

Hat Furring Channel Grid with Recessed Sprinkler with

90° Elbow (Long)

Hat Furring Channel Grid with Concealed Sprinkler with

90° Elbow (Short)

See Chart

/"/23 mm

Typical ceiling grid

Typical 16"/406 mm –

24"/610 mm on Center

/"/16 mm

Typical

ceiling tile

See note

Finished

ceiling face

V2707 ¾"/19.1 MM MAX. RECESS V2707 MAX. EXTENSION

2/"/60 mm

max. hole

2"/51 mm

min. hole

See Note

Finished

ceiling face

16"/406 mm –

24"/610 mm on Center

See Chart

/"/23 mm

Typical ceiling grid

2/"/60 mm

max. hole

2"/51 mm

min. hole

/"/16 mm

Typical ceiling

tile

V2707 ¾"/19mm Max. Recess V2707 ¾"/19mm Max. Recess

Hose Clearance Chart Hose Clearance Chart

Dimension Dimension

inches

A Min. 8

200 A Min. 5.9

149

NOTE

• Variations of ceiling grids, sprinkler heads, brackets, and hoses are permitted but may result in clearance differences from the ﬁgures above.

Otros manuales para VicFlex AH1

Tabla de contenidos

Otros manuales de Sistema de riego de Victaulic

Victaulic

Victaulic V9 FireLock IGS Manual de usuario

Victaulic

Victaulic VicFlex V32 Manual de usuario

Victaulic

Victaulic FireLock I-800 Manual de usuario

Victaulic

Victaulic VS1 Series Manual de usuario

Victaulic

Victaulic FireLock I-800 Manual de usuario

Victaulic

Victaulic FireLock Series Manual de usuario

Victaulic

Victaulic VicFlex Style AB6 Manual de usuario

Victaulic

Victaulic VicFlex VS1 Manual de usuario

Victaulic

Victaulic FireLock Series Manual de usuario

Victaulic

Victaulic VicFlex I-VICFLEX.AQC-U Manual de usuario

Manuales populares de Sistema de riego de otras marcas

Hunter

Hunter Institutional Series Manual de usuario

Cellfast

Cellfast 52-305 Manual de usuario

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Manual de usuario

Tyco Fire Product

Tyco Fire Product CENTRAL A Manual de usuario

Oral Care Technologies

Oral Care Technologies Hydro Floss Manual de usuario

Reliable

Reliable F1-300 Manual de usuario

Tyco Fire Product

Tyco Fire Product Gem F892 Manual de usuario

Netafim

Netafim NETBEAT Manual de usuario

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manual de usuario

Tyco

Tyco CC3 Manual de usuario

Reliable

Reliable F4FR Manual de usuario

OpenSprinkler

OpenSprinkler OSPi Manual de usuario

EINHELL

EINHELL GE-WW 5537 E Manual de usuario

Valley

Valley Bender160 Manual de usuario

Reliable

Reliable F1FR42 Series Manual de usuario

Reliable

Reliable F1FR-300 Manual de usuario

Toro

Toro 730 Series Guía rápida

Eden

Eden 97063-EDAMZ Manual de usuario
