Vicovation Vico-Marcus 4 Manual
Vico-Marcus 4
Instruction Guide
ULTRA HIGH
DYNAMIC RANGE
EXTREME HD
2304 x 1296
English
02
Vico-Marcus 4 Outlook Introduction:
Thank you for choosing Vico-Marcus 4 Car Camcorder.
Please follow the installation guide for more detail when
using Vico-Marcus 4, and notice our highlight parts as
important reminders.
Vico-Marcus 4 Installation Guide
1. Power button
2. Down / Mute
3. Up / MENU
4. Start/Stop record/Confirm
5. Emergency Record / Return
6. Micro SD card slot
7. USB / Power socket
8. HDMI output
9. External GPS socket
10. Speaker
11. Microphone
12. 2.0” TFT LCD Display
13. LED indicator
(Red=Recording, Green=Stand by,
Red Flashing=No SD Card)
14. Bracket socket
15. Mega Pixel Lens
Vico-Marcus 4 Standard accessories:
Installation guide Warranty card
Marcus 4
Suction Bracket
4m USB
cigar car charger
1
0
8
0
p
F
u
l
l
H
D
6
0
f
p
s
1
0
8
0
p
F
u
l
l
H
D
6
0
f
p
s
English
03
Quick Mounting Bracket(Optional)
Installation
CPL filter (Optional)
Mounting Bracket (Optional)
1.
2.

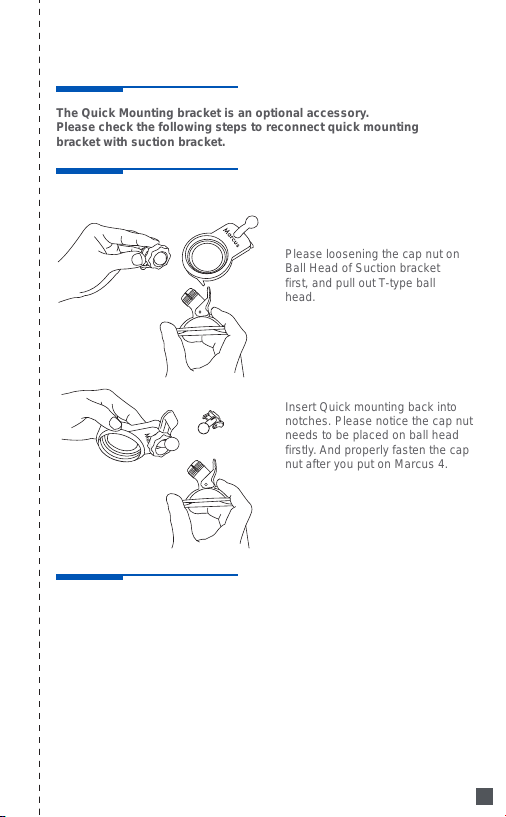

The Quick Mounting bracket is an optional accessory.
Please check the following steps to reconnect quick mounting
bracket with suction bracket.
Please loosening the cap nut on
Ball Head of Suction bracket
first, and pull out T-type ball
head.
Insert Quick mounting back into
notches. Please notice the cap nut
needs to be placed on ball head
firstly. And properly fasten the cap
nut after you put on Marcus 4.
CPL filter is optional accessory, not including in box. Users
can choose Marcus CPL filter or any 52mm standard CPL
filter.
CPL filter will lower a little bit brightness of image. Please
adjust it especially for night-time record. You can 1. Adjust
CPL angle. 2. Set EV value. 3. Or you may Disassemble
CPL filter at night.
English
04
Marcus 4 + Standard Suction Bracket
Suction Bracket Installation
Please notice
that the direction
of Suction
handle faces
forward the
windshield.
Ultra-HDR (High Dynamic Range)
@1080p 30fps HDR Mode
Vico-Marcus 4 applies all new Ultra-HDR technology which provides
great balance of bright and dark side of image, generating extreme
high quality 1080p video recording. Default resolution setting of
Marcus 4 is under 1080p HDR mode.
ULTRA HIGH
DYNAMIC RANGE
English
05
First Time Installation
Installation Steps
1.
2.
3.
1.
2.
3.
4.
Always use original VicoVation USB Cigar Car charger in box.
Install USB Cigar charger into car cigarette Lighters socket, and another
USB side insert into Marcus 4 USB socket.
Install bracket in proper position on windshield and avoid any
view-blocking for driver.
DIY Installation and wiring
Special Notice:
Best Area
1
0
8
0
p
F
u
l
l
H
D
6
0
f
p
s
How to embed the cable easily by yourself: Cable can go through sunshade
board, along with door rubber sealing on one side of front pillar (A pillar), and
then beneath the carpet of front passenger seat. (You may need special tool
for wiring under rubber sealing or professional assistance.)
Marcus series applies unique designed Marcus car charger for auto boot up. Please apply only
VicoVation Marcus car charger to avoid any damage.
Please notice that Marcus car charger is a unique design for Marcus series only, which can NOT be
used on other VicoVation products.
If there is safety airbag inside your car front pillar, please ask for professional assistance. Try not to
embed the cable on your own.
Please restore the rubber sealing after embedding power cable.
English
06
First Time Operation
1.
2.
1.
2.
3.
4.
5.
6.
Insert Micro SD card firstly.
(Please aware the direction of
Micro SD card data pins.)
Marcus 4 support Extreme
HD 1296p recording. Micro
SD card under Class10 is
forbidden.
After power on, device will boot up and enter into recording
mode. The initial 3-second recording period is protected from
stopping. To enter MENU is not limited by these 3 seconds.
Please setup system time and format Micro SD card manually
for the first time operation.
To remove Micro SD card, please stop recording or power off
firstly to protect recording data.
Please use Micro SD card (SDHC/SDXC) with level Class10
only.
Normal Recording Time Table
(Not including 10 sets Emergency Record)
Marcus 4 uses Micro SD card slot format.
Marcus 4 becomes card reader (Slave device) in connection
with PC by USB cable. To operate Marcus 4, please connect
it with cigar car charger or USB power adaptor.
Micro SD
8GB
16GB
32GB
64GB
Video Bit Rate
1296p 30fps
60 mins
120 mins
250 mins
520 mins
16Mb/s
2560p 30fps
60 mins
120 mins
250 mins
520 mins
16Mb/s
1080p 30fps
75 mins
166 mins
347 mins
710 mins
12Mb/s
720p 60fps
100 mins
215 mins
445 mins
910 mins
9Mb/s
720p 30fps
180 mins
375 mins
765 mins
1545 mins
6Mb/s
4
English
07
1.Video settings
2.Function Settings
3.Display settings
4.Audio settings
5.Playback settings
6.System settings.
Main Display
Recording mode
1.
2.
Under normal recording, icons
represent
(From upper left):
Red dot recording sign/
Current Time/
Recording Size/
G-Sensor function sign/
Emergency Recording Numbers.
Icons from bottom left:
Emergency recording/
Recording sign/
Menu/
Voice recording on/off switch
Power ON/Off
User Interface
5/10
English
08
Setting Detail
1.
2.
3.
Set video resolution and EV value.
Setup sensibility of G-Sensor (Default setting is OFF).
G-Sensor Settings
GPS Settings
Video Settings
GPS relative function can be only activated while GPS
installed correctly.
After booting, GPS function will be activated after GPS
signal received.
After successful GPS positioning, a Blue Arrow will pop out
at the top of display to confirm GPS features are activated.
To activate this function, please install Marcus GPS Module
(Optional) and plug the GPS socket properly.
5/10
English
09
Setting Detail
(optional Marcus GPS module)
LDWS (Lane Departure Warning System)
When current speed reach your setting
value (For example: 60km/h), Marcus 4
will notify drivers with Beep sound and
alert Icon while lane departure.
When current speed over 60km/h,
Marcus 4 will notify drivers with Beep
sounds and alert Icon if distance
between car in front reaches 5~7
meters.
FCWS (Forward Collision Warning System)
Marcus 4 has to be calibrated
to improve the accuracy for
LDWS/FCWS activation.
After set LDWS/FCWS ON,
baseline will show up on
monitor when back to
Recording Mode. Please align
the Red line with horizon.
Baseline will vanish after 30
seconds.
Calibration
5/10
English
10
Setting Detail (optional Marcus
GPS module)
1.
2.
Users can choose 80/90/100/110/120/130km. When
the driving speed is higher than setting, Marcus 4 will
notify with warning beep and Alert Icon to remind
driver.
Over-Speed camera detection:
For some specified countries, this feature is
available. (Currently for Taiwan Only)
Over-speed Warning
GPS Signal
Windshield film contains metal ingredient or tall buildings
might affect GPS signal receiving. Please kindly notice that
if monitor show Blue Arrow icon while install Marcus GPS
module.
Or you can enter Menu → Function to see the positioning
status, to make sure you capture more than 3 Normal
satellite signal (40~30dB Yellow color bar). Various
environment causes different signal receiving, requiring
different positioning-accomplished time.
GPS Positioning requires at
least 3 Normal satellite signals
to accomplish. As picture shown,
there are five satellites signal
captured. Different color
represents different strength of
GPS signal.
Green: Great (40dB or above)
Yellow: Normal (30~40dB)
Red: Medium (20~30dB)
Dark Red: Bad (20dB or below)
Monitor will display Blue Arrow
icon on top to confirm the GPS
positioning successfully.
5/10
