Operating Manual

VX-600

VERTEX STANDARD CO., LTD.

4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan

VERTEX STANDARD

US Headquarters

17210 Edwards Rd., Cerritos, CA 90703, U.S.A.

International Division

8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.

YAESU EUROPE B.V.

P.O. Box 75525, 1118 ZN Schiphol, The Netherlands

YAESU UK LTD.

Unit 12, Sun Valley Business Park, Winnall Close

Winchester, Hampshire, SO23 0LB, U.K.

YAESU GERMANY GmbH

Am Kronberger Hang 2, D-65824 Schwalbach, Germany

VERTEX STANDARD HK LTD.

Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,

Kwun Tong, Kowloon, Hong Kong

Contents

Warning! FCC RF Exposure Requirements ................................................................................................ 1

Controls & Connectors................................................................................................................................... 2

Before You Begin ............................................................................................................................................ 3

Battery Pack Installation and Removal........................................................................................................ 3

Low Battery Indication ................................................................................................................................ 3

Operation......................................................................................................................................................... 4

Preliminary Steps......................................................................................................................................... 4

Operation Quick Start.................................................................................................................................. 4

Advanced Operation....................................................................................................................................... 7

Soft Key and TOGGLE Switch Functions .................................................................................................. 7

ARTS (Auto Range Transpond System).................................................................................................... 13

DTMF Paging System ............................................................................................................................... 13

Understanding Radio Waves ....................................................................................................................... 14

Accessories & Options .................................................................................................................................. 15

Congratulations!

You now have at your fingertips a valuable communications tool-a VERTEX STANDARD two-way radio!

Rugged, reliable and easy to use, your VERTEX STANDARD radio will keep you in constant touch with

your colleagues for years to come, with negligible maintenance down-time.

Please take a few minutes to read this manual carefully. The information presented here will allow you to

derive maximum performance from your radio, in case questions arise later on.

We're glad you joined the VERTEX STANDARD team. Call on us anytime, because communications is

our business. Let us help you get your message across.

Notice!: There are no owner-serviceable parts inside the transceiver. All service jobs must be referred to an

authorized VERTEX STANDARD Service Representative. Consult your Authorized VERTEX STAN-

DARD Dealer for installation of optional accessories.

VX-600VOPERATING MANUAL 1

WARNING! FCC RF EXPOSURE REQUIREMENTS

FCC RF Exposure Compliance Requirements for Occupational Use Only:

This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure

limits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Stan-

dards and Guidelines:

rFCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation.

rFCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines

for Human Exposure to Radio Frequency Electromagnetic Fields.

rANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Fre-

quency Electromagnetic Fields, 3 kHz to 300 GHz.

rANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Elec-

tromagnetic Fields - RF and Microwave.

¦This radio is NOT approved for use by the general population in an uncontrolled exposure environ-

ment. This radio is restricted to occupational use, work related operations only where the radio op-

erator must have the knowledge to control his or her RF exposure conditions.

¦When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm) away

from your mouth and keep the antenna at least 2 inches (5 cm) away from your head and body.

¦The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical Push-to-

Talk configurations.

DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more

than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded.

The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the

radio to transmit by pressing the P-T-T button.

¦SAR compliance for body-worn use was only demonstrated for the specific belt-clip Part Number

(#BA0102700112KA). Other body-worn accessories or configurations may NOT comply with the FCC

RF exposure requirements and should be avoided.

¦Always use Vertex Standard authorized accessories.

VX-600VOPERATING MANUAL

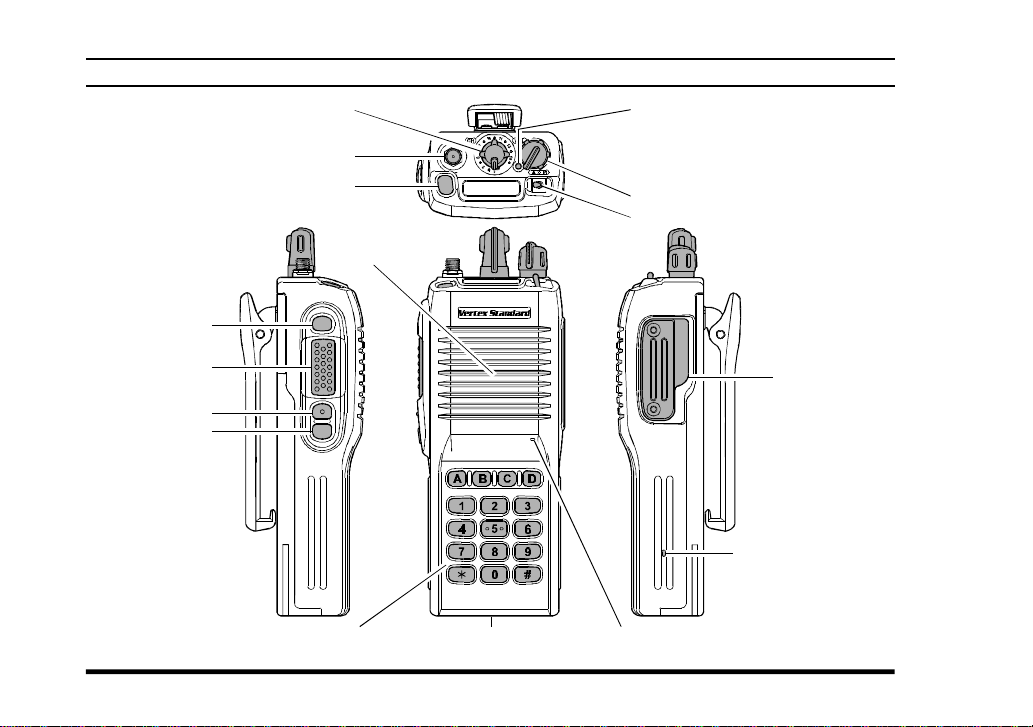

CONTROLS & CONNECTORS

VOL/PWR (Volume/Power) Knob

TOGGLE Switch

LED Indicator

Steady Green: Signaling off

Blinking Green: Busy Channel (or Squelch off)

Steady Red: Transmission in Progress

Blinking Red: Battery voltage is low

Blinking Yellow: Receiving a Selective Call

Antenna Jack

TOP SEL (Selector) Key

CH (Channel)Selector

SIDE SEL

(Selector) Key

PTT (

Push To Talk

)

Switch

MONITOR Button

LAMP Button

MIC/SP Jack

(External Microphone/

Speaker)

Battery Pack Latch

Sub Microphone

(Noise Canceling Microphone)

Main Microphone

Speaker

16-Button DTMF Keypad

(16-key version only)

VX-600VOPERATING MANUAL 3

BEFORE YOU BEGIN

Battery Pack Installation and Removal

rTo install the battery, hold the transceiver with

your left hand, so your palm is over the speaker

and your thumb is on the top of the belt clip. Care-

fully mate the battery’s four insertion slots with

their corresponding alignment tabs on the trans-

ceiver case, while tilting the Belt Clip outward.

Proper alignment occurs with the battery pack

offset about 1/2 inch from the top edge of the

battery compartment.

rGuide the pack on to the tabs with a slight inward

pressure, then slide the battery pack upward, un-

til it locks in place with a “Click.”

rTo remove the battery, turn the radio off and re-

move any protective case. Slide the Battery

Pack Latch on the bottom of the radio toward

the front panel while sliding the battery down

about 1/2 inch. Then lift the battery out from the

radio while unfolding the Belt Clip.

Donot attempt to open anyoftherecharge-

able Lithium-Ion packs, as they could ex-

plode if accidentally short-circuited.

Low Battery Indication

As the battery discharges during use, the voltage

gradually becomes lower. When the battery voltage

reaches 6.0 volts, it is time to substitute a freshly

charged battery and recharge the depleted pack. The

LED indicator on the top of the radio will blink red

when the battery voltage is low (6 Volts or lower).

Caution

Danger of explosion if battery is replaced with

an incorrect battery. Replace only with the same

or equivalent type.

Tilt the Belt Clip

Insert the Battery Pack

VX-600VOPERATING MANUAL

OPERATION

Preliminary Steps

rInstall a charged battery

pack onto the transceiver,

as described previously.

rScrew the supplied an-

tenna onto the Antenna

jack. Never attempt to

operate this transceiver

without an antenna con-

nected.

rIf you have a Speaker/

Microphone, we recommend that it not be con-

nected until you are familiar with the basic op-

eration of the VX-600.

Quick Start

rTurn the top panel’s

VOL/PWR knob

clockwise to turn on

the radio on.

rTurn the top panel’s

CH selector knob to

choose the desired op-

erating channel. If you

want to select an oper-

ating channel from a

different Memory

Channel Group, press the Soft key (assigned to

the Memory Group Up or Down function) to se-

lect the Memory Channel Group you want before

selecting the operating channel.

Note: Some models are programmed so that the

operating channels are selected by the Soft key

and the memory channel group is selected by the

CH selector knob. For further details, contact your

VERTEX STANDARD dealer.

VX-600VOPERATING MANUAL 5

rRotate the VOL/PWR

knob to set the volume

level. If no signal is

present, press and hold

in the MONITOR but-

ton (under the PTT

switch) more than 2

seconds; background

noise will now be

heard, and you may

use this to set the

VOL/PWR knob for

the desired audio level.

Press and hold in the

MONITOR button more than 2 seconds (or press

the MONITOR button twice) to quiet the noise

and resume normal (quiet) monitoring.

rTo transmit, press and

hold in the PTT

switch. Speak into the

microphone area of the

front panel grille

(above the [D]key) in

a normal voice level.

To return to the Receive mode, release the PTT

switch.

OPERATION

rPress the Soft key (if assigned to the Scan func-

tion) or switch the TOGGLE Switch to the as-

signed “Scan” position (when so programmed by

your dealer) to start the scanner. The scanner rap-

idly steps through each of the dealer-programmed

channels, looking for incoming calls.

rPress the TOP SEL

key (on the top panel)

or SIDE SEL key (the

top button on the left

side) to activate one of

the preprogrammed

functions which may

have been enabled at

the time of program-

ming by the dealer.

Similarly, when using

the 16-key version, the

[A], [B], [C], and [D]

function keys may ac-

tivate one of these features, if programmed by

the dealer. See the next section for details regard-

ing the available features.

VX-600VOPERATING MANUAL

OPERATION

rSwitch the top panel’s

TOGGLE switch to

the [A], [B], or [Cen-

ter] position to activate

one of the pre-pro-

grammed functions

which may have been

enabled at the time of programming by the dealer.

When this switch is in the [A(left)], [B(right)],

or [Center] position, the feature programmed (by

your dealer) to that switch position will be acti-

vated. See the next section for details regarding

the available features.

rPress the DTMF keys on the telephone keypad

while pressing the PTT switch to send DTMF

tones (16-key version only).

rIf a Speaker/Microphone is available, remove the

plastic cap and its two mounting screws from the

right side of the transceiver, then align the con-

nector of the Speaker/Microphone on the trans-

ceiver body; secure the connector pin using the

screws supplied with the Speaker/Microphone.

Hold the speaker grille up next to your ear while

receiving. To transmit, press the PTT switch on

the Speaker/Microphone, just as you would on

the main transceiver’s body, and speak into the

microphone on a normal voice level.

Note: Save the original plastic cap and its

mounting screws. They should be reinstalled

when not using the Speaker/Microphone.

VX-600VOPERATING MANUAL 7

ADVANCED OPERATION

Soft Key and TOGGLE Switch Functions

The VX-600 includes the [TOP SEL], [SIDE SEL],

[MONITOR], and [LAMP]keys, and the TOGGLE

switch, while the 16-key version additionally pro-

vides [A], [B], [C], [D]function keys. The Soft key

and TOGGLE switch functions can be customized,

via programming by your VERTEX STANDARD

dealer, to meet your communications/network re-

quirements. Some features may require the purchase

and installation of optional internal accessories. The

possible Soft key and TOGGLE switch program-

ming features are illustrated at the right, and their

functions are explained on page 9. For further de-

tails, contact your VERTEX STANDARD dealer.

For future reference, check the box next to each func-

tion that has been assigned to the Soft key and

TOGGLE switch on your particular radio, and keep

it handy.

ø:Requires FVP-25 DTMF/Encryption Unit

TOGGLE switch (Position)

A B

None

Channel Scan

Dual Watch

High/Low Power

Talk Around

TX Save Disable

Encryption Disableø

Lock

Follow-Me Scan

Group Recall Shortcut

Functions center

£Group 1

£Group 2

£Group 3

£Group 1

£Group 2

£Group 3

£Group 1

£Group 2

£Group 3

VX-600VOPERATING MANUAL

ADVANCED OPERATION

ø:Requires FVP-25 DTMF/Encryption Unit

None

Channel Scan

Dual Watch

High/Low Power

Talk Around

TX Save Disable

Encryption Disableø

Follow-Me DW

Call/Resetø

Speed Dial

Emergency

Group Up

Group Down

Channel Up

Channel Down

Monitor

Lamp

Functions

TOP SEL

Soft key

SIDE SEL MONITOR LAMP

[A] [B] [C] [D]

Tabla de contenidos

Otros manuales de Transceptor de Vertex Standard

Vertex Standard

Vertex Standard VX-350 series Manual de usuario

Vertex Standard

Vertex Standard VX-4500 Series Manual de usuario

Vertex Standard

Vertex Standard VX-350 series Manual de usuario

Vertex Standard

Vertex Standard HX280S Manual de usuario

Vertex Standard

Vertex Standard VX-920ATEX Series Manual de usuario

Vertex Standard

Vertex Standard VX-146 Manual de usuario

Vertex Standard

Vertex Standard VX-230 Series Manual de usuario

Vertex Standard

Vertex Standard VX-820 series Manual de usuario

Vertex Standard

Vertex Standard FT-8800R Manual de usuario

Vertex Standard

Vertex Standard VX-350 series Manual de usuario

Vertex Standard

Vertex Standard FT-890 Manual

Vertex Standard

Vertex Standard VXR-9000U Manual de usuario

Vertex Standard

Vertex Standard GX2000 Manual de usuario

Vertex Standard

Vertex Standard VX-4600 Series Manual de usuario

Vertex Standard

Vertex Standard VXR-9000U Manual de usuario

Vertex Standard

Vertex Standard VX-5500U Manual de usuario

Vertex Standard

Vertex Standard FT-100 Manual

Vertex Standard

Vertex Standard VX-5500V Manual de usuario

Vertex Standard

Vertex Standard VX-900 Series Manual de usuario

Vertex Standard

Vertex Standard VX-2200 Series Manual de usuario

Vertex Standard

Vertex Standard VX-110 Manual de usuario

Vertex Standard

Vertex Standard VX-410 Series Manual de usuario

Vertex Standard

Vertex Standard VX-1700 Series Manual de usuario

Vertex Standard

Vertex Standard FT-950 Manual de usuario

Manuales populares de Transceptor de otras marcas

Yaesu

Yaesu FT-7B Manual de usuario

Kenwood

Kenwood ProTalk TK-3201 Manual de usuario

Texas Instruments

Texas Instruments TLK10232 Manual de usuario

Mizuho

Mizuho MX-2 Guía del producto

Kenwood

Kenwood TK-3180 Manual de operación y mantenimiento

Blitz

Blitz MJ-398U Manual de usuario

Utilicom

Utilicom LongRanger 2050 Manual de usuario

Standart

Standart HX290UKA Manual de usuario

Altronix

Altronix Pace1PTM Manual de usuario

Kirisun

Kirisun PT2208 Manual de usuario

ELECRAFT

ELECRAFT KX2 Manual de usuario

Zodiac

Zodiac K3 Manual de usuario

Assa Abloy

Assa Abloy SecureComm HKC GSM-WIFI U Manual de usuario

Kenwood

Kenwood TK-2217 Manual de usuario

Siemens

Siemens PSO 4000 Manual de usuario

Kenwood

Kenwood TS-590SG Manual de usuario

Midland

Midland G8E-BT Manual

ComNav

ComNav Mariner X2 Manual de usuario
