EPM-PS1
PC/104-Plus Power Supply
Module
EPM-PS1 Reference Manual ii
WWW.VERSALOGIC.COM
12100 SW Tualatin Road
Tualatin, OR 97062-7341
(503) 747-2261
Fax (971) 224-4708
Contents Copyright © 2013
All Rights Reserved
Notice:
Although every effort has been made to ensure this document is error-free, VersaLogic makes no
representations or warranties with respect to this product and specifically disclaims any implied warranties of
merchantability or fitness for any particular purpose.
VersaLogic reserves the right to revise this product and associated documentation at any time without
obligation to notify anyone of such changes.
PC/104 and the PC/104 logo are trademarks of the PC/104 Consortium.
MEPMPS1
EPM-PS1 Reference Manual iii
Product Release Notes
Rev 3 Release
Charlie release EPM-PS1a model only–no battery backup function.
Rev 2 Release
Beta release.
Rev 1 Release
Pre-production only. No customer shipments.
EPM-PS1 Reference Manual iv
Contents
Introduction ..................................................................................................................... 1
Features............................................................................................................................... 1
Technical Specifications ..................................................................................................... 2
Block Diagram.................................................................................................................... 3
RoHS-Compliance .............................................................................................................. 4
About RoHS........................................................................................................... 4
Warnings............................................................................................................................. 4
Electrostatic Discharge .......................................................................................... 4
Transient Voltage Suppression (TVS) Devices ..................................................... 5
Technical Support ............................................................................................................... 6
Repair Service........................................................................................................ 6
Physical Description....................................................................................................... 7
Dimensions and Mounting.................................................................................................. 7
Hardware Assembly............................................................................................... 8
Stack Arrangement Example ................................................................................. 8
External Connectors............................................................................................................ 9
EPM-PS1 Connectors ............................................................................................ 9
EPM-PS1 Connector Functions and Interface Cables ......................................... 11
Jumper Block ....................................................................................................................12
Jumpers As-Shipped Configuration..................................................................... 12
Operation .......................................................................................................................13
Main Power Input ............................................................................................................. 13
Power Out ......................................................................................................................... 13
J5 Connector Power Out ...................................................................................... 13
ISA and PCI Connector Power Out ..................................................................... 13
Power Supply Control....................................................................................................... 16
Efficiency and Derating .................................................................................................... 16
Appendix A – References............................................................................................. 18
EPM-PS1 Reference Manual 1
Introduction
Features
The EPM-PS1 is a DC switching power supply designed for high reliability in a wide variety of
applications. The rugged design is conservatively rated to provide continuous 50 watt power
output. When designing stacking PC/104-Plus compatible systems, OEMs and system integrators
are able to develop entire systems using VersaLogic CPUs, I/O expansion modules and power
supplies. Its features include:
PC/104-Plus compliant footprint.
Transient voltage suppression
provides enhanced ESD protection.
Protected against output over-
current, input over-current, and
input polarity reversal.
Engineered to minimize heat
generation with 91% peak
efficiency.
Designed to provide -40° to +85°C
operation for reliable use in harsh
environments.
Full compliance with EU Directive
2002/95/EC (RoHS) for devices used in
Europe.
Power is supplied into the PC/104-Plus
(PCI) and PC/104 (ISA) buses or can be
accessed from the screw clamp terminal
blocks.
Each voltage output can be enabled or
disabled with an external input signal.
All EPM-PS1 boards are subjected to functional testing and are backed by a limited two-year
warranty. Careful parts sourcing and US-based technical support ensure the highest possible
quality, reliability, service and product longevity for this exceptional PC/104-Plus module.
1
Introduction
EPM-PS1 Reference Manual 2
Technical Specifications
Board Size:
3.55" x 3.775" (90 mm x 96 mm),
PC/104 compliant
Storage Temperature:
-40° C to +85° C
Operating Temperature:
-40° C to +60° C at 50W, derated to
25W at +85°C (See Figure 11. Power
Supply Derating Curve on page 17.)
Input Voltage Range:
+9V to +40V DC
+5V Output:
50W (10A) max. continuous from -40° C
to +60° C, derated to 25W (5A) at +85°
C (See Figure 11. Power Supply
Derating Curve on page 17.)
±12V Outputs:
1.8W (150 mA) each max. continuous
from -40° C to +85° C
Output Regulation:
1% – all outputs
Output Voltage Ripple:
5V output : 30 mV pk-pk at 50% load
±12V output: 30 mv pk-pk at 50% load
Switching Frequency:
5V output: 200 KHz fixed
± 12V output: 1.2 MHz fixed
Bus Compatibility:
PC/104 (ISA)
PC/104-Plus (PCI)
Humidity:
Less than 95%, noncondensing
ESD Protection:
Transient voltage suppression and
overload protection
Input Protection:
Transient voltage suppression and
fuse
Output Protection:
Current limiting and transient voltage
suppression
Weight:
0.239 lbs (0.108 kg)
Specifications are subject to change without notice.
Introduction
EPM-PS1 Reference Manual 3
Block Diagram

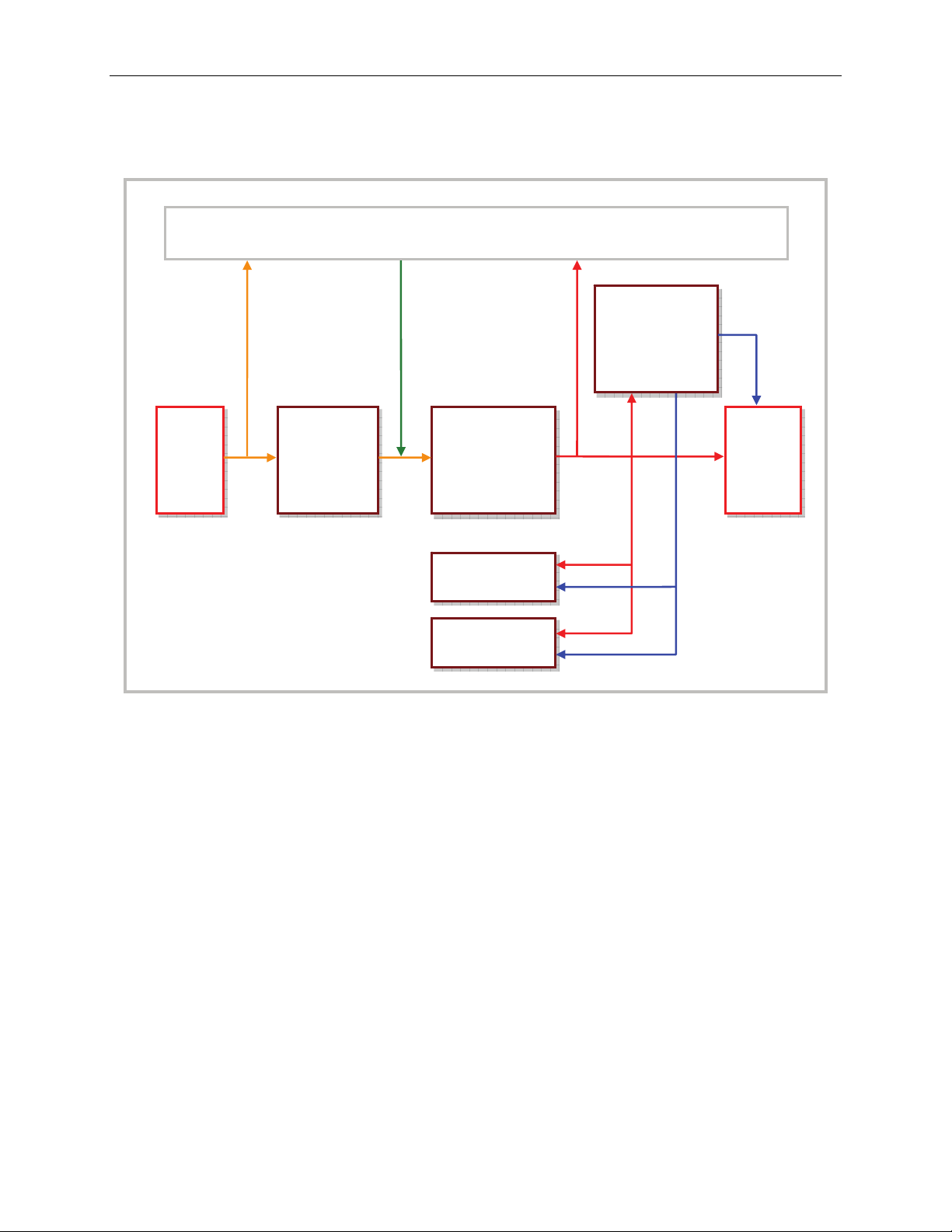

Figure 1. EPM-PS1 Block Diagram
Orange = Input Power. Red = 5V Output Power. Blue = ±12V Power Output. Green = Battery backup from battery card.
* Battery backup feature is not implemented on the EPM-PS1a model.
5 Volt 10 Amp
HV Buck
Regulator
± 12 Volt 100 MA
Buck-Boost Regulator
Battery Backup Mezzanine Connector*
PC/104+ (PCI) Pass-
through Connector
Power
Connector
Input Power
Conditioner
PC/104 (ISA) Pass-
through Connector
Input
Power
Connector
Introduction
EPM-PS1 Reference Manual 4
RoHS-Compliance
The EPM-PS1 is RoHS-compliant.
ABOUT ROHS
In 2003, the European Union issued Directive 2002/95/EC regarding the Restriction of the use of
certain Hazardous Substances (RoHS) in electrical and electronic equipment.
The RoHS directive requires producers of electrical and electronic equipment to reduce to
acceptable levels the presence of six environmentally sensitive substances: lead, mercury,
cadmium, hexavalent chromium, and the presence of polybrominated biphenyls (PBB) and
polybrominated diphenyl ethers (PBDE) flame retardants, in certain electrical and electronic
products sold in the European Union (EU) beginning July 1, 2006.
VersaLogic Corporation is committed to supporting customers with high-quality products and
services meeting the European Union’s RoHS directive.
Warnings
ELECTROSTATIC DISCHARGE
Electrostatic discharge (ESD) can damage board components. The circuit board must only be
handled at an ESD workstation. If an approved station is not available, some measure of
protection can be provided by wearing a grounded antistatic wrist strap. Keep all plastic away
from the board, and do not slide the board over any surface.
After removing the board from its protective wrapper, place the board on a grounded, static-free
surface, component side up. Use an antistatic foam pad if available.
The board should also be protected inside a closed metallic anti-static envelope during shipment
or storage.
Introduction
EPM-PS1 Reference Manual 5
TRANSIENT VOLTAGE SUPPRESSION (TVS) DEVICES
The EPM-PS1 circuitry is protected from spike and surge damage by on-board transient voltage
suppression (TVS) devices. In order for the TVS devices to function properly, they must be
connected to earth ground. This connection is made at the board’s lower left mounting hole, as
shown in Figure 2. All other mounting holes are floating. Use metal standoffs or a grounding
strap to connect the lower left mounting hole to the enclosure chassis, which should be
connected to earth ground.
Figure 2. Attaching the EPM-PS1 to Earth Ground
Only the lower left mounting hole
connects to the TVS devices. This
hole must be connected to earth for
TVS protection to function.
EPM-PS1
Introduction
EPM-PS1 Reference Manual 6
Technical Support
If you are unable to solve a problem with this manual please, contact VersaLogic technical
support at (541) 485-8575. VersaLogic technical support engineers are also available via e-mail at
REPAIR SERVICE
If your product requires service, you must obtain a Returned Material Authorization (RMA)
number by calling (541) 485-8575.
Please provide the following information:
Your name, the name of your company and your phone number
The name of a technician or engineer that can be contact if any questions arise.
Quantity of items being returned
The model and serial number (barcode) of each item
A detailed description of the problem
Steps you have taken to resolve or recreate the problem
The return shipping address
Warranty Repair All parts and labor charges are covered, including return shipping
charges for UPS Ground delivery to United States addresses.
Non-warranty Repair All non-warranty repairs are subject to diagnosis and labor charges,
parts charges and return shipping fees. Please specify the shipping
method you prefer and provide a purchase order number for invoicing
the repair.
Note Please mark the RMA number clearly on the outside of the box before
returning. Failure to do so can delay the processing of your return.
Este manual sirve para los siguientes modelos
