Installation Instructions and Homeowner's Manual

INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER

DO NOT STORE

OR USE GASOLINE OR OTHER

FLAMMABLE VAPORS OR LIQUIDS

IN THE VICINITY OF THIS OR ANY

OTHER APPLIANCE.

ADDISON

Freestanding

Electric Stove

Models: ACSB

ACSG

ACSM

10004324 3/04 Rev. 3

WARNING! IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR

EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY

C US

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777

www.majesticproducts.com • www.vermontcastings.com

CFM Specialty Home Products

Addison Electric Stove

10004324

Installation Instructions

General ..............................................................................................................................3

Locating Your Stove...........................................................................................................3

Stove Dimensions ..............................................................................................................4

Clearance to Combustibles ................................................................................................5

Hearth ..............................................................................................................................5

Electrical Specifications .....................................................................................................5

Electrical Connections........................................................................................................6

Service Instructions

Firebox Removal ................................................................................................................6

Glass Information ...............................................................................................................6

Replacing Light Bulbs ........................................................................................................6

Maintenance of Motors.......................................................................................................6

Electrical Wiring Diagram...................................................................................................7

Operating Instructions

On/Off Switch .....................................................................................................................7

Heater Control....................................................................................................................7

Replacement Parts.........................................................................................................................8

Door Glass Replacement Parts and Installation ................................................................9

PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS

BEFORE USING THIS APPLIANCE.

Thank you and congratulations on your purchase of a Vermont Castings electric stove.

IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these

instructions may result in a possible electric shock, fire hazard and will void the warranty.

Table of Contents

Addison Electric Stove

10004324

1. Read all instructions before using this appliance.

2. This appliance is hot when in use. To avoid

burns, do not let bare skin touch hot surfaces. If

provided, use handles when moving this appliance.

Keep combustible materials, such as furniture,

pillows, bedding, papers, clothes, and curtains at

least 3’ (1m) from the front of this appliance.

3. CAUTION: Extreme caution is necessary when

any heater is used by or near children or inva-

lids and whenever the heater is left operating

unattended.

4. If possible, always unplug this appliance when not

in use.

5. Do not operate any heater with a damaged cord or

plug or after the appliance malfunctions, has been

dropped or damaged in any manner.

6. Any repairs to this stove should be carried out by a

qualified service person.

7. Under no circumstances should this stove be

modified. Parts having to be removed for servicing

must be replaced prior to operating this stove

again.

8. Do not use outdoors.

9. This heater is not intended for use in bathrooms,

laundry areas and similar indoor locations. Never

locate this appliance where it may fall into a bath-

tub or other water container.

10. Do not run cord under carpeting. Do not cover cord

with throw rugs, runners or the like. Arrange cord

away from traffic areas and where it will not be

tripped over.

11. To disconnect this appliance, turn controls to the

off position, then remove plug from outlet.

12. Connect to properly grounded outlets only.

13. This appliance, when installed must be electrically

grounded in accordance with local codes, with the

current CSA C22.1 Canadian Electrical codes or

for USA installations, follow local codes and the

National Electrical Code, ANSI/NFPA NO. 70.

Installation Instructions

14. Do not insert or allow foreign objects to enter any

ventilation or exhaust opening as this may cause

an electric shock, fire, or damage the appliance.

15. To prevent possible fire, do not block air intakes or

exhaust in any manner. Do not use on soft

surfaces, like a bed, where openings may become

blocked.

16. This appliance has hot and arcing or sparking parts

inside. Do not use it in areas where gasoline, paint,

or flammable liquids are used or stored. This stove

should not be used as a drying rack for clothing,

nor should Christmas stockings or decorations be

hung on or near it.

17. Use this appliance only as described in this

manual. Any other use not recommended by the

manufacturer may cause fire, electric shock, or

injury to persons.

18. Avoid the use of an extension cord because the

extension cord may overheat and cause a risk of

fire. However, if you have to use an extension

cord, the cord shall be No. 14 AWG minimum size

and rated not less than 1875 Watts. The extension

cord must be a three wire cord with grounding type

plug and cord connector.

The extension cord shall

not be more than 20 feet in length.

19. SAVE THESE INSTRUCTIONS.

Locating Your Stove

Your new freestanding electric stove may be installed

virtually anywhere in your home. However, when

choosing a location for your new stove, ensure that the

general instructions are followed. Also, for best effect,

install the stove out of direct sunlight.

General

Addison Electric Stove

10004324

Stove Dimensions

AWidth of Stove Top 565mm 22¹⁄₄”

BWidth at Legs 600mm 23³⁄₈”

CDepth at Legs 390mm 15³⁄₈”

DDepth at Apron 430mm 17”

EDepth at Stove Top 400mm 15³⁄₄”

FTotal Height 635mm 25”

4324

Fig. 1 Addison dimensions.

Addison Electric Stove

10004324

Hearth

Clearance to Combustibles

Electrical Specifications

WARNING: This stove comes with a

manual circuit breaker reset near the

power cord supply. In case the stove is

not operating, check the circuit breaker

and reset the button at the breaker. If the

stove is still not operating immediately

call a qualified service technician to

inspect the stove.

Voltage ..................................... 120VAC/60Hz

Total Amps ............................... 12.20 Amps

Total Watts ............................... 1460 Watts

Heater Ratings ......................... 1300 Watts

Electrical Connection

A 15 AMP, 120 Volt, 60 Hz circuit with a properly

grounded outlet is required. Preferably, the stove will

be on a dedicated circuit as other appliances on the

same circuit may cause the circuit breaker to trip or the

fuse to blow when the heater is in operation.

The unit comes standard with a 6’ (1828 mm) long

three wire cord, exiting from the rear of the stove. Plan

the installation to avoid the use of an extension cord. If

an extension cord must be used, it must be a

minumum 14AWG, three wire with grounding type plug

connector and rated not less than 1875 Watts.

The

extension cord shall not be more than 20 feet in

length.

WARNING: Electrical outlet wiring must

comply with local building codes and

other applicable regulations to reduce

the risk of fire, electrical shock and

injury to persons.

WARNING: Do not use this stove if any

part of it has been under water. Immedi-

ately call a qualified service technician

to inspect the stove and replace any part

of the electrical system.

A hearth is not mandatory but it is recommended for

aesthetic purposes. We recommend a noncombustible

hearth which does not obstruct heater openings.

Installation of Logs

1. Turn off power to the unit.

2. Follow the directions for removing the firebox. Refer

to Page 6, Steps 1 through 7.

Back ...............................................................0” (0mm)

Sides ..............................................................0” (0mm)

Floor...............................................................0” (0mm)

Top...........................................................12” (305mm)

LG240

Fig. 2 Addison logset.

Addison Electric Stove

10004324

Firebox Removal

Glass Information

WARNING: Disconnect power before

attempting any maintenance or cleaning

to reduce the risk of fire, electrical shock

or personal injury

1. Unplug the electrical supply to the unit.

2. Let the stove cool if it has been operating.

3. Move the stove away from wall to gain access

to the rear of the unit.

4. Locate the firebox mounting brackets on the side of

the firebox. Remove the screws securing the firebox

to the mounting brackets. (Fig. 3)

5. Remove firebox by sliding it rearward out of the

casing.

6. Gently place firebox on its back on the floor.

7. To reinstall firebox, follow the above procedure in

reverse.

1. Under no circumstances should this product be

operated with missing or broken glass.

2. Do not strike or slam the glass.

3. Do not use abrasive cleaners to clean the glass.

4. This product uses tempered glass. Replacement

glass (with gasket) is available from the manufac-

turer and replacement should be carried out by a

qualified service person.

Replacing Light Bulbs

This stove uses two clear 120 Volt, 60 Watt, E-12

socket base light bulbs (small base, chandelier candle

type). The 60 Watt bulbs are located under the log set/

ember bed. For convenience, if one of the bulbs burns

out, it may be a good idea to replace both of the light

bulbs.

1. Turn off power to the unit by unplugging the power

cord.

2. Let stove cool if it has been operating.

3. Remove firebox from casing. (See Firebox removal)

4. Remove the two screws securing the ember bed and

log set in position. One screw is located on either

side of the ember bed near the front.

5. Examine the bulbs to determine which bulb(s) need

to be replaced.

6. While holding the socket, unscrew defective bulb(s).

7. Install the new light bulb(s) by screwing in while

holding the socket.

8. Reinstall ember bed and log set.

9. Reinstall firebox.

WARNING: Do not exceed 60 watts per

bulb for lights beneath the ember bed.

Use of higher rated bulbs may result in a

fire, causing property damage or per-

sonal injury.

Maintenance of Motors

The motors used on the fan and the flame generator

assembly are prelubricated for extended bearing life

and require no further lubrication. However, periodic

cleaning/vacuuming of the fan/heater unit is recom-

mended.

WARNING: Make sure that the power is

turned off before proceeding.

Service Instructions

Mounting

Brackets

(2 per side)

HS106

Fig. 3 Side view of the stove showing the firebox mounting

brackets.

Addison Electric Stove

10004324

Any electrical repairs or rewiring of this unit should be carried out by a licensed electrician in accordance with national

and local codes.

If repairing or replacing any electricial component or wiring, the original wire routing, color coding

and securing locations must be followed.

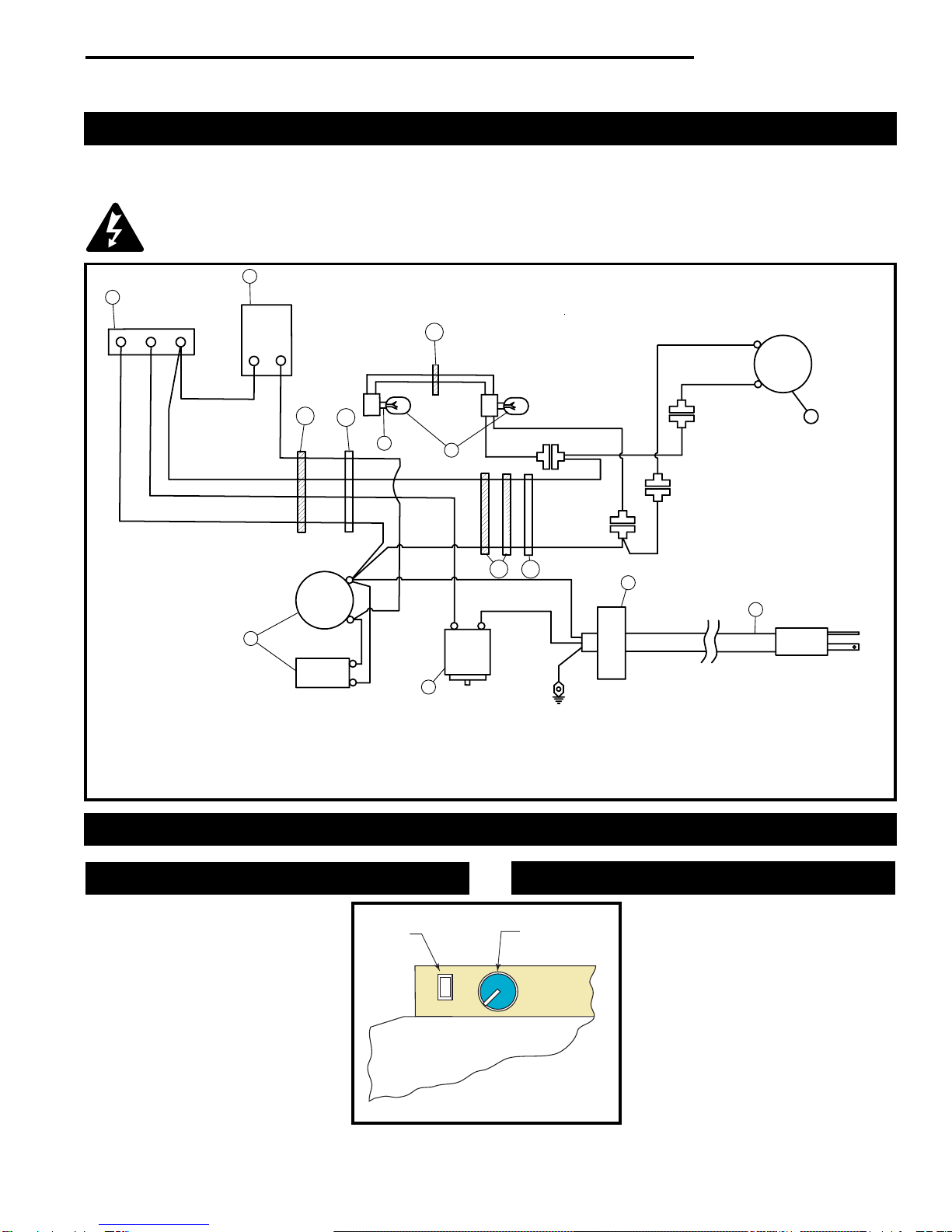

Electrical Wiring Diagram

Operating Instructions

Main On/Off Switch

The On/Off switch supplies power to

all of the functions of the stove. It is

located on the top of the firebox at

the rear of the unit.

WARNING: During any service of

this appliance, the power to the

unit must be turned off. It is not

acceptable to use the “On/Off”

switch to meet this requirement.

The Heater Control acts to turn the

heater on and off as well as setting

the comfort level in the room. Turning

the knob clockwise from the off

position will place the heater into

operation. The further the knob is

rotated clockwise, the higher the set

point temperature. Turning the knob

counterclockwise will lower the set

point temperature. Turning it all the

way counterclockwise will turn the

heater function off.

SWITCH ON/OFF

1 BLACK

FAN

MOTOR

HEATER

ELEMENT

6 WHITE

3 BLACK

2 BLACK

BLACK

FLAME

MOTOR

BREAKER

CIRCUIT

10 11

5 WHITE

8 BLACK

2 BLACK

7 WHITE

HS103

1. 120v Motor AC

2. Rocker Switch

3. Thermostat

4. Fan/Heater

5. Light Socket w/ WiringAssy (2 Lamp)

6. Light Bulb 60 W

7. Breaker Circuit Manual Reset

8. Power Cord

9. Bushing Strain Relief

10. Nylon Cable Tie 6¹⁄₈ Black

11. Bushing Snap Hole

12. CFM Corporation Factory Wire

ON/OFF

Switch Temperature

Control

HS101

Fig. 4 Control locations at the top rear

corner of the stove.

Heater Control

Addison Electric Stove

10004324

4324

CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products

at any time, without notice.

Addison Freestanding Electric Stove

Models ACSB (2905), ACSG (2906), ACSM (2907)

Ref. Description Part Number

1. Log Set Complete 10004456

2. Fan/Heater Assembly 10004198

3. Flame Generator Motor-120 Volt AC w/Terminal 10004262

4. Cord Power 16/3 HPN w/Terminals 10003095

5. ON/OFF Switch 10001393

6. Heater Control (Thermostat) 10004199

7. Heater Control Knob 10001639

8. Door Glass, with gasket (not shown) 0003442

9. Flame Generator Assembly 10003566

10. Light Diffuser (rear screen) (not shown) 10002150

11.Tinted Screen (not shown) 10002151

12. Light Bulb Socket w/Wiring Assembly 10003568

13. Front - Addison See Chart Page 9

14. End, Right/Left - Addison See Chart Page 9

15. Leg - Addison (2 per stove) See Chart Page 9

16. Top - Addison See Chart Page 9

17. Glass - Addison 30000664

18. Gasket, 3/4” Flat Window - Blk 30000776

19. Mounting Bracket 10003524

20. Breaker Circuit Manual Reset 10003093

Addison Electric Stove

10004324

1. Unplug the electrical supply to the unit.

2. Allow the stove to cool if it has been operating.

3. Move the stove away from the wall to gain access to

the rear of the unit.

4. Locate the firebox mounting brackets on the side of

the firebox. Remove the screws securing the firebox

to the mounting brackets. (Fig. 3)

5. Remove firebox by sliding it rearward out of the

casting.

6. Gently place firebox on its back on the floor.

7. Locate the glass clips on the inside surface of the

front casting. Remove the glass, and clear the area

of any glass fragments. (Fig. 5)

8. Secure new glass (with gasket) to the inside surface

of the front casting, reversing the process above,

making sure the glass is placed with gasket covering

the bottom and sides of the glass. (Fig. 5)

9. Reinstall firebox into casting, by reversing steps 1

through 6.

Door Glass Replacement Instructions

Fig. 5 Door assembly.

Glass

Clips

Gasket HS107

Door Glass Replacement Parts

Glass - Addison 30000664

Gasket, 3/4” Flat Window-Blk 30000776

Clip 1601396

Knob, Therm-Maple 1600660

Control Door Handle Assy 10004442

Shell Enamel Part Numbers - Addison ACSB, ACSG, ACSM

Color Top Front End, Leg

Right, Left (2 per stove)

Classic 30000624 30000621 30000622 30000623

Midnight 30000790 30000787 30000788 30000789

Green 30000794 30000791 30000792 30000793

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777

www.majesticproducts.com • www.vermontcastings.com

CFM Specialty Home Products

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cocina de Vermont Castings

Vermont Castings

Vermont Castings 3340 Instrucciones de montaje

Vermont Castings

Vermont Castings Vigilant Manual de usuario

Vermont Castings

Vermont Castings Dutchwest 2467 Manual de usuario

Vermont Castings

Vermont Castings RFSDV24 Manual de usuario

Vermont Castings

Vermont Castings Vigilant II 2310 Manual de usuario

Vermont Castings

Vermont Castings RUVSOD Series Instrucciones de montaje

Vermont Castings

Vermont Castings Discovery VS38 Manual

Vermont Castings

Vermont Castings Encore 2550C Manual de usuario

Vermont Castings

Vermont Castings Reliance Manual de usuario

Vermont Castings

Vermont Castings Cast Iron Manual de usuario

Vermont Castings

Vermont Castings Radiance RUVSOD 3358 Manual de usuario

Vermont Castings

Vermont Castings 1991 Defiant Encore 2190 Manual de usuario

Vermont Castings

Vermont Castings Defiant Manual de usuario

Vermont Castings

Vermont Castings Intrepid II Manual de usuario

Vermont Castings

Vermont Castings 0119 Manual de usuario

Vermont Castings

Vermont Castings ACSG Manual de usuario

Vermont Castings

Vermont Castings 1975 Manual de usuario

Vermont Castings

Vermont Castings Encore Flexburn 2040 Instrucciones de instalación

Vermont Castings

Vermont Castings Vigilant II 2310 Instrucciones de montaje

Vermont Castings

Vermont Castings OXDV30NVSB Manual de usuario

Vermont Castings

Vermont Castings Vigilant II 2310 Instrucciones de montaje

Vermont Castings

Vermont Castings interpid II 2070 Manual de usuario

Vermont Castings

Vermont Castings Stardance 3070 Instrucciones de montaje

Vermont Castings

Vermont Castings The Intrepid II 1990 Instrucciones de instalación

Manuales populares de Cocina de otras marcas

Arada

Arada Cassette Stove Manual de usuario

Parmco

Parmco FS 600 Manual de usuario

MCZ

MCZ SUITE AIR 10 M2 Manual de usuario

HearthStone

HearthStone Stowe DV 8321 Guía de solución de problemas

Cattara

Cattara FAMILY Manual de usuario

Stanley

Stanley Argon F500 OVAL Manual de usuario

Avalon

Avalon B-VENT Manual de usuario

Nordpeis

Nordpeis Vega Manual de usuario

Exquisit

Exquisit EKC601-5 Manual de operación

Stanley

Stanley Oisin Oil MK II Manual del propietario

Thermocet

Thermocet Brookfield S/CC Manual de usuario

HASE

HASE delhi Manual de usuario

Italiana Camini

Italiana Camini CLASSICA Guía de inicio rápido

Avalon

Avalon Vashon Avanti DVS FS Manual de usuario

Spartherm

Spartherm ambiente a1 Manual de usuario

Dimplex

Dimplex MCFSTV12AU Manual de usuario

Warmlite

Warmlite WL46040 Manual de usuario

Regency

Regency Ultimate U39E Series Guía de inicio rápido
