Vents VUE P3B EC A14 Manual de usuario

USER’S MANUAL

Heat and humidity recovery

air handling unit

VUE P3B EC A14

V146EN_01.indd 1 22.03.2017 10:30:49

www.ventilation-system.com2

CONTENTS

Safety requirements ......................................................................................................................................... 2

Purpose ..................................................................................................................................................................... 4

Delivery set ............................................................................................................................................................ 4

Designation key ................................................................................................................................................... 4

Technical data ...................................................................................................................................................... 5

Unit design and operating principle ...................................................................................................... 7

Mounting and set-up ...................................................................................................................................... 9

Connection to power mains ........................................................................................................................ 11

Unit control ............................................................................................................................................................. 12

Technical maintenance .................................................................................................................................... 14

Troubleshooting .................................................................................................................................................. 15

Storage and transportation regulations .............................................................................................. 15

Manufacturer’s warranty ................................................................................................................................ 16

Acceptance certificate ..................................................................................................................................... 17

Seller information ................................................................................................................................................ 17

Connection certificate ..................................................................................................................................... 17

Warranty card ........................................................................................................................................................ 17

This user’s manual consisting of the technical details, operating instructions and technical specification covers the installation and mounting of

the VUE P3B EC A14 heat and humidity recovery air handling unit (hereinafter referred to as «the unit»).

SAFETY REQUIREMENTS

Read the user’s manual carefully prior to installing and operating the unit.

Fulfil the user’s manual requirements as well as the provisions of all the applicable local and national construction, electrical and technical norms

and standards.

The warnings contained in the user’s manual must be considered most seriously since they contain vital personal safety information.

Failure to follow the rules and safety precautions noted in this user’s manual may result in an injury or unit damage.

After a careful reading of the manual, keep it for the entire service life of the unit.

While transferring the unit control the user’s manual must be turned over to the receiving operator.

Symbol legend:

WARNING!

DO NOT!

V146EN_01.indd 2 22.03.2017 10:30:49

www.ventilation-system.com 3

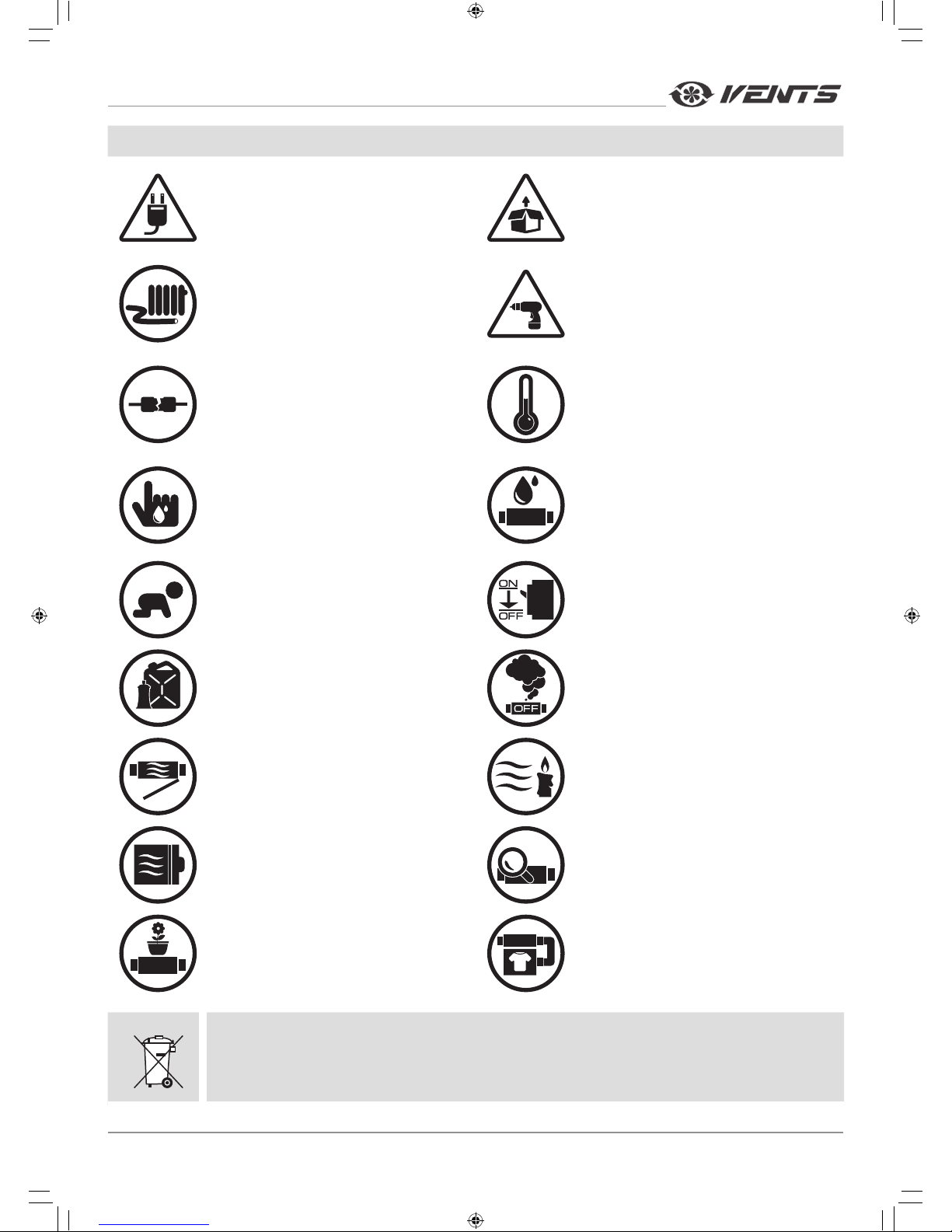

UNIT MOUNTING AND OPERATION SAFETY PRECAUTIONS

• Disconnect the unit from power mains prior to

any installation operations. • Unpack the unit with care.

• Do not lay the power cable of the unit in close

proximity to heating equipment.

• While installing the unit follow the safety

regulations specific to the use of electric tools.

• Do not use damaged equipment or cables

when connecting the unit to power mains.

• Do not operate the unit outside the

temperature range stated in the user's manual.

• Do not operate the unit in aggressive or

explosive environments.

• Do not touch the unit controls with wet hands.

• Do not carry out the installation and

maintenance operations with wet hands.

• Do not wash the unit with water.

• Protect the electric parts of the unit against

ingress of water.

• Do not allow children to operate the unit. • Disconnect the unit from power mains prior to

any technical maintenance.

• Do not store any explosive or highly flammable

substances in close proximity to the unit.

• When the unit generates unusual sounds, odour

or emits smoke disconnect it from power supply

and contact the Seller.

• Do not open the unit during operation. • Do not direct the air flow produced by the unit

towards open flame or ignition sources.

• Do not block the air duct when the unit is

switched on.

• In case of continuous operation of the unit

periodically check the security of mounting.

• Do not sit on the unit and avoid placing foreign

objects on it. • Use the unit only for its intended purpose.

THE PRODUCT MUST BE COLLECTED SEPARATELY AT THE END OF SERVICE LIFE.

DO NOT DISPOSE OF AS UNSORTED MUNICIPAL WASTE.

V146EN_01.indd 3 22.03.2017 10:30:51

www.ventilation-system.com4

PURPOSE

Due to the ability to save heating energy by means of energy recovery the unit is an important element of energy-efficient premises. The unit is a

component part and is not designed for stand-alone operation.

The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafés, conference halls and other utility and public

spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of supply air.

THE UNIT MAY NOT BE OPERATED BY CHILDREN OR PERSONS WITH REDUCED PHYSICAL,

MENTAL OR SENSORY CAPACITIES, OR LACKING THE APPROPRIATE TRAINING.

THE UNIT MUST BE INSTALLED AND CONNECTED ONLY BY PROPERLY QUALIFIED

PERSONNEL AFTER THE APPROPRIATE BRIEFING.

THE CHOICE OF UNIT INSTALLATION LOCATION MUST PREVENT UNAUTHORIZED ACCESS

BY UNATTENDED CHILDREN.

Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust,

soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).

DELIVERY SET

Name Number

Air handling unit 1 item

User's manual 1 item

Control panel 1 item

Mounting box for wall surface mounting 1 item

Mounting box for wall flush mounting 1 item

Packing box 1 item

DESIGNATION KEY

VUE X P3B EC A14

Air capacity [m3/h]

150/250/350

Bypass

Heat and humidity recovery air

handling unit

Motor type

electronically commutated

Casing Type

suspended, horizontal spigot orientation

Control panel

V146EN_01.indd 4 22.03.2017 10:30:51

www.ventilation-system.com 5

TECHNICAL DATA

The unit is designed for indoor application with the ambient temperature ranging from +1 °C up to +40 °C and relative humidity up to 80 %.

The unit is rated as a Class I electrical appliance.

Ingress protection rating for the unit connected to air ducts - IP22, for unit motors - IP44.

The unit design is constantly being improved, so some models may be slightly different from those ones described in this manual.

Technical data VUE 150 P3B EC A14 VUE 250 P3B EC A14 VUE 350 P3B EC A14

Unit voltage [V /50-60 Hz] 1~ 230

Maximum unit power [W] 70 84 150

Maximum unit current [A] 0.6 0.7 1.0

Maximum air capacity [m3/h] 180 300 400

RPM 1925 2000 3200

Sound pressure level at 3 m distance [dB(A)] 32 36 46

Transported air temperature [°C] from -25 up to +40

Casing material painted steel

Insulation foam rubber 5 mm, 10 mm

Extract air filter G4

Supply air filters G4 and F8 (PM2.5 93 %) G4 and F8 (PM2.5 83 %) G4 and F8 (PM2.5 87 %)

Connected air duct diameter [mm] Ø 100 Ø 150 Ø 150

Heat recovery efficiency [%] 68 - 82 63 - 73 68 - 85

Humidity recovery efficiency [%] 22 - 41 16 - 27 19 - 34

Heat exchanger type cross-flow

Heat exchanger material polymerized cellulose

Weight [kg] 26 29 42

Energy efficiency class A B A

V146EN_01.indd 5 22.03.2017 10:30:51

www.ventilation-system.com6

ØD

L2LL1

L2 L L1

A B

Model Dimensions [mm]

Ø DA A1 A2 B B1 B2 H H1 L L1 L2 L3 L4 L5

VUE 150 P3B EC A14

99 947 854 676 704 743 793 227 247 480 92 128 25 113 113

VUE 250 P3B EC A14

149 947 854 676 704 743 793 227 247 480 92 128 25 113 88

VUE 350 P3B EC A14

149 1117 1024 846 754 793 843 277 297 488 109 153 50 88 138

R1,5

OUTOUT OUT IN

+RxTx

11,2

62,3

Control panel

The sensor panel contains touch buttons for unit control and an

emergency indicator.

Unit voltage 8-30 V

Temperature range from 0 °C up to +45 °C

Service life 100 000 switching operations

Ingress protection IP30

Weight 150 g

Humidity range from 5 to 80 (no condensation)

V146EN_01.indd 6 22.03.2017 10:30:52

www.ventilation-system.com 7

UNIT DESIGN AND OPERATING PRINCIPLE

Supply fan

Exhaust fan

*Bypass damper

Extract lter

Control unit

Temperature sensor

for heat exchanger freezing protection

Electric lead-ins

Service side

Access door for inspection and maintenance

of the lters and heat exchanger

Cross-power heat exchanger

Intake lter

**Humidity sensor

Control panel

Power cable with a plug

The service panel is equipped with a detachable access door with manual bolts for cleaning or replacement of the filters and heat exchanger. The

control unit is positioned inside the unit casing. The power and the ground cable are to connect to the control unit through the airtight electric lead-in

in the unit casing side.

The plate enthalpy cross-flow heat exchanger is made of polymerized cellulose.

*The bypass damper is open or closed depending on operation mode of the unit.

**At the request of the customer the unit can be equipped with a humidity sensor. The humidity sensor is purchased separately as an accessory.

The unit with an installed humidity sensor maintains a set indoor humidity point. As the extract air humidity rises above the set point, the system

automatically switches to the maximum speed. As the humidity drops down below the set point the unit returns to the previous operation mode.

Installation and connection of the humidity sensor is carried out on site by the service technician.

V146EN_01.indd 7 22.03.2017 10:30:52

www.ventilation-system.com8

UNIT OPERATION MODES

Heat recovery: warm extract air from the room flows into the unit and is cleaned in the extract filter. Then the air is moved through the heat

exchanger and is exhausted outside with the extract fan.

Cold fresh air from outside flows into the unit, where it is cleaned in the supply filter. Then the air flows through the heat exchanger and is moved

to the room with the supply fan.

Supply air is heated in the heat exchanger by transferring the heat energy of warm and humid extract air to the cold fresh air. The air flows are fully

separated while flowing through the heat exchanger. Heat recovery minimizes heat losses, which reduces the cost of space heating in the cold season.

The enthalpy heat exchanger allows to recover humidity as well as heat. In the summer period, the supplied fresh air is cooled and dried by the heat

exchanger, in the winter period it is heated and moisturized. The water vapour is devaporated from the stale wet air and absorbed with heat exchanger

plates. The released heat and moisture are transferred to the supply air. The transferring of dirt, odours and microorganisms from one air flow to another

is excluded.

EXTRACT AIR

SUPPLY AIR

INTAKE AIR

EXHAUST AIR

Defrosting mode: to prevent the heat exchanger freezing in the cold season the unit has an automatic Defrosting mode according to the freeze

protection temperature sensor readings in the exhaust air duct downstream of the heat exchanger. The unit switches to the defrosting mode at the

extract air temperature +3 °C. As the temperature rises the unit returns to the previous mode. Only the extract fan operates in the defrosting mode, the

supply fan is switched off.

EXTRACT AIR

SUPPLY AIR

INTAKE AIR

EXHAUST AIR

Summer Cooling mode: in the units with a bypass damper, the part of the intake air that is supplied to the premises bypasses the heat exchanger,

the bypass damper is opened and the outdoor air supply temperature changes slightly.

EXTRACT AIR

SUPPLY AIR

INTAKE AIR

EXHAUST AIR

V146EN_01.indd 8 22.03.2017 10:30:52

www.ventilation-system.com 9

MOUNTING AND SETUP

THE UNIT MUST BE MOUNTED BY A QUALIFIED EXPERT ONLY, PROPERLY TRAINED

AND HAVING THE REQUIRED TOOLS AND MATERIALS.

HUMIDITY SENSOR MOUNTING

The humidity sensor is not included in the scope of delivery and can be ordered separately.

The humidity sensor must be installed prior to unit mounting. Unit mounting sequence:

• Remove the mounting screws of the service side panel of the unit and take it off.

• Install the humidity sensor into the mount from the side of the extract air duct and connect the humidity sensor contact socket to the respective

contact socket coming from the control unit, refer to the External wiring diagram.

• Install the sensor cover back.

UNIT MOUNTING

The unit is designed for ceiling mounting with anchor threaded bolts, nuts and vibration-absorbing rubber. Fasteners for unit mounting are not

included in the delivery set and should be ordered separately. While choosing fasteners consider the material of the mounting surface as well as the

weigh of the unit, refer to the Technical Data section. Fasteners for unit mounting should be selected by the service technician.

Before mounting make sure that the casing is free of any foreign objects like film or paper.

While installing the unit ensure convenient access for subsequent maintenance and repair.

Minimum required distance from the unit to the ceiling is at least 20 mm.

To attain the best performance of the unit and to minimise turbulence-induced air pressure losses connect the straight air duct section to the spigots

on both sides of the unit while mounting.

Minimum straight air duct length:

• equal to 1 air duct diameter on intake side;

• equal to 3 air duct diameters on outlet side.

If the air ducts are too short or not connected, protect the unit parts from ingress of foreign objects. To prevent uncontrollable access to the fans the

spigots may be covered with a protecting grille or other protecting device with mesh width not more than 12.5 mm.

Washer

Nut

Threaded bolt

Vibration absorbing

rubber

min 20 mm

V146EN_01.indd 9 22.03.2017 10:30:53

www.ventilation-system.com10

CONTROL PANEL MOUNTING

MAKE SURE THAT THE CONTROL PANEL IS NOT DAMAGED. DO NOT USE A DAMAGED

CONTROL PANEL! DO NOT INSTALL THE CONTROL PANEL ON AN UNEVEN SURFACE! WHILE

TIGHTENING THE SCREWS, DO NOT APPLY EXCESSIVE FORCE TO PREVENT THE CONTROL

PANEL CASING DEFORMATION.

Control panel wall ush mounting

1. Prepare a hole in the wall and route

all the wires to the installation place.

Insert the supplied mounting box for

flush wall mounting.

The mounting box is included in

delivery.

2. Use a screwdriver to carefully undo

the clips on the bottom edge of the

control panel and remove the back

cover.

3. Screw the backside of the casing

to the mounting box through the

fastening holes. Fastening screws for

mounting of the control panel are

included in the control panel delivery

set. Then connect the cable to the

control panel in compliance with

external wiring diagram.

4. Install the control panel display and

press it to fix.

Control panel wall surface mounting:

1. Route the required wires and cables

to the control panel installation place.

Drill the fastening holes in the wall

and screw the mounting box. The

mounting box is included in the

scope of delivery. Fastening screws

for fixation of the mounting box are

available separately.

2. Use a screwdriver to carefully undo

the clips on the bottom edge of the

control panel and remove the back

cover.

3. Screw the backside of the casing

to the mounting box through the

fastening holes. Fastening screws for

mounting of the control panel are

included in the control panel delivery

set. Then connect the cable to the

control panel in compliance with

external wiring diagram.

4. Install the control panel display and

press it to fix.

V146EN_01.indd 10 22.03.2017 10:30:53

Tabla de contenidos

Otros manuales de Admirador de Vents

Vents

Vents 100 Solid Manual de usuario

Vents

Vents VKM EC Manual de usuario

Vents

Vents TwinFresh Style Manual de usuario

Vents

Vents TwinFresh Expert RW-30 V.2 Manual de usuario

Vents

Vents CBF 200 Manual de usuario

Vents

Vents VCUN Manual de usuario

Vents

Vents VKMz 100 Manual de usuario

Vents

Vents VKMz 125 Manual de usuario

Vents

Vents VKM 100 Manual de usuario

Vents

Vents VS 355 4E Manual de usuario

Vents

Vents TwinFresh Expert RW1-50S3-13 Manual de usuario

Vents

Vents Quiet-S V Manual de usuario

Vents

Vents Fan Manual de usuario

Vents

Vents D Series Manual de usuario

Vents

Vents VENTS TT Series Manual de usuario

Vents

Vents VENTS TT Series Manual de usuario

Vents

Vents Simple 100 Manual de usuario

Vents

Vents RO Series Manual de usuario

Vents

Vents KSB EC Series Manual de usuario

Vents

Vents 125 IFK Manual de usuario

Vents

Vents TwinFresh Expert RW1-50S3-13 V.2 Manual de usuario

Vents

Vents VUE 250 V mini A12 Manual de usuario

Vents

Vents Brig HRV 120 Manual de usuario

Vents

Vents TwinFresh Easy Manual de usuario

Manuales populares de Admirador de otras marcas

ELTA FANS

ELTA FANS H03VV-F Manual de usuario

Hunter

Hunter 20714 Manual de instrucciones

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manual de usuario

Hunter

Hunter Caraway Manual de instrucciones

Panasonic

Panasonic FV-15NLFS1 Manual de usuario

Kompernass

Kompernass KH 1150 Manual de usuario

VES

VES FALA100/12V/TR Manual de usuario

Vertiv

Vertiv Liebert DCD Manual de usuario

Westinghouse

Westinghouse GFP Series Manual de usuario

Venmar

Venmar KUBIX HRV PLUS Series Manual de usuario

Maico

Maico ECR 31 Manual de usuario

Sonnenkonig

Sonnenkonig Dinky Manual de usuario

S&P

S&P ECOWATT HXBR Manual de usuario

Wider

Wider IMP03369BH Manual de usuario

Panasonic

Panasonic F-60DHN Manual de usuario

Hinkley

Hinkley HIGHLAND Manual de usuario

Broan

Broan 766BN Manual de usuario

Premium

Premium PFS16022 Instrucciones de montaje
