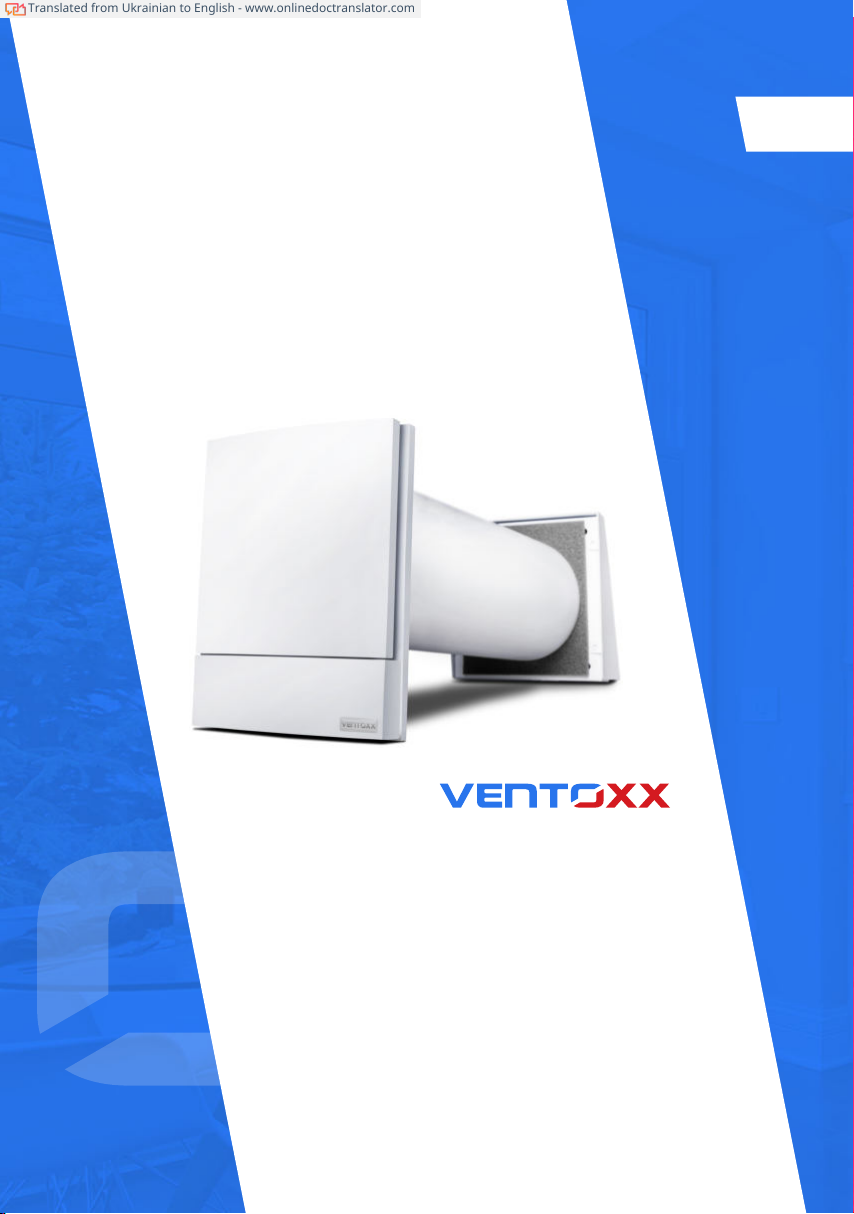

VENTOXX HARMONY Instrucciones de instalación
UA
INSTRUCTIONS ON
WITH HEAT RECOVERY
OF VENTILATION SYSTEM
Vital air
2021
Translated from Ukrainian to English - www.onlinedoctranslator.com
INSTALLATION AND OPERATION
VENTOXX HARMONY
CONTENT
1. Introduction............................................... .................................................. .................................. 4
1.1. Responsibility................................................. .................................................. ..... 4
1.2. Safety instructions ............................................... .................................................. .5
2. Ventilation device .............................................. ............................................... 6
2.1. Purpose of the device ................................................ ............................................ 6
2.2. Complete set ................................................. .................................................. ........... 6
2.3. Technical characteristics of the Ventoxx Harmony device ....................................... 8
3. Preparation for insertion ............................................. ..................................... 9
3.1. Location of devices ................................................ ........................................... 9
3.2. General provisions for the choice of installation location ........................... 9
3.3. Tools required for installation .............................................. ...................... 9
3.4. Safety at work .............................................. ........................................... 10
4. Installation of Ventoxx Harmony ............................................. ............................................ 10
4.1. Creating a hole in the wall .............................................. .......................................... 10
4.2. Step-by-step installation ................................................ ...................................... 10
5. Electrical connection of the device ............................................. ....................... 17
5.1. General Information................................................ .................................................. .17
5.2. Connection of master-slave pairs and control by remote
control ....................................... .............................................. 17
5.3. Connecting recuperators to Ventoxx Twist control .............................. 18
5.3.1. Wiring diagrams of fans and control Ventoxx Twist..19
5.3.2. Mounting the Ventoxx Twist control in the wall ............................................ ............ 20
6. Completion of installation and commissioning ............................... 21
6.1. Installing the inner cover ............................................... ..................... 21
7. Operation ............................................... .................................................. ................ 23
7.1. Description of Ventoxx Harmony operating modes ............................................. .............. 23
7.2. Automatic ventilation ................................................ ............................... 25
7.3. Description of the indication symbols on the inner cover ............................................ ..26
7.4. Remote control ........................................... 26
7.5. Control with Ventoxx Twist control ........................................... 27
8. Maintenance of the device ............................................. ....................... 29
8.1. Cleaning and replacing the air filter ............................................. ................... 29
8.2. Cleaning the heat exchanger and other components ........................................... 30
8.3. Troubleshooting .............................................. ...................... 32
9. Warranty cards .............................................. .................................................. ........ 33
10. Quality and guarantee ............................................. .................................................. .......... 35
3
1. INTRODUCTION
Congratulations on your purchase!
You have bought a high-quality recuperator of TM "Ventoks". If you have just
removed the ventilation device from the package - you are holding in our hands
our pride and the result of many years of work. Thousands of hours of work of
engineers for continuous improvement, new developments and prototyping of
products; hundreds of measurements and tests in laboratories; Millions of creative
sessions to find the best user experience - it's all invested in the product of TM
"Ventox"!
Our goal is to continue to provide you with the best product and customer
service, and that's why we will grateful for the feedback.
If you have any questions about our products and your experience, you can
contact us as follows:
Free hotline:
El. mail for suggestions and recommendations: Chat
and contact form on the site:
Leave feedback on the site:
0 800 214 057
www.ventoxx.ua
www.ventoxx.ua/feedback
1.1. Responsibility
This manual is intended for installation and operation of the Ventoxx Harmony
ventilation unit. The instruction is made with use of the data actual as of
01.07.2021. The content of the instructions may be updated and supplemented.
You can always find the latest version and download it for free in PDF format on
the official website https://ventoxx.ua.
Installation of the recuperator in the wall and its connection to the mains should
be performed only by qualified specialists who are familiar with safety and
qualified to work with mains connections. Be sure to read all of these instructions
before installing and connecting the device.
4
must be handed over to the owner of the ventilation device or his authorized
representative, who is responsible for the correct use of the device in the room.
Improper use of the device may damage the device and / or injure people. The
manufacturer is not responsible for events that occur due to improper installation
or improper use of the device, in particular in the following cases:
• violation of safety rules and instructions of installation instructions;
• lack of proper care equipment specified in this instruction;
• installation of materials, spare parts or individual elements in the device, which
are not authorized products of TM "Ventox".
1.2. Safety instructions
The instructions use the following symbols:
Please read the instructions carefully. In it you will find important
information about proper installation and connection, warnings about
possible dangerous situations, as well as rules for handling the device
Ventoxx Harmony.
Please note that there is a high risk of injury or damage to property
and / or caution is required when working.
Note that there is a possibility of errors during the installation of the
device, which may cause damage and / or malfunction of the device.
Note that there is a risk of electric shock. Only qualified professionals
should connect to the mains.
5
2. VENTILATION DEVICE
2.1. Purpose of the device
Ventoxx Harmony ventilation device is a decentralized ventilation system with
heat recovery (hereinafter - recuperator). Recuperators are installed in order to
ensure autonomous air exchange in the premises and at the same time retain
heat due to the effect of recovery.
The recuperator can be installed in any living space and in any public buildings
where people will be and where no special temperature and climatic conditions
are required.
The device is equipped with a ceramic heat accumulator, which accumulates the
heat of the used removed air, and then returns the same heat to the fresh air
coming from the street.
The recuperator is installed in the wall thickness. The air duct inside which the
device is located can be 0.5 or 0.75 m long as standard and cut according to the
wall thickness before installation.
2.2. Complete set
Ventoxx Harmony consists of the following components:
6
1 - moving part of the inner cover
2 - mounting plate with indication of the current operating mode 3 -
air filter class G2
4 - noise-absorbing element Ventoxx Star * 5 -
cartridge with reversible fan 6 - ceramic heat
accumulator in the heater 7 - air duct
8 - mounting plate of the outer metal cover ** 9 - metal
hood of the outer cover **
10 - plastic lattice **
11 - the remote control (according to a complete set) 12 - the
Ventoxx Twist control relay (according to a complete set)
13 - mounting plate of Ventoxx Twist control (according to a complete set) 14 - a box for
installation of Ventoxx Twist control in a wall (according to a complete set) 15 - power
supply unit of Ventoxx Twist control (according to a complete set)
Also included:
• dowel 6 * 40 mm - 4 pcs and self-tapping screw 4 * 50 mm - 4 pcs - for mounting position 2
of the mounting plate with indication of the current operating mode
• dowel 8 * 50 mm - 4 pieces and self-tapping screw 5 * 50 mm - for fastening position
8 of the mounting plate of the outer metal cover **
• dowel 6 * 40 mm and self-tapping screw 3 * 50 mm - 2 pcs, for fixing position 10
of the plastic grille **
* optional component, not available as standard;
* * depending on the chosen modification there can be a complete set with a
plastic lattice instead of a metal cover.
After unpacking the purchased product, make sure that the complete set of the
recuperator in the modification you ordered is available (see figure above).
In addition, each box must have:
✓ installation and operation instructions with warranty card;
✓ technical passport.
Be careful when unpacking and installing the recuperator - do not hit
or drop the device, which can damage the ceramic heat accumulator.
7
2.3. Technical characteristics of the Ventoxx Harmony device
Number of operating modes 11
Number of speeds 3
Productivity of a recuperator, m³ / h 17 - 50
Recovery efficiency,% 74 - 86
Noise level at a distance of 3 m, dB 12 - 22
Voltage, V 100 - 230
Power consumption, W · h 1.6 - 2.6
Heat exchanger type ceramic heat accumulator
(Germany)
The diameter of the hole in the wall, mm 160 - 180
Operating temperature, ° C - 20… +50
Dimensions:
Air duct, mm ᴓ 152
Internal cover, mm 248 × 186
External cover, mm 210 × 204
External grille, mm ᴓ 200
Method of placement horizontal placement
in the outer wall with an angle of 0.6 - 2%
towards the street
Filter G2, washable
Energy efficiency class AND
Service Flushing filters and
heat exchanger - every 3 months.
Filters are changed every 2 years.
8
3. PREPARATION FOR INSTALLATION
3.1. Location of devices
Recuperator
stationary
ventilation.
productivity and efficiency depend on the
correct placement of devices in the room, as
well as qualified installation and proper use in
accordance with the provisions of this
instruction.
When buying a ventilation system TM "Ventox"
ask the scheme of recommended placement of
devices from the seller.
Ventoxx
general exchange
her total
Harmony is
So
Example
placement of recuperators in the living
space.
schemes recommended
3.2. General provisions for choosing the location of the recuperator
• Height for mounting: for optimal distribution of air flows, recuperators should
be placed in the upper segment of the wall at a distance of at least 150 mm from
the ceiling.
• Distance between devices: recuperators must be placed at a distance of at least
2 m from each other.
• Distance from the door: the recuperator should be placed as far away from the
door as possible to achieve the maximum effect of ventilation.
• Free access to the appliance: to make it easier to maintain the recuperator,
make sure that the place chosen for installation allows the inner cover to be
removed without hindrance.
• Installation over beds: We do not recommend installing the appliance directly
above the bed, as residents may experience a slight movement of airflow.
3.3. Tools required for installation When
mounting the device you will need:
• construction level;
• universal knife;
• in the case of drilling holes - a perforator, a crown with a diamond coating;
• mounting foam;
• screwdriver "-" flat 3 mm;
9
• wire stripping tool (for cable installation).
For installation you will also need the following fasteners: anchors, dowels,
screws - which are selected according to your facade system, type of insulation,
design and wall material. Please note that the delivery set does not contain these
fasteners.
3.4. Safety at work
When installing the recuperator it is necessary to use protective equipment:
• goggles;
• work gloves;
• protection for the hearing organs;
• head protection;
• special work shoes.
4. INSTALLATION OF THE VENTOXX HARMONY DEVICE
4.1. Creating a hole in the wall
To install the device, you must first make a round hole in the wall of the required
diameter. In ready-made rooms, we recommend that you always make holes using
diamond drilling technology. Make sure that the tool bit is designed for drilling
holes with a diameter of 160-180 mm. The hole in the wall is made at an angle of
0.6 - 2% towards the street.
Before making a hole in the wall, make sure that:
• no one is in danger of being injured when drilling or falling parts of
the wall out of the hole;
• objects and structures will not be damaged due to falling pieces of
the wall during drilling;
• there are no wires or pipes at the drilling site;
• creating a hole will not affect the supporting function of the wall;
• the creation of the hole will not affect the physics of the building, in particular will
not provoke the accumulation of condensate or other moisture in the wall structure.
4.2. Step-by-step installation
Step 1:
After choosing a place for installation and making a mounting hole in the wall,
run a 220 V power cord to it.
Step 2:
Measure the thickness of the wall, if you bought a complete set of exterior
10
Otros manuales para HARMONY
1
Tabla de contenidos
Otros manuales de Admirador de VENTOXX
