Velleman CS100 Manual de usuario

CS100

DISCRIMINATOR METAL DETECTOR

OWNER'S MANUAL

CS100 GB1

FEATURES

====================================================

With your Discriminator Metal Detector, you can hunt for coins,

relics, jewellery, gold and silver just about anywhere. The Discriminator Metal

Detector is versatile and easy to use.

The detector's features include :

Earphone Jack - lets you connect earphones (not supplied) to the detector.

Vu-meter and Pointer - shows the probable type of metal being detected. A

separate vu-meter display lets you know when it is time to replace the

batteries.

Waterproof Search Coil - lets you the detector's search coil even if you must

put it under water.

Note : The search coil is waterproof, but the control housing is not waterproof.

Adjustable Stem - lets you adjust the detector's length for comfortable use.

Note : Your metal detector requires three 9-volt alkaline batteries (not supplied).

TREASURE HUNTER'S CODE OF ETHICS

All treasure hunters might be judged by the example you set. Here are a few

basic rules you should follow while using your detector.

•Always get permission before searching any site.

•Respect the rights and property of others.

•Observe all national, state, and local laws while treasure hunting.

•Never destroy historical or archaeological treasures. If you are not sure

about an object you have found, contact a museum or historical society in

your area.

•Leave the land and vegetation as it was. Fill in any holes you dig.

•Use your detector only in safe areas.

•Dispose of any junk you find, only in approved areas. Do not leave it for the

next treasure hunter to find.

CS100 GB2

PREPARATION

====================================================

ASSEMBLING THE DETECTOR

Assembling your detector is easy and requires no special tools. Just follow

these steps.

1.Turn the stem's lock nut clockwise until it loosens.

2. Lengthen or shorten the stem so when you stand upright with the detector in

your hand, the search coil is level with the ground and about 1/2 to 2 inches

(1 to 5cm) above it with your arm relaxed at your side.

3.Turn the stem's lock nut anticlockwise to lock it in place.

Wire

Wrong

CS100 GB3

Knobs

ADJUSTING THE SEARCH COIL

Loosen the knobs at the search coil's end, then adjust the search coil to the

desired angle. (The search coil should be parallel with the ground). Tighten the

knobs just enough to keep the search coil from rotating or wobbling.

INSTALLING THE BATTERIES

You need six AA batteries to power your detector.

Cautions :

•Use only fresh batteries of the required size and recommended type.

•Do not mix old and new batteries, different types of batteries (standard,

alkaline or rechargeable batteries of different capacities).

1.If the detector is on, turn VOLUME (on the control housing) to OFF. (The

control clicks)

CS100 GB4

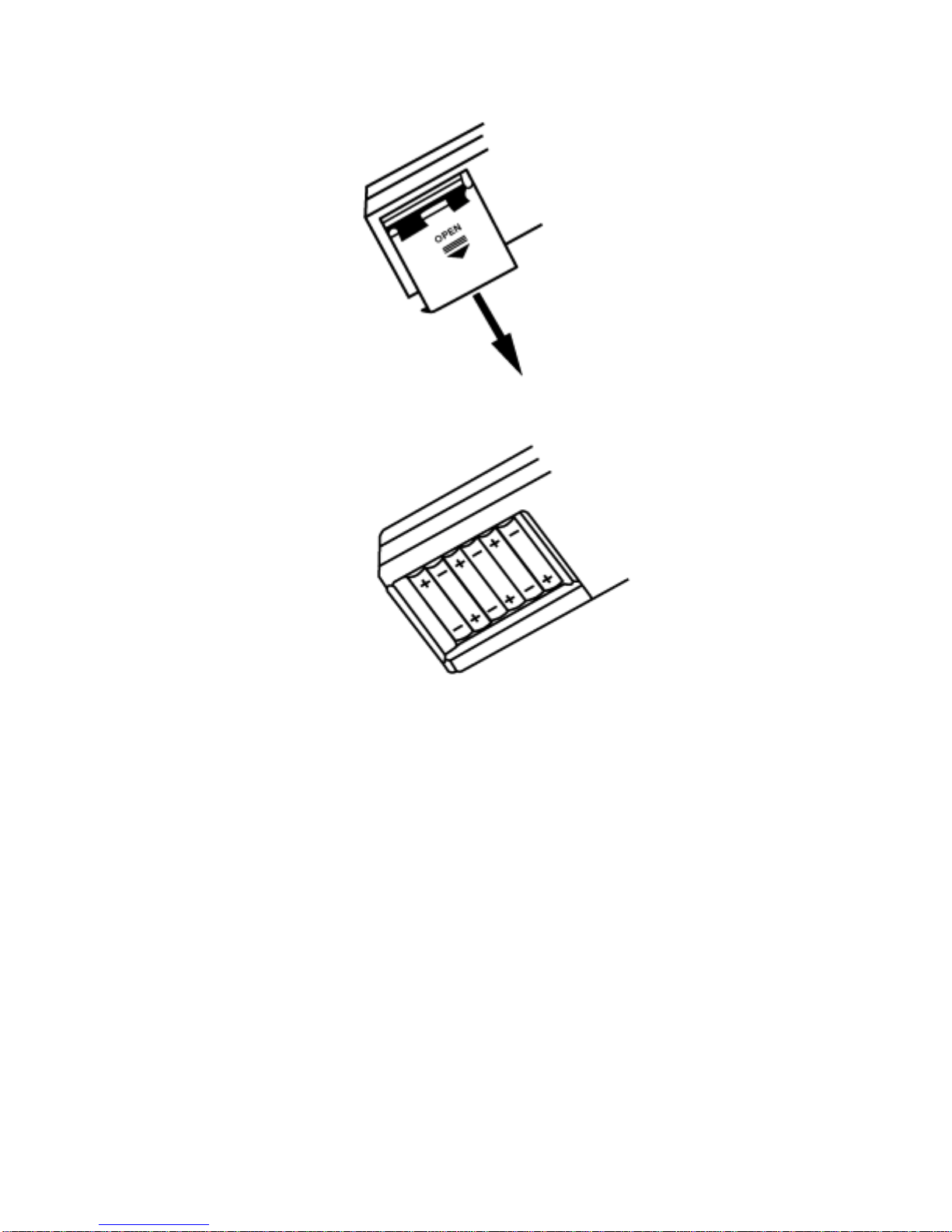

2.Press on the battery compartment cover and slide the cover off in the

direction of the arrow.

3.Insert the batteries into the compartment as indicated by the polarity symbols

(+ and -) marked inside the compartment.

4.Replace the cover.

Caution :

•Always remove old or weak batteries. They can leak chemicals that can

destroy electronic parts.

•If you do not plan on using the detector for a week or more, remove the

batteries.

•Dispose of old batteries promptly and properly.

You can extend battery life by using earphones, which require less power than

the built-in speaker. See "Using Earphones".

CS100 GB5

TESTING THE BATTERIES

If the detector does not turn on, has weak volume, will not tune properly, has

erratic operation or drifts, test the battery power.

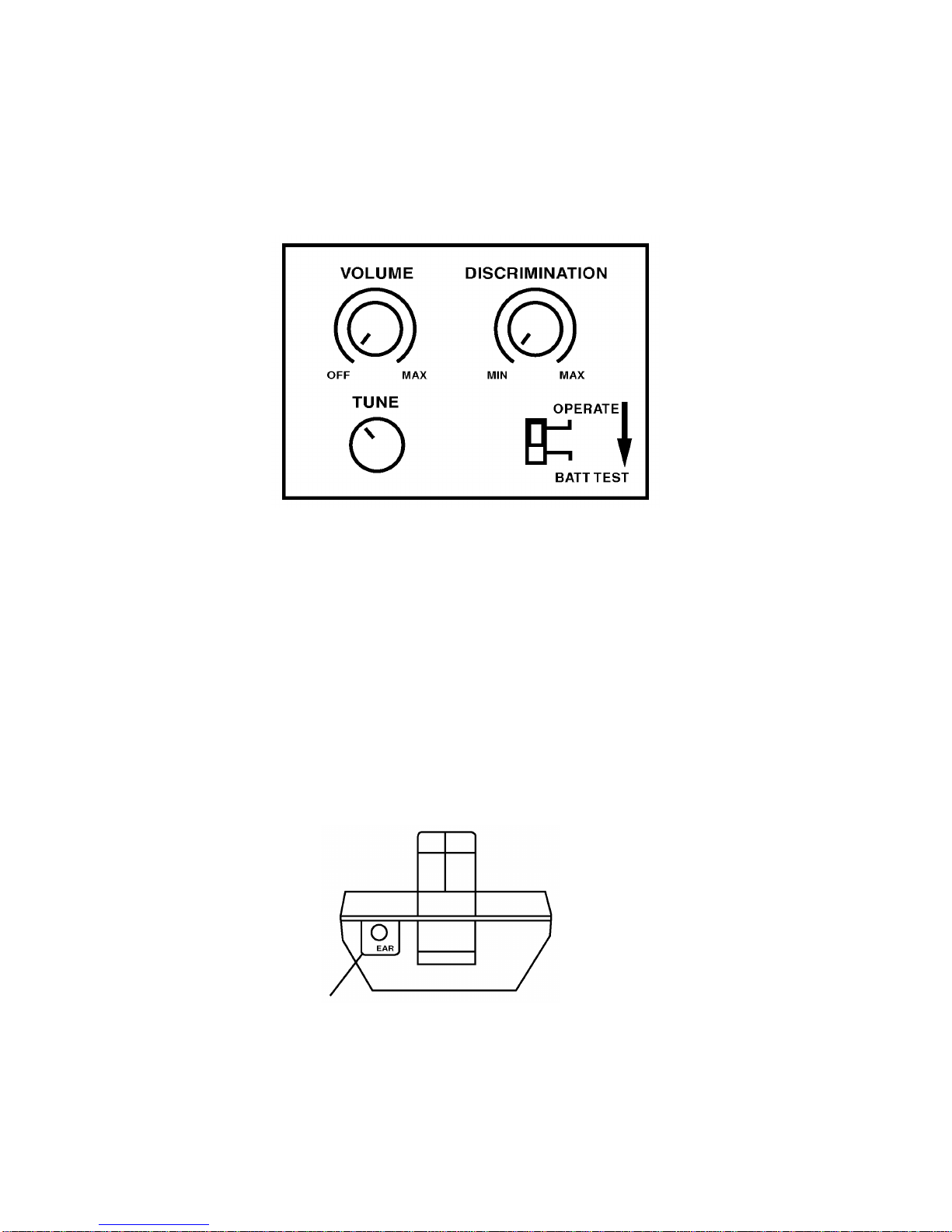

Rotate VOLUME away from OFF and set OPERATE/BATT TEST to BATT TEST.

If the pointer on the vu-meter is between 3 and 6 (green area), the batteries

have enough power to operate the detector. If the pointer is not in the green

area, replace the batteries.

USING EARPHONES

You can connect a pair of stereo earphones (not supplied) to the detector so you

can listen to it privately. Using earphones also saves battery power and makes it

easier to identify subtle changes in the sounds you hear for better results.

To connect headphones to the detector, insert the earphones' 1/8-inch plug into

the EAR jack on the side of the control housing.

Note : The detector's internal speaker disconnects when you connect earphones.

Ear

CS100 GB6

Listening Safely

To protect your hearing, follow these guidelines when you use earphones.

•Set the volume to the lowest setting before you begin listening. After you

begin listening, adjust the volume to a comfortable level.

•Do not listen at extremely high volume levels. Extended high-volume

listening can lead to permanent loss of hearing.

•Once you set the volume, do not increase it. Over time, your ears adapt to

the volume level, so a volume level that does not cause discomfort might still

damage your hearing.

Traffic Safety

Do not wear earphones while operating your detector near high-traffic areas.

Even though some earphones are designed to let you hear some outside

sounds when listening at normal volume levels, they still can present a traffic

hazard.

Outdoor Testing and Use

IMPORTANT : If the device emits a signal for nonferrous metals and

none for ferrous metals, you should start the setting

procedure again. Do it slowly to make sure that the

procedure is executed correctly.

1.Find an area on the ground outside where there is no metal.

2.Place a sample of the material you want the detector to find (such as a gold

ring or a coin) on the ground. (If you are using a valuable metal such as gold

to test the detector, mark the area where you placed the item, to help you

find it later. Do not place it in tall grass or weeds).

3.Rotate VOLUME about two-thirds clockwise.

4.Press and release the red button on the handle. Slowly rotate TUNE until the

pointer is at or near 0. You should barely hear a tone.

5.While holding the search coil level

and about 1-2 inches above the

ground, slowly move the search coil

over the area where you place the

sample, sweeping the search coil in a

side-to-side motion.

CS100 GB7

Right

Wrong

Search Coil Sweeping Hints :

•Never sweep the search coil as if it were a pendulum. Raising the search coil

while sweeping or at the end of a sweep causes false readings.

•Sweep slowly - hurrying makes you miss targets.

If the detector detects the material, it sounds a tone and the pointer moves to

the type of material if found.

If the detector does not detect the material, make sure you are moving the

search coil correctly.

Notes :

•The detector responds with a strong signal when it detects most valuable

metal objects. If a signal does not repeat after you sweep the search coil

over the target a few times, the target is probably junk metal.

•False signals can be caused by trashy ground, electrical interference or

large irregular pieces of junk metal. False signals are usually broken or non-

repeatable.

6.Try finding other metal in the area.

When you find a metal item, wait a few seconds after the tone stops before

continuing, to allow the detector time to reset (or, press the red button on the

handle to return the pointer to the centre of the vu-meter.

CS100 GB8

FINE-TUNING THE DETECTOR

When you become familiar with how your detector works, you can fine-tune it

to make it more selective in what it finds.

Discrimination is the detector's ability to differentiate between types of metal.

The detector's DISCRIMINATION settings determines whether the detector will

distinguish between different types of ferrous and non-ferrous metals.

You can set DISCRIMINATION to minimum (fully anticlockwise), to maximum

(fully clockwise), or anywhere in between. As you set DISCRIMINATION to

higher levels, the detector first does not detect small pieces of silver paper,

then thick foil, and finally metal objects like pull tabs from aluminium cans.

Note :

Each time you use the detector in a different area, you must adjust

DISCRIMINATION. Each search location presents new challenges.

FALSE SIGNALS

Because your detector is extremely sensitive, trash-induced signals and other

sources of interference might cause signals that seems confusing. The key to

handling these types of signals is to dig for only those targets that emit a

strong, repeatable signal. As you sweep the search coil back and forth over the

ground, learn to recognise the difference between signals that occur at random

and signals that are stable and repeatable.

To reduce false signals when searching very trashy ground, only scan a small

area at a time using slow, short overlapping sweeps.

CS100 GB9

DETECTION HINTS

No detector is 100 percent accurate. Various conditions influence metal

detection. The detector's reaction depends on a number of things :

•The angle at which the object rests in the ground.

•The depth of the object.

•The amount of iron in the object.

•The size of the object.

OPERATION

====================================================

Your Discriminator Metal Detector distinguishes between ferrous and

non-ferrous metals. Ferrous metals contain iron, while non-ferrous metals such

as gold, silver, copper, platinum, aluminium, lead and zinc do not.

When the detector senses a metallic object, the meter reading changes, the

NON-FERROUS or FERROUS indicator turns on or off and the detector

sounds one of three tones. The actual reaction depends on what metal is

detected. The higher the tone pitch, the stronger the detection.

PREPARING THE DETECTOR

Turning On the Detector

Hold the detector in a comfortable position, then rotate VOLUME away from

OFF to the desired sound level. Set OPERATE/BATT TEST to OPERATE to

detect.
