Velleman NVR5 Manual de usuario

NVR5

4/8/16-CHANNEL HD NETWORK VIDEO RECORDER – HDMI –

ONVIF – EAGLE EYES – PUSH VIDEO

HD NETWERK VIDEORECORDER MET 4/8/16 KANALEN – HDMI

– ONVIF – EAGLE EYES – PUSH VIDEO

ENREGISTREUR VIDÉO RÉSEAU HD À 4/8/16 CANAUX - HDMI -

ONVIF - EAGLE EYES – PUSH VIDEO

GRABADOR DE VÍDEO EN RED DE ALTA DEFINICIÓN DE 4/8/16

CANALES - HDMI - ONVIF - EAGLE EYES – PUSH VIDEO

4/8/16-KANAL HOCHAUFLÖSENDER NETZWERK-

VIDEOREKORDER - HDMI - ONVIF - EAGLE EYES – PUSH VIDEO

QUICK INSTALLATION GUIDE 3

KORTE HANDLEIDING 14

GUIDE D'INSTALLATION RAPIDE 25

GUÍA RÁPIDA 36

SCHNELLEINSTIEG 47

NVR5

V. 01 – 14/04/2014 2 ©Velleman nv

Connection diagram

NVR5

V. 01 – 14/04/2014 3 ©Velleman nv

QUICK INSTALLATION GUIDE

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could

harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it

should be taken to a specialized company for recycling. This device should be returned to your

distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If

the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Risk of electroshock when opening the cover. Touching live wires can cause life-threatening

electroshocks.

Always disconnect mains power when device not in use or when servicing or maintenance activities

are performed. Handle the power cord by the plug only.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Indoor use only

. Keep this device away from rain, moisture, splashing and dripping liquids.

Never put objects filled with liquid on top of or close to the device.

Keep this device away from dust and extreme temperatures. Make sure the ventilation

openings are clear at all times. For sufficient air circulation, leave at least 1" (±2.5 cm) in

front of the openings.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

•Familiarise yourself with the functions of the device before actually using it.

•All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to

the device is not covered by the warranty.

•Only use the device for its intended purpose. Using the device in an unauthorised way will void the

warranty.

•Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the

dealer will not accept responsibility for any ensuing defects or problems.

•Keep this manual for future reference.

•DO NOT use this product to violate privacy laws or perform other illegal activities.

4. Features

•high definition recording

•recording throughput: 4 channel mode: 1280 x 720 pixels: ± 120 IPS (30 IPS/ch)

1920 x 1080 pixels: ± 120 IPS (30 IPS/ch)

8 channel mode: 1280 x 720 pixels: ± 240 IPS (30 IPS/ch)

1920 x 1080 pixels: ± 120 IPS (15 IPS/ch)

16 channel mode: 1280 x 720 pixels: ± 240 IPS (30 IPS/ch)

1920 x 1080 pixels: ± 120 IPS (7.5 IPS/ch)

•mobile surveillance via free EagleEyes software on iPhone, iPad, and Android

•mobile phone connection via GPRS, 3G data or Wi-Fi

•GUI (Graphical User Interface) display and USB mouse

NVR5

V. 01 – 14/04/2014 4 ©Velleman nv

•high compatibility and offsite backup:

•compatible with all major IP cameras that are ONVIF certified

•added NAS function to back up all kind of IP cameras on the internet

•works with free Central Management System (CMS) software for offsite backup

•local and remote control completely independent

•HDMI video output resolution up to 1080p

•automatic integrated Dynamic Domain Name Service (DDNS): free service

•USB mouse: incl.

•IR remote control: incl.

Optional hardware

•hard disk: HD500GB/S, HD1TB/S, HD2TB/S

•monitor: MONSCA9

•HDMI cable: Professional or Premium

•suitable IP cameras: CAMIP11, CAMIP12, CAMIP16, CAMIP17, CAMIP18, CAMIP19

also compatible with: CAMIP9, CAMIP13, CAMIP14 & ONVIF cameras

•router: EM4544, EM4543, EM4571, PCRT1

5. Overview

Front panel

Power LED indicator: the NVR is switched on

alarm LED indicator: an alarm event occurs

wan LED indicator: the NVR is connected to internet

lan LED indicator: the NVR is connected to the LAN

SATA

LED indicator: SATA hard disk is active

HDD1 and HDD2 LED indicator: up to 2 hard disks are installed in the NVR and connected well

USB port Insert a compatible USB flash drive for video backup.

Note: For the list of compatible USB flash drives, refer to the full manual on the

CD-ROM.

mouse port Insert a mouse (included).

Back panel

1 eSATA

This port is used to connect a storage device supporting eSATA interface; for

instance, an external disk array.

WAN Connect to internet via an 8P8C (RJ45) network cable

3 LAN Connect to local IP cameras via an 8P8C (RJ45) network cable.

NVR5

V. 01 – 14/04/2014 5 ©Velleman nv

4 HDMI video output

port

Connect to a monitor that supports high-definition video output (HDMI port).

Note: Use an appropriate adapter (not incl.) to connect a monitor with VGA or

composite connectors.

VGA VGA port

DC 12V IN

Connect to the power supply adapter (incl.).

6. Installing a hard disk drive

Preparation

•Make sure to unplug the device from the mains before servicing and do not touch any electronic circuitry to

avoid electrostatic discharge.

•Obtain a suitable hard disk (not included), type SATA. The hard disk must be formatted.

•You can install up to 2 with the quick lock system (shown below).

•If you want to use a green hard disk, use only a disk designed especially for surveillance to ensure the

device works properly.

Loosen the screws and remove the top

cover.

2. Locate the hard disk connector and bracket

in the device. The screws are attached to

the bracket.

With the PCB side facing down, align the

hard disk with the hard disk power & sata

port, and insert the hard disk.

4. Fasten the hard disk to the bracket with the

built-in screws.

7. Connection Diagram

•You can connect up to 16 IP cameras.

•To ensure that automatic configuration works well, connect and switch on the IP cameras first. Only then

switch on the NVR.

•This device requires a minimum of network installation knowledge.

•To access the NVR remotely with your mobile device or laptop, you need to connect the NVR recorder to the

Internet. For details, please refer to the setup manual on

www.surveillance-download.com/user/network_setup/network_setup_recorder.pdf.

Connecting the IP camera (plug and play)

Refer to the illustration on page 2 for the setup diagram.

1. Connect the camera to a hub/switch.

2. Wait until the camera is configured automatically and the images appear on the monitor.

NVR5

V. 01 – 14/04/2014 6 ©Velleman nv

Notes

The recorder will automatically configure the IP address of a camera connected by LAN if:

•The connected IP camera is our brand’s IP camera.

•The default IP configuration method of the camera is set to DHCP (default setting).

•The camera is powered on before the recorder is powered on.

8. Information and Menus on the Screen

Key lock / unlock

To lock or unlock NVR local operation, click (lock) or (unlock) on the NVR status panel. When you

unlock NVR local operation, the system asks you to enter a user name and password.

Note: The default user name and password are "admin". Different user types have different access rights to

NVR functions. For details, refer to the full manual on the CD-ROM.

8.2 NVR and Network Status Icons

The status icons for NVR and network are displayed on the upper right corner of the screen (next to the

available hard disk space).

The icons displayed may vary depending on your situation or configuration.

The possible icons are:

NVR status Icons

key lock key unlock

channel lock channel unlock

USB flash drive / device connected no USB device connected

timer recording on timer recording off

overwrite on overwrite off

sequence mode on sequence mode off

PTZ mode on PTZ mode off

CPU load

Network Status Icons

(WAN) internet connected (WAN) internet disconnected

(WAN) local connection

(LAN) auto mode – Mbit/s (LAN) auto mode – Gbit/s

(LAN) DHCP / static IP mode (LAN) camera disconnected

Channel Status

The Channel Status icons are displayed on each channel on the screen. The possible icons are:

auto search on auto search off

live audio on audio off

audio playback on audio playback off

original size fit to screen

NVR5

V. 01 – 14/04/2014 7 ©Velleman nv

recording human detection event

alarm event motion event

live information playback information

Quick Operation Menu

To access the Quick Operation menu, point the mouse to the arrow mark on the left of the screen. It contains

the following icons:

Click to show the channel switch panel and select the channel you want.

Click to display the playback control panel. In the control panel:

Click to play the latest recorded video clip

Click to open the search list.

Click to open the IP search window and check the connection status of each channel.

Click to show the power-off panel to stop or reboot the system.

Main menu

To access the main menu, right-click anywhere on the screen. Right-click again to hide the menu.

Icon Label Contains settings for

Quick start Channel Title, Event Status, Date Display, Mouse

Sensitivity, Record Config.

System Account, Tools, System Info, Backup Schedule, Online, Regular Report

Event

information Quick Search, Event Search, HDD Info, Event Log

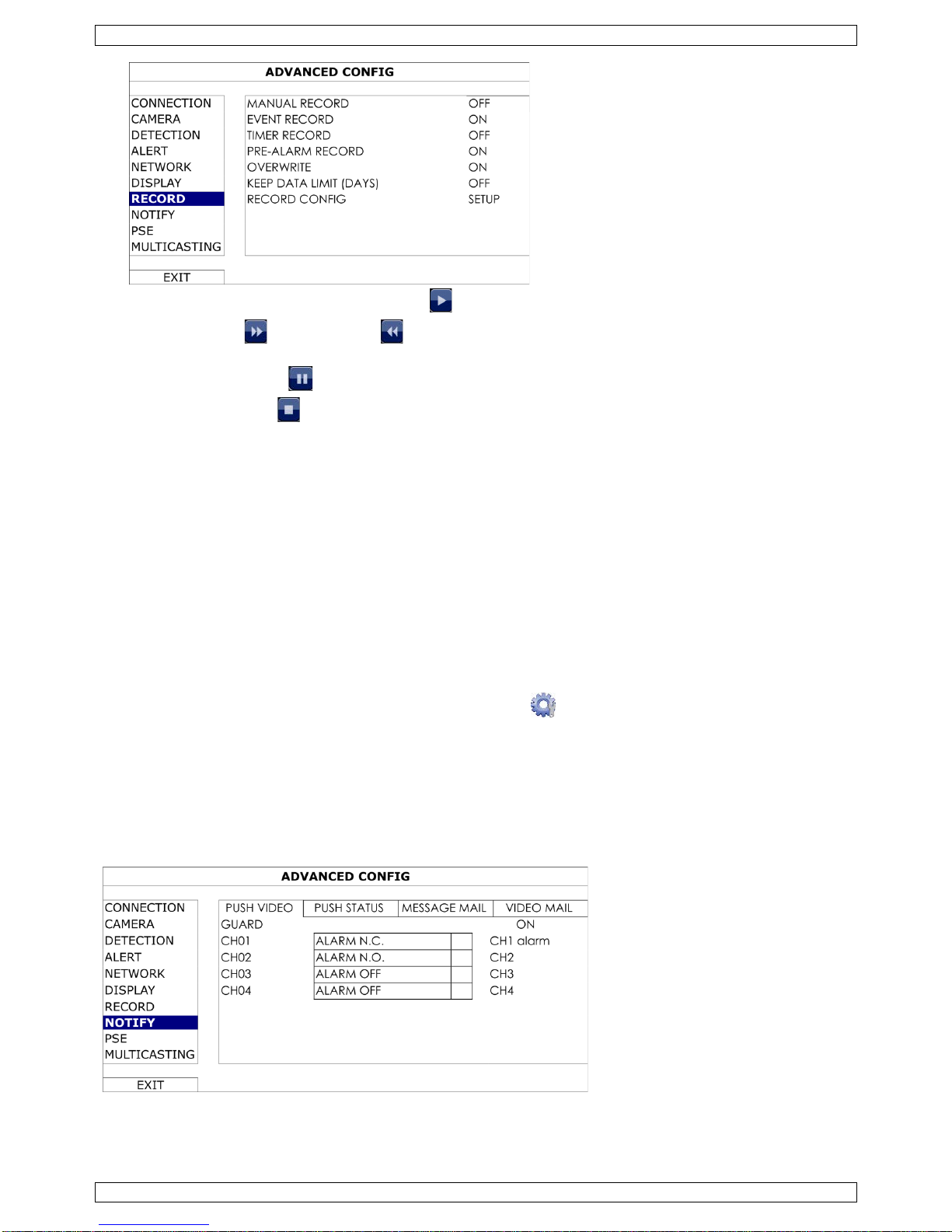

Advanced config Connection, Camera, Detection, Alert, Network, Display, Record, Notify,

Multicasting

Schedule

setting Event Timer, Record Timer

Playback panel

To access the playback panel, open the Quick Operation menu (see above) and click .

fast forward Click to fast forward at 4 to 32 times normal speed.

fast rewind Click to fast rewind at 4 to 32 times normal speed.

play/pause Click to play the latest recorded video clip. Click again to pause.

In pause mode, click once to go one frame forward, or to go one

frame backward.

stop Click to stop the video playback.

slow playback

Click once to play at 1/4 normal speed, click twice for 1/8 normal

speed.

previous/next hour Click to jump to the next/previous one-hour time interval (for example,

11:00 to 12:00 or 14:00 to 15:00) and start playing the earliest video

clip recorded during this hour.

quick search Click to enter the quick search menu.

NVR5

V. 01 – 14/04/2014 8 ©Velleman nv

9. Configuration of camera on LAN Port plug and play

Note: This configuration method applies to ETS cameras.

Automatic Configuration

The NVR will automatically configure the IP address of an ETS camera connected by LAN if:

•The default IP configuration method of the camera is DHCP.

•The camera is powered on before the NVR is powered on.

If not, you can configure the IP address of your camera manually as described further below.

Manual Configuration

If the NVR does not configure the IP address of your camera automatically as described above, the default IP

configuration method of your IP camera may not be set to DHCP. To solve this, reconfigure the camera’s IP

address to 10.1.1.xx (xx ranges from 11 to 253), in the same network segment as the NVR.

1. In the quick operation panel, click . You’ll see the list of every connected IP camera with its connection

status and MAC address.

2. Select an IP address that is not used (UNUSED), and click SETUP.

3. Select STATIC in NETWORK TYPE, and change the IP address to 10.1.1.xx (xx ranges from 11 to 253).

4. Click APPLY and EXIT to save your changes.

5. Wait until the NVR detects the IP camera and displays images.

Configuring a remote internet camera

Via internet you can record video images from an IP camera in a remote location.

1. Make sure that the IP camera is accessible outside its LAN network via a dynamic domain name (for

example ip_office.ddns.eagleeyes.tw).

2. In the main menu, click (ADVANCED CONFIG) and select CONNECTION.

NVR5

V. 01 – 14/04/2014 9 ©Velleman nv

3. To assign a channel to a remote IP camera, click URI to enter the address of the camera and its port

number.

4. Click SETUP to enter the access information of the camera.

5. Enter the user name (USER NAME) and password (PASSWORD) to access the IP camera.

6. Click GET TYPE to detect the camera and make sure the access information is correct.

7. Select the image size (IMAGE SIZE), image quality (QUALITY), and images per second (I.P.S.).

Note: The available options depend on the camera you want to connect.

8. Click GET TYPE to detect the camera and make sure the access information is correct.

9. Optional: for a camera with audio recording, set AUDIO to ON or OFF.

10. Quick Operation

Switching off and Rebooting

To power off or reboot the NVR:

•In the Quick Operation menu, click and then click (power off) or (reboot).

Viewing a Channel in Full-Screen Mode

You can view a channel in full screen mode as follows:

•Click directly on the channel image to see that channel in full screen mode.

Double-click the image to restore the previous overview.

- or -

1. In the quick operation panel, click .

2. On the control panel that appears, select the channel you want to display in full screen mode.

3. Click the button 4 – 6 - 9 - 12 or 16 to select another view.

Playing Recorded Video Clips

1. Make sure that manual and/or event recording is enabled: in the main menu, click (ADVANCED

CONFIG) and select RECORD to check or adjust the settings.

NVR5

V. 01 – 14/04/2014 10 ©Velleman nv

2. In the playback panel, press the play button . The recorded files are shown.

3. The fast forward and fast rewind buttons increase/decrease the playback speed. Press the button

repeatedly to increase/decrease the speed to 4x, 8x, 16x, or 32x (max.).

4. Press the pause button to pause playback.

5. Press the stop button to stop playback and return to live monitoring.

11. Push Video Configuration

Configuring the WAN port

1. Make sure the NVR is properly connected to the router with a RJ45 network cable.

2. From your NVR, select (ADVANCED CONFIG), and select "Network" "WAN".

Configuring Push Video

Before configuring push video, make sure that:

•The NVR is set up as described above.

•The NVR is connected to the internet.

•You have installed and configured the EagleEyes app on your iPhone, iPad, or Android mobile devices (see

below).

To configure push video:

1. Right-click on the screen to show the main menu and select ADVANCED CONFIG > NOTIFY.

2. Set GUARD to ON.

3. Configure your alarm sensor type (normal open or normal closed).

Important

You have to select the opposite type for push video to work correctly.

•If your alarm sensor is N.C. (normal closed, alarm goes off when the contact opens), select ALARM N.O.

•If your alarm sensor is N.O. (normal open, alarm goes off when the contact closes), select ALARM N.C.

4. Open EagleEyes and add the DVR to the EagleEyes address book.

For more information on EagleEyes operation, please visit www.eagleeyescctv.com.

Tabla de contenidos

Idiomas:

Otros manuales de DVR de Velleman

Velleman

Velleman VCC6 Manual de usuario

Velleman

Velleman DVR-4LCD Manual de usuario

Velleman

Velleman DVR8H3 Manual de usuario

Velleman

Velleman DVR4MQAEE Manual de usuario

Velleman

Velleman DVR4QAF Manual de usuario

Velleman

Velleman DVR4H2 Manual de usuario

Velleman

Velleman DVR-4LCD Manual de usuario

Velleman

Velleman NVR2 Manual de usuario

Velleman

Velleman DVR4L5 Manual de usuario

Velleman

Velleman DVR4USBH Manual de usuario

Velleman

Velleman DVR16H3 Manual de usuario

Velleman

Velleman DVR8H1 Manual de usuario

Velleman

Velleman DVR8H2 Manual de usuario

Velleman

Velleman DVR4T3 Manual de usuario

Velleman

Velleman DVR4H4 Manual de usuario

Velleman

Velleman DVR1A Manual de usuario

Velleman

Velleman DVR4USB Manual de usuario

Velleman

Velleman DVR8T4 Manual de usuario

Velleman

Velleman DVR16H1 Manual de usuario

Velleman

Velleman DVR16T2 Manual de usuario

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

Swann

Swann NVR-7085 models Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario
