Vantec NexStar NST-D100UFS Manual de usuario
Copyright © 2008 Vantec Thermal Technologies. All Rights Reserved.
All Registered Trademarks Belong To Their Respected Companies.
www.vantecusa.com
Model:NST-D100UFS
User Manual
SATA to eSATA / USB2.0 / FIREWIRE
1
႑
Content
Content
............................................................................................................................ 1
1.Introduction
..............................................................................................................
2
2.System Requirements
.........................................................................................
2
3.Specifications/Features..............................................................................3
4.Installation
..................................................................................................................
4
5.Removal
....................................................................................................................... 7
6.Driver Installation
.................................................................................................. 9
Windows ME/2000/XP/VISTA
............................................................................. 9
Windows 98SE
......................................................................................................... 9
Mac OS 9.0 or later
...............................................................................................10
Mac OS 8.6
..............................................................................................................10
7. Warranty
...................................................................................................................11
2
1.Introduct
2.System Requlrements
႑
႑
႑
႑
႑
႑
႑
1.Introduction
The Vantec NexStar Hard Drive Dock is a complete and easy way to add or swap hard drives to your
computer. It gives you the flexibility of connecting any SATA I/II hard drive to your computer via USB 2.0
/ Firewire / eSATA connection without opening up your computer case or installing into an enclosure.
Simply just insert any 2.5” or 3.5” SATA I/II hard drive into the NexStar Hard Drive Dock and you are ready
to transfer, copy, or backup files. Quick and easy, the Vantec NexStar Hard Drive Dock is the perfect
solution to access your hard drive in seconds.
Intel Pentium II 350 MHz-compatible or Mac G3 processor & greater.
Microsoft Windows 98SE/ME/2000/XP/VISTA or MAC OS 8.6 & greater or Linux Kernel 2.4.18 above.
USB, SATA or Firewire-equipped system.
For USB2.0 speeds, the system must support USB 2.0 specifications.
For eSATA speeds , the system must support eSATA specifications.
For Firewire speeds , the system must support Firewire specifications.
CD Rom drive (if drivers are needed)
3.Specifications/Features
Package Includes
Κ
Specifications
Κ
႑
Device Support
᧶
SATA I/II Hard Drive
႑
Device Size
᧶
2.5
ರ
or 3.5
ರ
႑
Internal Interface
᧶
SATA
႑
External Interface
᧶
USB 2.0, eSATA & Firewire
႑
Material
᧶
Plastic
႑
Dimension
᧶
136 x 83 x 87mm
႑
HDD Capacity
᧶
Up to 1TB
႑
Power Supply
᧶
Dual 5V/12V 2A
Features
Κ
႑
႑
႑
႑
႑
႑
႑
႑
႑
႑
NexStar Hard Drive Dock
USB Cable
eSATA Cable
Firewire Cable
SATA to eSATA Bracket
Power Adapter
Power Cable
User Manual
CD Drive
Install And Access Hard Drive in Seconds
Simple to Use Design; No Need to Add Enclosure or
Open Case
Eject Button for Easy Removal of Hard Drive
Supports 2.5"/3.5" SATA I/II Hard Drive Up to 1.0 TB
Add Storage to Any System with USB, SATA or Firewire
Plug & Play
Attractive Blue LED Power & HDD Activity Light
Transfer Rates Up to 480Mbps w/USB 2.0
Transfer Rates Up to 3Gb/s w/SATA
Transfer Rates Up to 400Mbps Firewire
3
4
4.Installation

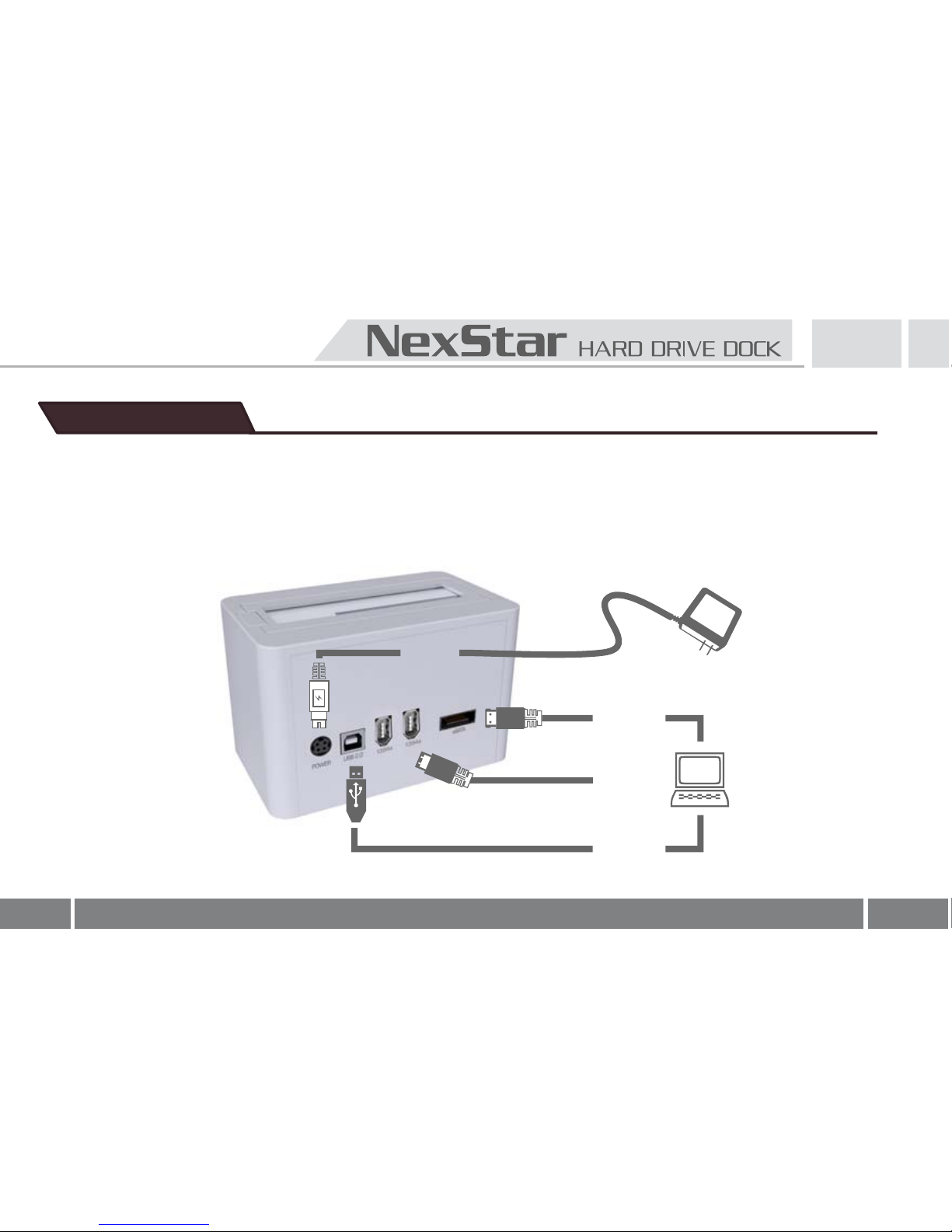

1. Connect the power adapter to the NexStar Hard Drive Dock.
2. Connect the USB, eSATA, or Firewire Cable to the NexStar Hard Drive Dock
and attach the other end to your computer.
Power
Cable
USB 2.0
Cable
eSATA
OR
OR
Cable
Firewire
Cable
SATA
IEEE
1394
5
3. Insert 2.5” or 3.5” SATA HDD into the slot.
6

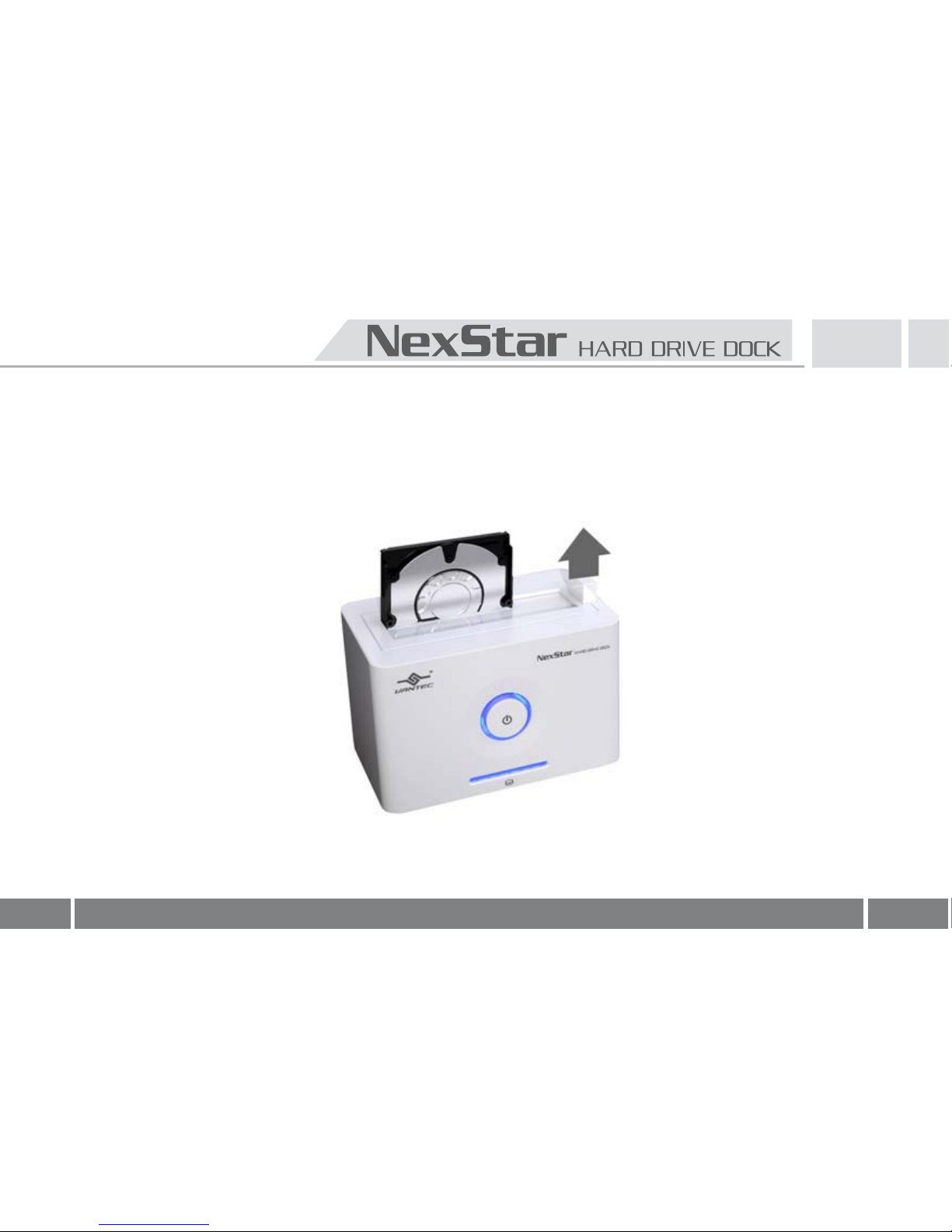

3-1. When the eject button is upright, the NexStar Hard Drive Dock is ready for use.
7
5.Removal
1. Remove the HDD safely from your computer system.
2. Push down the button to eject the HDD.
(Stablize the HDD with your hand).
Warning, please push power button & turn off unit beforere
moving the hard drive!
8
3. Remove the HDD from the Hard Drive Dock.
9
6.Driver Installation
Windows ME/2000/XP/VISTA
No drivers are necessary when using Windows ME/2000/XP/VISTA. If the hard drive does
not appear under My Computer, be sure to partition your hard drive.
Windows 98SE
1. The first time you plug in the NexStar Hard Drive Dock into a USB port of your
computer, the [Add New Hardware Wizard] dialog box will appear.
2. Click on [Next]. Check the [Search for the best driver for your device] and click on [Next]
again.
3. Insert the device driver CD into your CD-ROM drive if you have not already done so
and click on [Next], a screen should appear to show which Storage Device you installed.
Click on [Next].
4. After the needed files are copied into your system, click on [Finish].
5. You should now be able to see the new hard drive under My Computer. A green
Unplug or Eject hardware icon will appear in the system tray as well. If the drive does
not appear, you may need to partition your hard drive first.
