Vanraam Chat Instrucciones de montaje

Instructions for the

assembly and disassembly of the hood

Version 20.01

Van Raam | Guldenweg 23 | 7051 HT Varsseveld | The Netherlands

Instructions for the assembly and disassembly of the hood | Chat 20.01

Content

This user manual provides important and necessary

information about the use of the hood of the

Rickshaw bike Chat. We ask you to read this manual

thoroughly before using the bicycle. Always follow all

the instructions given in this manual.

The following actions are discussed in this manual:

-Assembly of the hood

-Securing the hood to the beach

-Disassembly of the hood

Contact details manufacturer

Van Raam

Guldenweg 23

7051 HT Varsseveld

The Netherlands

Phone. : +31 (0)315 257370

E-mail : [email protected]

Internet : www.vanraam.com

Conformity

Van Raam declares as manufacturer that the Tandem bicycles, as described in this manual,

are produced in accordance with the 93/42/EEG guidelines, risk category 1. All products

have been produced in accordance with the 2006/42/EG guidelines. The declaration of

conformity can be found on the Van Raam website.

READ CAREFULLY

Instructions for the assembly and disassembly of the hood | Chat 20.01

Securing the hood to the bench

Step 1:

Insert the bended tubes in the inserts on the bench.

Step 2:

Insert the securing pin in the bottom hole to secure

the tube (highest hood position).

For the lowest position of the hood use the highest

hole and secure the tube with the securing pin.

Step 3:

Close the brace of the securing pin.

Pay Attention! to your fingers because the brace

closes with force.

Step 4:

Place the frame in the bended tubes that have been

placed in the bench.

Step 5:

Fold the hood in half on the edge between the foil

window and mesh window.

Instructions for the assembly and disassembly of the hood | Chat 20.01

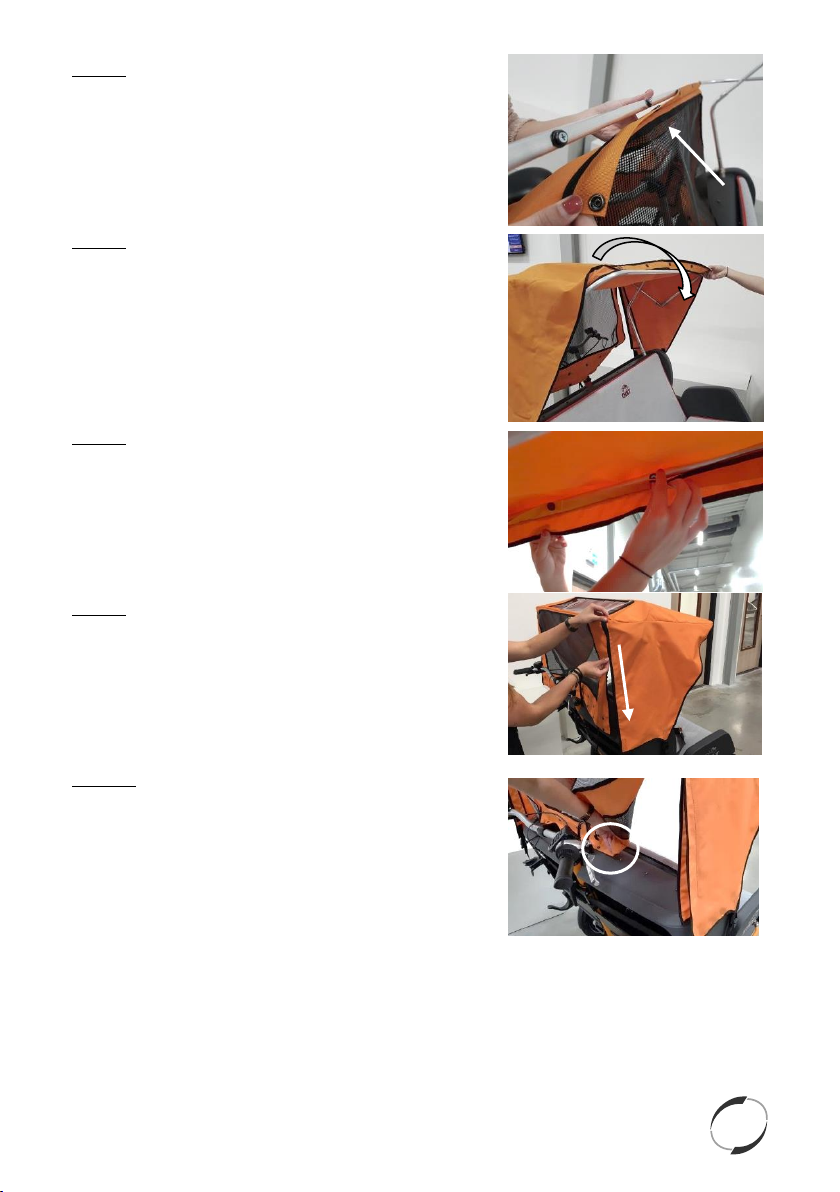

Step 6:

Hold the hood with the foil window facing yourself.

Attach the hood to the construction using the snap

buttons.

Step 7:

Lift the frame and pull the hood over it.

Step 8:

Attach the front of the hood by using the snap

buttons.

Step 9:

Close both zippers on the back of the hood.

Step 10:

Attach the snap buttons from the hood tot the bench.

Instructions for the assembly and disassembly of the hood | Chat 20.01

Securing the hood to the bench

Step 1:

Remove the elastic cord from the hooks.

Step 2:

Open the buckles and hook the rings around the

round knobs.

Step 3:

You should first apply tension to the rear straps of

the hood to ensure proper fit. Before applying

tension to the strap, the buckle has to be opened.

Close the buckle when the strap is under tension.

Step 4:

Repeat this process on the remaining two side

straps.

Step 5:

Reattach the elastic cord to the hooks.

Step 6:

The hood is properly assembled if it resembles the

image on the right.

Instructions for the assembly and disassembly of the hood | Chat 20.01

Disassembly of the hood

Step 1:

Open the buckle and release the tension of all four

straps and unhook the rings.

Step 2:

Open the zippers on both sides of the hood.

Step 3:

Detach the snap buttons from the hood and the

bench.

Step 4:

Fold both sides of the hood on the roof.

Step 5:

Push the front and rear of the frame towards each

other.

Instructions for the assembly and disassembly of the hood | Chat 20.01

Step 6:

Fold the rear of the hood tightly around the folded

frame. Fold the rear panel underneath and then

over the top. Make sure the rear panel is folded in

the correct direction.

Step 7:

Pull the elastic cords over the tightly rolled hood.

Attach the end of the cords in the loop.

Step 8:

Make sure the elastic cord is attached correctly.

Pay Attention! to the elastic cord that may snap

loose if not properly attached.

Step 9:

The rolled hood and frame can be lifted from the

bended tubes.

Step 10:

Place the hood on the two lower hooks that can be

found on the rear of the bench.

Instructions for the assembly and disassembly of the hood | Chat 20.01

Step 11:

Place the frame in the hooks and fix them with the

elastic cords.

Step 12:

Remove the securing pin by opening the brace and

pulling the pin out of the hole. Make sure to hold

the bended tube to prevent the tube from sliding

down.

Pay Attention! to your fingers. The brace can close

with force.

Step 13:

The bended tube can be stored in the rear of the

bench.
