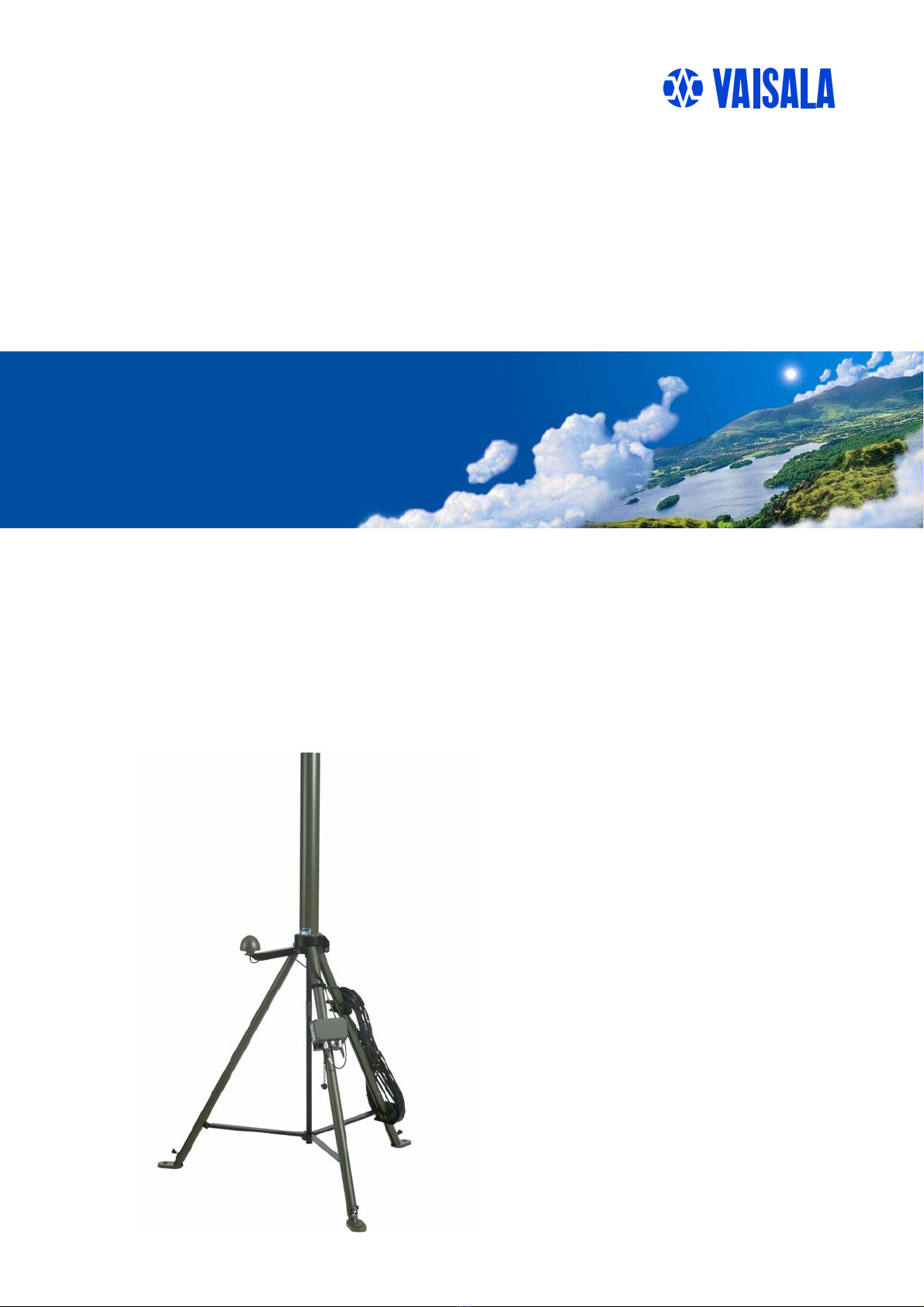

Vaisala CG31 Manual de usuario
USER'S GUIDE
Vaisala Portable Antenna Set
CG31
M210843EN-C
PUBLISHED BY
Vaisala Oyj Phone (int.): +358 9 8949 1
P.O. Box 26 Fax: +358 9 8949 2227
FIN-00421 Helsinki
Finland
Visit our Internet pages at http://www.vaisala.com/
© Vaisala 2008
No part of this manual may be reproduced in any form or by any means, electronic or
mechanical (including photocopying), nor may its contents be communicated to a third
party without prior written permission of the copyright holder.
The contents are subject to change without prior notice.
Please observe that this manual does not create any legally binding obligations for
Vaisala towards the customer or end user. All legally binding commitments and
agreements are included exclusively in the applicable supply contract or Conditions of
Sale.
________________________________________________________________________________
VAISALA________________________________________________________________________ 1
Table of Contents
CHAPTER 1
GENERAL INFORMATION............................................................................3
About This Manual...................................................................3
Contents of This Manual.......................................................3
Version Information...............................................................3
General Safety Considerations.............................................4
Feedback...............................................................................4
Product Related Safety Precautions......................................4
ESD Protection .........................................................................5
Recycling ..................................................................................5
Warranty....................................................................................5
Technical Support....................................................................6
CHAPTER 2
PRODUCT OVERVIEW..................................................................................7
Introduction to Portable Antenna Set CG31..........................7
Antenna Assembly................................................................8
CHAPTER 3
INSTALLATION..............................................................................................9
Selecting Location ...................................................................9
Assembling the Antenna Set ................................................10
Connecting Cables..............................................................16
Disassembly for Transportation...........................................19
Maintenance............................................................................21
CHAPTER 4
TECHNICAL SPECIFICATIONS..................................................................23
General Specifications...........................................................23
CHAPTER 5
PARTS LIST.................................................................................................25
USER'S GUIDE____________________________________________________________________
2 ___________________________________________________________________ M210843EN-C
This page intentionally left blank.
Chapter 1 ________________________________________________________ General Information
VAISALA________________________________________________________________________ 3
CHAPTER 1
GENERAL INFORMATION
This chapter provides general notes for the manual and the product.
About This Manual
This manual provides information for installing, operating, and
maintaining Vaisala Antenna Set CG31.
Contents of This Manual
This manual consists of the following chapters:
- Chapter 1, General Information, provides general notes for the
manual and the product.
- Chapter 2, Product Overview, introduces the features, advantages,
and the product nomenclature.
- Chapter 3, Installation, instructs you in installing the antenna set.
- Chapter 4, Technical specifications, provides the technical data of
the antenna set.
- Chapter 5, Parts list, contains the spare parts list for the antenna set.
Version Information
Table 1 Manual Revisions
Manual Code Description
M210843EN-C This version. Telemetry range corrected.
M210843EN-B Previous version
M210843EN-A Older version
USER'S GUIDE____________________________________________________________________
4 ___________________________________________________________________ M210843EN-C
General Safety Considerations
Throughout the manual, important safety considerations are
highlighted as follows:
WARNING Warning alerts you to a serious hazard. If you do not read and follow
instructions very carefully at this point, there is a risk of injury or
even death.
CAUTION Caution warns you of a potential hazard. If you do not read and
follow instructions carefully at this point, the product could be
damaged or important data could be lost.
NOTE Note highlights important information on using the product.
Feedback
Vaisala Customer Documentation Team welcomes your comments
and suggestions on the quality and usefulness of this publication. If
you find errors or have other suggestions for improvement, please
indicate the chapter, section, and page number. You can send
Product Related Safety Precautions
The CG31 delivered to you has been tested for safety and approved as
shipped from the factory. Note the following precautions:
CAUTION Do not modify the unit. Improper modification can damage the
product or lead to malfunction.
Chapter 1 ________________________________________________________ General Information
VAISALA________________________________________________________________________ 5
ESD Protection
Electrostatic Discharge (ESD) can cause immediate or latent damage
to electronic circuits. Vaisala products are adequately protected
against ESD for their intended use. However, it is possible to damage
the product by delivering electrostatic discharges when touching,
removing, or inserting any objects inside the equipment housing.
To make sure you are not delivering high static voltages yourself:
- Handle ESD sensitive components on a properly grounded and
protected ESD workbench. When this is not possible, ground
yourself to the equipment chassis before touching the boards.
Ground yourself with a wrist strap and a resistive connection cord.
When neither of the above is possible, touch a conductive part of
the equipment chassis with your other hand before touching the
boards.
- Always hold the boards by the edges and avoid touching the
component contacts.
Recycling
Recycle all applicable material.
Dispose of batteries and the unit according to statutory regulations.
Do not dispose of with regular household refuse.
Warranty
For certain products Vaisala normally gives a limited one-year
warranty. Please observe that any such warranty may not be valid in
case of damage due to normal wear and tear, exceptional operating
conditions, negligent handling or installation, or unauthorized
modifications. Please see the applicable supply contract or Conditions
of Sale for details of the warranty for each product.
USER'S GUIDE____________________________________________________________________
6 ___________________________________________________________________ M210843EN-C
Technical Support
For technical questions, contact the Vaisala technical support:
E-mail [email protected]
Fax +358 9 8949 2790
If the product needs repair, please follow the instructions below to
speed up the process and to avoid extra costs to you.
1. Read the warranty information.
2. Contact Vaisala technical support via e-mail or fax and request
for RMA (Return Material Authorization) and shipping
instructions.
3. Proceed as instructed by Vaisala technical support.
NOTE RMA must always be requested from Vaisala technical support
before returning any faulty material.
Chapter 2 __________________________________________________________ Product Overview
VAISALA________________________________________________________________________ 7
CHAPTER 2
PRODUCT OVERVIEW
This chapter introduces the features, advantages, and the product
nomenclature.
Introduction to Portable Antenna Set CG31
Portable Antenna Set CG31 is a mobile antenna configuration
designed to be used with GPS wind finding systems in field
conditions. The antenna set consists of a Helix UHF antenna, a GPS
antenna, and the Antenna Amplifier and Switch RAA111 on a tripod
mount. The coloring of the parts is adjusted for field operation
conditions. One person can transport and assemble the antenna set.
Portable Antenna Set CG31 receives radiosonde signals in 400 MHz
meteorological range. The antenna set can be used in conjunction with
the Vaisala DigiCORA® sounding system.
The tripod and the antennas fold compactly for transportation. The
transport case is made of polypropene and equipped with wheels for
the ease of transportation. The transport case also holds a tools bag,
which contains foot pads, pegs, and a hammer.
USER'S GUIDE____________________________________________________________________
8 ___________________________________________________________________ M210843EN-C
Antenna Assembly
The Portable Antenna Set CG31 consists of the following parts:
0704-014
Figure 1 Antenna Set CG31 Assembly
The following numbers refer to Figure 1:
1 = Helix UHF antenna
2 = GPS antenna
3 = Antenna Amplifier and Switch RAA111
4 = Tripod
5 = Antenna cable UHF/GPS
