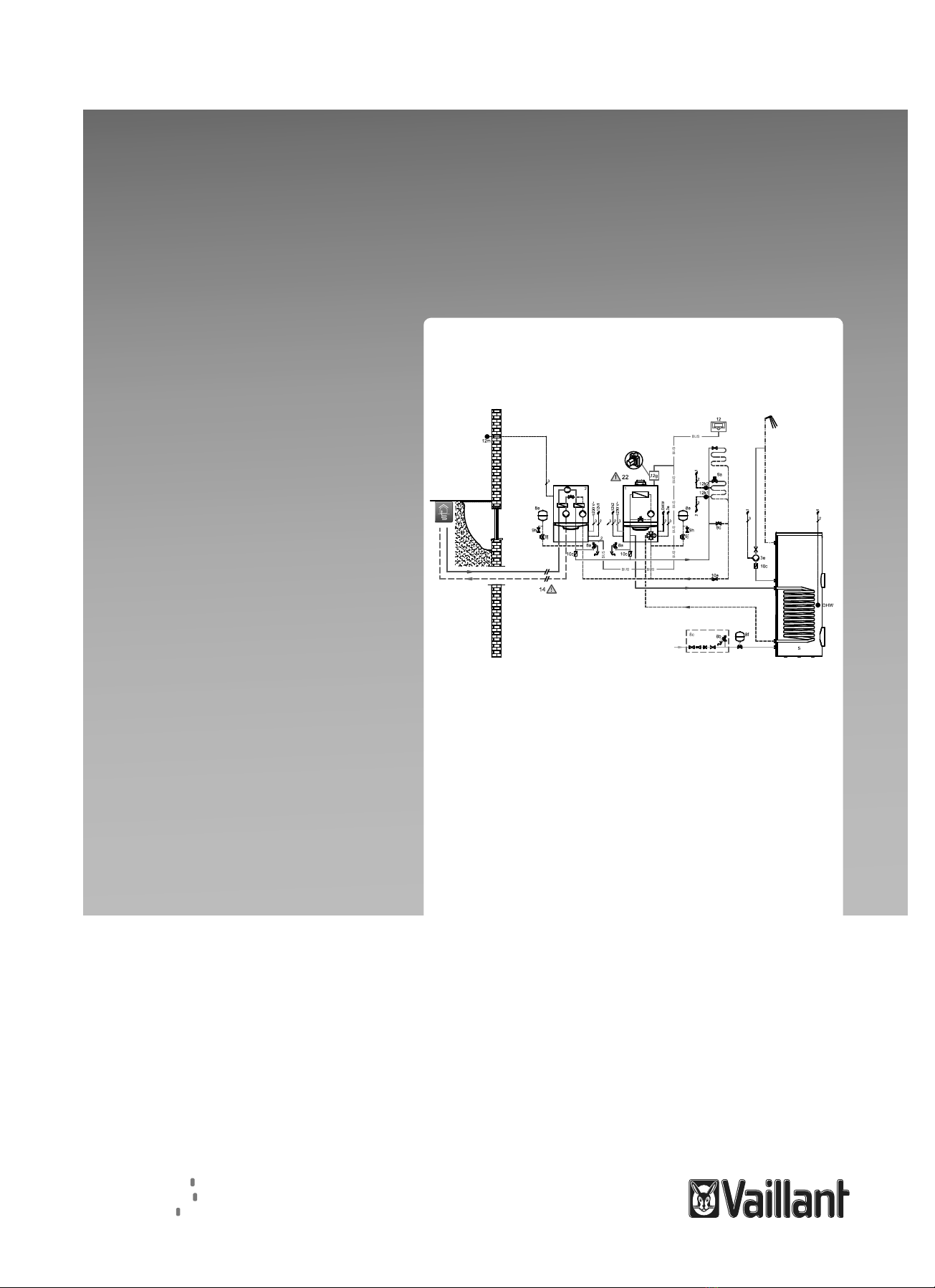

Heat pump system

0020185684

geoTHERM 3kW mono, gas-fired boiler, VRC

700

Publisher/manufacturer

Vaillant GmbH

Berghauser Str. 40 D-42859 Remscheid

Tel. +49 21 91 18‑0Fax +49 21 91 18‑2810

[email protected] www.vaillant.de

en System installation instructions ........................ 1

cs Systém návod k instalaci...................................... 7

de System Installationsanleitung.......................... 13

fi Järjestelmän asennusohjeet ............................ 19

fr Notice d’installation du système...................... 25

hr Upute za instaliranje sustava ............................. 31

nl Systeem installatiehandleiding ........................ 37

no Installasjonsveiledning for system.................. 43

sk Návod na inštaláciu systému ............................. 49

sl Navodila za namestitev sistema......................... 55

sv System installationsanvisning ......................... 61

System 0020185684 1

0020251825_01 System installation instructions 1

System installation instructions

1 System 0020185684

VWS 36/4.1 230V with gas-fired boiler and VRC 700

Caution.

Risk of material damage caused by incomplete installation.

This drawing is a basic representation and does not replace complete planning. This drawing does not

contain all of the required valves and safety fittings for a complete installation.

▶Observe the applicable national and international laws, standards and guidelines.

▶When planning, installing and subsequently operating this system, you must observe all the install-

ation and operating instructions available for the product, the relevant accessories and for any other

component.

▶The responsibility for design lies with the responsible company.

1.1 Basic hydraulic diagram 0020185684

1 Heat generator

2 Heat pump

3e Circulation pump

5 Monovalent domestic hot water cylinder

8a Expansion relief valve

8b Potable water expansion relief valve

8c Safety group –drinking water connection

8e Heating diaphragm expansion vessel

8f Diaphragm expansion vessel –potable water

9a Single-room temperature control valve (thermo-

static/motorised)

9c Flow regulator valve

9h Filling/draining cock

9j Tamper-proof capped valve

10c Non-return valve

10e Line strainer with magnetite separator

12 System control

12g eBUS bus coupler

12k Limit thermostat

12m Outdoor temperature sensor

DHW Cylinder temperature sensor

2 Installation checklist

2System installation instructions 0020251825_01

1.2 Wiring diagram 0020185684

1 Heat generator

2 Heat pump

3e Circulation pump

12 System control

12g eBUS bus coupler

12k Limit thermostat

12m Outdoor temperature sensor

DHW Cylinder temperature sensor

2 Installation checklist

You must observe all the operating and installation instructions included with the system components.

Work Comments/settings

1 Comply with the conditions for the installation environment 1. Minimum volume of the installation room 1.60 m³

2. Environmental temperature 7 °C –40 °C

3. Frost-proof

4. Dry

2 Install the heat pump on a wall that has sufficient load-bearing capa-

city

Weight of the heat pump: 59 kg

3 Comply with the specified minimum clearances For free spaces for maintenance work, see the installa-

tion instructions for the relevant system components

4 Observe the position of the VRC 700 in the living room or main control room

5 Check the brine circuit for leak-tightness

6 Insulate the brine pipes in the house so that they are vapour-diffu-

sion-tight

Prevent condensation.

7 Use cold pipe clips to install the brine pipes in the house Prevent thermal bridges.

Commissioning checklist 3

0020251825_01 System installation instructions 3

Work Comments/settings

8 Use the correct brine fluid Monoethylene glycol, essential for fault-free operation.

9 Use the correct mixing ratio of monoethylene glycol to water 3:7, efficient operation only when the defined mixing ratio

is used

10 Use a refractometer to check the mixing ratio Efficient operation only when the defined mixing ratio is

used

11 Choke the output of the filling pump Reduce the penetration of air in the brine circuit.

12 Sufficiently dimension the gas-fired boiler's expansion vessel for the

heating circuit

No expansion vessel present in the heat pump.

13 Install non-return flaps

14 Connect the heat pump via a separately fused plug socket Observe the connection conditions in accordance with

the data plate.

15 Use connection terminals when connecting multiple conductors Prevent communication faults.

16 Install a bus coupler in the VR 32 in the gas-fired boiler The gas-fired boiler is the second participant in the

eBUS.

17 Check all cable connections for tensile strength

18 Visually check all cable connections for damage

3 Commissioning checklist

3.1 VC 146/5-5, VC 206/5-5, VC 266/5-5

Work Comments/settings

1 Start the installation assistant If it is not started automatically

2Language Select

3Filling mode: 3-way valve is in mid-position Filling mode, fill the installation to at least 0.1 MPa (1.0

bar) via the return line

4Purge program: Select circ. using +/- Heating circuit the programme ends automatically

5Purge program: Select circ. using +/- DHW circuit the programme ends automatically

6Target flow temp. 75 °C, setting for the maximum target flow temperature

in heating mode

7DHW temperature 65 °C, setting for the maximum domestic hot water

temperature

8Comfort mode Off

9Heating partial load Auto

10 Auxiliary relay External pump, if present

11 Accessory relay 1 Circulation pump

12 Accessory relay 2 External pump, if present

13 Contact details Enter on the VRC 700

14 End the installation assistant? Yes

15 Menu →Installer level →Test programs →Check programs

16 P.01 and P.02 Check the gas connection pressure in accordance with

the installation instructions

17 P.01 and P.02 Check the CO₂content in accordance with the installa-

tion instructions

3 Commissioning checklist

4System installation instructions 0020251825_01

3.2 VWS 36/4.1 230V

Work Comments/settings

18 Start the installation assistant OK

19 Language Select

20 Freeze protection −10 °C

21 Purge environment and building circuit No

22 Purge building circuit No

23 Check program: Purge environment circuit Yes, test active, end after approx. 30 minutes

24 Contact details Enter on the VRC 700

25 End the installation assistant? Yes

26 Menu →Installer level →Test menu →Sensor/actuator test

27 T.82 Building circuit pressure Check, at least 1500-2000 mbar

28 T.101 Environment circuit pressure Check, at least 1500-2000 mbar

29 T.146 Outside temperature Check, actual temperature display

3.3 VRC 700

Work Comments/settings

30 Language Select

31 System diagram 6

32 System configuration OK

33 Fault status No fault present

34 Water pressure Check, at least 1500-2000 mbar

35 System status Display of current operating mode

36 Frost protect. delay 4 hours

37 OT constant heating 0 °C (min. -2 °C)

38 Control modules Display Display (VRC 700), heat pump 1 (VWS 36/4.1 230V),

heat generator 2 (VC ...), check of the eBUS connections

39 Adaptive heat. curve No

40 Configure heat. circ. All

41 Automatic cooling No

Function can be activated for underfloor heating

42 Start OT cooling 21 °C/flexible

Depends on the end customer and the type of brine

source. For compact and flat collectors, you should not

use passive cooling

43 Source regeneration No

Observe legal requirements, which may depend on the

countries

44 Curr. room air hum. Current value display

45 Auxiliary heater type condens.

46 Buff. cyl. offs. 10 K

47 System diagram configuration

48 System diagram 6

49 Heat pump 1

50 Status Current value display (standby, heating, cooling, do-

mestic hot water)

Commissioning checklist 3

0020251825_01 System installation instructions 5

Work Comments/settings

51 Current flow temp. Current value display

52 Heat generator 2

53 Status Current value display (standby, heating, cooling, do-

mestic hot water)

54 Current flow temp. Current value display

55 HEATING 1

56 Status Current value display (off, heating mode, cooling, do-

mestic hot water)

57 Target flow temp. Current value display

58 Max limit outs.temp. 21 °C, change in consultation with the customer, if re-

quired

59 Heating curve 0.4 to 0.6 for underfloor heating

60 Minimum temperature 15 °C

61 Maximum temperature 45 °C for underfloor heating

62 Auto Off mode Set-back

63 Cooling possible Yes for underfloor heating

No; you should not use passive cooling for compact col-

lectors and flat collectors

64 Dew point monitoring Yes

65 Min. cool. fl. tgt temp. 18 °C

66 End OT cooling 15 °C

67 Offset dew point 2 K

68 Pump status Current value display: off /On

69 ZONE1

70 Zone activated Current value display: No /Yes

71 Day temperature 20 °C

72 Set-back temp. 15 °C

73 Room temperature Current value display

74 Zone assignment VRC 700

75 Zone valve status Current value display (closed/open)

76 Domestic hot water

77 Cylinder active Condition: Domestic hot water cylinder in the system

78 Target flow temp. Current value display

79 Domestic hot water 60 °C

Inform the end user about the anti-legionella function

80 Current cyl. temp. Current value display

81 Cyl. charging pump Current value display: off /On

82 Circulation pump Current value display: off /On

83 Anti-legionella day –Select: off,Monday,Tuesday,Wednesday,

Thursday,Friday,Saturday,Sunday,Monday -

Sunday

–Factory setting: off

84 Anti-legionella time 04:00

85 Cyl. boost hysteresis 5 K

86 Cylinder boost offset 25 K

87 Max. cyl. charg. time 45 min.

88 DHW req. anti-cy time 30 min.

89 Ch. pump overrun time 5 minutes

90 Parallel cyl. charging off

91 Menu →Installer level →Service information

92 Enter contact details Telephone number/company

93 Service date Next service on Maintenance interval: 1 year

3 Commissioning checklist

Work Comments/settings

→End user menu Implement the settings for the end user/inform the end

user

94 Menu →Basic settings →Enter zone name →ZONE1 →Change Enter a suitable name for the zone, e.g. Heating

(In consultation with the customer)

95 Menu →Desired temperatures →ZONE1 Zone1 (name after being renamed)

96 Day temp. heating 20 °C

97 Day temp. cooling 24 °C

98 Set-back temp. heat. 15 °C

99 Room temperature Current value display

100 Menu →Time programmes →ZONE1 Changed the time schedule for Zone 1 (name after being

renamed) following consultation with the customer

Zone 1 = heating circuit 1

101 HEATING 1: Cooling change following consultation with the customer

102 Domestic hot water change following consultation with the customer

103 Circulation change following consultation with the customer

Systém 0020185684 1

0020251825_01 Systém návod k instalaci 7

Systém návod k instalaci

1 Systém 0020185684

VWS 36/4.1 230V s plynovým kotlem a VRC 700

Pozor!

Riziko věcných škod způsobených neúplnou instalací!

Tento výkres je principiální zobrazení a nenahrazuje úplný plán. Tento výkres neobsahuje všechny

potřebné ventily a bezpečnostní armatury pro úplnou instalaci.

▶Dodržujte příslušné předpisy, normy a směrnice.

▶Při plánování a instalaci i pozdější obsluze bezpodmínečně dodržujte všechny návody k instalaci

a obsluze, které byly vytvořeny pro výrobek, dotyčné příslušenství nebo pro případnou jinou sou-

část.

▶Za provedení odpovídá příslušný podnikatel.

1.1 Schéma hydraulického systému 0020185684

1 Zdroj tepla

2 Tepelné čerpadlo

3e Cirkulační čerpadlo

5 Zásobník teplé vody monovalentní

8a Pojistný ventil

8b Pojistný ventil pitná voda

8c Bezpečnostní skupina – přípoj pitné vody

8e Membránová expanzní nádoba topení

8f Membránová expanzní nádoba pitné vody

9a Ventil regulace samostatné místnosti (termosta-

tický/motorický)

9c Ventil k regulaci větvě

9h Napouštěcí a vypouštěcí ventil

9j Ventil s krytkou

10c Zpětný ventil

10e Filtr s magnetitovým odlučovačem

12 Systémový regulátor

12g Sběrnicový konektor eBUS

12k Termostat maximální teploty

12m Čidlo venkovní teploty

DHW Čidlo teploty vyrovnávacího zásobníku

2 Kontrolní seznam instalace

8Systém návod k instalaci 0020251825_01

1.2 Schéma zapojení 0020185684

1 Zdroj tepla

2 Tepelné čerpadlo

3e Cirkulační čerpadlo

12 Systémový regulátor

12g Sběrnicový konektor eBUS

12k Termostat maximální teploty

12m Čidlo venkovní teploty

DHW Čidlo teploty vyrovnávacího zásobníku

2 Kontrolní seznam instalace

Bezpodmínečně dodržujte všechny návody k obsluze a instalaci, které jsou připojeny ke komponentám zařízení.

Práce Poznámky/nastavení

1 Dodržování podmínek prostředí instalace 1. Minimální objem místa instalace 1,60 m³

2. Teplota okolí 7 °C až 40 °C

3. Ochrana proti mrazu

4. Suché prostředí

2 Tepelné čerpadlo instalujte na dostatečné nosné stěně Hmotnost tepelného čerpadla: 59 kg

3 Dodržujte předepsané minimální vzdálenosti Volné prostory pro údržbu, viz návod k instalaci pří-

slušné komponenty systému

4 Dodržujte polohu VRC 700 V obytné místnosti, resp. v místnosti vedení

5 Kontrola těsnosti okruhu nemrznoucí směsi

6 Izolace vedení nemrznoucí směsi v domě proti difuzi páry Zabraňte kondenzaci.

7 Pro instalaci vedení nemrznoucí směsi v domě používejte svorky pro

studené potrubí

Zabraňte tepelným mostům.

Tabla de contenidos

Idiomas:

Otros manuales de Bomba de calor de Vaillant

Vaillant

Vaillant aroSTOR VWL BM 270/5 Manual de usuario

Vaillant

Vaillant VWZ MPS 40 Manual de usuario

Vaillant

Vaillant aroSTOR VWL B 200/5 UK Manual de usuario

Vaillant

Vaillant VWZ MEH 97/6 Manual de usuario

Vaillant

Vaillant flexoTHERM exclusive VWF 57/4 230V Manual de usuario

Vaillant

Vaillant geoTHERM SERIES Guía del usuario

Vaillant

Vaillant aroTHERM VWL Series Manual de usuario

Vaillant

Vaillant geoTHERM exclusive Manual de usuario

Vaillant

Vaillant VWZ 30/2 SV Manual de usuario

Vaillant

Vaillant geoTHERM VWS Manual de usuario

Vaillant

Vaillant aroTHERM VWL 85/2 Manual de usuario

Vaillant

Vaillant UK aroTHERM plus Manual de usuario

Vaillant

Vaillant aroTHERM VWL 55/2 A Manual de usuario

Vaillant

Vaillant geoTHERM Manual de usuario

Vaillant

Vaillant flexoTHERM exclusive VWF 57/4 Manual de usuario

Vaillant

Vaillant aroTHERM plus Manual de usuario

Vaillant

Vaillant 0020180635 Guía del usuario

Vaillant

Vaillant 0020235577 Guía del usuario

Vaillant

Vaillant aroTHERM VWL 55/3 A 230 V Manual de usuario

Vaillant

Vaillant geoTHERM VWS Manual de usuario

Vaillant

Vaillant flexoTHERM exclusive Manual de usuario

Vaillant

Vaillant uniTOWER plus Manual de usuario

Vaillant

Vaillant aroTHERM VWL 55/3 A 230 V Manual de usuario

Vaillant

Vaillant geoTHERM VWS Series Manual de usuario

Manuales populares de Bomba de calor de otras marcas

MICROWELL

MICROWELL HP 1000 GREEN Manual de usuario

Sanyo

Sanyo SAP120FCH Manual de usuario

Daikin

Daikin EHYHBH05AA Manual de usuario

Panasonic

Panasonic WH-SDF03E3E5 Guía

Bryant

Bryant 544B Manual de usuario

Airxcel

Airxcel 45000 Series Manual

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manual de usuario

Dimplex

Dimplex LI 16I-TUR Guía del usuario

Carrier

Carrier WSHP Open v3 Guía de configuración rápida

TGM

TGM CTV14CN018A Manual de usuario

Carrier

Carrier 38MGQ Series Manual de usuario

Kokido

Kokido K2O K880BX/EU Guía de solución de problemas

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guía rápida

Carrier

Carrier 48EZN Manual de usuario

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Instrucciones de funcionamiento

Ariston

Ariston NIMBUS Manual de usuario

Weishaupt

Weishaupt WWP L 7 Guía del usuario

GE Zoneline AZ85H09EAC Manual de usuario
