Vacron CDR-E02 Manual de usuario
i
FULL HD 1080P
Vehicle Video Recorder
User Manual
2013 FEB V2.0
i
Index
A. Feature Description..................................................................................1
B. Schematic Diagram Of The Installation Steps ..........................................2
C.Specification.............................................................................................3
D.Product Appearance.................................................................................4
E. Recording And Stop Recording ................................................................5
F. Remote Controller Description .................................................................5
G.Operation Setting .....................................................................................6
1. OSD List Menu ..............................................................................6
2. Setup Menu ...................................................................................7
3. Camcorder Menu.........................................................................12
4. Camera Menu..............................................................................14
5. Motion Menu................................................................................15
H.Playback.................................................................................................16
1. Direct playback on machine side .................................................16
2. Video modes................................................................................16
3. Snapshot playback.......................................................................18
I. Software operating instruction................................................................20
J. Formatting memory card ........................................................................26
K. Record Time Estimation (based on constant record mode with 8GB card)
27
L. Appendix: The Indication of Bright and Dark Spot of LCD......................28
1
A. Feature Description
Built-in Full HD 5M CMOS Sensor. View angle approx. 105 degrees.
Easy installation. Suitable for all types of vehicles.
Equiped with 3 inch TFT LCD screen provides a platform for composing
and playing back your footage, while the fixed focus lens keeps things
simple.
Built-in accelerometer, the system automatically determine the level of
the screen visualization, and make.
Advanced H.264 compression technology for longer recording of higher
quality video.
Provide high quality image recording 1280x720 max. 30 frame per sec.
When the screen turn to abnormal position, the system automatically
determine the level of the screen visualization, and make the screen
self-rotated to 180 degree.
Using SDHC memory card, support up to 32GB.
G-sensor and Image data will be recorded simultaneously.
G-sensor sensitivity can be adjusted according to vehicles and road
situations. When detect a strong shock, system will start emergency
recording and keep the files without being overwritten.
The most user-friendly player software, easy to operating.
Built-in two way High Sensitivity automatic gain control Microphone.
With full time/date record, can be displayed in screen directly.
Provides completely Even log table, easy to search recorded files.
Provides a variety of recording video formats and number of frames to
selected.
2

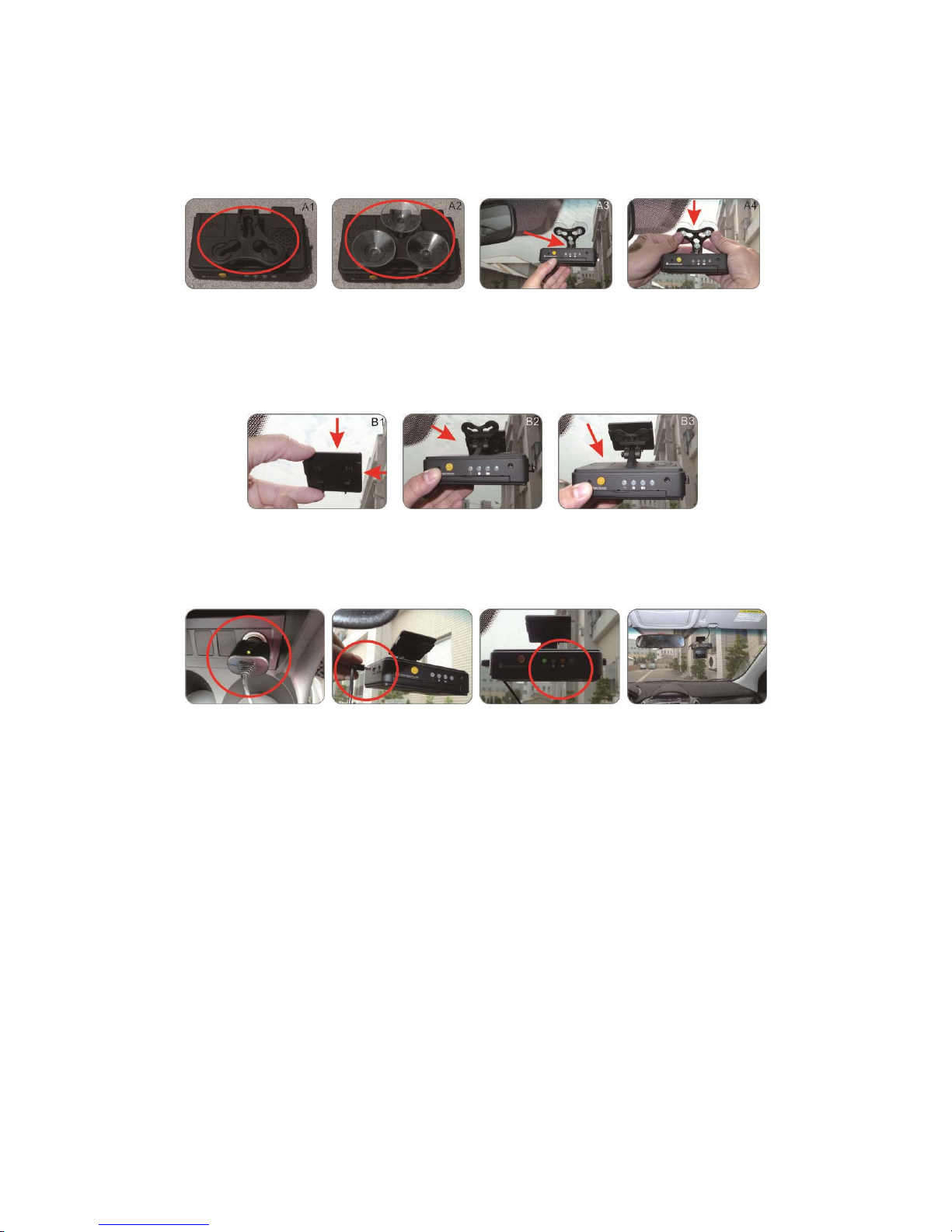

B. Schematic Diagram Of The Installation Steps
Two type of brackets installation for selection, Suction-cups type and
stick-holder type. A. Suction-cups type
Make the bracket facing upward, assemble the suction cups, setup the machine in
proper position, adjust the viewing angle.
B. Stick-holder type
Remove 3M sticker
and adjust the best
position properly.
Take machine bracket slides into the latch
and lock.
Plug in the cigarette
adapter. The other side of
cable connect to DC
5V port
Green indicator:
Power on.
Installation
complete
3
C. Specification
Items Description
Chipset Ambarella H.264 image compression chip
Sensor Device Full HD 5M CMOS Sensor
ViewAngle View angle approx. 105 degrees
Voltage Start at 5V±5%; 550mA,
Remark: Please use 5V±5%, 1A Cigarette lighter adapter.
The machine needs 4.8v to start.
Operating
Temperature -10℃~ +70℃(Inside vehicle)
Storage Device For the performance issue, use SanDisk SDHC card Class 6 or above
read/write speed 15MB/s recommend. (min capacity 4G, Max 32G)
Recording Frame and
Content
1920x1080 (Full HD1080P/ 30F) 1280x720 (HD720P/ 30F).
Auto record when power up system. Recording frame: 30fps
(NTSC/PAL) only select one.
Recording Content Date, time, image, sound, G-Sensor data.
Recording Format Specific format for player software.
Microphone Built-in Dual High Sensitivity Microphone.
Input Device Emergency recording button, Remote controller.
Out Device
(a) TV-Out (1 Vp-p composite video output, 75 ohms), Two kind of
system: NTSC/PAL
(b) Red light: Recording
(c) Green light: Power
(d) Yellow light: Manual taking photo
(e) Mini USB for PC connection
(f) Built-in accelerometer, the system automatically determine the level
of the screen visualization, and make the screen self-rotated to
normal position.
Time Setup Use the built-in clock.
G-Sensor Built in Internal 3D G-Sensor
Accessories Standard: 1. Main Machine 2. Quick Guide 3. Remote Control
4. 5V Cigarette Lighter Adapter 5. Driver CD
Optional: 1. SD card 2. 5M RCA Video out Cable
Important Notice
(a) Machine must be installed in the area that wipe can be reached.
(b) Machine provides both NTSC and PAL systems, please using OSD
to change the right system in order to connect system monitor
properly.
(c) After SD card formatted, user needs to set up time zone data from
Software player in order to display the correct time on OSD video
output.
(d) SD card must be formatted by special player first to be used
properly.
4
D. Product Appearance
UNIT: mm
Product Dimensions
Monitor open
Monitor close
5
E. Recording And Stop Recording
F. Remote Controller Description
Key mapping table for remote controller:
Red indicator
Green indicator
Yellow
Manual force recording
Remote control receiver
Speaker
Playback
Manual Force Recording
Volume Down
Stop Voice Recording
Menu
Confirm
Fast Forward
StopPlay
Pause
Fast Rewind
Up / Down
/
Left / Righ
t
Speaker On/Of
f
Volume Up
Camera/ Camcorder
/
Motion Mode Switch
6
G. Operation Setting
1. OSD List Menu
Setup Menu
1/2 2/2
Camcorder Menu Camera Menu
Motion Menu
Please use IR controller to select function
List Function Key on IR Controller
List Moving [LEFT OR RIGHT ]
Bar Moving [UP OR DOWN]
Confirmation [CONFIRM ]
Go to Previous Menu or Main Menu [MENU ]
7
2. Setup Menu
◆ Language Setting
★English / French / German / Italian / Japanese / Korean / Portuguese / Russian /
Traditional Chinese / Spanish / Simplified Chinese / Turkish / Dutch…etc
◆ Date/Time Setting
LIST FUNCTION [UP/DOWN]
LIST MOVING + +
[R/L]+[CONFIRMATION]+[UP/DOWN]
CONFIRMATION [CONFIRM]
Go to Previous Menu [MENU ]
★Year: Last digits of year (11 means 2011).
Hour: 24 hour.
M D
Y H M S
8
◆ TV Standard Setting
★NTSC/ PAL for selecting
★TV output format, according to different national systems using the
input format for the TV set, the system is preset to NTSC (Taiwan TV
image is NTSC). When input the image causing TV screen which
appears black and white, beat, we can switch to PAL TV screen to check
returning to normal status.
◆ Frequency Setting
★km/h(kilometer) or mph(knot)
★Light frequency: according to different power frequency flicker and,
thus, the wavelength, the wavelength is caused by the human eye
brightness of the most important factor; general, the higher the frequency
of light, the brighter the ambient feel. As the use of Taiwan's general
power frequency 60HZ, 60HZ recommended to set the frequency for the
light source is more suitable environment in Taiwan.
