V-tech Learning Zone Construction Site Manual de usuario

User’s Manual

Learning Zone Construction Site™

Printed in China

91-003038-002

INTRODUCTION

Thank you for purchasing the VTech®Go! Go! Smart Wheels®

Learning Zone Construction Site™!

Little construction workers will love exploring the Go! Go! Smart

Wheels®Learning Zone Construction Site™! Pick up, sort and dump

the three shape blocks with the excavator, crane tower and rock sorter.

The horn has blown and it’s time to get to work!

3 SHAPE SORTER PIECES

ROTATABLE CRANE

BASKET ELEVATOR

ROCK SORTER

SMARTPOINT®

EXCAVATOR

SHAPE SORTER

5 SMARTPOINT®

LOCATIONS

INTRODUCTION

INCLUDED IN THIS PACKAGE

One shape

sorter tower

One crane One rock sorter

One rock

sorter base

One rock

sorter wheel

One SmartPoint®

control platform

One SmartPoint®

basket elevator base

One SmartPoint®

tower elevator

One SmartPoint®

unload platform

One tower base

Three shape

sorter pieces

One SmartPoint®

excavator

One user’s manual

WARNING:

All packing materials, such as tape, plastic sheets, packaging

locks and tags are not part of this toy, and should be discarded

for your child’s safety.

ATTENTION:

Pour la sécurité de votre enfant, débarrassez-vous de tous

les produits d’emballage tels que rubans adhésifs, feuilles de

plastique, attaches et étiquettes. Ils ne font pas partie du jouet.

NOTE:

Please keep this user’s manual as it contains important

information.

CAUTION:

Adult assembly required. For your child’s safety, do not

let your child play with the toy until it is fully assembled.

Unlock the packaging locks:

INCLUDED IN THIS PACKAGE

Turn the packaging lock counter-clockwise

several times.

Pull out and discard the packaging lock.

Two 60-degree

male track

One 90-degree

female track

One label sheet

GETTING STARTED

BATTERY INSTALLATION – EXCAVATOR

1. Make sure the unit is turned OFF.

2. Locate the battery cover on the bottom

of the excavator. Use a screwdriver to

loosen the screw.

3. Install 2 new “AAA” (AM-4/LR03) batteries following the diagram

inside the battery box. (The use of new alkaline batteries is

recommended for maximum performance.)

4. Replace the battery cover and tighten the screw to secure the

battery cover.

BATTERY NOTICE

• Usenewalkalinebatteriesformaximumperformance.

• Useonlybatteriesofthesameorequivalenttypeasrecommended.

• Donotmixdifferenttypesofbatteries:alkaline,standard(carbon-

zinc) or rechargeable (Ni-Cd, Ni-MH), or new and used batteries.

• Donotusedamagedbatteries.

• Insertbatterieswiththecorrectpolarity.

• Donotshort-circuitthebatteryterminals.

• Removeexhaustedbatteriesfromthetoy.

• Removebatteriesduringlongperiodsofnon-use.

• Donotdisposeofbatteriesinre.

• Donotchargenon-rechargeablebatteries.

• Removerechargeablebatteriesfromthetoybeforecharging(if

removable).

• Rechargeable batteries are only to be charged under adult

supervision.

GETTING STARTED / BATTERY NOTICE

Please adhere the labels to the playset

securely as indicated on the following page:

LABEL INSTRUCTIONS

ASSEMBLY INSTRUCTIONS

With the VTech®Go! Go! Smart Wheels®Learning Zone

Construction Site™,safetycomesrst.Toensureyourchild’ssafety,

adultassemblyisrequired.

1. Insert the SmartPoint®tower elevator on the grooved side of the

shape sorter tower.

2. Attach the shape sorter tower to the tower base as shown below.

You will hear a “click” sound to indicate the shape sorter tower is

secure. Once the shape sorter tower is connected to the tower

base, it cannot be detached.

ASSEMBLY INSTRUCTIONS

3. Insert the SmartPoint®control platform to the four open slots on

the crane as shown below. You will hear a “click” sound to indicate

the SmartPoint®control platform is secure. Once the SmartPoint®

control platform is connected to the crane, it cannot be detached.

4. Connect the crane to the circular opening on top of the shape sorter

tower as shown below. You will hear a “click” sound to indicate the

crane is secure. Once the crane is connected to the shape sorter

tower, it cannot be detached.

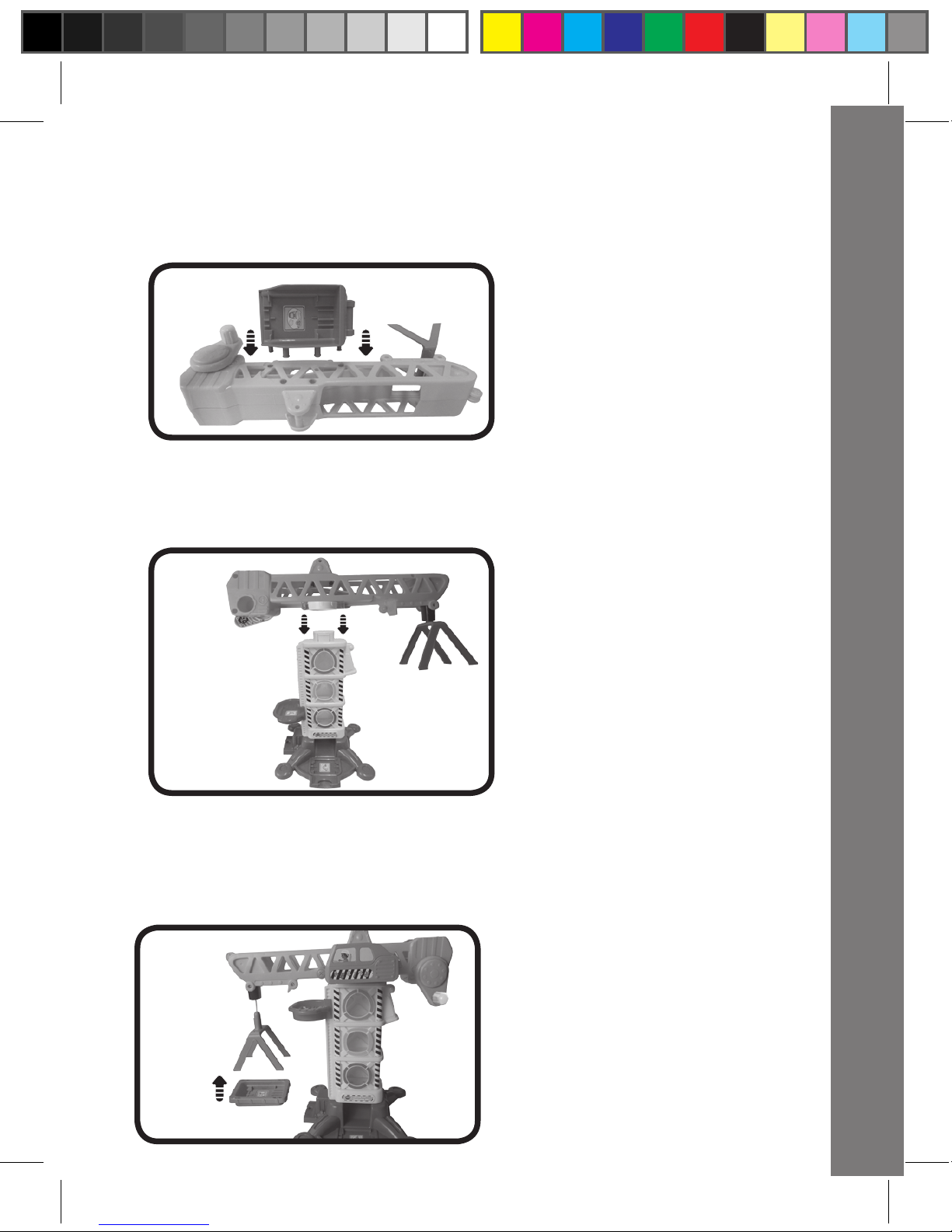

5. Insert the SmartPoint®basket elevator base into the four basket

elevator supports as shown below. You will hear a “click” sound

to indicate the SmartPoint®basket elevator base is secure. Once

SmartPoint®basket elevator base is connected, it cannot be

detached.

ASSEMBLY INSTRUCTIONS
