V-tech Gallop & Rock Learning Pony 191400 Manual de usuario
Gallop & Rock
Learning PonyTM
User’s Manual
© 2016 VTech
Printed in China
91-003259-012 CN
a
3
Introduction
3 LIGHT-UP
BUTTONS
2 HANDLES
TURNING DISC
ON/OFF/MODE
SELECTOR SWITCH
VOLUME
CONTROL
SWITCH
INTRODUCTION
Thank you for purchasing the VTech®Gallop & Rock Learning PonyTM.
The Gallop & Rock Learning PonyTM easily transforms from a rocker
to a ride-on. The two chunky handles are easy for toddlers to grasp
when riding on the pony. Press one of the three light-up buttons to
learn about colors and animals, and hear playful songs and imaginative
phrases. Rocking or riding on the pony triggers the motion sensor and
responds with fun melodies and sounds.
4
INCLUDED IN THIS PACKAGE
- One user’s manual
- One sheet of labels
Included In This Package
Two rockers One front link bracket
Two handles One back link bracket
One Gallop & Rock
Learning PonyTM
Four wheels
Two plastic screws8 small screws
5
WARNING: All packing materials, such as tape, plastic sheets,
packaging locks and tags are not part of this toy, and
should be discarded for your child’s safety.
ATTENTION: Pour la sécurité de votre enfant, débarrassez-vous
de tous les produits d’emballage tels que rubans
adhésifs, feuilles de plastique, attaches et étiquettes.
Ils ne font pas partie du jouet.
NOTE: Please keep user’s manual as it contains important
information.
GETTING STARTED

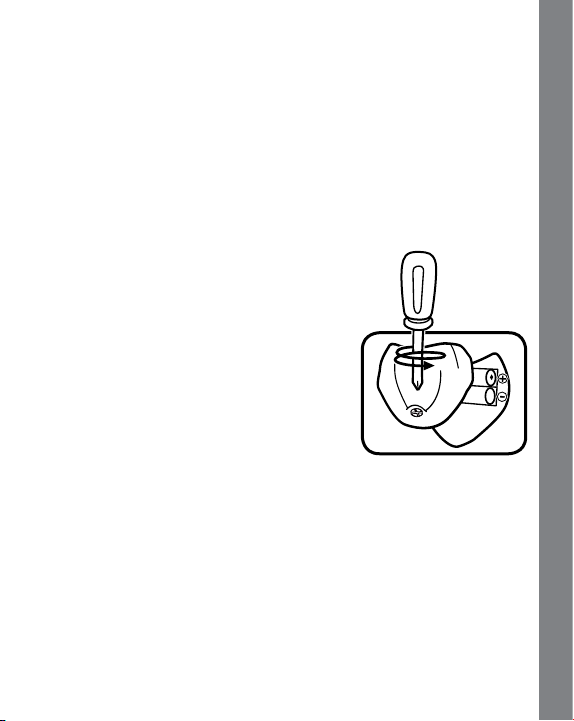

BATTERY INSTALLATION
1. Make sure the unit is turned OFF.
2. Locate the battery cover on the back
of the unit. Use a screwdriver to loosen
the screw.
3. Install 2 new ‘AAA’ (AM-4/LR03)
batteries following the diagram inside
the battery box. (The use of new
alkaline batteries is recommended for
maximum performance).
4. Replace the battery cover and tighten
the screw to secure.
BATTERY NOTICE
• Use new alkaline batteries for maximum performance.
• Use only batteries of the same or equivalent type as recommended.
• Do not mix different types of batteries: alkaline, standard (carbon-
zinc) or rechargeable (Ni-Cd, Ni-MH), or new and used batteries.
• Do not use damaged batteries.
• Insert batteries with the correct polarity.
• Do not short-circuit the battery terminals.
• Remove exhausted batteries from the toy.
• Remove batteries during long periods of non-use.
Getting Started
6
• Do not dispose of batteries in fire.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the toy before charging (if
removable).
• Rechargeable batteries are only to be charged under adult
supervision.
WARNING:
With the VTech®Gallop & Rock Learning PonyTM safety
comes first:
Adult assembly required. Not to be used by children over
36 months. Insufficient strength. 20kg Max. Protective
equipment should be worn. Not to be used in traffic.
This package contains 8 small screws. For your child’s
safety, do not let your child play with the toy until it is
fully assembled.
Regularly check if the 8 screws are securely tightened
to link the brackets and rockers.
Warning
7

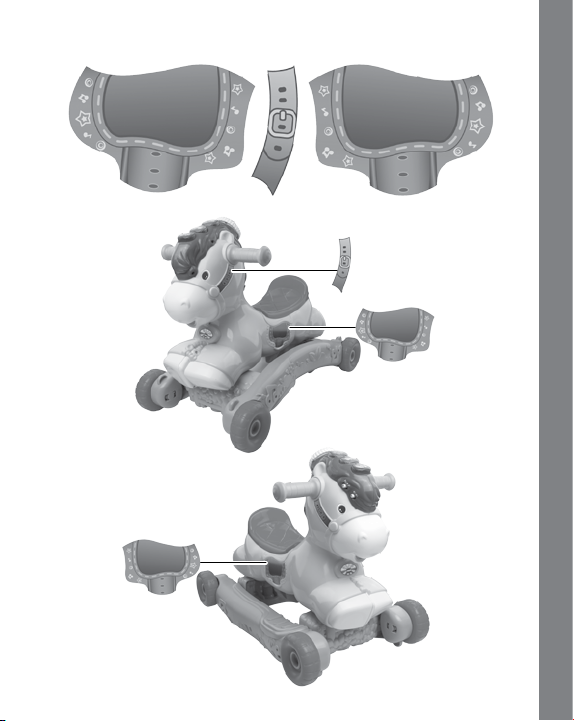

Label Instructions
Please stick the labels to the pony securely as indicted below:
8

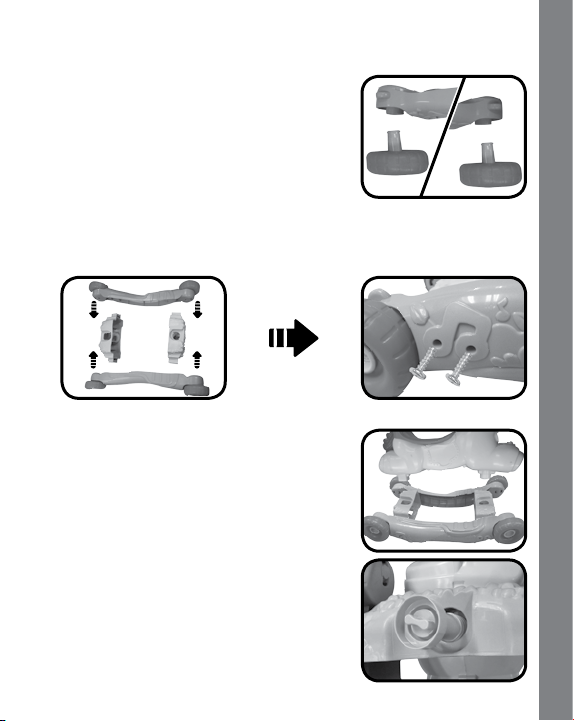

ASSEMBLY INSTRUCTIONS
1. Insert the 4 wheels into the two rockers
as shown. You will hear the wheels
click into place to indicate they are
attached securely.
2. Insert the front link bracket and the back link bracket into the inside
of the rockers. Secure the brackets to the rockers with the small
screws provided.
3. Insert the Gallop & Rock Learning
PonyTM onto the support brackets as
shown.
4. Insert the two plastic screws into the
holes in the front link and back link
brackets. Turn the screws clockwise
to secure. You will hear the locks click
into place to indicate they are attached
securely.
Assembly Instructions
9
5. Insert the two handles into the side
of the pony’s head. You will hear the
handles click into place to indicate the
handles are attached securely.
TRANSFORM FROM ROCKER TO RIDE-ON MODE
6. To change the pony from the rocker mode to the ride-on mode,
press and hold the lock next to the plastic screws and turn the
screws counter-clockwise. Remove the rocker panel and turn it
over so the wheels are on the ground. Re-insert the two plastic
screws into the holes in the front link and back link brackets. Turn
the screws clockwise to secure.
PRODUCT FEATURES
1. ON/OFF/MODE SELECTOR SWITCH
To turn the unit ON, slide the ON/OFF/
MODE SELECTOR SWITCH to the
LEARNING & MUSIC MODE ( ) or
the ADVENTURE MODE ( ) position.
To turn the unit OFF, slide the ON/
OFF/MODE SELECTOR SWITCH to
the OFF ( ) position.
Assembly Instructions/Product Features
10
2. VOLUME CONTROL SWITCH
To adjust the volume, slide the
VOLUME CONTROL SWITCH to
the LOW VOLUME ( ) or the HIGH
VOLUME ( ) position.
3. AUTOMATIC SHUT-OFF
To preserve battery life, the VTech®Gallop & Rock Learning PonyTM
will automatically power-down after approximately 65 seconds
without input. The unit can be turned on again by pressing any
button, or turning the disc.
Note: If the unit repeatedly powers down quickly, we suggest changing
the batteries.
ACTIVITIES
1. Slide the on/off/mode selector
switch to turn the unit on. You will hear
a playful song and a friendly phrase.
The lights will flash with the sounds.
2. Press the light-up buttons to learn
about colors and animals, and hear
fun songs and music in the Learning
& Music Mode. In the Adventure Mode
you will hear playful phrases, sounds
and songs. When a melody is playing,
press the light-up buttons to play the
melody one note at a time. The lights
will flash with the sounds.
Product Features/Activities
