Congratulations

on purchasing your new VTech product.

Before using this telephone, please read the

Important safety instructions

on page 40 of this manual.

This manual has all the feature operations and troubleshooting necessary

to install and operate your new VTech telephone. Please review this manual

thoroughly to ensure proper installation and operation of this innovative and

feature rich VTech product. For support, shopping, and everything new at

VTech, visit our website at www.vtechphones.com.

In Canada, please visit www.vtechcanada.com.

The ENERGY STAR®program (www.energystar.gov) recognizes and encourages

the use of products that save energy and help protect our environment. We are

proud to mark this product with the ENERGY STAR®label indicating it meets

the latest energy efficiency guidelines.

www.vtechphones.com

Table of contents

Getting started . . . . . . . . . . . . . . . . 1

Parts checklist . . . . . . . . . . . . . . . . . 1

Telephone base and charger installation . . . . 2

Battery installation and charging . . . . . . . . 3

Mounting bracket installation . . . . . . . . . . 4

Handset layout . . . . . . . . . . . . . . . . . 6

Telephone base layout . . . . . . . . . . . . . 7

Telephone settings . . . . . . . . . . . . . . 8

Ringer volume (handset) . . . . . . . . . . . . 8

Ringer tone . . . . . . . . . . . . . . . . . . . 9

Key tone . . . . . . . . . . . . . . . . . . . 10

Language . . . . . . . . . . . . . . . . . . . 10

Clear voice mail. . . . . . . . . . . . . . . . 11

Telephone operation . . . . . . . . . . . . 12

Make a call . . . . . . . . . . . . . . . . . . 12

Answer a call . . . . . . . . . . . . . . . . . 12

End a call . . . . . . . . . . . . . . . . . . . 12

Speakerphone . . . . . . . . . . . . . . . . 12

Volume . . . . . . . . . . . . . . . . . . . . 12

Mute. . . . . . . . . . . . . . . . . . . . . . 13

Ringer mute. . . . . . . . . . . . . . . . . . 13

Call waiting . . . . . . . . . . . . . . . . . . 13

Chain dialing . . . . . . . . . . . . . . . . . 14

Find handset . . . . . . . . . . . . . . . . . 14

Intercom . . . . . . . . . . . . . . . . . . . 15

Conference call . . . . . . . . . . . . . . . . 16

Transfer an external call . . . . . . . . . . . 17

Switch between external and intercom calls . 19

Answer an incoming call during an intercom call . 20

Directory . . . . . . . . . . . . . . . . . . . 21

Store a directory entry . . . . . . . . . . . . 22

Character chart . . . . . . . . . . . . . . . . 23

Search the directory . . . . . . . . . . . . . 24

Dial a directory entry . . . . . . . . . . . . . 24

Edit a directory entry . . . . . . . . . . . . . 25

Delete from the directory . . . . . . . . . . . 26

About caller ID . . . . . . . . . . . . . . . . 27

Call log . . . . . . . . . . . . . . . . . . . . 28

www.vtechphones.com ii

Table of contents

Missed calls indicator . . . . . . . . . . . . . 29

Review the call log . . . . . . . . . . . . . . 29

Make a call log entry ready to dial . . . . . . 30

Dial a call log entry . . . . . . . . . . . . . . 30

Save a call log entry to the directory . . . . . 31

Delete from the call log . . . . . . . . . . . . 32

Call log display screen messages . . . . . . 33

Redial list . . . . . . . . . . . . . . . . . . . 34

Dial a redial entry . . . . . . . . . . . . . . . 34

Delete from redial . . . . . . . . . . . . . . . 34

Appendix. . . . . . . . . . . . . . . . . . . 35

Handset display screen messages . . . . . . 35

Handset and telephone base indicators . . . 37

Battery . . . . . . . . . . . . . . . . . . . . 39

Important safety instructions . . . . . . . . . 40

Troubleshooting. . . . . . . . . . . . . . . . 41

Operating range . . . . . . . . . . . . . . . 49

Maintenance . . . . . . . . . . . . . . . . . 49

About cordless telephones . . . . . . . . . . 50

The RBRC®seal . . . . . . . . . . . . . . . 50

Warranty . . . . . . . . . . . . . . . . . . . 51

FCC, ACTA and IC regulations . . . . . . . . 53

Technical specications . . . . . . . . . . . 55

Index . . . . . . . . . . . . . . . . . . . . . 56

www.vtechphones.com 1

Getting started Basic operation

To purchase

replacement

batteries or power

adapters, visit our

website at www.

vtechphones.

com or call

1 (800) 595-9511.

In Canada, go to

www.vtechcanada.

com or call

1 (800) 267-7377.

•

8. User’s manualTelephone base with

mounting bracket

5. Telephone base

power adapter

4. Telephone

line cord

Getting started

Parts checklist

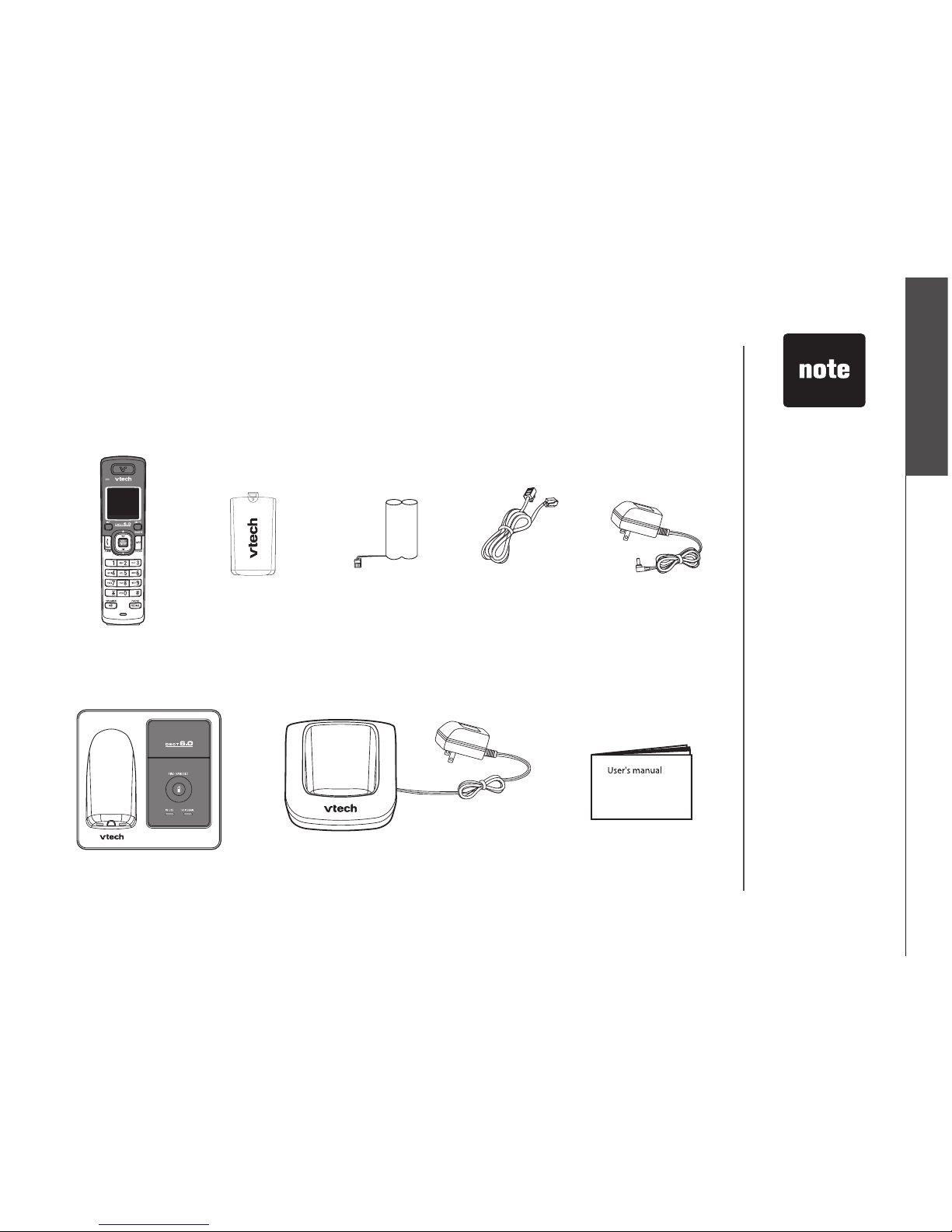

Your telephone contains the following items. Save your sales receipt and original

packaging in the event warranty service is necessary.

1. Handsets

(2 for DS6111-2,

3 for DS6111-3,

4 for DS6111-4)

2. Battery

compartment

covers

(2 for DS6111-2,

3 for DS6111-3,

4 for DS6111-4)

3. Batteries

(2 for DS6111-2,

3 for DS6111-3,

4 for DS6111-4)

7. Chargers and charger adapters

(1 for DS6111-2,

2 for DS6111-3,

3 for DS6111-4)

www.vtechphones.com

Getting started

Use only the

power adapters

supplied with this

product. To order

a replacement,

visit our website at

www.vtechphones.

com or call

1 (800) 595-9511.

In Canada, go to

www.vtechcanada.

com or call

1 (800) 267-7377.

The telephone

base power

adapter and the

charger adapter(s)

are intended to be

correctly oriented

in a vertical

or oor mount

position. The

prongs are not

designed to hold

the plug in place

if it is plugged into

a ceiling or an

under-the-table/

cabinet outlet.

•

Telephone base

Telephone line cord

Electrical outlet

not controlled by

a wall switch

Telephone base

power adapter

Telephone

wall jack

Charger

adapter

Telephone base and charger installation

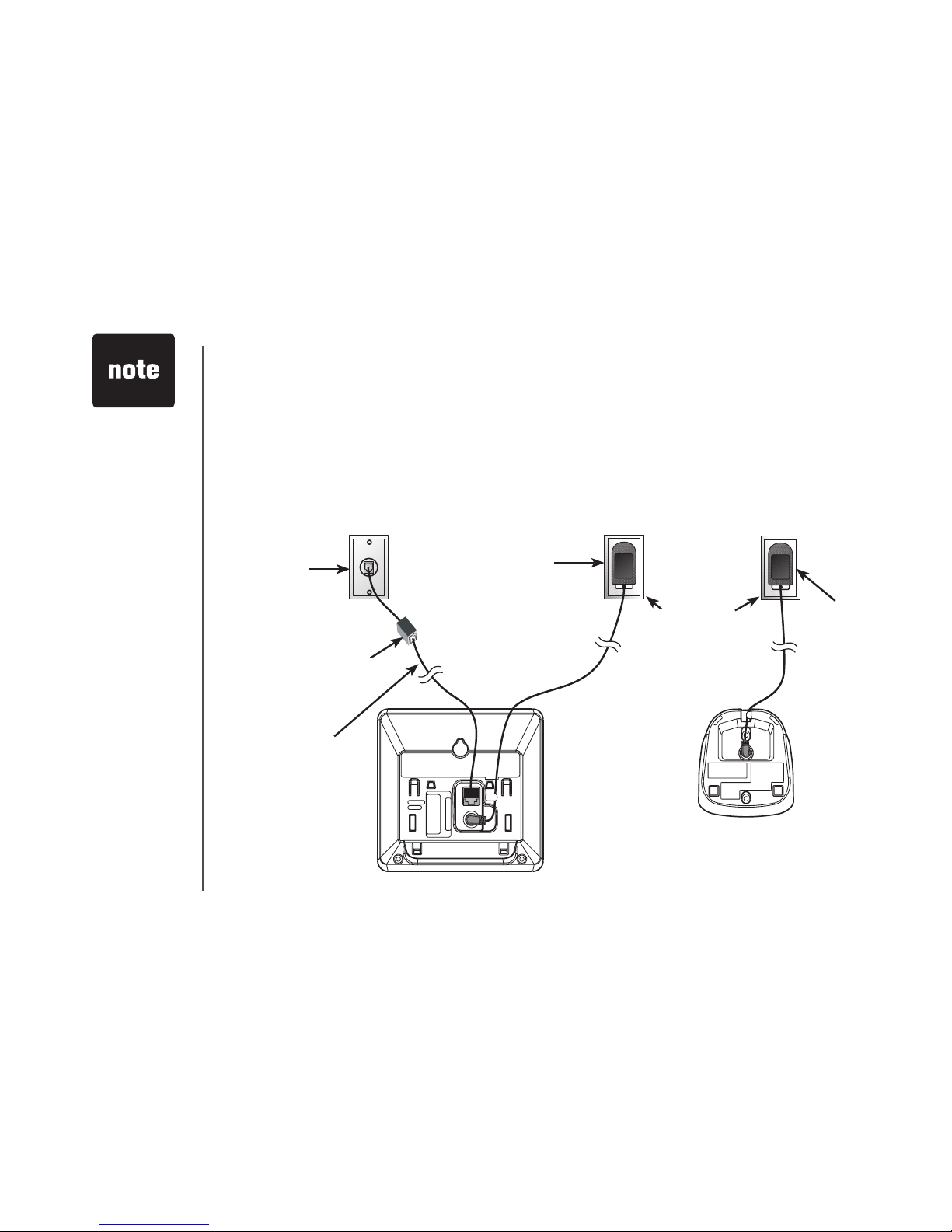

Install the telephone base and charger as shown below. Make sure that the electrical

outlet is not controlled by a wall switch. If you subscribe to Digital Subscriber Line

(DSL) high-speed Internet service through your telephone line, you must have

a DSL lter between the telephone base and the telephone wall jack. The lter

prevents noise and caller ID problems caused by DSL interference. Please contact

your DSL service provider for more information about DSL lters.

DSL lter (not included)

required if you have

DSL high-speed

Internet service

www.vtechphones.com 3

Getting started Basic operation

Getting started

If the handset

will not be used

for a long time,

disconnect and

remove the battery

to prevent possible

leakage.

To purchase

replacement

batteries, visit our

website at www.

vtechphones.

com or call

1 (800) 595-9511.

In Canada, go to

www.vtechcanada.

com or call

1 (800) 267-7377.

•

Battery installation and charging

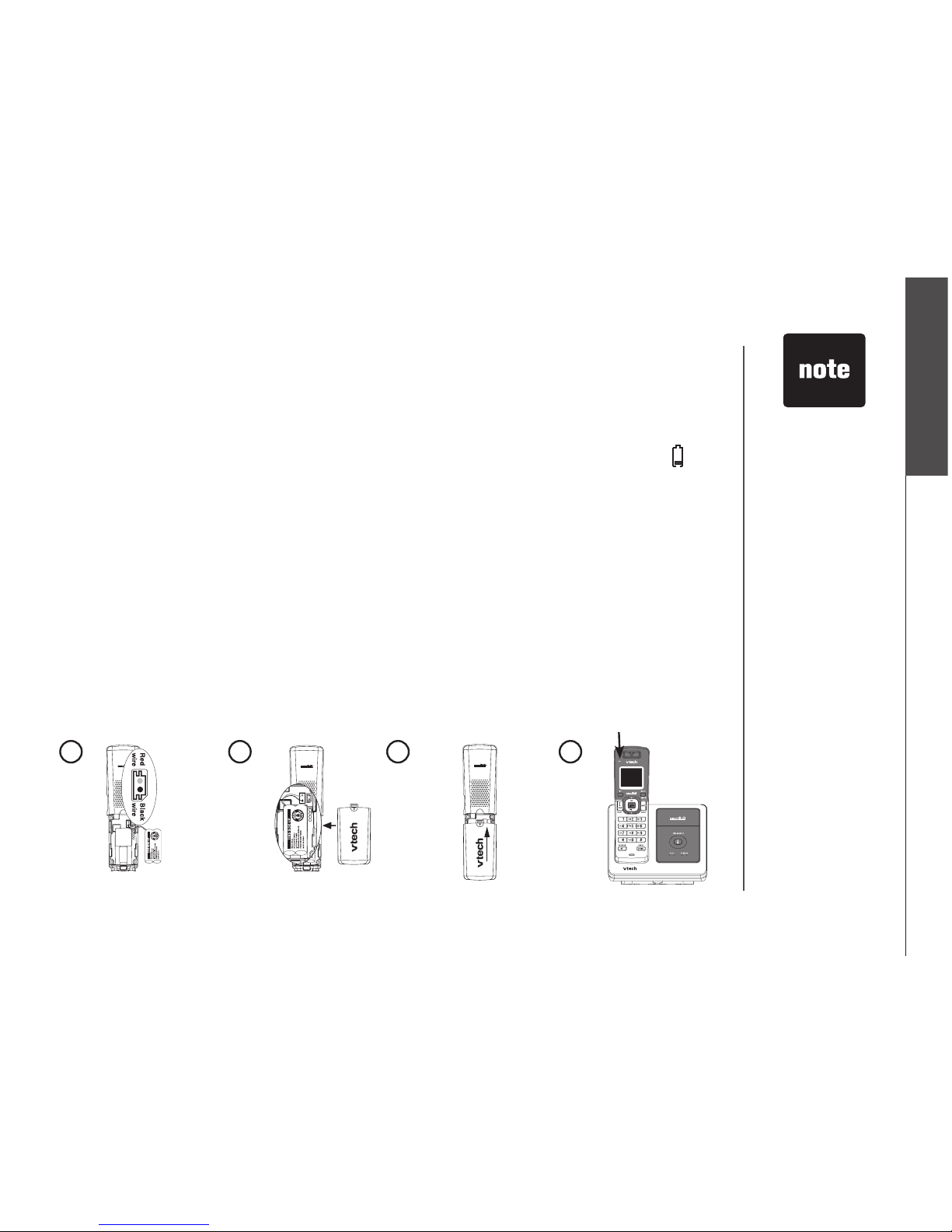

Install the battery as shown below. The battery may have enough charge for short

calls. For best performance, charge the handset for at least 16 hours. When the

battery power is low, the handset will beep, display LOW BATTERY and will

ash on the handset screen. Place the handset in the telephone base or charger

to charge the battery when not in use. When fully charged, the handset battery

provides approximately nine hours of talk time or ve days of standby time.

Insert the plug of the battery as indicated. Make sure it is plugged securely

and matches the color-coded label inside the battery compartment.

Place the battery with the label THIS SIDE UP facing up and the wires inside

the battery compartment.

Align the cover at against the battery compartment, then slide it upwards

until it clicks into place.

Charge the handset by placing it in the telephone base or the charger. The

handset charge light will be on when charging.

1234

Charge light

www.vtechphones.com

Getting started

Mounting bracket installation

Your telephone base comes with the mounting bracket installed for desktop use. If

you prefer to mount your telephone on the wall (optional), it is designed to mount

on a standard telephone wall plate.

Wall mounting bracket installation:

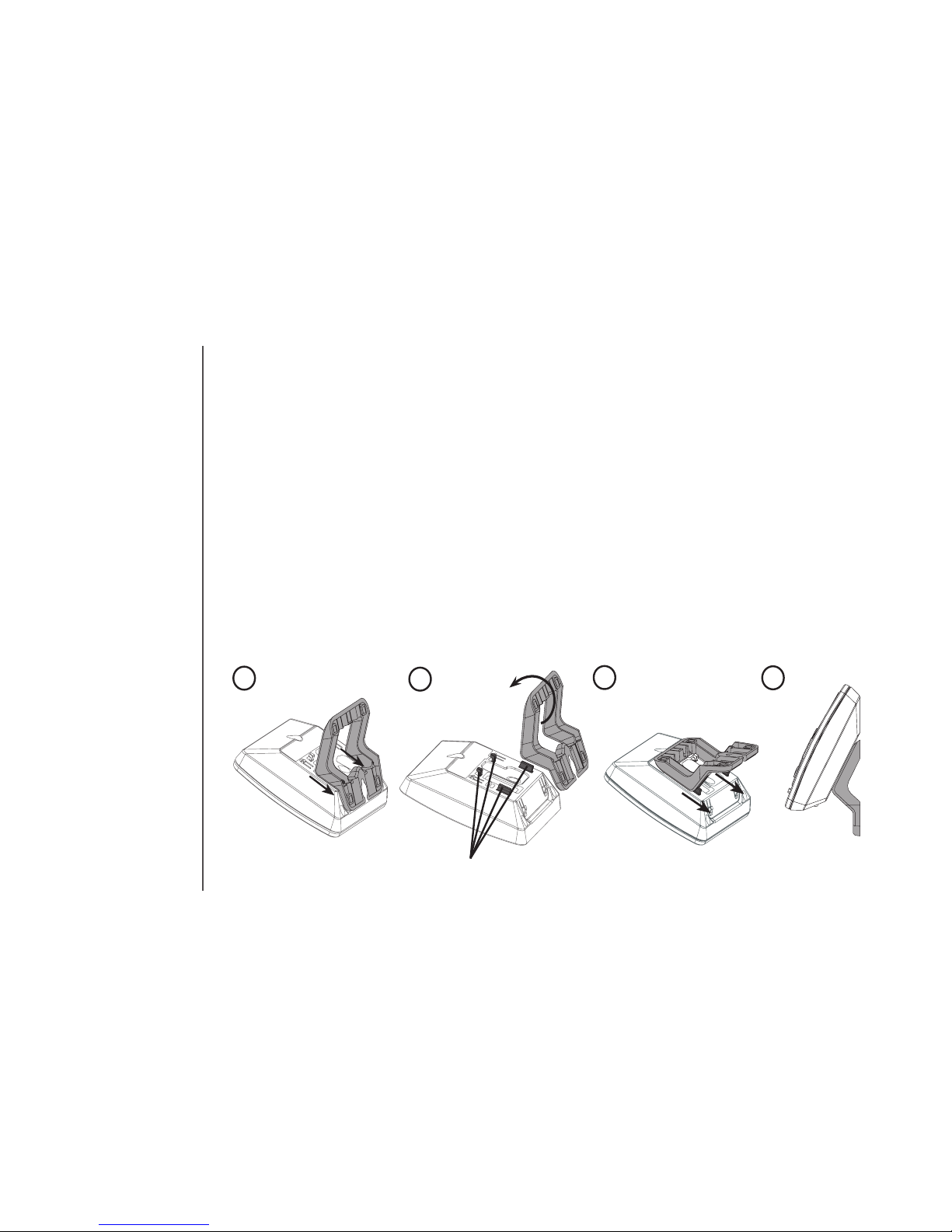

Slide the bracket down and away from the telephone base.

Tilt the top of the bracket down so that it rests on the base. Align the grooves

on the bracket with the tabs on the base. See image 2 below.

Slide the bracket down until it clicks into place. See image 3 below.

Align the holes on the telephone base with the standard wall plate and slide

down until the telephone is secure.

123

Tabs

www.vtechphones.com 5

Getting started Basic operation

Getting started

Mounting bracket installation (continued)

Desktop/tabletop bracket installation:

Your telephone comes ready for desktop use. If you have repositioned the bracket for

wall mounting and now want to return to desktop use, follow the following steps:

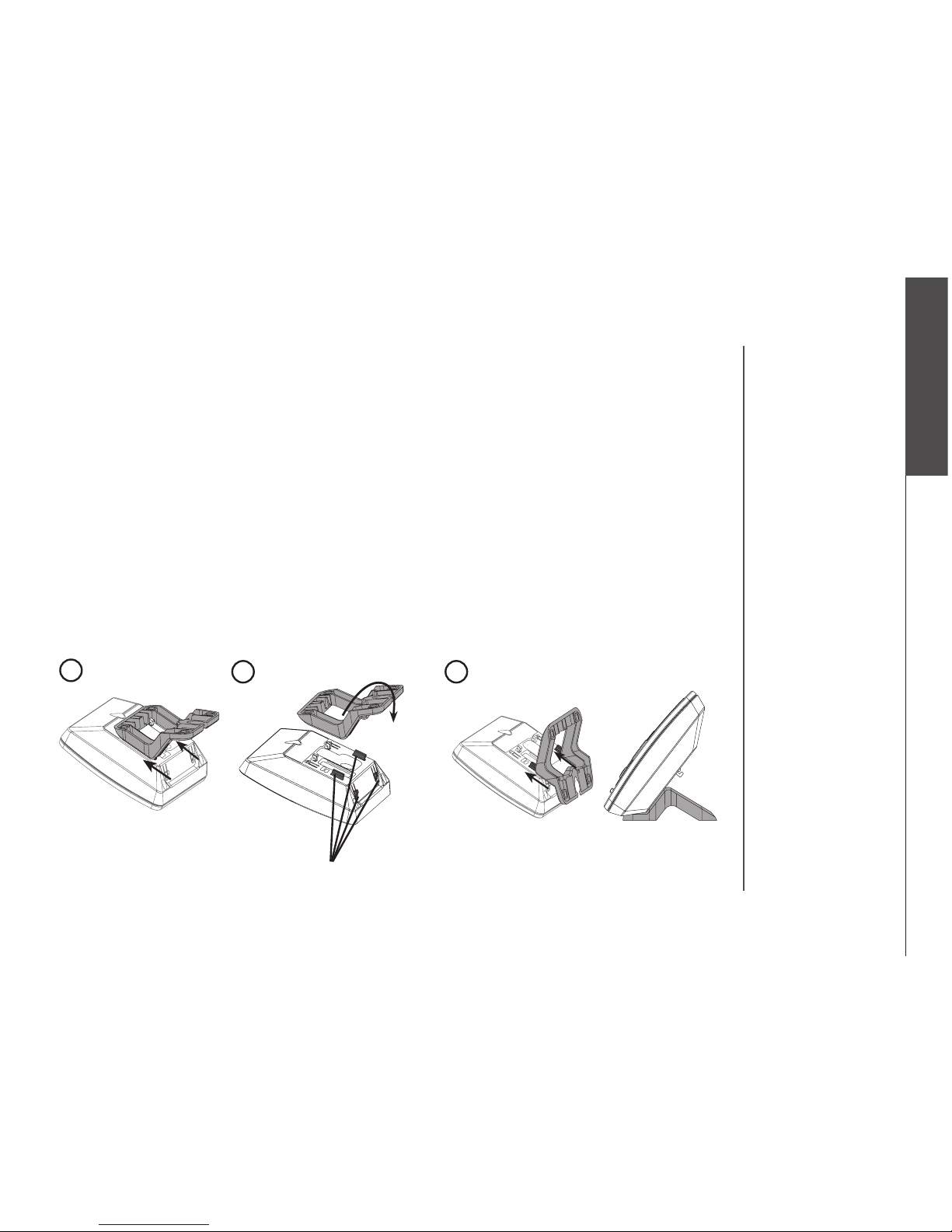

Remove the bracket from wall mount orientation by sliding it up towards the

top of the base.

Tilt the top of the bracket up so that the lower portion of the bracket rests on

the base. See image 2.

Slide the bracket up, onto the tabs towards the center of the telephone base

until it clicks into place.

123

Tabs

www.vtechphones.com

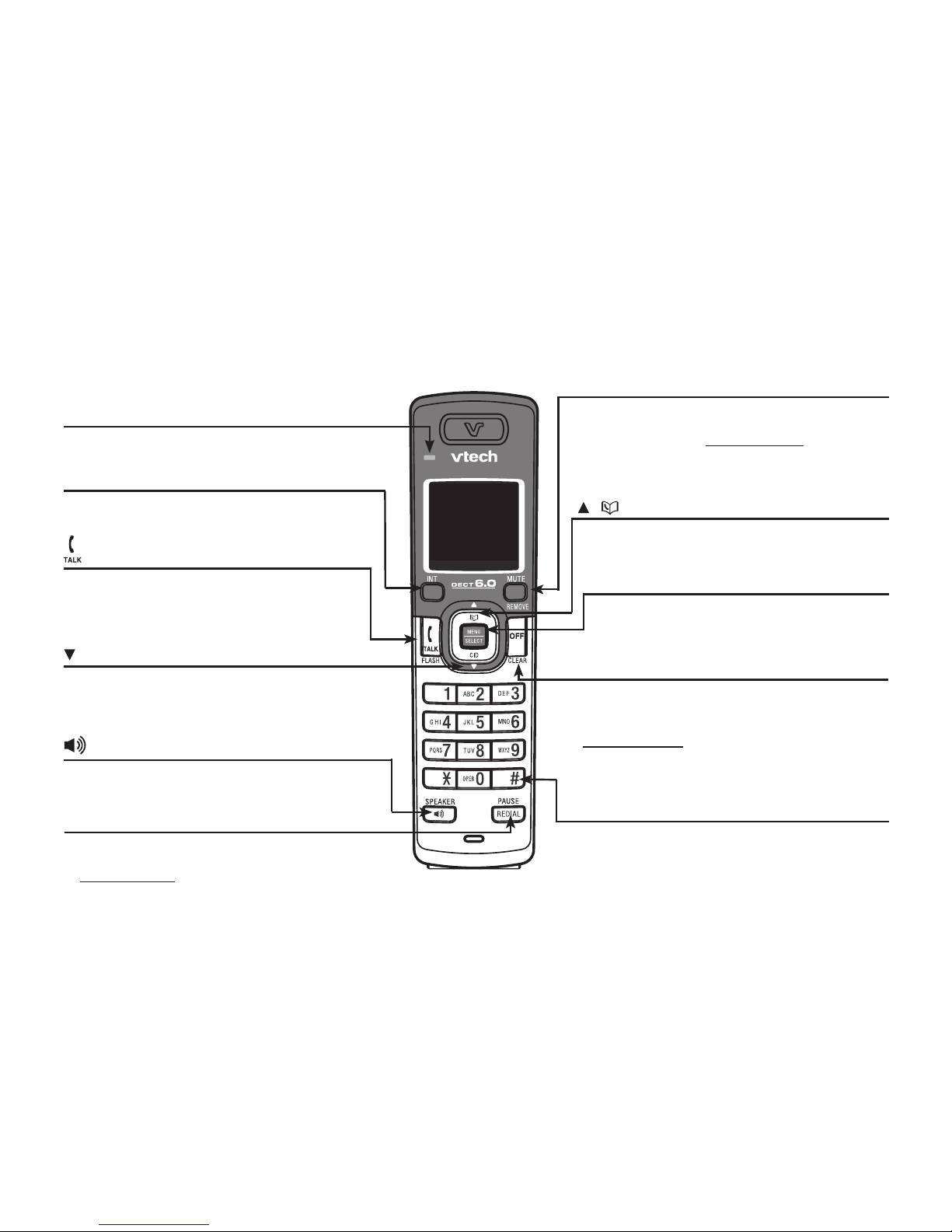

Handset layout

Getting started

/CID

• When the handset is not in use, press to

review the call log.

While in the menu, press to scroll down.•

/FLASH

• Press to make or answer a call.

• During a call, press to receive an incoming

call when you receive a call waiting alert.

/ (Directory)

• Press to enter the directory when the handset

is not in use.

While in the menu, press to scroll up.•

MENU/SELECT

• Press to display the menu.

• When in the menu, press to select an item,

or save an entry or setting.

OFF/CLEAR

• During a call, press to hang up.

• While the handset is ringing, press to silence

the ringer.

• Press and hold when the handset is not in use

to erase the MISSED CALLS display.

• During programming, press to exit without

making changes.

REDIAL/PAUSE

• Press to review the redial list.

• While dialing or entering numbers into the directory,

press and hold to insert a dialing pause.

CHARGE light

• On when the handset is charging in the

telephone base or charger.

• Press repeatedly to display other dialing options

when reviewing a call log entry (page 30).

INT (intercom)

• Press to initiate an intercom conversation

or transfer a call.

/ SPEAKER

Press to activate the handset speakerphone.

Press again to resume normal handset use.

•

MUTE/REMOVE

• While on a call, press to mute microphone.

• While reviewing the call log, press to delete an

individual entry, or press and hold to delete the

entire call log.

•

Press to delete digits when predialing (preview

numbers before dialing).

Otros manuales para DS6111-2 DS6111-3

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Teléfono de V-tech

V-tech

V-tech DS6641 Manual de usuario

V-tech

V-tech SIP Contemporary Series Manual de usuario

V-tech

V-tech CL81114/CL81214/CL82114/CL82214 Manual de usuario

V-tech

V-tech CL80121 Manual de usuario

V-tech

V-tech ErisTerminal VSP715 Manual de usuario

V-tech

V-tech i6763 Manual de usuario

V-tech

V-tech LS6225-2 Manual de usuario

V-tech

V-tech ia5890 Manual de usuario

V-tech

V-tech ErisTerminal SIP Deskset VSP736 Manual de usuario

V-tech

V-tech ErisTerminal VSP885G Manual de usuario

V-tech

V-tech SIP Contemporary Series Manual de usuario

V-tech

V-tech LS1500-B Manual de usuario

V-tech

V-tech LS1350-B Manual de usuario

V-tech

V-tech SIP Contemporary Series Manual de usuario

V-tech

V-tech SN6127 Manual de usuario

V-tech

V-tech 1411 Manual de usuario

V-tech

V-tech CS6648-2 Manual de usuario

V-tech

V-tech VC7151 Manual de usuario

V-tech

V-tech VSP725 Manual de usuario

V-tech

V-tech Analog Classic Series Manual de usuario

V-tech

V-tech T1300 Manual de usuario

V-tech

V-tech CS6419 Manual de usuario

V-tech

V-tech CD1153 Manual de usuario

V-tech

V-tech 914-916adl Manual de usuario

Manuales populares de Teléfono de otras marcas

GE 2-9480 Manual de usuario

Geemarc

Geemarc PHOTOPHONE 155 Manual de usuario

D-Link

D-Link DWR-720/PW Manual de usuario

Interquartz

Interquartz Gemini IQ333 Manual de usuario

SSS Siedle

SSS Siedle HT 840-0 Manual de usuario

Motorola

Motorola TITANIUM Manual de usuario

Panasonic

Panasonic ICX Manual de usuario

LG H870DS Manual de usuario

Samsung

Samsung GT-I9500 Manual de usuario

AT&T

AT&T Trimline 205 Manual de usuario

Selta

Selta zenyth 600 Manual de usuario

Doro

Doro AFTI 20 Manual de usuario

UNIQCELL

UNIQCELL A1 Manual de usuario

Panasonic

Panasonic KX Series Manual de usuario

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manual de usuario

BT Decor 425 Manual de usuario

NEC

NEC SV8500 Manual de usuario

Teledex

Teledex PEARL Manual de usuario
