V-tech GIGAPHONE Manual de usuario

When using your telephone equipment, basic safety precautions should always

be followed to reduce the risk of fire, electric shock and injury to persons,

including the following:

1. Read and understand all instructions.

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid

cleaners or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water (for example, near a bath tub, kitchen

sink, or swimming pool).

5. Do not place this product on an unstable cart, stand, or table. The product

may fall, causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided

for ventilation. To protect it from overheating, these openings must not

be blocked by placing the product on the bed, sofa, rug, or other similar

surface. This product should never be placed near or over a radiator or

heat register. This product should not be placed in a built-in installation

where proper ventilation is not provided.

7. This product should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power

supply to your home, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product

where the cord will be abused by persons walking on it.

9. Never push objects of any kind into this product through cabinet slots as

they may touch dangerous voltage points or short out parts that could result

in a risk of fire or electric shock. Never spill liquid of any kind on the

product.

10. To reduce the risk of electric shock, do not disassemble this product, but

take it to a VTech authorized service facility. Opening or removing cabinet

parts other than specified access doors may expose you to dangerous

voltages or other risks. Incorrect reassemb-ling can cause electric shock

when the appliance is subsequently used.

11. Do not overload wall outlets and extension cords as this can result in the

risk of fire or electric shock.

Important Safety Instructions

12. Unplug this product from the wall outlet and refer servicing to a VTECH

authorized service facility under the following conditions:

A. When the power supply cord or plug is damaged or frayed.

B. If liquid has been spilled into the product.

C. If the product has been exposed to rain or water.

D. If the product does not operate normally by following the operating

instructions. Adjust only those controls that are covered by the

operating instructions, because improper adjustment of other controls

may result in damage and will often require extensive work by a VTech

authorized technician to restore the product to normal operation.

E. If the product has been dropped and the cabinet has been damaged.

F. If the product exhibits a distinct change in performance.

13. Avoid using a telephone (other than a cordless type) during an electrical

storm. There may be a remote risk of electric shock from lighting.

14. Do not use the telephone to report a gas leak in the vicinity of the leak.

VTECH COMMUNICATIONS INC

SERVICE DEPT. at 1-800-595-9511. In Canada, call VTech Electronics Ltd

at 1-800-267-7377.

SAVETHESE INSTRUCTIONS

The GIGAPHONE is an advanced cordless telephone that operates in the 2.4GHz

frequency range. Your GIGAPHONE is capable of supporting up to a maximum

of 4 Handsets. Using additional Handsets, up to three people can be conferenced

on a call (2 Handsets and the Base Speakerphone), or two extensions can be

conferenced on a call, while two other extensions can be talking internally, using

the Intercom feature.

This manual is designed to familiarize you with the GIGAPHONE cordless

telephone. We strongly recommend you read the manual before using your

phone.

To order additional system Handsets (model# VT 2420), battery

packs, or headsets, call VTech Communications Inc at 1-800-595-

9511.

Introduction

IMPORTANT

Please record the Base ID#(BS ID) printed on the underside of the 2431 Base

in the space below. Please be certain to in clude all 15 digits/characters. Base

ID #

Parts Check List

5. Battery Pack

6. Wall Mounting Bracket

7. Belt clip

8. Owner's Manual

To purchase replacement battery packs, call VTech Communications Inc

at 1-800-595-9511. In Canada, call VTech Electronics Ltd at 1-800-267-7377.

1. Base Unit

2. Handset

3. AC Power Adapter

4. Telephone Cord

Telephone Line Cord

AC PowerAdapter

Handset

Battery Pack

Base Unit

Wall Mounting Bracket

Belt Clip

Owner's Manual

OWNER'S MANUAL

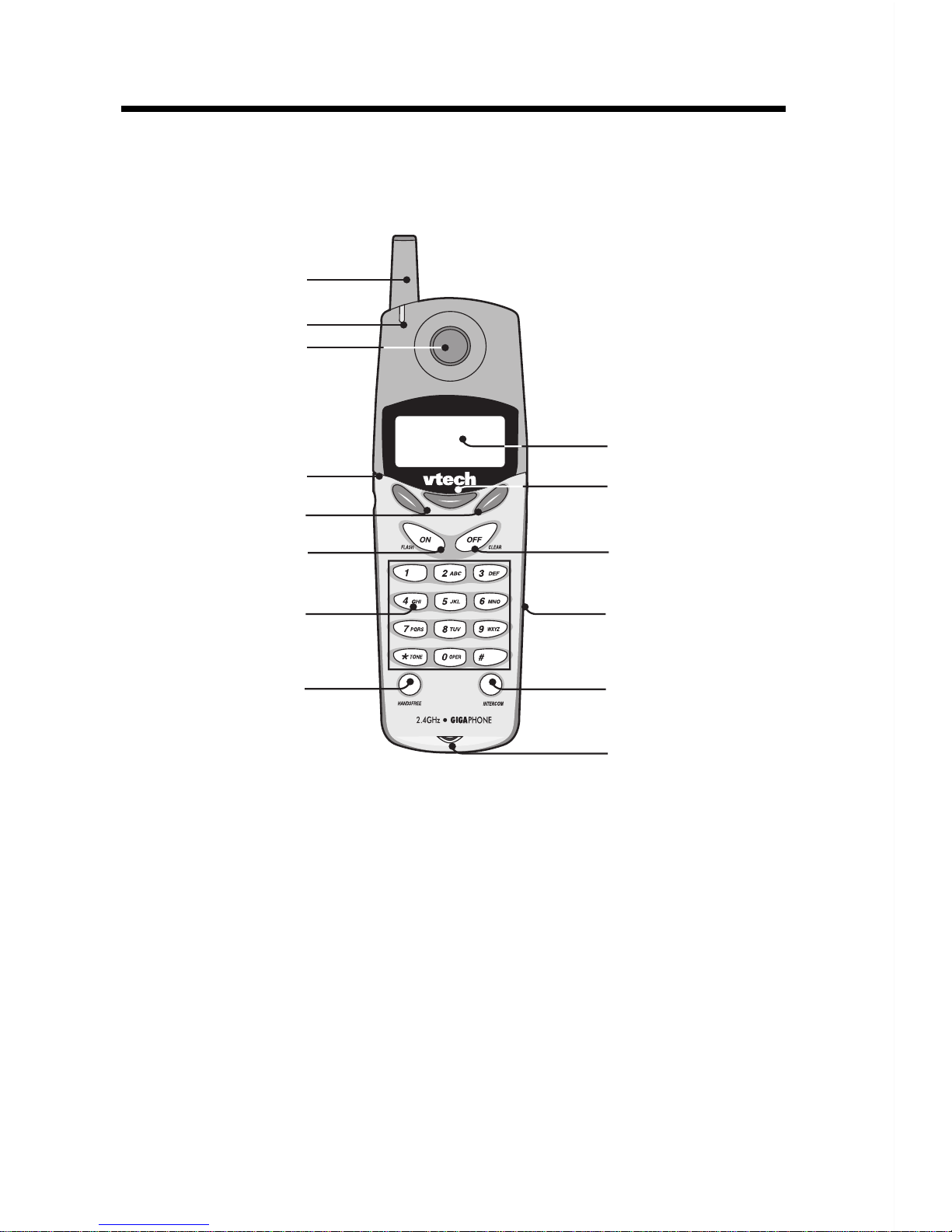

The Handset Layout

1. Antenna

2. Message Waiting Indicator

3. Earpiece

4. Headset Jack (2.5mm)

5. Scroll Keys

6. On (Flash)

7. Dialing Key (0-9)

8. Handsfree Speakerphone

9. LCD Display

10. Select

11. Off (Clear)

12. Battery Compartment

13. Intercom

14. Microphone

1. Message Waiting Indicator

2. Page/Intercom

3. Flash

4. Charging Contacts

5. Power Indicator

6. Line In Use Indicator

7. Charge Indicator

8. Volume Keys

9. Speakerphone Key

10. Dialing Keys (0-9)

11. Hold

12. Redial

13. Quick Memory Keys

14. Mute

15. Spare Battery drawer

16. Spare Battery Release

17. Telephone Jack

18. DC Connector

The Base Unit Layout

15 17

Setup

To AC outlet

To telephone

jack

To telephone

socket outlet

AC adapter

1. Plug the AC power adapter into an electrical outlet, and the DC connector

into the back of the base unit.

Connecting to phone line

Plug one end of the telephone line cord into the jack on the back of the base

unit. Plug the other end of this cord into the wall jack.

Checking for dial tone

After the battery is charged press ON on the Handset. The Phone icon will

appear on the handset display, and you will hear dial tone. If not, see In Case

of Difficulty.

Tone/Pulse selection

See BASE SETTINGS for details.

CAUTION: Use only the Vtech power supply provided with your VTECH.

Getting Started

IMPORTANT:

For best performance the

GIGAPHONE Should be installed as

follows:

In an elevated location, in the center

of the room, with no obstructions

nearby.

In a location that is away from other

electrical appliances such as

microwave ovens, personal

computers, or televisions.

Getting Started

Follow the steps below:

1. Remove the battery cover by

pressing on the indent and

sliding downward.

2. Place the new battery pack in the

handset with the metal contacts

aligned with the charge contacts

in the battery compartment.

3. Replace the battery cover by

sliding it upwards.

4. If the new battery pack is not

already charged, place the

handset in the base unit, or a

remotechargingstand,andallow

it to charge for 12 hours. After

initial charge, a maintenance

charge of 8 hours should be

sufficient.

Installation of Battery Pack in Handset

The original Handset that is shipped with your GIGAPHONE system will be

automatically registered to the Base. This Handset is HANDSET 1.

As you register additional Handsets to the system, they will be assigned extension

numbers in the following order: HANDSET 2, HANDSET 3, and finally

HANDSET 4.

Whenever a Handset battery pack is installed, the Handset will automatically

begin SEARCHING FOR BASE (if previously registered), or it will prompt

you to ENTER BASE ID to register the new Handset.

Spare Battery Charger/Power Backup Function

1. Open the spare battery charger

by pressing the release button,

located on the right-hand side of

the Base Unit. A drawer will

open to reveal the spare battery

compartment.

2. Placeabatterypack in the drawer

with the charge contacts facing

up and to the left.

3. Push the drawer closed.

The spare battery takes 24 hours to

fully charge a drained battery.

The GIGAPHONE uses the spare battery charger in the Base Unit. To provide

operational backup in the event of a power failure with the a fully charged battery

pack in the spare battery charger, you will still be able to place a receive calls

from the handset for up to 5 hours.

The spare battery pack can also be used to replace a drained handset battery,

ensuring uninterrupted use.

NOTE :

When using the GIGAPHONE during Power Backup mode, audio quality may

be compromised due to reduced Power availability.

Getting Started

CAUTION:TO

REDUCE RISK OF FIRE,

USE ONLY VTECH

80-5017-00-00

CAUTION:TO

REDUCE RISK OF FIRE,

USE ONLY VTECH

80-5017-00-00

BATTERY

INSTALL

THIS

SIDE UP

Getting Started

Charging Of Handset Battery Pack

The Handset of your GIGAPHONE cordless telephone is powered by a

rechargeable battery pack. It charges automatically whenever the Handset is in

the Base Unit.

You should charge the battery pack for 12 hours when you first receive your

phone. You'll know the battery pack needs charging when:

• The low battery message is

displayed :

• The handset seems completely

dead, the LCD is completely

clear and does not activate when

you press the keys.

IMPORTANT:

1. Do not dispose of a battery pack in a fire, the cell may explode.

2. Do not open or mutilate the battery pack. Toxic substances may be released,

causing harm to eyes or skin.

3. Exercise care in handling battery packs in order to prevent an accidental

short of the charge contacts, potentially causing the battery pack to

overheat.

4. Do not dispose of this battery pack into household garbage. Please refer

to the following information concerning proper battery recycling:
