VT27 USER MANUAL(EN)

4 Wire Video Intercom System

Read this manual carefully before using the product, and keep it well for future use.



1. Parts and Functions

Indicator 1

Digital TFT LCD Screen

UNLOCK Button

TALK/MON Button

MENU Button

Microphone

Speaker

Connection Port

SD card slot

Indicator 2

Mounting Hook

LCD screen Display the visitors' image

Indicator1 Show the working status of monitor

Indicator2 Light on when the recorded pictures have not been viewed

Unlock button Press to release the door

Talk/Mon button

Press to communicate hands free with visitor

Press to view the outdoor condition in standby mode

Press to turn off staircase light,refer to part 3

Menu button Press twice to open the menu shortcuts.

Microphone Receive voice from the user

Mounting hook Use to hang up the monitor

Connection port Bus terminal

Speaker Send out vioce from the visitor

Key functions

-1-

2. Monitor Mounting

3. About Main Menu

145~160 cm

Accessory ttings:

1) Mounting Bracket and special 4 core wire

2) Two screws of 4X25 are used to fasten the Mounting Bracket on the wall.

Installation steps:

■ Installation Height for indoor monitor usually is 145- 160CM (refer to sketch map)

■ Attach the screws to the wall to x the mounting bracket.

■ Refer to the system connection section of this manual, connect wires correctly.

■ Hang the monitor rmly on the bracket.

The Main Menu is your starting point for using all the applications on your monitor.

To open the Main Menu page, tap either " Menu" key twice on the monitor or press

the screen anywhere twice.

-2-

Current time 04:29PM

:This icon will be displayed when the staircase light item is light on if the system connect VT-RLC module which control light.

otherwise,it won't be displayed.Touching this icon or pressing TALK/MON button can turn off the light.

:This icon will be displayed when the recorded pictures have not been viewed,touching this icon can see the recorded pictures.

Current date

Manual

Memory Album User Setup Close

Monitor

Playback

Monitor Intercom Inner Call

4. System Wiring

Terminal Discription

Basic Connection

JS-OS1

Input 1 Input 2 Output

JS-AP

Handset 75 Ohm Power

JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

1) DC-IN:Power supply connection port

2) JP/VD:JP/VD is used for setting the video impedance.

3) JS-AP:Audio phone or VT-RLC connection port

4) JS-OS1:The rst door station connection port

5) JS-OS2:The second door station connection port

6) JS/VD:Extended slave monitor connection port

AC ~

Door station

Black

Yellow

Red

White

Black

Yellow

Red

White

Reserve

JS-OS1

Input 1 Input 2 Output

JS-AP

Handset 75 Ohm Power

JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

-3-

Extending Monitors

White

Red

Yellow

Black

Door station

Camera

Note:To the first & last monitor,JP/VD jumper should reserve! others should remove.

Monitor

JP/VD Removed!

JP/VD Reserved

PS PS PS

44 4

Extending Audio Phone:

AC ~ AC ~ AC ~

Red

White

Black

White

Red

+12

GX-3P

JS-AP

JS-LK

INSIDE

(90 Degree ROTATE)

Back View

User code=1

User code=1 User code=2

User code=2 User code=N(N<5)

Reserve

Remove

Reserve

Back View

User code=N(N<5)

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

-4-

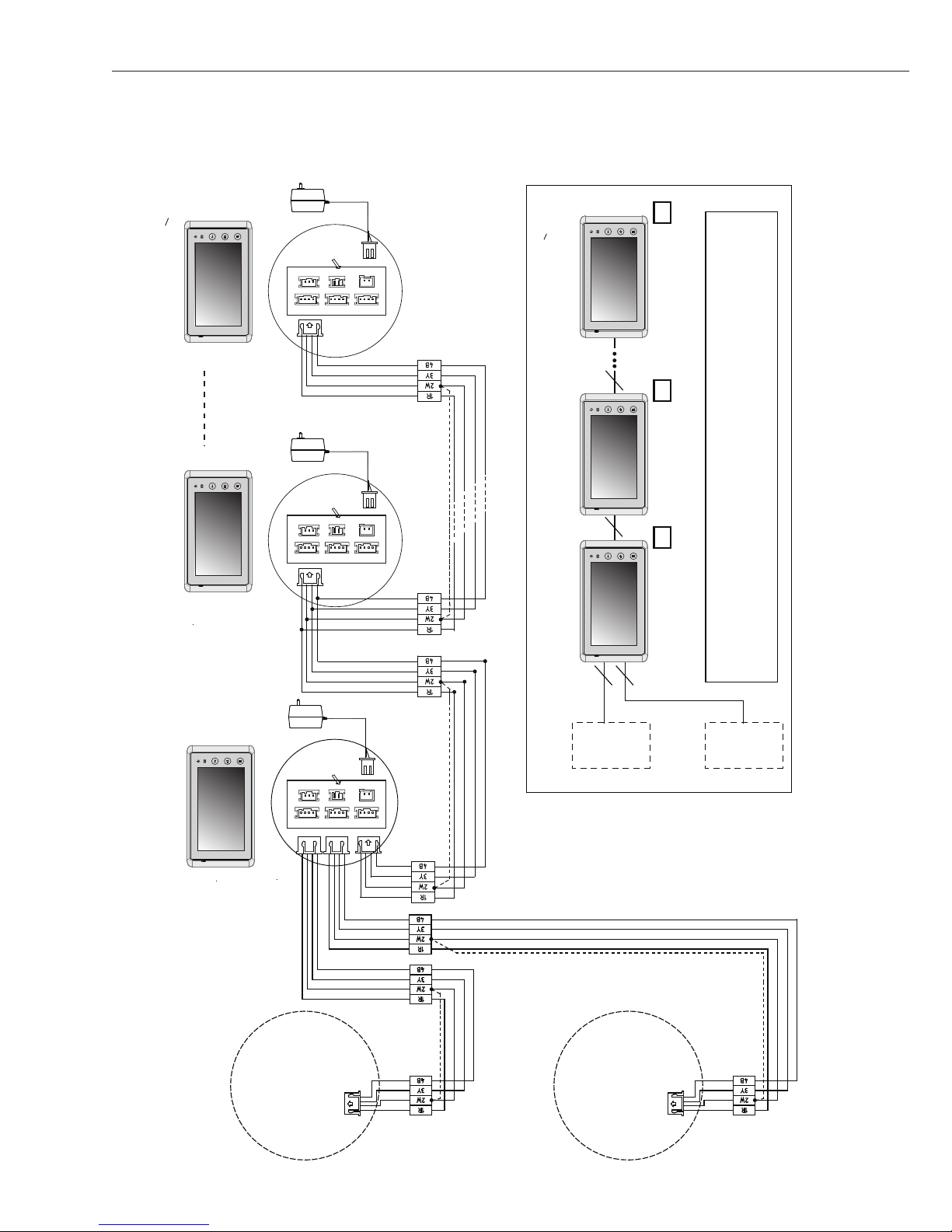

Extending 2 Outdoor Stations

JP/VD Reserve!

Black

Yellow

Red

White White

Red

Yellow

Black

Camera

Monitor

NOTE:

To the first & last monitor,JP/VD jumper should reserve! others should remove

2.When connect two Outdoor Stations, 2 Way Input item should be set to

1 on the 1# Monitor. (Main Menu-User Setup-Installer Setup-2 Way Input)

Monitor

JP/VD Removed!

JP/VD Reserved

PS PS PS

4 4

User code=1 User code=2 User code=N(N<5)

Back View AC ~

AC ~ AC ~

Remove

Reserve

Back View

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

-5-

VT-MDS

CCTV or Door station

door station

Black

Yellow

Red

White

Black

Yellow

Red

White

SET

DS4

DS3

DS2

DS1

JW_VP

User code=1 User code=2 User code=N(N<5)

Reserve ReserveRemove

Note:To the first & last monitor,JP/VD jumper should reserve! others should remove.

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

Extending Multi Door Stations with MDS

About the MDS instructions ,please refer to MDS user manual for more detail informations.

-6-

5. Basic Door Release Operation

1. Press the CALL button on door station.

2. The monitor rings,and the visitor's image will be seen on screen.

Note:the screen turns off after 30 seconds(default) if nobody answers.

3. Press either TALK/MON Button on monitor or touch Talk icon on screen, you

can communicate hands free with the visitor for 90 seconds(default).After nishing

communication,press TALK/MON button or touch Talk icon again to end the

communication. If the system connects two or more Monitors, pick up any Monitor,

the others will be automatically shut off.

Answering a Door Call

Status bar

► 1.show the current door station for monitoring.

► 2.show the waiting time for calling.

► 3.if the monitor is set to silence mode,this icon

will be shown.

► 4.if the system connect VT-RLC module which

control light,and the Staircase Light item is set

to 1or 2 (refer to part 9->Staircase Light),this

icon will be shown when receive calling.

1 2 34

Door Release

Entrance Monitoring

During talking state, Press UNLOCK Button or touch Unlock1 icon to release

the door for the visitor.(

Note:if the system is connected

VT-RLC

module which control

lock, touch

Unlock2

icon to release the second lock connected to RLC,for more

information,please refer to VT-RLC user manual.

)

When the monitor is in standby mode, press TALK/MON Button(or touch Monitor

... item on main menu page), The screen can display the view of outside. If multi door

stations are installed, touch Select icon to get into the camera switch mode(or

directly touch Manual Monitor item on main menu page). Select door 1/2/3/4 to

monitor the door station or CCTV camera you want.See the following diagrams.

-7-

DS1 00:30

► “ ” means the current operating monitor.

► “ ” means the selected calling monitor.

► Each monitor is conged one unique user

code

！

6. Intercom Function

Intercom can be initiated by any Monitor.

Touch Intercom or Inner Call item on main

menu page. Intercom function is activated

when multi monitors are installed.

Intercom: press Intercom icon on any

monitor to enter selective intercom page, see

the diagram on right.select one of user,then

press Dial Number icon to call.If the

selected monitor answers the call,intercom

talking is strating.

Inner Call: press Inner Call icon on any

monitor to enter selective intercom page, see

the diagram on right.All monitors will ring

at the same time,whichever monitor answers

the call, conversation is starting.and the

other monitors will stop ringing .

DS-1 00:23

Note:

If the system install VT-QSW module,video

quad split monitor is available,see the

diagram on right(please note that the quad

interface just display when install QSW

unit).for more detail information,please

refer to VT-QSW user manual.

-8-

1 2

User 1

Dail Number Return

User 2

User 3

User 4

User 5

Redial

Dail Number Return

User 1

User 2

User 3

User 4

User 5

Door 1 Door 2 Door 3 Door 4

Door 1

Camera 1 Camera 2 Camera 3 Quad

Door 2 Door 3 Door 4

Selective Intercom

！

7. Memory Sharing

Wiring Diagram for Memory Sharing

VT-BDU

4B3Y

VT-BDU

JW/VP1

JW/VP2

JW/VP3

JW/OS

75R

150R

SET-3Y

AC ~

White

Red

Yellow

Black

Door station

AC ~

Back View

User code=1

VT27SD/TD7 VT27/TD7

VT27/TD7

User code=2

User code=3

Reserve

JP/VD Reserved

User code=N(N<5)

JS-OS1

JS-AP JP/VD DC-IN

DC- DC+

JS-OS2 JS-VD

12V

About the BDU instructions ,please refer to BDU user manual for more detail informations.
