LT-EL700 LED Flashlight
L.I.B.R.E
700
Lumen
20
Lumen
L.I.B.R.E STROBE
MEMORY
If you need to mount the ashlight onto a rearm, make sure rearm is not loaded before
installation. Remove magazine and examine chamber. Use safe handling procedures
at all times.
Tactical ashlights produce substantial heat during operation. Do not leave activated
ashlight unattended. Do not set activated ashlight face down. Do not place activated
ashlight against combustible material or material that could be damaged by heat. Do
not hold bezel or lens of activated ashlight against any portion of human body. Keep
away from children.
Ensure that the ashlight cannot be turned on when stored or being transported. If the
lamp is activated while in a case or any container, the lamp could overheat and cause
damage to surrounding materials.
Examine battery quality and appearance before use each time and make sure that there
is no leaking or any deformation. Dispose appropriately if there is a problem.
The batteries are pre-charged by the manufacturer, and cannot be recharged.
Recharging can cause battery leakage or, in some cases, high-pressure rupture.
Inadvertent charging can occur if a battery is installed backwards.
Do not use re-chargeable batteries in the light, unless the product specications clearly
states that re-chargeable batteries can be used.
Install batteries by aligning the + and – signs marked on the battery with the + and
– signs marked on the battery chamber in the light.
!
12
Turn off the light when not in use to conserve battery power.
Make sure to turn off the light or disconnect the pressure switch before inspecting bulb
and battery if the light cannot be turned on.
Keep batteries cool and dry. Always remove batteries from light after use. Leaving
battery in the light without use for long period of time may cause damage or danger.
Always replace batteries with the exact type and size specied for the light.
Always replace the whole set of batteries at the same time. Never mix new and used
batteries in the same light.
Never deliberately short circuit batteries. Prolonged short circuit will cause the battery to
lose energy and result in signicant temperature increase.
Keep battery compartment clean and keep any metallic object away from the battery.
Lithium batteries can explode or cause burns if disassembled, shorted, recharged,
exposed to water, re, or high temperatures. Do not place loose batteries in a pocket,
purse, or other container containing metal objects. Do not mix new with used batteries or
mix required batteries with other types of battery. Do not store batteries with hazardous
or combustible materials. Store in cool, dry, ventilated area. Follow applicable laws and
regulations for disposal.
CAUTION!
Water Resistant
Protective Lens
34
Component Illustration
Tactical Angled Offset
Ring Mount with Spacer
Aircraft Aluminum Main Body
Combat Tactical
Front Head
Battery Compartment
37mm IRB* with
CREE U2 LED
Pressure Switch
(Length: 10” - 25”)
Law Enforcement Rated
Rolling Stop Shoulder
LT-EL700
Specications
Length
170.2mm (6.7”)
Main Body Diameter 25.4mm (1.00”)
Weight with Battery
243.8g (8.6 oz)
Bulb Type 37mm IRB with CREE U2 LED
Voltage 6V
Max. Output 700 lumens
Focus Hybrid Beam with Large Spill Area
and Intense Long Range Hotspot
Battery Operating Time High - 3 Hours / Low - 24 Hours
Accessories
Battery/Qty 2 x CR123A
Pressure Switch Included with Hook-and-loop Sticker
Tactical Angled Offset Ring Mount RG-FL138 with Spacer
Rubber Spacer Ring & Tactical Grip Assist Included
Allen Wrench Hook-and-loop
Stickers for
Pressure Switch
LT-EL700 (Model Number)
AQN0040UB98U (Example Serial Number)
Rubber Spacer Ring
Tactical Grip Assist
*IRB Integrated Reector and Bulb
56
Installation & Operation
Battery and Spacer Ring Installation
4. Conduct a function check to ensure the
end cap is properly tightened following
the steps on page 6.
1. Unscrew the ashlight end cap by
twisting counter-clockwise and install
either two included CR123A Batteries or
one 18650 Rechargeable Battery.
3. Re-install the end cap by turning it
clockwise until it is completely seated.
1. Unscrew and remove the end cap.
Make sure to keep the cap in a safe place
for replacement when Pressure Switch is
not used.
2. Screw the Pressure Switch end cap
onto the ashlight body and rmly tighten.
3. Apply pressure to the pad surface of the
Pressure Switch to ignite the ashlight.
Press and release the button in the center of
the end cap to turn the light on or off.
(Note: Additional operation modes described on page 7)
Pressure Switch Operation
Push Button Operation
2. While the end cap is removed, the
pre-installed Rubber Spacer Ring for
everyday carry can be replaced with the
included Tactical Grip Assist for tactical
shooting needs.
Rubber Spacer Ring Tactical Grip Assist
12a 2b
34
1
2 3
7

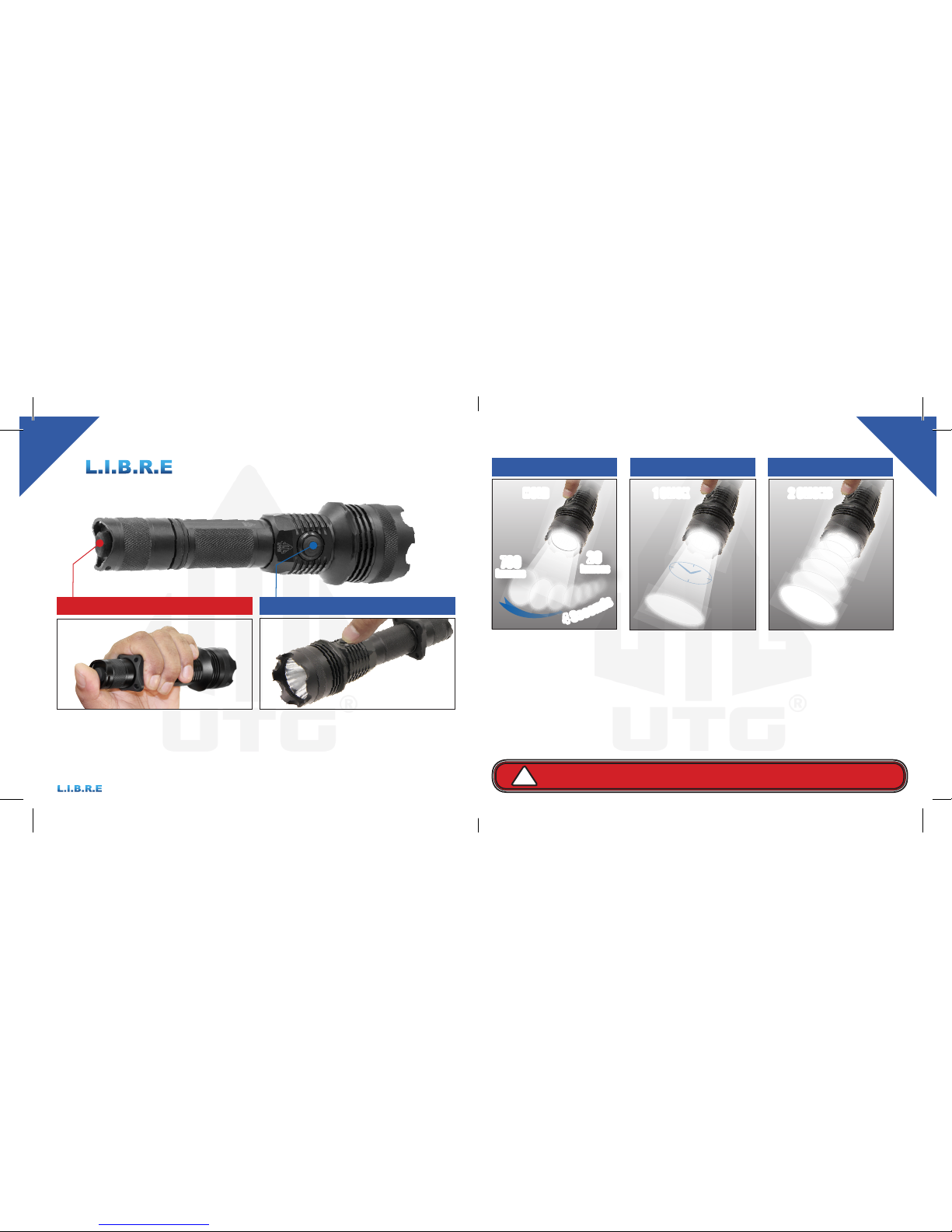

Dimming Technology Operation
Press the Main Power Button to activate
or deactivate the ashlight. (Lumen
Control Pad only works when the light is
activated.)
Light with Integrated Brightness Regulated Emitter
A double tap on the Lumen
Control Pad while the
ashlight is “on” will activate a
rapid strobe function. Double
tapping the Lumen Control
Pad again resets the light to
full power (700 Lumens).
Once you have achieved
your preferred brightness
setting, the ashlight will
automatically save this
setting, and you can turn the
unit off with a single click of
the Lumen Control Pad, and
again to restart the unit with
your saved setting.
Once the light is activated, the Lumen
Control Pad can be used to dim the light,
to use Strobe (see L.I.B.R.E and Strobe on page 8)
or to turn the power off/on by pressing it
once briey.
Main Power Button Lumen Control Pad
L.I.B.R.E
700
Lumens
20
Lumens
4
S
e
c
o
n
d
s
HOLD
8
Memory
1 CLICK
Strobe
2 CLICKS
In default, EL700 runs at full power (700 Lumens). Using the Main Power Button to turn
the unit off will reset the light to full power mode and your prior setting will not be saved.
!
While the ashlight is “on”,
press and hold the Lumen
Control Pad to dim the light
to your preferred brightness
setting and release the
button. From highest to
lowest setting takes approx.
4-5 seconds. EL700 is
designed to remain at its
lowest setting (20 lumens)
once this has been reached.
Mounting the Flashlight
4. Set the ashlight with installed Spacer
in the lower half of the ring mount and
place the top half onto the ring mount with
screw holes in alignment.
1. The LT-EL700 package includes a Tactical
Angled Offset Ring Mount with Spacer.
3. Install the provided Spacer by sliding
it over the ashlight main body to the
desired location.
2. To install the ashlight, loosen the
screws with included Allen Wrench and
remove the top half of the ring mount.
Separate both halves of the ring mount.
910
5. Tighten the screws evenly with
included Allen Wrench (max. torque value
15in-lbs) to ensure a rm grip on the
ashlight. You may use a non-permanent
locking compound to prevent screw drift.
6. Attach the assembled ashlight and
Tactical Angled Offset Ring Mount to
any Picatinny mounting platform by
tightening the quick lock/release thumb
nut against the rail surface. The 45°
angled offset allows the ashlight to be
mounted unobtrusively, minimizing the
use of rail space.
Do not over tighten the screws
as you could cause damage to
the ashlight body.
!
1 2
3 4
5 6
Replacement Parts
2 x CR123A Battery Pressure Switch
Tactical Angled Offset Ring Mount (RG-FL138)
11 12
Maintenance
1. Maintain the metal surface of the ashlight by removing any dirt or sand with
a soft brush to avoid scratching the nish.
2. Store the ashlight in a cool dry place when not in use. Be careful to avoid
contact with acid, alkaline or corrosive chemicals.
3. Replace the batteries in your ashlight every few months if it was not used
for long period of time. This insures good working batteries for your light and
prevents battery leakage.
4. Keep a fresh package of batteries next to your ashlight. This gives you
back-up power for your light.
5. Do not store your ashlight in high temperatures. This would damage your
ashlight and may result in battery leakage.
6. Do not put the ashlight head against any surface especially paper or human
skin for it has heat and may result in accidents.
7. Do not leave your ashlight under the seat in your car, or in direct sunlight to
avoid over-heating.
8. Do not attempt to lubricate any part of the ashlight.
9. Do not disassemble the ashlight other than replacing battery or pressure
switch. Do not loosen or remove screws or parts. Any such or similar actions
will void the warranty.
Contact your distributor for information.
13 14
One Year Limited Warranty
This warranty covers defects in materials and workmanship of the product, provided
that they are purchased from an authorized distributor and purchased and used in the
United States. The warranty lasts for a period of one year from the date of original
purchase of the product.
You are entitled to rights under this warranty only if you are the original purchaser of
the product and have the original purchase receipt. This warranty is not transferable.
We will at our option, repair or replace products that do not conform to this warranty.
We may use functionally equivalent reconditioned, refurbished, remanufactured, pre-
owned or new products or parts.
This warranty is void if:
• the product has been disassembled, tampered with or parts or screws have
been removed or loosened; or
• the product has been abused, maliciously damaged, mistreated or used for a
purpose contrary to the purpose for which it was designed or the instructions
provided with the product.
For Warranty service, please contact your authorized distributor and provide them
with a written description of the defect and your original purchase receipt. You must
obtain a Return Authorization Number and return procedures with delivery destination
before returning the product for repair or replacement.
Disclaimer and Limitation of Liability
Leapers is pleased to offer suggestions of the use of its products, however Leapers neither
assumes responsibility for any omissions or errors nor assumes liability for any damages that
result from the use of its products in accordance with information provided by Leapers, whether
verbal or written.
EXCEPT FOR THE EXPRESS WRITTEN WARRANTY SPECIFICALLY SET FORTH
ABOVE, ALL EXPRESS AND IMPLIED REPRESENTATIONS AND WARRANTIES ARE
HEREBY DISCLAIMED, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY,
NON-INTERFERENCE, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT,
OR WARRANTY OF ACCURACY OF ANY INFORMATION PROVIDED WHETHER
WRITTEN OR ORAL. ALL WARRANTIES ARISING FROM ANY COURSE OF DEALING,
LAW, USAGE OR TRADE PRACTICE ARE HEREBY EXPRESSLY EXCLUDED TO THE
EXTENT ALLOWED BY LAW. TO THE EXTENT AN IMPLIED WARRANTY CANNOT BE
EXCLUDED, SUCH WARRANTY IS LIMITED IN DURATION TO ONE YEAR. SOME
STATES OR JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
UNDER NO CIRCUMSTANCES IS LEAPERS, OR ITS SUPPLIERS OR RESELLERS
LIABLE FOR ANY OF THE FOLLOWING EVEN IF INFORMED OF THEIR POSSIBILITY:
1) THIRD PARTY CLAIMS AGAINST YOU FOR DAMAGES; 2) SPECIAL, INCIDENTAL,
OR INDIRECT DAMAGES OR FOR ANY ECONOMIC CONSEQUENTIAL DAMAGES; OR
3) LOST PROFITS, BUSINESS REVENUE, GOODWILL, OR ANTICIPATED SAVINGS.
SOME STATES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
