USX-MOUNT XML018-03 Manual de usuario

XML018-03

INSTRUCTION MANUAL(P1-P19)

Bedienungsanleitung(P20-P37)

For 32-90" TV

If you have any questions along the way, just message to

us. We’re ready to help!

DE-B0

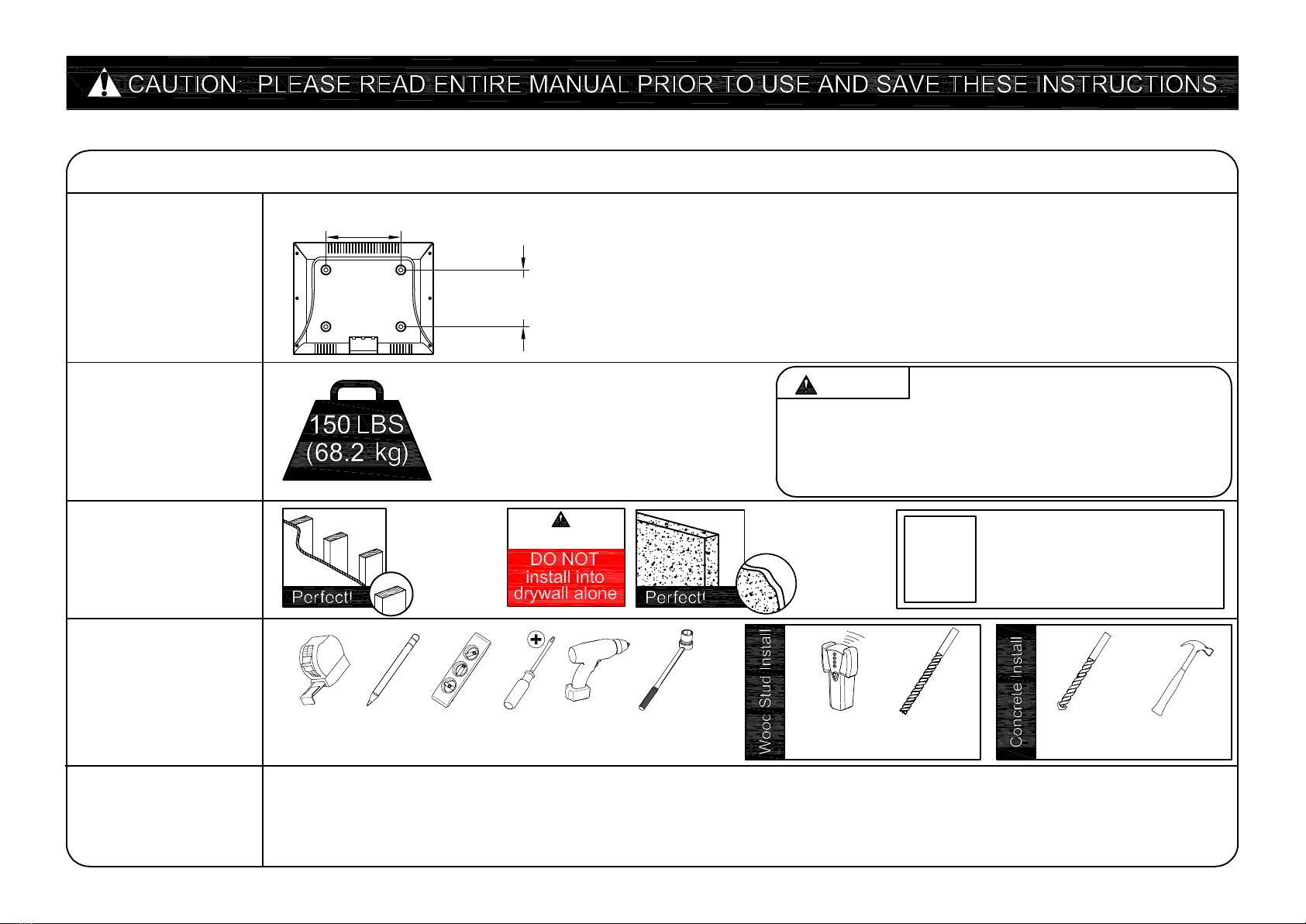

Before getting started, let’s check below lists to make sure it is just right for you!

Does your TV

(including accessories)

weigh MORE than

150 lbs. (68.2 kg)?

What is your

wall made of?

Do you have

all the tools

needed?

(NOT INCLUDE) Tape

Measure

CAUTION

Pencil Level Screw

driver

Electric

Drill

No? Perfect – you may continue.

Yes? This mount is NOT compatible.

Drywall with

wood studs? CAUTION:

CAUTION: DO NOT exceed the maximum weight

indicated. This mounting system is intended for use only

with the maximum weights indicated. Use with products

heavier than the maximum weights indicated may result

in collapse of the mount and its accessories, causing

possible injury.

Solid concrete

1/2 in.

(13 mm)

Socket

Wrench

Stud

Finder

7/32 in.

(5.5 mm)

Wood

Drill Bit

● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone

● The wall must be capable of supporting five times the weight of the TV and mount itself

● Do not use this product for any purpose not explicitly specified by manufacturer

● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

3/8 in.

(10 mm)

Masonry

Drill Bit

Hammer

Check your TV

VESA is within

Min and Max size

No? This mount is NOT compatible.

Yes? Perfect !

MAX:600mm/23.62"

(MIN:200mm/7.87")

MAX:400mm/15.75"

(MIN:100mm/3.94")

?Unsure?

Message to us via Amazon.

TV INTERFACE 3-D

WALL PLATE

FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED

TOP VIEW - EXTENDED SIDE VIEW - RETRACTED

+5°

-15°

TOP VIEW - EXTENDED

+45° -45°

MAX:600mm[23.62in]

MIN:200mm[7.87in]

203mm

[8.00in]

406mm

[16.00in]

610mm

[24.00in]

310mm

[12.20in]

9mm

[0.35in]

662mm

[26.06in]

430mm

[16.93in]

359mm

[14.13in]

32mm

[1.26in]

485mm

[19.09in]

85mm

[3.35in]

MAX:400mm

[15.75in]

MIN:100mm

[3.94in]

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

Parts and Hardware for STEP 1

TV Brackets Spacers

TV Screws

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M8x45mm

M6x17mm

M8x22mm

M4 M6

10mm

2.5mm

Washers

x4 x4

x8 x4

Parts and Hardware for STEP 2

4MM Allen Key

Wall Plate

Mounting template

Velcro x3

Lag Bolt

M5x10mm Bolt

End support

Concrete Wall Anchor 4pcs

CAUTION:Do not use in drywall or wood

5MM Allen Key

Assemble End Supports to Wall Plate

Put the End supports into wall plate by using allen key to fasten bolt .

1-1 Select TV Screws

1-2 Figure out the suitable position of brackets

INSTALL UP/DOWN IF NEEDED TV BRACKETS MUST BE LEVEL

LOW MOUNTING HOLES HIGH MOUNTING HOLES

Tips: If you need to combine M6/M8(c/e/f) screws with

2.5mm spacers( i ), you have to remove the inner circle.

Yes, choose suitable screws, washers and spacers.

1-4 Attach the TV Plate

No!

No, choose suitable screws and washers.

1-3 Need Spacer?

Centre line

CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall, must not exceed 5/8 in. (16 mm)

● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

● Maximum horizontal space between fasteners: 24 in. (609 mm)

● Stud center must be verified

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,

or an edge to edge stud finder.

2. Position the mounting template at your desired height and line up the holes with your stud center line.

Level the mounting template and mark the hole locations.

Again, find another wood stud

16"/24"

Mounting template
