USX-MOUNT XML008-K-1 Manual de usuario
XML008-K-1
INSTRUCTION MANUAL
For 47-84" TV
If you have any questions along the way, just give us a call
1-800-460-0956 or mail to [email protected].
We’re ready to help!
R
2
MAX:600mm/23.62"
(MIN:200mm/7.87")
MAX:400mm/15.74"
(MIN:100mm/3.94")
Before getting started, let’s check below lists to make sure it is just right for you!
2
3
4
5
Does your TV
(including accessories)
weigh MORE than
132 lbs. (60 kg)?
What is your
wall made of?
Do you have
all the tools
needed?
(NOT INCLUDE) Tape
Measure
CAUTION
Pencil Screw
driver
Electric
Drill
No? Perfect – you may continue.
Yes? This mount is NOT compatible.
Drywall with
wood studs? CAUTION:
CAUTION: DO NOT exceed the maximum weight
indicated. This mounting system is intended for use only
with the maximum weights indicated. Use with products
heavier than the maximum weights indicated may result
in collapse of the mount and its accessories, causing
possible injury.
Solid concrete ?
1/2 in.
(13 mm)
Socket
Wrench
Stud
Finder
7/32 in.
(5.5 mm)
Wood
Drill Bit
● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone
● The wall must be capable of supporting five times the weight of the TV and mount itself
● Do not use this product for any purpose not explicitly specified by manufacturer
● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Unsure?
Call Customer Service:
1-800-460-0956
3/8 in.
(10 mm)
Masonry
Drill Bit
Hammer
1
Check your TV
VESA is within
Min and Max size
No? This mount is NOT compatible.
Yes? Perfect !
TV INTERFACE 3-D
WALL PLATE
FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED
TOP VIEW - EXTENDED SIDE VIEW - EXTENDED
3
+5°
-15°
200mm
[7.87in]
15mm
[0.59in]
100mm
[3.94in]
400mm
[15.74in]
600mm
[23.62in]
407mm
[16.02in]
70mm
[2.76in]
Ø9mm
[Ø0.35in]
237mm
[9.33in]
697mm
[27.44in]
429mm
[16.90in]
267mm
[10.51in]
435mm
[17.13in]
419mm
[16.50in]
61mm
[2.40in]
WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts
are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact
Customer Service.
Never use damaged parts!
NOTE: Not all hardware included will be used.
4
Parts and Hardware for STEP 1
TV Brackets
x2
Spacers
TV Screws
M4x12mm
M6x12mm
M8x25mm
M4x30mm
M6x35mm
M8x45mm
x4 x4
x4 x4
x4 x4
M6x17mm
M8x22mm
M4 M6
10mm
2.5mm
Washers
x4
x4 x4
x8 x4
x4
5
Parts and Hardware for STEP 2
Lag Bolt M8 Washer
x4 x4
Wall Plate Unit
x1
Allen Key
x1
Extension Arm
M6x15mm Bolt
x2
M6x8mm Bolt
x4
Extension Arm
x2 x2
End Support
x2
Parts and Hardware for STEP 3
M6x8mm Bolt
x4
Contact us at telephone 1-800-460-0956 (USA) or
mail to [email protected]. to have
these additional pieces shipped directly to you.
Concrete Wall Anchor
4pcs
Velcro x3
R
8"(203.2mm)
16"(406.4mm)
Mounting template
6
M8
M6
M4
1-1 Select TV Screws
1-2 Figure out the suitable position of brackets
7
INSTALL UP/DOWN IF NEEDED TV BRACKETS MUST BE LEVEL
LOW MOUNTING HOLES HIGH MOUNTING HOLES
8

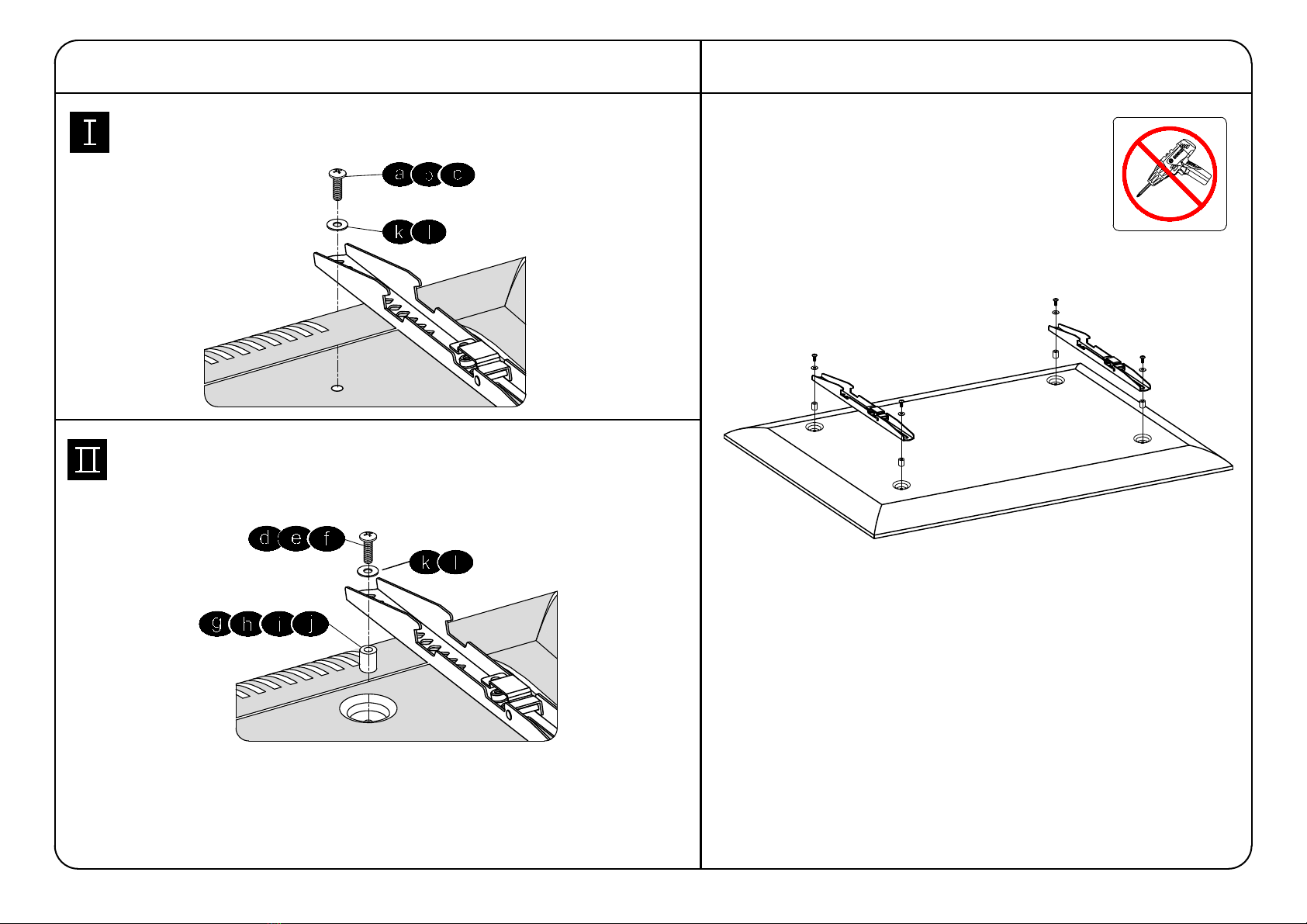

Tips: If you need to combine M6/M8(c/e/f) screws with
2.5mm spacers( i ), you have to remove the inner circle.
Yes, choose suitable screws, washers and spacers.
1-4 Attach the TV Plate
No!
No, choose suitable screws and washers.
1-3 Need Spacer?
Centre line
9
CAUTION: Avoid potential personal injury or property damage!
● Drywall covering the wall, must not exceed 5/8 in. (16 mm)
● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)
● Maximum horizontal space between fasteners: 16 in. (406 mm)
● Stud center must be verified
1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,
or an edge to edge stud finder.
2. Position the mounting template at your desired height and line up the holes with your stud center line.
Level the wall plate and mark the hole locations.
Again, find another wood stud
16"
R
8"(203.2mm)
16"(406.4mm)
Mounting template
3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.
IMPORTANT: Pilot holes must be drilled to a depth of 2.5 in. (64 mm). Be sure to drill into the center
of the studs.
4. Install wall plate using four lag bolts and four washers . Tighten the lag bolts only until
they are pulled firmly against the wall plate.
CAUTION: Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts.
Go to STEP 4 on PAGE 14.
2.5"(64mm)
7/32"
(5.5mm)
10
UP No!
