Urmet domus 1083/12 Manual de usuario

1083/12 -1083/15 -1083/16

Configuration guide

System Type D

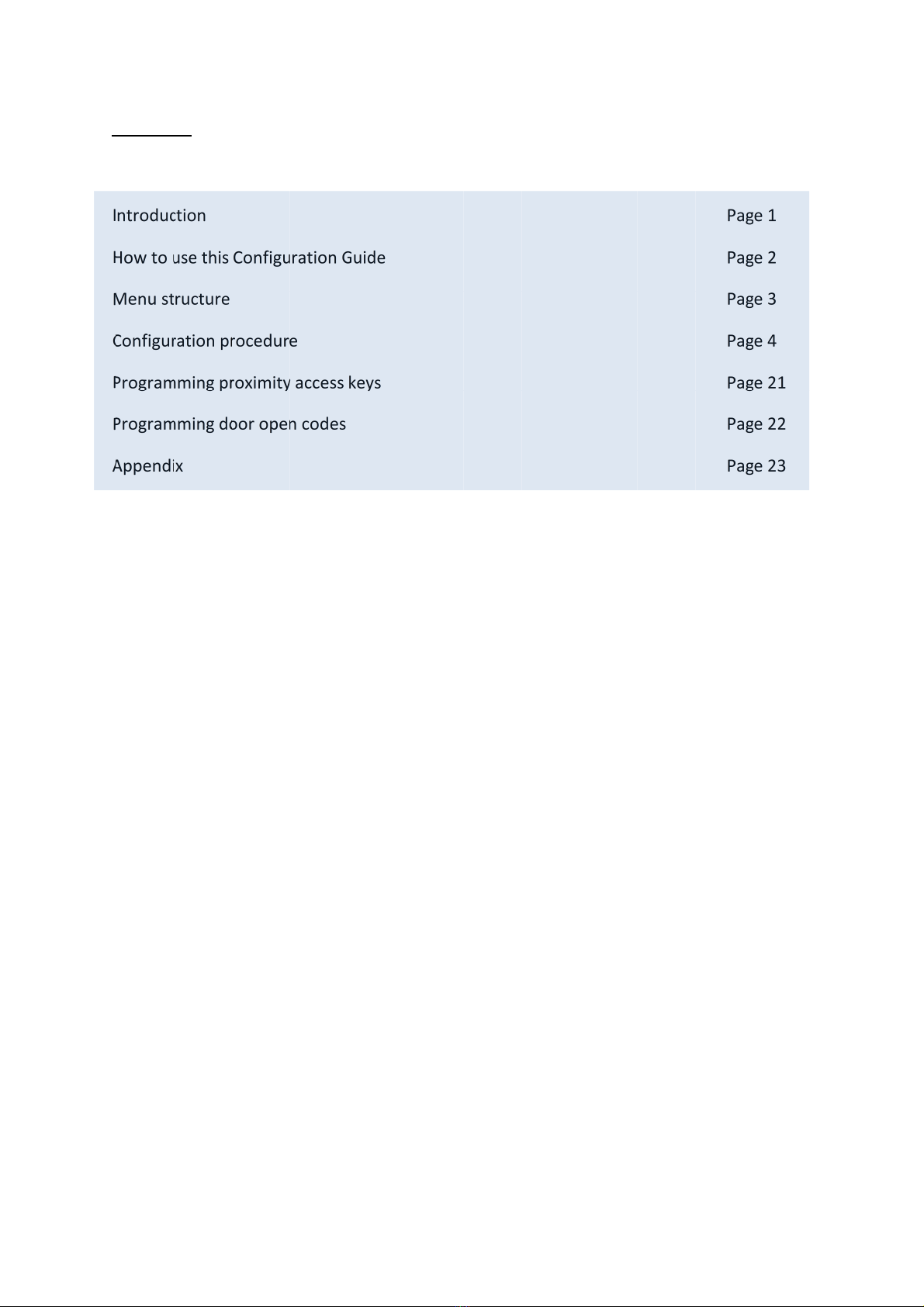

Contents

Introduction

How to use this Configuration Guide

Menu structure

Configuration procedure

Programming proximity access keys

Programming door open codes

Appendix

Contents

Introduction

How to use this Configuration Guide

Menu structure

Configuration procedure

Programming proximity access keys

Programming door open codes

Appendix

Contents

Introduction

How to use this Configuration Guide

Menu structure

Configuration procedure

Programming proximity access keys

Programming door open codes

Appendix

How to use this Configuration Guide

Configuration procedure

Programming proximity access keys

Programming door open codes

How to use this Configuration Guide

Configuration procedure

Programming proximity access keys

Programming door open codes

How to use this Configuration Guide

Programming proximity access keys

Page 1

Page 2

Page

Page 1

Page 2

Page

Introduction

1083/20 1083/20 1083/50 1083/501083/20

1083/20 1083/75

1083/50

This programming guide is intended specifically for a particular type of system –System Type D

Block A….Block 1….Block ? Block B….Block 2….Block ? Block Z….Block 32….Block ?

System Type D–

One (or up to a maximum of four) ‘Primary’ entry panels i.e. panels which call all apartments in the system.

One or more blocks (maximum of 32) each with one or two ‘Secondary’ panels which only call apartments within

that block

The apartment numbers within a block can be in any range for example 1 to 127 or 400 to 450 or 1001 to 1050

‘

Primary’

entry panels

(call all apartments)

‘Secondary’ entry panels

(call only apartments within

a specific block)

Page 1

How to use this Configuration Guide

Each entry panel in the system must be individually programmed.

Primary entry panels and Secondary entry panels are programmed using the same method but have a number of

different settings.

Whether a panel is a Primary panel or a Secondary panel depends not only on its configuration but also on its

connection within the system. Refer to the connection diagram supplied with the equipment or the diagram on

Page 1 to determine whether the panel you are configuring is Primary or Secondary.

It is not important whether Primary or Secondary entry panels are programmed first, in fact a system can be

installed with only Secondary entry panels and Primary entry panels can be added later and vice versa.

In this guide, configuration steps that are specific to Primary panels are covered on Page 6 and steps specific to

Secondary panels are covered on Page 7.

Note –When configuring the entry panel it is necessary to pass through each

step and arrive back at the top level menu for information to be saved.

Top level menu

Page 2

Menu Structure

LANGUAGE

CONFIGURATION

NAMES

DOOR OPENER

KEYS

RESET

SIMPLIFIED GUI

MODULE TYPE

MULTIRISE

ID PRIMARY MODULE

CODE TYPE

BUSY TIME

STOPABLE

DOOR LOCK 1 RELEASE TIME

DOOR LOCK 1

DOOR LOCK 2 RELEASE TIME

DOOR LOCK 2

PASSWORD

LCD BACKLIGHT

BUTTON SOUND

MULTITOUCH CALL

WELCOME MESSAGE

TIME ZONE

DATE AND TIME

DAY

POSTMAN

VOCAL SYNTHESIS

SWITCHBOARD

NEW

MODIFY

DELETE

DELETE ALL

NEW

MODIFY

DELETE

DELETE ALL

NEW

MODIFY

DELETE

Page 3

Configuration procedure

When the unit is first powered the screen is as follows –

On the entry panel keypad press 99999 and you will see this screen –

Enter 1000 (the default password) then press

Use the and buttons to select LINGUA and press

Use the and buttons to select ENGLISH UK and press

ENGLISH UK

Page 4

You see this screen –

Press the button to select CONFIGURATION then press

Use the or buttons to select YES and press

CONFIGURATION

LANGUAGE

Page 5

Primary entry panels only

PRIMARY

SECOND

ARY

Use the or buttons to select PRIMARY and press

FROM: 0

TO: 3

The RANGE OF BLOCKS depends on the number of blocks in the installation. If there

are four blocks for example, then the range is from 0to 3.

Press to move to the TO entry.

Press and then enter the last block number. 3 In this example.

Press

In a system with only one primary entry panel the ID is always 0.

In this case just press .

In a system with two, three or four Primary panels, each must have a different ID.

To change the panel ID to 1 for example,just press then press

The ID of the panel is determined by where it is connected in the system.

You must refer to the connection diagram of your system for the ID of each panel.

Page 6

Secondary entry panels only

Page 7

Use the or buttons to select SECONDARY and press

The RISE NUMBER is the Block Number between 0 and 31 or more specifically;

it is the address of the 1083/50 Riser Distributor to which the secondary panel is

connected.

For example if the secondary entry panel being programmed, is connected to a

1083/50 with the address then the RISE NUMBER is 2.

Each block can have a maximum of two secondary panels, therefore the address of

the panel being programmed can be either 0or 1.

To change the panel ID to 1 just press then press

It is suggested to keep the default setting by pressing

DOOR LOCK 1 RELEASE TIME adjusts the voltage free relay (C NO NC) time

and also the solid state lock release output (SE+ SE-) time.

For example for a time of 10 seconds press 1 0

Choosing FREE means that the door can be opened by the monitor or handset at

any time without the monitor or handset being called.

Choosing SECRET means that the monitor or handset must be called before it can

open the door.

Use the or buttons to make a selection then press

Page 8
