1. Product Introduction
This DVR is a standalone. It designed for video playing, digital recording and mass
memorizing. It is a video player that can play back high quality AV video and audio program
on your TV environment. It is also a device can you record your favorite program from
television and playback any time. It is developed by the latest digital technology. You will be
able to achieve visually high qualified pictures and good sound effects that is comparable
good as the DVD resources.
Recording - Instant Recording & Timer Recording and support one button recording.
Recording from AV1 (Composite), YUV (Component) and TV (Analog TV Tuner)
Recording file save as MPEG-2(.vob) or MPEG-4(.avi) format.
Multi Recording Quality – *.VOB HQ/ SP/ LP/ EP/ SLP/ SEP (720X576 / 720X480)
*.AVI HQ/ SP/ LP/ EP/ SLP/ SEP (720X576 / 720X480)
Time Shift - Pause you live TV program and also allow playback your recording program from
start while in the mpeg2 recording mode.
Video file supported - * .AVI (Dvix,Xvid), *.VOB(DVD), *.DAT(VCD), *.MPG(Mpeg-1/ 2)
(Up to 720x576i)
Music file supported - *.MP3, and *.WMA
Photo file supported - *.JPEG, *.BMP, and *.Gif
Data Storage – Work as a portable HDD using USB slave 2.0
USB Host – Support USB2.0 host port for recording & playback
Input Source – CVBS (composite) and YCbCr (Component and Audio (L&R Stereo)
(YCbCr Max resolution: 720x576i / Interlace YUV)
Output Source – CVBS (Composite), YPrPb (Component) _720x576i and VGA_720x576i
Audio (L&R Stereo)
Analog TV Tuner – Support analog PAL B/G, D/K, I, SECAM L and L’ reception
Backup storage – One key USB backup function
FUDIO DIGITAL DVR
3
2. Safety Information
Before installing, please read carefully all the instructions & procedure in this manual.
Turn off the power when not in use and unplug the power when not in use for a long time.
Do not open the cover to services by yourself. Contact a qualified service technician or your
retailer to help you to service.
Avoid dust, humidity, and temperature extremes.
Do not place the product in the wet or high temperature area.
Do not drop the DVR from heights. Doing so may cause damage to the hard drive.
To avoid malfunction, place the product on a stable and plat surface.
To avoid the damage of surface, do not use any cleanser or the ethyl alcohol.
This user guide is only used for installation. Please use the physical set as reference.
3. Packing List
DVR Player - 1
Remote Control - 1
User Guide – 1
AV Cable – 1
Remote Control Battery -2
AC/DC Adaptor – 1
AC/DC Adaptor Power Cord – 1
FUDIO DIGITAL DVR
4
4. Panel Function Introduction
4.1 Front Touch Sense Panel Layout (For reference only)
4.2 Front Touch Sense Panel Function Indication:
NO. Name Functions
1 Up Move Up, Next Chapter, Channel Add
2 Left Move Left, Fast Backward, Volume Down
3 Down Move Down
，
Next chapter, Channel Down
4 OK OK, Stop, Source Switch
5 Right Move Right, Fast Forward, Volume Up
6 Backup Backup USB Data to Hard Disk
7 Menu Menu Open and Returned
8 HDD_LED HDD Indicator LED Light
9 USB_LED USB Indicator LED Light
10 IR IR window
11 USB Slave Hard Disk Data Copy Connector
12 USB Host Ext. Hard Disc or Thumb Drive Connector
(Recording & Playback)
13 Power Power On/Off
1
DIGITAL VIDEO RECORDER FD7300S
2 3 4 5 6
7
8
9
10 11 12 13
FUDIO DIGITAL DVR
5
4.3 Rear Panel Layout
DC-In, AV Input, AV Output, VGA Output, TV Input & TV Output connector are show in
below panel.
4.4
Installation Guide
Option 1: RF Cable out from antenna to DVR TV In then from DVR AV (CVBS) out to TV
AV (CVBS) in jack
FUDIO DIGITAL DVR
6
Option 2: RF Cable out from antenna to DVR TV In then from DVR
(Y Pb Pr ) Component out to TV Component in jack.
FUDIO DIGITAL DVR
7
Option 3: RF Cable Out from Antenna to DVR TV In then from DVR VGA out to PC
Monitor and
DVR Audio out (L & R) to Speaker Audio (L & R) input Jack.
FUDIO DIGITAL DVR
8
Option 4: Set Top Box / DVD / VCR AV (CVBS) Out to DVR AV (CVBS) in then from
DVR AV (CVBS) Out to TV AV in jack.
FUDIO DIGITAL DVR
9

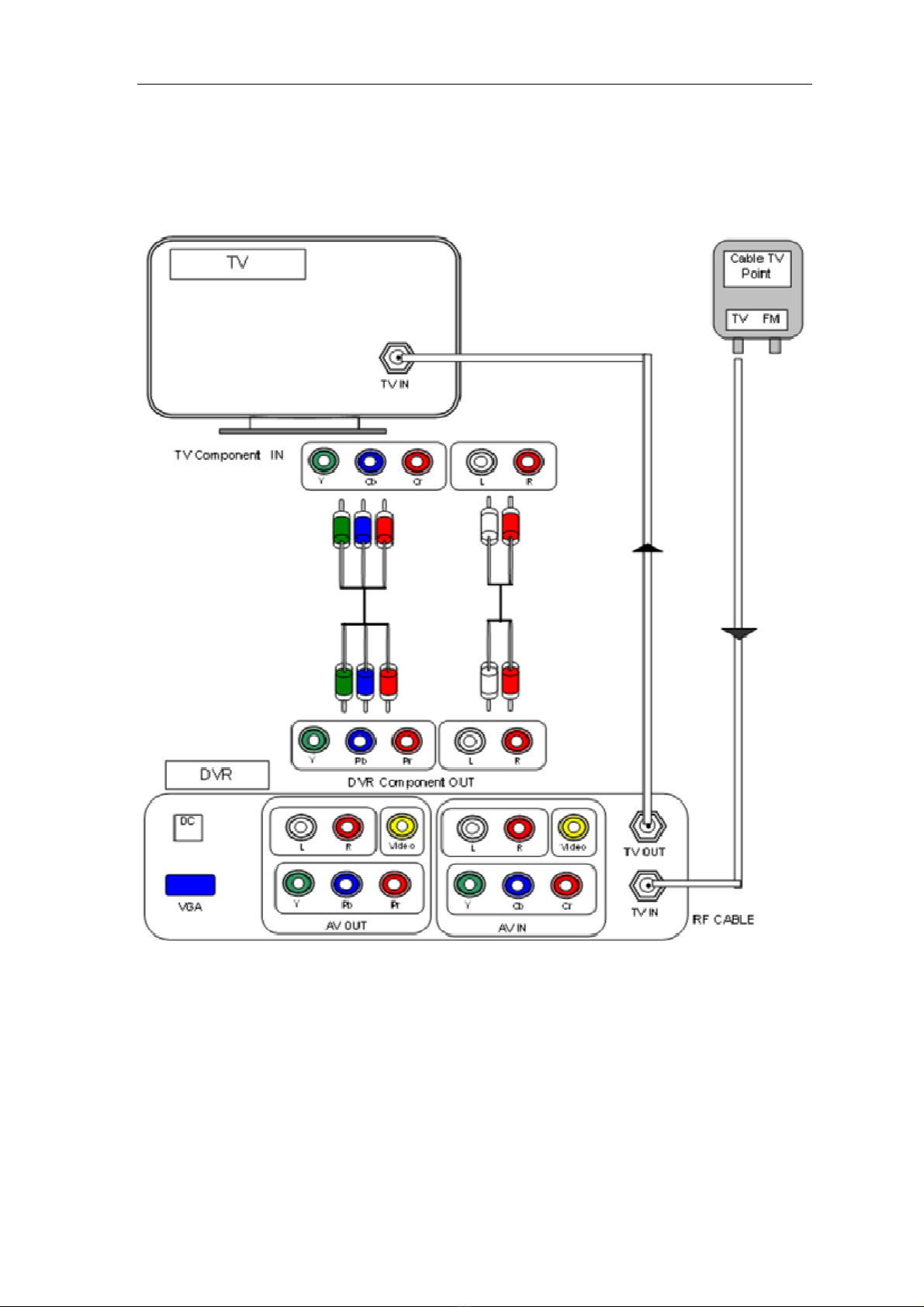

Option 5: Set Top Box / DVD / VCR AV (CVBS) out to DVR AV (CVBS) in then from
DVR Component (Y Pb Pr) Out to TV component in jack.
