Owner’s Manual

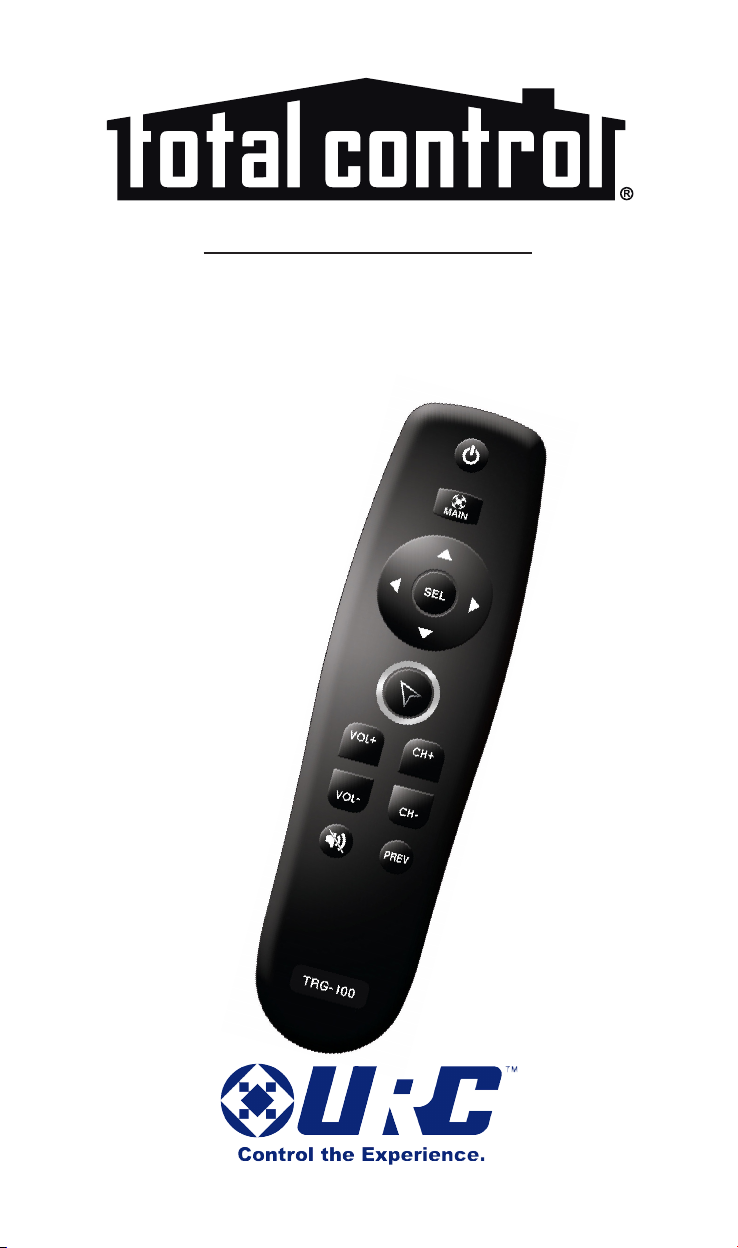

TRG-100

Umotion Remote

TRG-100 UMOTIO REMOTE

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

This remote control was Custom Programmed for you by:

For questions about your Custom Programming call:

Custom Programming of a complex home theater and/or a multi-room

system is one of the most challenging tasks within an audio/video

installation. It involves an intimate knowledge of how the components

interact and exact details on the proper sequences of control.

Only a Total Control dealer has the requisite experience and training

to quickly and effectively customize a remote control for true

automated operation.

Congratulations on your choice!

The information in this Owner’s Manual is copyright protected. No part of this manual

may be copied or reproduced in any form without prior written consent from Universal

emote Control, Inc.

UNIVE SAL EMOTE CONT OL, INC. SHALL NOT BE LIABLE FO OPE ATIONAL,

TECHNICAL O EDITO IAL E O S/OMISSIONS MADE IN THIS MANUAL.

The information in this Owner’s Manual may be subject to change without prior notice.

Total Control is a registered trademark of Universal emote Control, Inc.

U C - Control the Experience is a registered trademark of Universal emote Control, Inc.

All other brand or product names are trademarks or registered trademarks of their

respective companies or organizations.

TRG-100 UMOTIO REMOTE

Congratulations! 1

Parts Guide 1

Using the TRG-100 Umotion Remote 2

Installing the Batteries 4

Pairing to a TRF-GE1 and/or MRX-20 5

Maintaining Your TRG-100 Umotion Remote 6

Specifications 6

Limited Warranty Statement 7

End User Agreement 9

Federal Communication Commission

Interference Statement 10

Declaration of Conformity 11

Congratulations!

Thank you for purchasing the Total

Control TRG-100 Umotion Remote.

The TRG-100 works to control the

MRX-20 Advanced System

Controller’s user interface. View

and control your connected

devices throughout your home

with the user interface via a

connected HDTV

Control the on-screen interface with the remote’s built in

gyroscopic motion

The TRG-100’s built-in gyroscopic motion allows for on-screen

control and selection of all your connected devices.

RF “o Rules” Operation

The TRG-100 communicates directly to the MRX-20 via 2.4 GHz

“bidirectional” RF. This gives the TRG-100 the ability to control

your system without being in direct line of sight of the equipment.

Use the optional TRF-GE1 to extend two-way communication

between a TRG remote and an MRX-20 within a large space.

Requires MRX-20 or compatible MRX Advanced System

Controller

In combination with an MRX-20 or compatible MRX Advanced

System Controller, the TRG-100 Umotion Remote can control your

home system via the on-screen interface.

Programmable only by URC Certified Professional Programmer

To fully automate your audio/video system, the programmer must

have detailed knowledge of each component, LAN configuration,

Wi-Fi optimization and how the system is connected and operated.

Only a trained and certified professional audio/video installer can

install a TRG-100 Umotion Remote in a timely and efficient manner.

Parts Guide

The TRG-100 Extender includes:

1 - TRG-100 Umotion remote1 - Room Labels

2 - “AA” Batteries

TRG-100 UMOTIO REMOTE

Page 1

Using the TRG-100 Umotion Remote

The TRG-100 remote consists of basic buttons found on many other

remotes with the exception of the special Umotion button. Use these

functions to control your rooms and connected devices. All buttons

may vary based on your Custom Professional’s programming.

TRG-100 UMOTIO REMOTE

Page 2

Umotion Control

Allows for motion

control and button

selection via

on-screen interface.

Five-way cursor

lWhile watching

devices such as

Cable,DVD,

Sat, etc.., use the

Left/Right/Up/Down

and Select buttons to

navigate through the

device menu.

lWhile in the System

Menu, use the

Left/Right/Up/Down

and Select buttons to

navigate via the

on-screen menu.

Ch +/- Prev

Change Channels while

viewing connected

devices like Cable,

Sat , DVD etc...

Volume +/- & Mute

Control the Volume

while viewing

connected devices

like Cable, Sat ,

DVD etc... Also view

the on-screen volume

status via a

display device.

Main

Turns ON the

connected A/V devices

while displaying the

MRX-20’s System

menu. For further

details, refer to the

M X-20 Owner’s

Manual.

Power

Turns the A/V

connected

devices in the

room OFF.

TRG-100 UMOTIO REMOTE

Using the TRG-100 Umotion Remote (cont...)

In addition to the basic options, it is important to know the

additional features the buttons listed below provide, when

controlling an MRX-20 Advanced System Controller.

Power: Turns the connected devices in the room OFF.

lWhen a room is O : Pressing Power sends out a series of

commands to turn off all connected A/V devices in that

room,such as a display device or an optional SNP-1

music player.

lPressing and holding the Power button for three seconds

displays a programmer customizable on-screen Power

menu. By default the options are: Turn OFF Room, Turn

OFF House. Other options may vary based on the

programming. See Power Menu below.

Page 3

Press and

hold the

Power button

for three

seconds to

open the

Power menu.

Page 4

TRG-100 UMOTIO REMOTE

Installing the Batteries

Open the battery cover by pushing up on the

spring lock at the bottom of the cover. Remove

the cover.

Observe the + and – polarity indicators inside

the battery compartment and the batteries.

Place the two AA batteries into their positions

in the battery compartment.

Now, replace the battery cover and snap it into

place.

Main: Displays the MRX-20’s System menu via a connected display

device.

lWhen a room is OFF: Pressing Main sends out a series of

commands to turn ON all required devices to view the

on-screen display.

lWhen a room is O : Pressing Main, while the display

device is on, opens the System Main menu of the MRX-20.

Umotion: Allows for motion control and button selection via on-screen

interface. Press the Umotion button to activate on-screen movement.

Point the TRG-100 towards the television. As you move the remote, an

on-screen pointer will mimic your movements. To select a button,

hover over your selection and press the Umotion button. Placing the

remote down for ten seconds, exits the on-screen motion control.

lWhen a room is OFF: No action occurs.

lWhen a room is O : The display device shows a

Shortcuts Menu screen.

TRG-100 UMOTIO REMOTE

Page 5

Pairing to a TRF-GE1 and/or MRX-20

Before you can begin to use the TRG-100 Umotion remote, it is

necessary to pair it with either a TRF-GE1 Extender or the MRX-20

Advanced System Controller. To pair, press and hold the Main and

Sel buttons for three seconds. Once paired, the Umotion button

will flash three times. eep in mind, a TRG-100 remote can only be

paired with one MRX-20/TRF-GE1 at a time. If it is paired with a

new MRX-20/TRF-GE1, it will no longer work with the previous

setup.

Press and hold

Main and Sel for

three seconds.

Once paired, the

Umotion button

will flash three

times.

TRG-100 UMOTIO REMOTE

Page 6

Maintaining Your TRG-100 Umotion Remote

The TRG-100 Umotion Remote is not waterproof. Do not use it in

any location that is damp or wet. If you spill water on it, remove

the batteries and let the TRG-100 Umotion Remote dry for 48 hours

before you try powering it up again. If you spill coffee or another

beverage on it, clean it with distilled water. Make sure no water

gets inside the TRG-100 Umotion Remote. eep it away from

extreme cold or heat. Be careful to not drop the TRG-100 Umotion

Remote or slam it against anything.

Specifications

Microprocessor: ARM 32-bit Cortex™-M3

Memory: 16 bytes SRAM, 128 bytes Flash

RF Range(radio frequency): 50 to 100 feet, depending upon the environment

RF Freqency: 2.425~2.475 GHz

Weight: 2.6 oz

Size: 1.82” X 6.69” X 1.52”

Batteries: AA Battery 2EA

TRG-100 UMOTIO REMOTE

Page 7

Limited Warranty Statement

1. Limited Warranty and Disclaimers

Universal Remote Control, Inc. (“URC”) warrants that the URC equipment

shall be free from defects in material and workmanship under normal usage

for two (2) years from purchase when such is purchased from URC. This

limited warranty is valid only in the United States of America. URC warrants

that the software will substantially conform in any material respect to its

functional speciﬁcations at the time of delivery. URC SHALL NOT BE LIABLE

FOR OPERATIONAL, TECHNICAL OR EDITORIAL ERRORS AND/OR

OMISSIONS MADE IN THE URC DOCUMENTATION. URC DOES NOT

WARRANT THAT THE URC SOFTWARE IS BUG-FREE OR ERROR FREE

OR THAT THERE ARE NO ERRORS/BUGS IN THE URC SOFTWARE.

URC warrants that at the time of purchase the URC equipment and the URC

software complied with all applicable regulations and policies of the Federal

Communications Commissions (“FCC”) regarding electromagnetic

interference caused by electronic/computing devices and to the extent that the

URC equipment and/or the URC software fails to so comply, URC shall, at its

own expense, take all reasonable measures to promptly cause such to

comply.

URC equipment purchases from other than an authorized URC dealer or

distributor are without warranty.

THIS LIMITED WARRANTY DOES NOT COVER TECHNICAL ASSISTANCE

FOR HARDWARE OR SOFTWARE USAGE EXCEPT AS EXPRESSLY

PROVIDED FOR HEREIN, THE EQUIPMENT, SOFTWARE AND

DOCUMENTATION OF URC ARE SUPPLIED “AS IS” WITHOUT ANY

WARRANTY, EXPRESS, STATUTORY OR IMPLIED, OF ANY IND. TO

THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, URC

EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESS, STATUTORY OR

IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. URC

DOES NOT WARRANT, GUARANTEE, OR MA E ANY

REPRESENTATIONS REGARDING THE USE OF, OR THE RESULTS OF THE

USE OF, THE EQUIPMENT, SOFTWARE OR DOCUMENTATION IN

TERMS OF CORRECTNESS, ACCURACY, RELIABILITY OR OTHERWISE.

EXCEPT AS EXPRESSLY PROVIDED FOR HEREIN, TECHNICAL SERVICES

ARE SUPPLIED “AS IS”, WITHOUT ANY WARRANTY, EXPRESS,

STATUTORY OR IMPLIED, OF ANY IND. TO THE MAXIMUM EXTENT

PERMITTED BY APPLICABLE LAW, URC EXPRESSLY DISCLAIMS ALL

WARRANTIES, EXPRESS, STATUTORY OR IMPLIED, INCLUDING BUT

NOT LIMITED TO THE WARRANTIES OF QUALITY OR REASONABLE

Tabla de contenidos

Otros manuales de Mando a distancia de Universal Remote

Universal Remote

Universal Remote MX-700 Manual de usuario

Universal Remote

Universal Remote MXW-920i Manual de usuario

Universal Remote

Universal Remote PowerBlaster MRF-100B Manual de usuario

Universal Remote

Universal Remote RFX-250 Manual de usuario

Universal Remote

Universal Remote MX-5000 Manual de usuario

Universal Remote

Universal Remote MRF-260 Hoja de especificaciones

Universal Remote

Universal Remote Expander MRF-100A Manual de usuario

Universal Remote

Universal Remote RF-20 Manual de usuario

Universal Remote

Universal Remote TRG-200 Manual de usuario

Universal Remote

Universal Remote Medius TX-1000 Manual de usuario

Universal Remote

Universal Remote Unifier URC-100 Manual de usuario

Universal Remote

Universal Remote MX-780 Manual de usuario

Universal Remote

Universal Remote URC-R6 Manual de usuario

Universal Remote

Universal Remote Digital R50 Manual de usuario

Universal Remote

Universal Remote Complete control Manual de usuario

Universal Remote

Universal Remote R5 Manual de usuario

Universal Remote

Universal Remote Complete Control MX-450 Manual de usuario

Universal Remote

Universal Remote Genesis MX-900 Manual de usuario

Universal Remote

Universal Remote SL-9000 Manual de usuario

Universal Remote

Universal Remote Aurora MX-950 Manual de usuario

Universal Remote

Universal Remote Aurora MX-950 Manual de usuario

Universal Remote

Universal Remote Medius TX-1000 Manual de usuario

Universal Remote

Universal Remote MRF-350i Manual de usuario

Universal Remote

Universal Remote MRF-350 Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
