The Remote



Playback Controls

Your remote control offers standard capabilities, as well as enhanced remote control buttons that function

similarly to DVD controls.

Here’s what each button does:

List Select to see a list of recorded programs. Press the LIST button a second time

to see what is scheduled to be recorded. Press LIST a third time to access your Series

Rules.

Live Select to return to the current part of a live broadcast.

Skip Forward Skip forward 30 seconds while watching a recording or live TV.

Skip Back Skip backward ten seconds while watching a recording or while

watching live TV.

Play Begin or resume watching a recording. Also display/remove the status bar.

Fast Forward Fast forward through parts of a recording. Press multiple times to

go forward faster.

Record Record a program

Pause Pause the program you are currently watching. While paused, the Fast-

Forward button will play the program frame by frame in slow motion.

Stop Stop watching a recording or stop a recording that is in progress.

Rewind Rewind through parts of a recording. Press multiple times to rewind faster.

Guide Access the program Guide. Press a second time for alternate view.

Arrows/Browse/Search/OK Press to navigate through the guides, menu options

or to make selections.

S B

E R

A O

R W

C S

H E

PROGRAM YOUR REMOTE CONTROL

This remote control is already pre-programmed to control your Set Top Box

(STB). The instructions below will program this remote to control your TV.

1. Manually turn ON the TV that

you want to setup on the

remote

2. Press and Hold until the

TV key blinks twice

3. Press and release the TV key.

The TV key will stay lit.

4. Find your TV and brand from

the chart below and note the

DIGIT key assigned to your

brand. Press and hold down

the DIGIT key for your

device/brand while pointing

the remote to the device.

5. Let go of the key when your

device turns OFF. Setup for

that device is complete.

To program this remote control to

your other devices ,

see the instructions below the

table.

DVD/VCR

Audio

DIGIT

BRAND

DIGIT

BRAND

DIGIT

BRAND

Insignia

Bose

Denon

Panasonic

Philips/Magnavox

Philips, Magnavox

Onkyo

Samsung

RCA

Panasonic

Sanyo

Samsung

Philips

Sharp

Pioneer

Sony

Samsung

Vizio

Toshiba

Sony

Westinghouse

VIZIO

Yamaha

*If you model of device is not on this list, please call _______________________ for a list of

additional device codes.

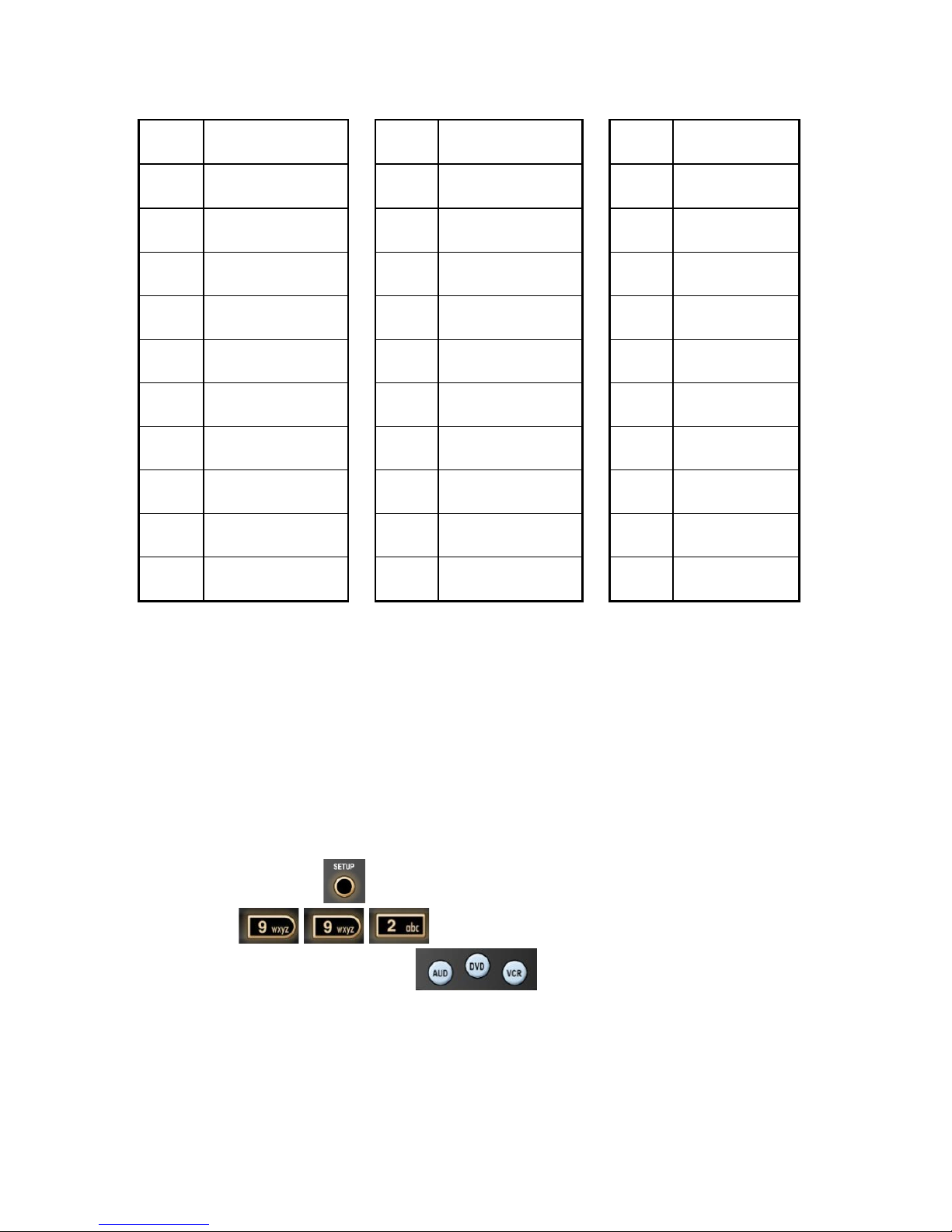

Unlocking the Default Setting to Make AUD, DVD, and VCR

Buttons Programmable

The AUD, DVD and VCR mode keys have a default setting which means they are

automatically set to the STB. If you would like to program these mode keys to

your devices, please follow the instructions below to lock the default setting.

1. Press and Hold until the mode key blinks twice.

2. Type .

3. Then press the mode key you desire to program

twice.

4. This will remove the STB mode and a new Audio, DVD or VCR code

can now be programmed.

5. Follow steps 1 through 5 on the first page of this brochure replacing

the word “TV” with the name of the mode key you just unlocked.

PROGRAMMING DEVICE CONTROL

The Potenza ST Universal Remote Control is preprogrammed to operate the set-top box provided by your television

service provider, an RCA TV, a Toshiba DVD player, an RCA VCR, and a Pioneer audio receiver. To control devices

other than the default brands, perform the following steps; otherwise skip this section.

NOTES: or control of a Combo device (for example, a TV/VCR combo), skip this section and per-form

the instructions on “Setting Up a Combo Unit” on page 9. Also refer to “Device Table” on page 7 to find

out which devices can be programmed onto each device key. If you have another brand of set-top box you

would like to control, you’ll need to unlock the STB ID Lock before changing the set-top box code (see

“Programming ID Lock” on page 12).

1. Turn on a device and, if applicable, insert video media, (e.g., cassette or disc).

NOTE: Please read steps 2 through 5 completely before proceeding. Highlight or write down the codes

and device you wish to program before moving on to step 2.

2. On the remote control, press a device key once (i.e., VCR, DVD, AUD, TV, or STB ); it will blink once.

3. Press and hold SETUP until the selected mode key blinks twice, then release SETUP .

4. Use the “Manufacturer’s Codes” starting on page 17) to locate the type of device and brand name and then enter

the first four-digit code for your device. If performed correctly, the selected mode key will blink twice.

NOTE: If the selected mode key emits a long blink, the entry is invalid. Repeat steps 2 through 4 and try

entering the same code again.

5. Aim the remote control at the device and press POWER once. The device should turn off. If it does not, repeat

steps 2 through 4, trying each code for your brand until you find one that works. If it still does not respond, try

searching for the code (see “Searching for Your Code” on page 9).

NOTE: If the device does not have a POWER key (e.g., DVD and VCR) , press the (Play) key.

6. Repeat steps 1 through 5 for each device you want the remote control to operate. or future reference, write down

each working device code in the boxes below.

TV Code AUD Code DVD Code AUD Code STB Code

Device Type:

Code

SETTING UP A COMBO UNIT

If you own a combo unit such as a TV/VCR Combo or a TV/DVD Combo, you need to follow special steps to set it up.

Perform the following instructions to control combo device:

1. or a TV/VCR Combo, turn on your TV/VCR Combo and insert a video cassette. ( or a TV/DVD Com bo, inser t

a DVD).

2. On the remote control, press VCR once; it will blink once. Then press and hold SETUP until the VCR

key blinks twice.

3. Use the “Manufacturer’s Codes” starting on page 17 to locate the brand name and enter the first four-digit code

for your combo device (for example, TV/VCR). If you perform this procedure correctly, the VCR key w ill blink

twice.

NOTE: If the VCR key did not blink twice after entering the codes last digit, repeat steps 2 through 3

and try entering the same code again. If you’ve located a setup code that works for your combo device (for

example, a TV/VCR Combo) and a separate TV code is also listed, you’ll need to program this code into

the remote control to access volume control ( see “Programming Device Control” starting on page 8).

4. Aim the remote control at your combo device (for example, TV/VCR Combo) and press POWER once. The

device should turn off. If it does not respond, repeat steps 2 through 3, trying each code listed for your brand until

you find one that works. If it still does not respond, try searching for the code (“Searching for Your Code” starting

on page 9).

5. or future reference, write down each working device code in the boxes below:

TV Code TV/VCR Code TV/DVD Code

Device Type:

Code

SEARCHING FOR YOUR CODE

If your home entertainment device does not respond to the Potenza ST Universal Remote Control after trying all of the

codes listed for your brand, or if your brand is not listed at all, try searching for your code. or example, to search for a

code for your TV:

1. Turn on your TV.

2. On the remote control, press TV once; it will blink once. Then press and hold SETUP until the TV key

blinks twice.

3. Type 9 9 1 . The TV key will blink twice.

4. Aim the remote control at the TV and press POWER once.

5. Press and release the CH+ key continuously, then stop when the TV turns off.

NOTE: In the search mode, the remote control will send IR codes from its library to the selected device,

starting with the most popular code first.

6. Press POWER . The TV should turn on, then press SETUP once to lock in the code. The LED will blink

twice to indicate that the code is saved.

NOTE: If the TV does not turn on during step 6, then slowly press and release CH- to go back through

the codes, then press SETUP when the TV turns on.

7. To search for the codes of your other devices, repeat steps 1 through 6, but substitute the appropriate key (e.g.,

TV, AUD, DVD, AU , or STB ) for the device you are searching for.

PROGRAMMING MASTER POWER KEY

The Potenza ST Remote Control has a unique feature that allows you to sequentially turn up to

five of your home entertainment devices on or off with a single key press.

Note: The Master Power (POWER) only works in STB mode. If it is not programmed, only the

set-top box will turn on or off. In any other mode, pressing Master Power (POWER) once will

turn the selected device on or off.

Programming the Master Power Key

1. Press and hold SETUP key until the last device key blinks twice.

2. Enter 9 9 5 and release.

Note: The LED will blink 2 times after any three-digit programming sequence is entered correctly

3. Press POWER once.

4. Press device keys you want in the power sequence (STB, TV, AUD, DVD, VCR).

Press and hold SETUP

key until the last device key blinks twice

(3 seconds).

play back

the power sequence, press the POWER

key while in STB mode.

Clearing the Master Power Key

1. Press and hold SETUP key until the last device key blinks twice.

2. Enter 9 9 5 and release.

Note: The LED will blink 2 times after any three-digit programming sequence is entered correctly

3. Press POWER key and release.

Press and hold SETUP

key

until the STB key blinks twice

(3 seconds).

PROGRAMMING CHANNEL CONTROL LOCK

By default, the remote control’s channel-control capabilities are not locked to the set-top box

mode. However, you can activate the feature to lock these keys to the STB Mode. This will

guarantee you do not inadvertently change a channel on your TV or VCR.

The affected keys are 1 through 0, CH+, CH-, and LAST.

Locking Channel Control (to a Source Mode)

1. Press and hold SETUP key until it blinks twice.

2. Enter 9 7 3 and release.

Note: The LED will blink 2 times after any three-digit programming sequence is entered correctly.

3. Press the CH+ key and release.

4. Press the STB device key to lock channel control to the STB mode.

*Default channel control lock is in unlocked state.

Un-Locking Channel Control

1. Press and hold SETUP key until it blinks twice.

2. Enter 9 7 3 and release.

Note: The LED will blink 2 times after any three-digit programming sequence is entered correctly.

3. Press the CH- key and release.

*Default channel control lock is in unlocked state.

PROGRAMMING VOLUME LOCK

Volume Lock allows you to control the volume through the device identified as having your

primary speakers(s), regardless of which mode you are using. On the Potenza ST Remote

default the global volume Lock is set to TV, so you can control TV volume while in the TV, DVD,

AUX, or STB

mode. The volume lock feature is programmable. Perform individual Volume

Unlock on a selected device to set its volume control for independent operation.

NOTE: The audio mode’s (AUD) volume controls are active regardless of Volume Lock settings. However, if you

lock the volume controls to the AUD mode, you will control the audio device’s volume in all other modes (i.e. TV,

DVD, AUX, or STB). This can be an advantage if, for example, you always listen to home entertainment devices

through your device’s speakers.

Programming Global Volume Lock

The user can globally lock the volume controls to one source mode (Device Key):

1. Press and hold SETUP key until the device key blinks twice.

2. Enter 9 9 3 and release.

Note: The LED will blink 2 times after any three-digit programming sequence is entered correctly.

3. Press VOL + key and release.

4. Press Device Key you want to be the master audio source (TV, AUD).

Programming Global Volume Unlock

The user can reset the volume controls to that one source mode:

1. Press and hold SETUP until the device key blinks twice.

2. Enter 9 9 3 and release.

Note: The LED will blink 2 times after any three-digit programming sequence is entered correctly.

3. Press VOL - key and release.

Programming Single-Device Volume lock

1. Press the desired Device Key (TV, AUD) to lock the volume to and release.

Press and hold SETUP

key

until it blinks twice.

3. Enter 9 9 3 and release.

Note: The LED will blink 2 times after any three-digit programming sequence is entered correctly.

Press the Device Key

(STB,

TV, AUD)

that you want to have the volume control locked

the device selected in step 1.

5. Press SETUP and release.

Note: The last selected device LED will blink 2 times if programming sequence is entered correctly.

Note: After you select a device that has volume unlocked (i.e. STB), pressing VOL+, VOL-, or Mute, will control only that

device’s volume.

CHECKING THE CODES

If you have set up your remote control by searching for your device code (previous section), you may need to find out

which four-digit code is operating your equipment. or example, to find out which code is operating your TV:

1. On the remote control, press TV once; it will blink once. Then press and hold SETUP until the TV key blinks

twice.

2. Enter 9 9 0 . The TV key will blink twice.

3. To view the code for the first digit, press 1 once. Count the number of times the TV key blinks (e.g., 3 blinks =

3) and write down the number in the left most TV Code box above.

NOTE: If a code digit is 0, the selected mode key will not blink.

4. Repeat step 3 three more times for the remaining digits. Use 2 for the second digit, 3 for the third digit, and 4

for the fourth digit. inish writing down the code in the TV Code boxes above

5. To check for other device codes, repeat steps 1 through 4, but substitute the appropriate key (e.g., TV, AUD,

DVD, AU , or STB ) for the device you are checking. Write down the codes in the appropriate boxes above.

USING LEARNING

The Potenza ST Universal Remote Control includes a Learning feature (not available on all models) so you can add

functions that are unique to your home entertainment devices (e.g.,VCR Tracking Up or Down).

However, there are some considerations.

Learning Precautions

•Your original remote controls must be in working order for learning to work properly.

•Learned keys are mode-specific, so each one can store a unique function for each mode.• Do not use the following

keys for learning: Device Keys, SETUP, Record (•), Tune-In Keys .

•Learning capacity is approximately 16 to 25 keys, depending on the code being learned.

•Certain device functions are not learnable including multi-frequency types, some high frequency ones, and other

unusual formats.

•or optimum learning, avoid high levels of ambient light such as natural sunlight or energy-efficient fluorescent

lights.

•Please have your original remote controls NOTE: handy before programming learning.

Programming a Learned Key

NOTE: If more than 15 seconds pass between key presses, the remote exits programming.

1. Press and hold SETUP until the last-selected mode key blinks twice, then press 9 7 5 .

NOTE: If the LED displays one long flash instead, either your batteries are low, or the Potenza ST

Universal Remote Control has a memory fault.

2. Press a mode key once (i.e., TV, AUD, DVD, AU , or STB ) to assign a mode for learning.

3. Press the desired key on the Potenza ST once to store the feature to be learned.

4. Place the Potenza ST Remote Control head-to-head (about 2" apart) from your original remote control . Also

locate the key (on your original remote control) that you want the Potenza ST Universal Remote Control to learn.

5. On the original remote, press and hold the key to be learned. The Potenza ST Remote Control’s LED will blink

Otros manuales para Potenza ST

Tabla de contenidos

Otros manuales de Mando a distancia de Universal Electronics

Universal Electronics

Universal Electronics Nevo C3 Manual de usuario

Universal Electronics

Universal Electronics DST-400 Manual de usuario

Universal Electronics

Universal Electronics ATLAS OCAP 5 Manual de usuario

Universal Electronics

Universal Electronics URC-2054 Manual de usuario

Universal Electronics

Universal Electronics Contour Manual de usuario

Universal Electronics

Universal Electronics Delta M3068 Manual de usuario

Universal Electronics

Universal Electronics Millennium 4 Manual de usuario

Universal Electronics

Universal Electronics URC2068BC2 Manual de usuario

Universal Electronics

Universal Electronics Apple TV Remote for Video Service Providers Manual de usuario

Universal Electronics

Universal Electronics SCOUT Manual de usuario

Universal Electronics

Universal Electronics CRICKET Manual de usuario

Universal Electronics

Universal Electronics COGECO ATLAS DVR 5-DEVICE Manual de usuario

Universal Electronics

Universal Electronics NevoSL Manual de usuario

Universal Electronics

Universal Electronics URC5110 Manual de usuario

Universal Electronics

Universal Electronics C4000 Manual de usuario

Universal Electronics

Universal Electronics Millennium 4 Manual de usuario

Universal Electronics

Universal Electronics ATLAS XL Manual de usuario

Universal Electronics

Universal Electronics Potenza ST URC66950BA1 Manual de operación y mantenimiento

Universal Electronics

Universal Electronics Apple TV Remote for Video Service Providers Manual de usuario

Universal Electronics

Universal Electronics Atlas CABLE 4 Manual de usuario

Universal Electronics

Universal Electronics Watch Remote Control Manual de usuario

Universal Electronics

Universal Electronics URC2168 Manual de usuario

Universal Electronics

Universal Electronics ATLAS OCAP 5 Manual de usuario

Universal Electronics

Universal Electronics Potenza ST Manual de usuario

Manuales populares de Mando a distancia de otras marcas

Panasonic

Panasonic EUR7622KB0 Manual de usuario

Bang & Olufsen

Bang & Olufsen Beo4 Manual de usuario

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manual de usuario

Multiplex

Multiplex PROFI TX 9 Manual de usuario

One Remote

One Remote RMB4 Manual de usuario

FUTABA

FUTABA 9ZAP - PART2 Manual de usuario

HR Matic

HR Matic HR MULTI 3 Manual de usuario

Yamaha

Yamaha ACC-GNRST-30-20 Manual de usuario

EisSound

EisSound KBSOUND Manual de usuario

Marantz

Marantz RC101 Manual de usuario

Conrad

Conrad FS20 TC6 Manual de usuario

Anritsu

Anritsu MP1777A Manual de usuario

Niles

Niles WVC100 Guía de solución de problemas

RCA

RCA RCU1300 Manual de usuario

Bang & Olufsen

Bang & Olufsen BEO6 Manual de usuario

GE 94901 Manual de usuario

Onbon

Onbon YQ1-75 Manual de usuario

FUTABA

FUTABA R7108SB Instrucciones de instalación
