Unitech MS912+ Manual de usuario
MS912+ Wireless
Barcode Scanner
Quick Guide
Version 1.8
For more detailed scanner setting,
please go to www.ute.com to
download the user manual and scanner
configuration manager utility.
- 1--2-
OUT OF THE BOX
Quick Connection Card
Wrist Lanyard
INTRODUCTION
SPECIFICATIONS
Quick Guide
USB Charger Cable
MS912 Wireless
Pocket Scanner
Quick Guide
NUMERIC BARCODES
1
*1*
2
*2*
3
*3*
4
*4*
5
*5*
Wireless Pocket
Scanner
3.
LED Indicator
1. Type-C USB port 4.
Exit Window
2.
Trigger
5. Hard
Reset Button
(insert pin into the hole)
Light source 625nm visible red LED
Scan rate 650 scans/sec
Sensor Linear CMOS sensor
Resolution 4mil/ 0.1mm
PCS 30%
Housing Plastic(PC+ABS)
Profile SPP, HID
Battery Life 6000 scans (1 scan/ 5 sec)
Charge Time 2 hours (fully charged)
Coverage 10M/33ft. (line of sight)
Operating Temp -10 to 50˚C (14˚F to 122˚F)
Symbologies All major 1D barcodes incl. GS1 Databar
- 3--4-
CHARGING THE BATTERY
1. Flip open the Type-C USB port on the scanner.
2. Insert the Type-C USB connector into the port on the
scanner and USB A connector into a USB port on
the host PC or a smartphone charger.
BEEPER INDICATION
LED INDICATION
Single long beep Power up
Single beep Good read
Single short beep The scanner reads a Code39 of
ASCII in configuration procedure
Two beeps i. Wireless connection
ii. The scanner successfully reads
a configuration barcode
Two short beeps Good read (Auto mode)
Several short beeps The scanner switches from one
communication mode to another
Off
Flashing Green
One Green Flash
Flashing Red
Solid Red
Standby or Power off
Disconnected or Discoverable
Good Read
Low power
Charging
GETTING STARTED
Four beeps (Hi-Lo-Hi-Lo) Out of range/Poor connection
Five beeps Low power
Three beeps Wireless disconnection
Three short beeps i. The scanner reads a barcodes
while disconnected.
ii. The scanner reads an unexpected
barcode during configuration
procedure. (scan [ABORT] to abort
and start over)
USB A
Host Scanner
Type C
To scan a barcode, make sure the aiming beam crosses
every bar and space of the barcode.
- 5--6-
INTERFACE
There are 5 interfaces for data transmission/collection:
1. BT HID - Emulates a Bluetooth HID keyboard that transmits
each barcode data to the host after decode.
(See page 7)
2. BT SPP - Emulates a Bluetooth SPP device that transmits
each barcode data to the host after decode.
(See page 7)
3. Batch Mode - Emulates a USB mass storage device
that saves each barcode data during
off-line data collection (See page 23)
4. USB HID - Emulates a USB keyboard that transmits each
barcode data to the host after decode.
5. USB VCP - Emulates a USB virtual com device that
transmit each barcode data to the host after
decode.
INTERFACE
. C006$
USB VCP
. C008$
USB HID
BT SPP
. C035$
BT HID
*Note: For Ez Utility(PC-based software utility), please contact your local
distributor.
FuncƟon Support Matrix
Mode Interface Auto Mode Batch Mode Ez UƟlity
USB HID
USB VCP
BT HID
Wireless
Tethered
BT SPP
Batch
. E042$
. E043$
Batch Mode
(MS912M+ only)
- 7--8-
GETTING CONNECTED PINCODE SETUP
1. Press the trigger for 1 second to activate the scanner.
2. Scan [DISCONNECT]
3. Scan [BT mode - SPP]
4. Select “Wireless Scanner” from discovered device list.
If pincode is requested, enter default pincode “1234”.
5. Open serial communication software with com port
properly set up.
6. The scanner will beep twice to verify the connection.
There are two modes of wireless communication:
. E042$
BT mode - SPP
Pincode Start
. E032$
. E033$
. E043$
BT mode - HID
Disconnect
. E031$
$TX
1. Press the trigger for 1 second to activate the scanner.
2. Scan [DISCONNECT]
3. Scan [BT mode - HID]
4. Select “Wireless Scanner” from discovered device list.
5. If the Bluetooth application requests to enter pincode,
please refer to PINCODE SETUP section on the next page.
6. The scanner will beep twice to verify the connection.
Scan numeric barcodes (see NUMERIC BARCODES section
on the next pages) based on the pincode generated
by the Bluetooth application.
STEP 1
Pincode Stop
Enter
STEP 4
STEP 3
STEP 2
[ Recommended ]
- 9--10 -
NUMERIC BARCODES
1
2
3
4
5
6
7
8
9
0
- 11 --12 -
SMARTPHONE/TABLET TOUCH KEYBOARD
Touch Keyboard - Android
Touch Keyboard - iOS

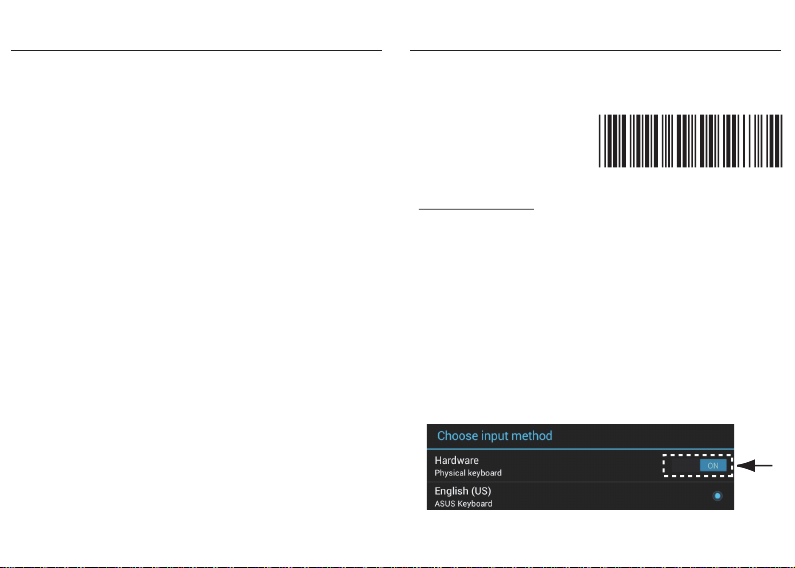

While connected with the scanner, the Touch Keyboard on the
Android smartphone or tablet might disappear. To resolve this
issue, please change settings on Android device with below steps:
1. Enter “Settings”
2. Enter “Language & input”
4. Turn off “Physical keyboard”, or Turn on “On-screen keyboard”
and the Touch Keyboard will function properly again.
3. Tap on “Default keyboard”
After enabling iOS Hotkey(enabled by default), you may simply
double-click the trigger to toggle the iPhone/iPad Touch Keyboard.
. E047$
ENABLE iOS HOTKEY
Slide to
turn off
POWER OFF TIMEOUT
Variable Timeout
No Timeout (Scanner Always On)
*.B030$*
. B030$
SET MINUTE
*.B029$*
. B029$
SET SECOND
*.B021$*
. B021$
DISABLE
TIMEOUT
The default timeout is 3 minutes 0 second.
For example, to set the timeout as 5 minutes 30 seconds:
1. Scan [Set Minute]
2. Scan [0] & [5] on page 9 & 10.
(Range: 00 ~60)
(Range: 00 ~60)
3. Scan [Set Minute]
4. Scan [Set Second]
5. Scan [3] & [0] on page 9 & 10.
6. Scan [Set Second]
The period of inactivity before auto power-off.
- 13 --14 -
GENERAL SETTINGS TERMINATOR
LF
CR + LF
NONE
SPACE
TAB
. D012$
CR
. D011$
. D013$
. D010$
. D015$
. D014$
BEEPER
. P023$
. A007$
. F012$
ABORT
CHECK
VERSION
BEEP OFF
. F018$
. A001$
DEFAULT
BEEP ON
- 15 --16 -
KEYBOARD LAYOUT
. C010$
ENGLISH
(USA)
. C018$
ENGLISH
(UK)
. C011$
GERMAN
. C012$
FRENCH
. C013$
SPANISH
. C014$
ITALIAN
. C009$
JAPAN
(106 key)
CANADIAN
(TRADITIONAL)
. C034$
NORWEGIAN
. C029$
SWEDISH
. C026$
PORTUGUESE
. C031$
CANADIAN
(FRENCH)
. C025$
- 17 --18 -
HUNGARIAN
(101 KEY)
BRAZILIAN
(PORTUGUESE)
SLOVAK
SWISS
(FRENCH)
DUTCH
DANISH
BELGIAN
(AZERTY)
. C016$
SWISS
(GERMAN)
KEYBOARD LAYOUT
. C017$
CZECH
(QWERTY)
. C022$
CZECH
(QWERTZ)
HUNGARIAN
(QWERTZ)
. C021$
. C015$
ALT CODE
. C024$
. C023$
. C033$
. C032$
. C027$
. C028$
. C030$
