Uniden XS215 Manual de usuario
XS215
2.4GHz
Caller ID
Rocket Dial
MANUAL
OWNERS
XS215.Qx 10/21/03 5:45 PM Page 1
2
Choosing the best location for your XS215
When choosing a location for your phone there are a number of appliances the phone should not be near, and areas you should avoid.
AVOID -
Television sets and
other electronic
appliances
CHOOSE -
a central location
AVOID -
Microwave ovens
AVOID -
Computers
AVOID -
Moisture
AVOID -
Other Cordless
phones
INSTALLATION & SAFETY
AVOID -
Connecting more
than
3
phones as Ringing
may be impaired.
AVOID -
moisture
DON’T -
overload the
power oulet.
CHARGE -
the new phone for 15
- 20 hrs and raise the
antenna before
making a call.
This symbol indicates important operating and
servicing instructions.
XS215.Qx 10/21/03 5:45 PM Page 2
3
This page is a very condensed version of the Owners Manual. It is designed to allow you to get your phone installed and operating as quickly
as possible - however it does not attempt to explain any of the advanced features of the XS215 .
Installing
the Base Unit
●Plug the telephone cord into the
Base Unit, then into the telephone
socket on the wall.
●Plug the AC Adaptor cord into the
Base Unit, then the AC Adaptor into
the wall power point.
●Press the AC Adaptor cord into the
curved recess under the Base Unit.
●Raise the antenna.
Make sure the AC
Adaptor remains
switched ON at all
times.
Use only the Uniden AC
Adaptor supplied with
this unit.
AC Adaptor
Telephone Cord
Power point
Australia
New Zealand
XS215.Qx 10/21/03 5:45 PM Page 3
4
Installing the
Handset Battery
Place the handset on the base
Unit and charge it uninterrupted
for 15-20 hours.
●Position the battery in the compartment
and slide the back cover into place.
●Connect the battery plug to
the socket in battery
compartment.
Make sure the plug is
the right way round.
Press firmly until it clicks
into place.
●Press the battery cover and
slide it off.
Storing a Number
Please refer to pages 16 & 17 for details of how to store
numbers in your phone’s memory and how to call
stored numbers.
Making a Call
●Pick up the handset and press .
Dial the phone number
OR
Dial the phone number - then press .
●To hang up - press
OR
Place the handset on the base Unit.
Answering a Call
●Handset on Base Unit:
Remove the handset from the base and speak (Auto
Talk).
●Handset off the Base Unit:
Press and speak.
●To hang up - press or place the handset on
the base unit.
XS215.Qx 10/21/03 5:45 PM Page 4
5
INSTALLATION & SAFETY 2
QUICK REFERENCE GUIDE 3
FEATURES 6
CONTROLS AND FUNCTIONS 7
GETTING STARTED
Battery Maintenance 9
Direct wall mounting 10
Changing the Digital Security Code 11
Installing the Beltclip 11
Headset Installation 11
BASICS
Making and Receiving Calls 12
Adjusting the Handset Ringer and
Earpiece Volume 13
Traveling Out-of-Range 14
Selecting a Different Channel 14
Page 14
FLASH AND CALL WAITING 15
Voice Mail Waiting Indicator 15
MEMORY DIALING
Storing Phone Numbers and Names 16
Steps for Entering Names and Special Characters 18
Making Calls with Memory Dialing 19
Chain Dialing 20
Editing a Stored Name and/or Phone Number 20
Erasing a Stored Name and Phone Number 22
ROCKET DIAL
Rocket Dial 23
Storing and Editing the Rocket Dial 23
Making Calls with the Rocket Dial 24
Deleting the Rocket Dial 24
CALLER ID FEATURES
Caller ID 25
When the Telephone Rings 25
Pop Up Name (Name Tagging) 26
Viewing the Caller ID Message List 26
Deleting Information from the Caller ID List 27
Using the Caller ID List 29
ADDITIONAL INFORMATION
Setting Menu Options 31
Troubleshooting 32
Warranty 34
CONTENTS
XS215.Qx 10/21/03 5:45 PM Page 5
6
To bring outstanding wireless communication products to people’s lives throughout the world.
Be sure to visit our web site: www.uniden.co.nz
www.uniden.com.au
www.uniden.co.nz
COMPANY PHILOSOPHY
•2.4 GHz Extended Range Technology
•3Line Backlit Display
•Caller ID
•Rocket Dial
•20 Number Memory Dialing
•32 Digit Redial
•Flash and Pause
•Beltclip
•Page/Find handset
•Up to 7 Hour Talk Time
•14 Day Standby Time
•Handset Earpiece and
•Ringer Volume Control
•Hearing Aid Compatible
•20 Channel Autoscan
•Headset Compatible
FEATURES
XS215.Qx 10/21/03 5:45 PM Page 6
7
CONTROLS AND FUNCTIONS
1. Handset antenna
2. Beltclip hole
3. Optional headset jack
4. Handset battery compartment
5. Handset earpiece speaker
6. LCD display
7. key
8. /flash key
9. / key
10. key
11. /pause key
12. Handset microphone and ringer speaker
13. key
14. key
15. key
16. key
17. / key
18. key
19. /channel key
20. Handset charging contacts
CONTROLS AND FUNCTIONS
2
3
4
1
5
7
6
8
9
11
20
16
15
14
13
10
12
19
18
17
and
(tone and oper) are
not functional in New
Zealand or Australia.
XS215.Qx 10/21/03 5:45 PM Page 7
8
CONTROLS AND FUNCTIONS
21. status LED
22. key
23. Base charging contacts
24. Telephone line jack
25. DC IN 9V jack
21
24 25
22
23
XS215.Qx 10/21/03 5:45 PM Page 8
9
GETTING STARTED
Battery use time (per charge)
From fully charged (15-20 hours charge time)
• Up to seven hours continuous use during talk mode
• Up to fourteen days when the handset is in the standby mode

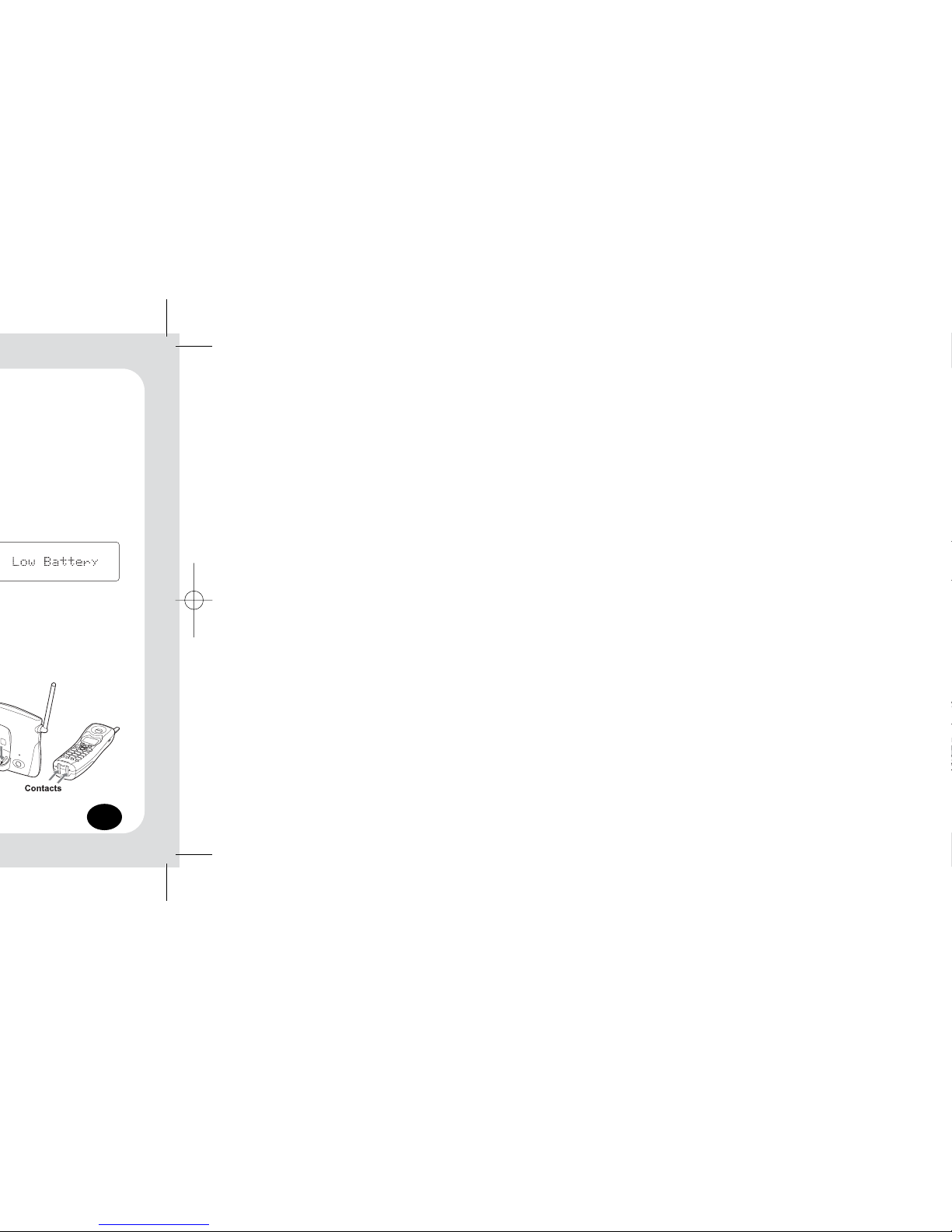

Low battery alert
When the battery pack is very low and needs to be charged, the phone is programmed
to eliminate functions in order to save power. If the phone is not in use, Low
Battery¨ appears on the LCD and none of the keys will operate.
If the phone is in use, ¨Low Battery¨ flashes and the handset beeps. Complete
your conversation as quickly as possible and return the handset to the base unit for
charging.
Cleaning the charging contacts
To maintain a good charge, it is important to clean the charging contacts on both the
handset and base unit once a month. Use a dry cloth or pencil eraser to clean.
For optimum performance,
be sure to return the
handset to the base unit
after a telephone call.
The names and the numbers stored in the memory locations are retained for up to 30 minutes while you
replace the battery pack. Every 2 years replace the battery with a Genuine Uniden BT905 Battery.
BATTERY MAINTENANCE
XS215.Qx 10/21/03 5:45 PM Page 9
10 GETTING STARTED
You can mount your phone directly to the wall. Before doing this, consider the following:
• Avoid electrical cables, pipes, or other items behind the mounting location that could cause a hazard when inserting
screws into the wall.
• Mount your phone within reach of a working phone jack.
• Make sure the wall material is capable of supporting the weight of the base and handset.
• Use #10 screws (minimum length of 1 cm) with anchoring devices suitable for the wall material where the base unit
will be placed.

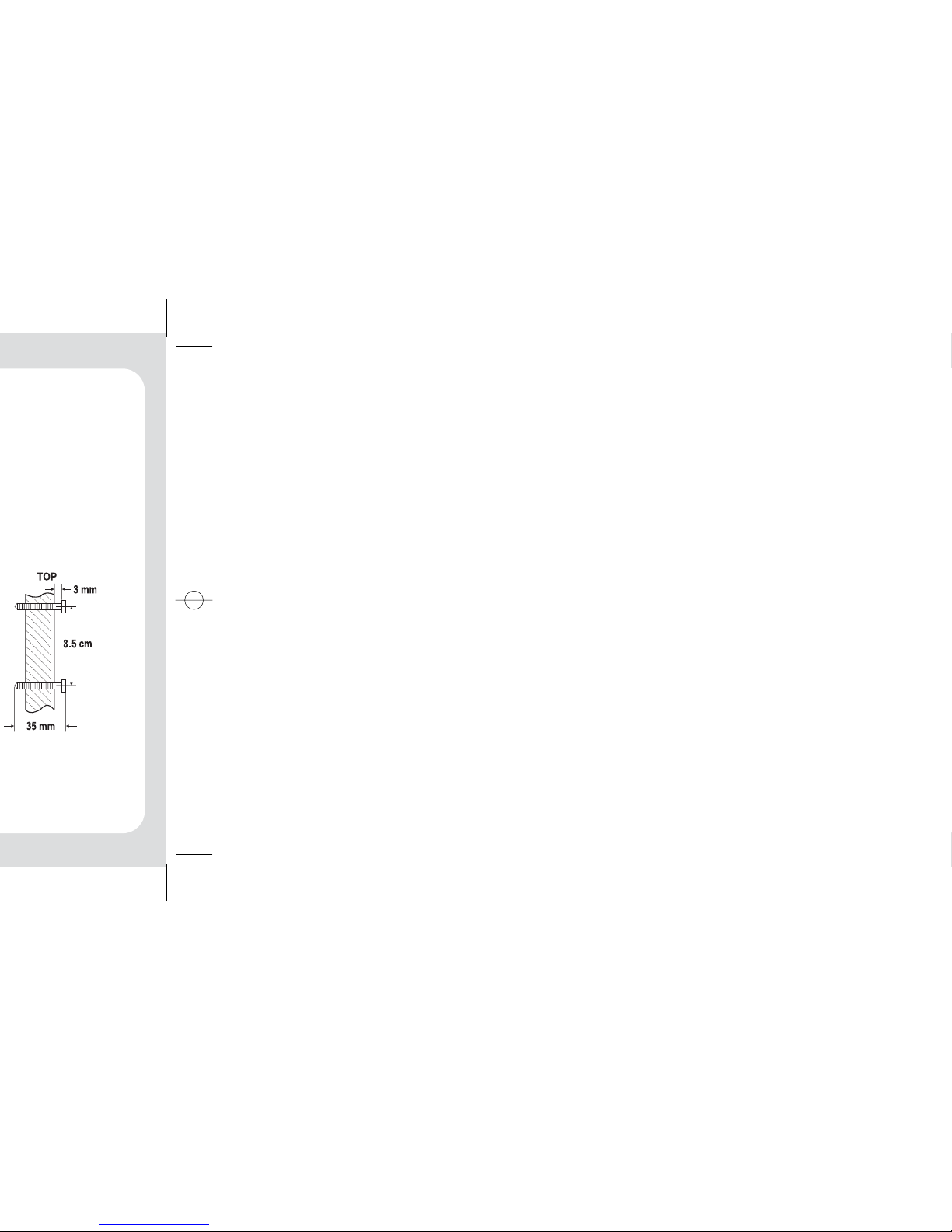

1) Insert two mounting screws into the wall, (with their appropriate anchoring device),
8.5 cm apart.
Allow about 3 mm between the wall and screw heads for mounting the phone.
2) Align the mounting slots on the base with the screw heads. Then push in and down
until the phone is firmly seated.
DIRECT WALL MOUNTING
XS215.Qx 10/21/03 5:45 PM Page 10
