Uniden UBC60XLT Manual de usuario

-~--~ .

UBC60XLT

Programmable

Hand-Held

Scanner

OPERATING GUIDE

--- --' =r

.---..

PRECAUTIONS

Before you use this scanner, please read and observe the

following:

.WARNING!

Uniden DOES NOT representthis unit to be waterproof.

To reduce the riskof fire or electrical shock, DO NOT

expose this unit to rainor moisture.

. EARPHONE WARNING:

.Be sure to use only the recommended optional

earphone or a stereo headset of the proper

impedance (320). Use of an incorrect earphone

or stereo headset may be potentially hazardous to

your hearing. The output of the Phone jack is

monaural, but you will hear it in both headphones

of a stereo headset.

.Setthe Volume to a comfortable audio level

coming from the speaker before plugging in an

earphone or a stereo headset of the proper

impedance (320). Otherwise you might

experience some discomfort or possible hearing

damage if the Volume suddenly becomes too loud

because of the Volume Control or Squelch Control

setting. This may be particular1y true of the type of

earphone that is placed in the ear canal.

. GENERAL BATTERY WARNING

.Do notshort circuit any Battery.

.Do not discard Batteries in a fire; they may

explode.

. NICKEL-CADMIUM BATTERY WARNING

When using Nickel-Cadmium Batteries with this product,

take note of the following warnings:

.Do not charge Nickel-Cadmium Batteries with any

charger other than the one supplied with this

product. Using another charger may damage the

Batteries, or cause them to explode.

. ALKALINE BATTERY WARNING

.Do not recharge Alkaline Batteries in this product.

Doing so may cause serious damage to the

product and will void the warranty.

.Uniden does not recom~end using rechargeable

Alkaline Batteries in this product.

.-,

-_.

~='=~~--"-~ ,-,--

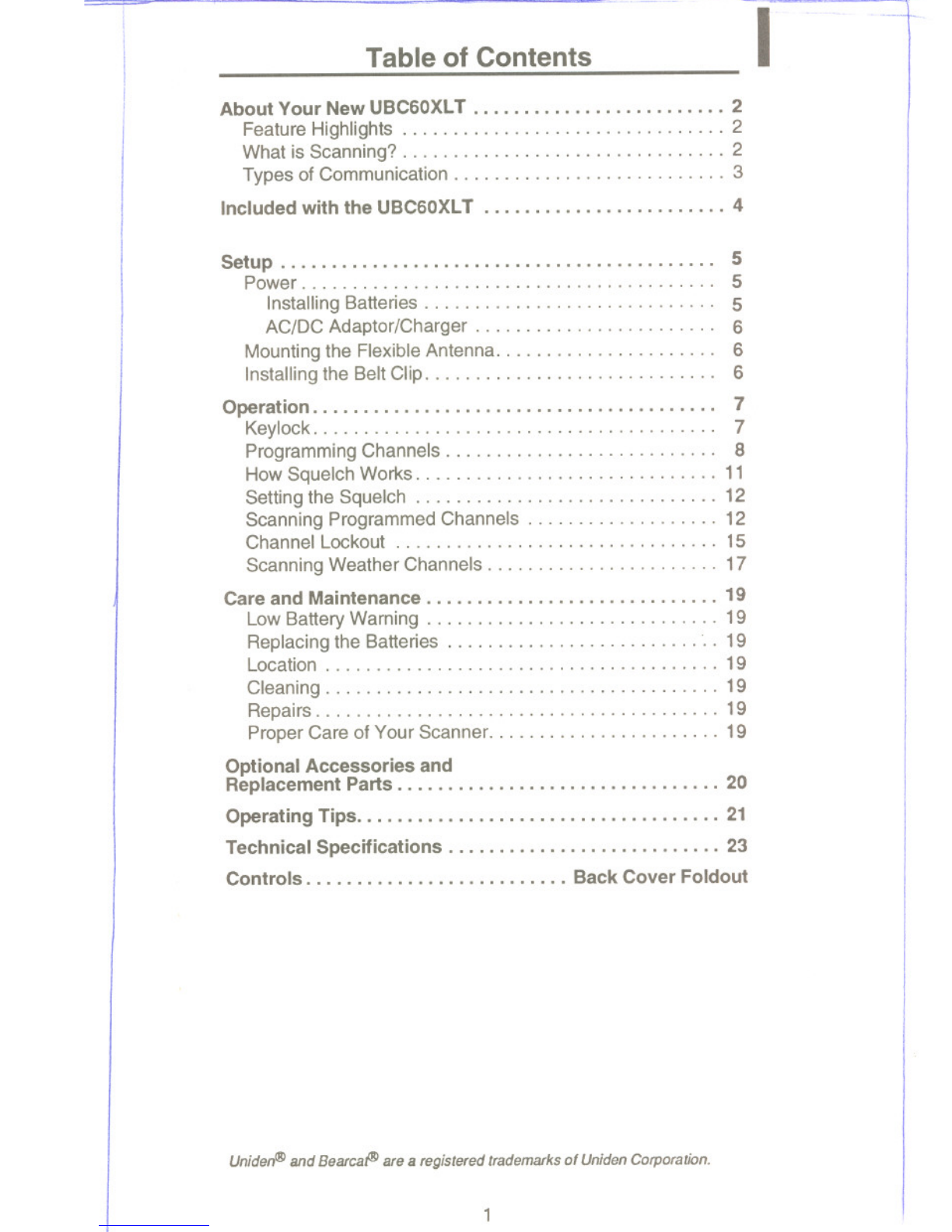

Table of Contents I

About Your NewUBC60XLT 2

Feature Highlights 2

WhatisScanning? 2

TypesofCommunication 3

Included with the UBC60XLT 4

Setup 5

Power 5

InstallingBatteries 5

AC/DCAdaptor/Charger 6

MountingtheFlexibleAntenna 6

InstallingtheBeltClip 6

Operation 7

Keylock 7

ProgrammingChannels 8

HowSquelchWorks 11

Settingthe Squelch 12

Scanning Programmed Channels. . . . .. . . . . . . . . . . . .. 12

ChannelLockout 15

ScanningWeatherChannels 17

CareandMaintenance 19

Low BatteryWarning 19

Replacingthe Batteries '..19

Location 19

Cleaning 19

Repairs 19

ProperCare ofYourScanner 19

Optional Accessories and

ReplacementParts 20

OperatingTips 21

TechnicaISpecifications 23

Controls Back Cover Foldout

Uniden~ and BearcajP)arearegistered trademarks of Uniden Corporation.

'---""-' '--"",-

About Your New UBC60XLT

The UBC60XL T is a brand new state-of-the-art information

radio with automatic scanning capabilities. It can store

frequencies such as police, fire/emergency, marine, amateur,

and other communications into 10 channels.

Feature Highlights

10Channels Program onefrequency in each channel. You

must have at least one channel programmed to use this

scanner.

8 Bands, 66 MHz -512 MHz Scanthese frequency ranges

with your scanner. (Note: Thefrequency coverage is not

totally continuous from 66.0 MHzto 512 MHz.)

Weather Channels Useyour scanner as a weather

information radio. (WeatherService is currently not available in

Australia)

Memory Backup Frequenciesprogrammed inthe channels

are retained in memory for at least 1day, and typically 3 days,

when batteries are removedfrom the scanner.

What is Scanning?

Unlike standard AM or FM radio stations, most two-way

communications (listed below) do not transmit continuously.

The UBC60XL T scans programmed channels at the rate of

nearly 10 channels per second until it finds an active

frequency.

Scanning stops on an active frequency, and remains on that

channel as long as the transmission continues. When the

transmission ends, the scanner stays on the channel for 2

more seconds after the transmission stops, waiting for another

transmission. The scanning cycle then resumes until another

transmission is received.

While the UBC60XL T is scanning channels, it is in "SCAN

Mode". When you stopthe scanning with CMAD, it is in

"MANUAL Mode".

~ , " \-----..-.--...---...-...------

<::

)

--' '---

r~"'-"-'~'~-- -- ~-

--::, !!!!!!f=~.o .

Types of Communication

You will be able to monitor communication such as: I

.Police and fire department (including rescue and

paramedics)

. Business/industrial radio

. Motion picture and press relay

. Utility

. Land transportationfrequencies, such as trucking firms,

buses, taxis, tow trucks, and railroads

. Marine and amateur (ham radio) bands

And many more in the following 8 Bands:

Frequency Range

66.0-88.0 MHz

137-144 MHz

144-148 MHz

148-174 MHz

406-420 MHz

420-450 MHz

450-470 MHz

470-512 MHz

Transmission

VHF Low band

land Mobile

2 Meter Amateur Band

VHF High Band

land Mobile

70 cm Amateur Band

UHF Standard Band

land Mobile

,,-,,-,, """" .-.. r

Included with the UBC60XLT

UBC60XLT

Operating Guide

~[~ ~]~

8G)@~

a!D@@@

ao0@@

amQ@@

000000000

BeltClip

with

Screws

(BCK150)

lJ@

CHANNEL

. BAND

RADIO

SCANNER IDden

Rubber Antenna

(AT218)

-""'- ..- _. .-.'---"---

=-=t-----

I\I

}

Setu}!

Power

Installing Batteries

1.Open cover.

Press in

2. Insert batteries

iF e

3. Replace cover.

~--

IMPORTANT

Ifyou are installingAlkaline

Batteries, set the switch to

"Reg. AlkBATT." If

installingNickel-Gadmium

Batteries,set the switchto -

"Ni-cd BATT."

WARNING! Do not mix

Alkaline Batteries with

Nickel-Cadmium

Batteries. Be sure to

install four Batteries of

the same typ"e.

: ""'-'-'--" '_0 0_" _om__'---"-- -'-'-"'-'="'"'-~'i-"--- ,,---' '--'---" '-'-'---"-

nnPc.

e e

AC Adaptor/Charger

Use the optional AC

Adaptor/Charger to power

the UBC60XL T from an

AC source.

The AC Adaptor/

Charger also recharges

Nickel-Cadmium

Batteries while they are

installed in the scanner.

WARNING! Do not charge Alkaline Batteries in this

scanner. Doing so may cause serious damage to the product

and void the waffanty. Before attempting to recharge

Batteries, make sure you have installed four rechargeable

Nickel-Cadmium Batteries and the selector switch is set to

"Ni-Cd" .

Mountingthe FlexibleAntenna

[I;HDI~~

Installing the Belt Clip CAUTION: Do not tighten

thescrews too tight. You

could damage thecase or

clip.

-- -- _..

O~eration

-====

Keylock

Keylockpreventsaccidentalkeyentries.

To lock:

Press

To unlock:

Press

n..

If1

Onlythe@, 00[) ,and

(LOCK)keyswillfunction.

(key) do notwork,press

LOCKto unlock keys.

The KIL indicator

disappearsfromthe

display.

7 ... .. .n. '~"r-.

.n___,.,_.",,---,--,

---'-"---~" ,,-,,-"- '

n..."""-

-",

,,'

',..,'

---....- ~._.~-~~

Programming Channels

1. Select frequency.

LOCATION

-------- BASE MOBILE

iiiI£V::;:::::::jRm"Sir'J".4mY..

PINEllURST 155.490 .'..H*

POCATELLO 154.725 *H.H*

2. Select channel using Manual mode.

Press

channel

number

Then

Press

;~~~i)

Note: Forchannel 10,

presseD, CD.

-='"

' "-. --""'--"""'-", ---"'--'-'- _,,:,-"=-=~'1-----_._---_.__._------_...._.
