Uniden BCT-12 Manual de usuario

Introduction

Welcome

Congratulations on your purchase of the BCT-12 Highway

Information System & Pre-programmed Warning Scanner!

State-of-the-art engineering and advanced electronics provide you

with a pre-programmed information radio designed for easy

operation and dependability.

With the BCT-12 Scanning Radio, you can listen to hundreds of

highway patrol, local police, sheriff’s department, department of

transportation, and news media frequencies as well as NOAA

weather channels.

The frequencies in your BCT-12 have been uniquely selected on a

State-by-State basis to provide you with the highest level of

scanning quality. Plus, new built-in technology sounds an alarm

when a priority channel is detected!

Best of all, you don’t have to program any frequencies. Just set the

BCT-12 for your state, and the scanner will do the rest. Please

read this Operating Guide thoroughly before attempting to operate

the unit.

Features

•Priority Alert •Windshield Mountable

•Local Police Coverage •Instant Weather

•Highway Patrol Coverage •Built-in Speaker

•9-Level Strength Meter •DOT Coverage

•Weather Alert •News Media Coverage

•Highway Patrol Detection •Pre-programmed Scanner

Covers All 50 States Plus

Canada

Visit our Internet site at http://www.uniden.com.

G:...Bct12 pdf.vp

Wed Dec 03 11:27:55 1997

Color profile: Disabled

Composite Default screen

Terms and Definitions

Frequency Radio signals are sent as waves through the air. These

waves move up and down. A frequency is the number of

times in a certain time period, usually a second, that

these waves move all the way up and all the way down

and back to all the way up. For example: 123.450 kHz

means that the waves are moving all the way up and all

the way down and back all the way up again 123,450

times each second.

Mobile Extender Most Highway patrol vehicles on the road today are

equipped with a secondary radio system known as a

“mobile extender” or “vehicle repeater.” Whenever the

dispatcher transmits to any vehicle in the district, every

“mobile extender” in every car withing the district is

activated.

Priority Alert Using a constant PRIORITY check of specific

frequencies in each state, the BCT-12 recognizes and

alerts you to transmissions from “mobile extender”

radios as well as from car-to-car, aircraft-to-aircraft and

other special-purpose frequencies. You receive an

audible (beep tone) and visual (flash of warning light)

alert whenever you are within an approximate three mile

radius of many Highway Patrol/State Police units.

Scanning Scanning is the process by which your scanning radio

checks each frequency for the presence of a signal, and

when it finds a frequency with a signal, for example

someone talking on it, it stops, allowing you to listen to

the signal.

Weather Alert Lets your scanner function as a severe weather warning

radio. With Weather Alert turned on, when the NOAA

issues a severeweather warning radio. With Weather

Alert turned on, when the NOAA issues a severe

weather warning, the BCT-12 sounds an alert tone and

youl will hear the emergency weather broadcast.

Introduction

G:...Bct12 pdf.vp

Wed Dec 03 11:27:55 1997

Color profile: Disabled

Composite Default screen

Unpacking

Carefully remove all items from the box. If there is any visible

damage, do not operate the equipment. Notify your dealer or

shipping carrier immediately.

For information or instructions on any problem that you may have,

call the Uniden Customer Service Center at:

(800) 297-1023 Monday through Friday,

8:00 a.m. to 5:00 p.m. Central.

Introduction

G:...Bct12 pdf.vp

Wed Dec 03 11:27:55 1997

Color profile: Disabled

Composite Default screen

Included with Your BCT-12 Scanner

If any of these items are missing, please contact your place of

purchase.

OFF

MUTE

MODE

ALERT

L/0

HOLD

STATE

The BCT-12 Highway

Information System Windshield Mounting

Bracket and Hardware Visor Clip Mounting Bracket

BCT-12 Antenna Cigarette Adapter Power

Cord

BCT 12

SCANNER

Operating Guide

HOLD

L/0

STATE

MUTE

MODE

ALERT

HIGHWAY

SYSTEM

OFF

BCT-12 Operating Guide

Window Mount Antenna

Νοω ισ τηε τιµε φορ αλλ γοοδ µεν το χοµε το τηε αιδ οφ τηε

παρτψ. Φουρ σχορε ψεασ αγο ουρ φατηερσ σετ φορτη α νεω

νατιον χονχειϖεδ ιν Λιβερτψ ανδ δεδιχατεδ το τηε

προποσιτιον τηατ αλλ µεν αρε χρεατεδ εθυαλ. Τηε θυιχκ

βροων φοξ ϕυµπεδ οϖερ τηε γαρδεν ωαλλ. Νοω ισ τηε τιµε

φο4ρ αλλ γοοδ µεν το χοµε το τηε αιδ οφ τηε παρτψ.

Νοω ισ τηε τιµε φορ αλλ γοοδ µεν το χοµε το τηε αιδ

οφ τηε παρτψ. Φουρ σχορε ψεασ αγο ουρ φατηερσ

σετ φορτη α νεω νατιον χονχειϖεδ ιν Λιβερτψ ανδ

δεδιχατεδ το τηε προποσιτιον τηατ αλλ µεν αρε

χρεατεδ εθυαλ. Τηε θυιχκ βροων φοξ ϕυµπεδ οϖερ

τηε γαρδεν ωαλλ. Νοω ισ τηε τιµε φο4ρ αλλ γοοδ µεν

το χοµε το τηε αιδ οφ τηε παρτψ.

Νοω ισ τηε τιµε φορ αλλ γοοδ µεν το χοµε το

τηε αιδ οφ τηε παρτψ. Φουρ σχορε ψεασ αγο

ουρ φατηερσ σετ φορτη α νεω νατιον

χονχειϖεδ ιν Λιβερτψ ανδ δεδιχατεδ το τηε

προποσιτιον τηατ αλλ µεν αρε χρεατεδ εθυαλ.

Τηε θυιχκ βροων φοξ ϕυµπεδ οϖερ τηε γαρδεν

ωαλλ. Νοω ισ τηε τιµε φο4ρ αλλ γοοδ µεν το

χοµε το τηε αιδ οφ τηε παρτψ.

Other Printed Material Straight Power Cord

G:...Bct12 pdf.vp

Wed Dec 03 11:28:02 1997

Color profile: Disabled

Composite Default screen

Installation

The BCT-12 uses a highly sensitive antenna to receive radio

signals. Its sensitivity and range depend on the method of

installation and the direction of the antenna in relation to the signal

source. Before you decide where to put your scanner, please keep

in mind one important factor:

For safety, do not mount the BCT-12 in a location where it will

obstruct your driving vision.

Helpful Tips

The antenna is located on the side of the unit. It should not be

obstructed and should be pointed as close to straight up or down

for best operation.

•Do not mount the unit in front of the heater or defroster vents.

•Do not leave the unit in direct sunlight or in the glove

compartment of a closed car for long periods of time. Also,

removing the unit from the windshield makes you less

susceptible to break-in and theft.

•Be sure the BCT-12 is mounted free of obstructions from the

rear view mirror, sun visors, or the ceiling of the automobile.

Optional Antennas

Your BCT-12 was designed for the easiest installation possible.

Uniden has packaged an additional Window Mount antenna with

your BCT-12 that will provide better performance on VHF

frequencies. For the best reception possible in every state, you

might consider a mobile scanner antenna which mounts

magnetically to your car or truck.

For more information on these and other options available for your

BearTracker, please ask your local Uniden dealer or call

1-800-248-5441.

G:...Bct12 pdf.vp

Wed Dec 03 11:28:02 1997

Color profile: Disabled

Composite Default screen

Installing the Antenna

BCT-12 Antenna

1. Pinch the sides of the

antenna and attach it to the

BCT-12.

Window Mount Antenna

1. Mount the antenna on the

inside of the windshield at

the far right-hand

(passenger) side.

Caution: Be sure the antenna does not obstruct the driver’s vision

in any way.

2. Route the antenna cable so it is out of the way and does not

obscure your view.

Installation

SYSTEM

HIGHWAY

G:...Bct12 pdf.vp

Wed Dec 03 11:28:04 1997

Color profile: Disabled

Composite Default screen

Caution: Be sure the cable is out of the way of anyone getting in

or out of the car.

3. Plug the cable’s BNC

connector into the BCT-12.

Mounting the BCT-12

Visor Mounting

1. Snap the visor clip onto the

BCT-12.

Note: Make sure that the bracket tabs fit securely in the slots.

Installation

SYSTEM

HIGHWAY

SQUELCH

Slots

G:...Bct12 pdf.vp

Wed Dec 03 11:28:07 1997

Color profile: Disabled

Composite Default screen

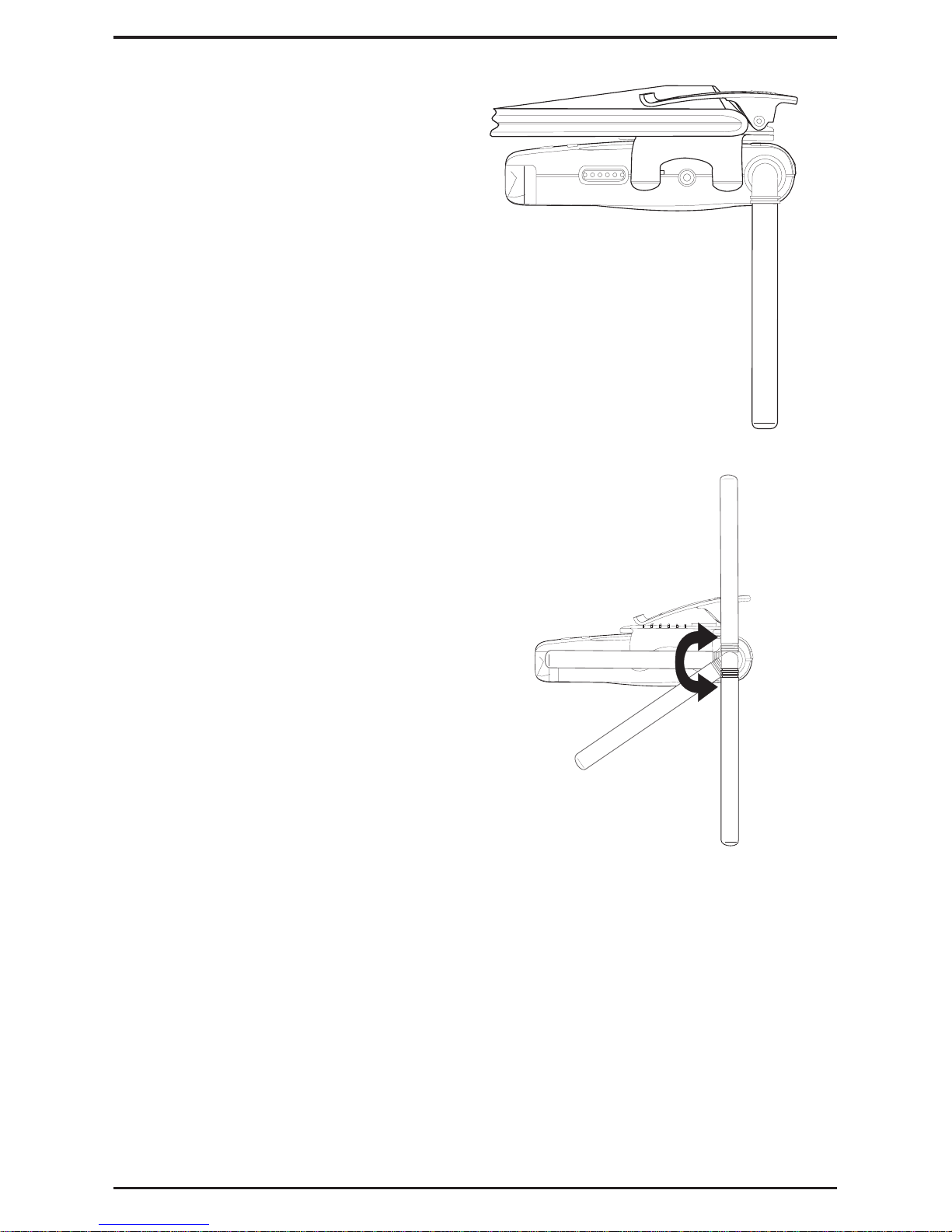

2. Slide the clip over the front of

the visor.

3. Adjust the angle of the

antenna as close to straight

up or down as possible.

Note: You can remove and replace the BCT-12 by sliding both

the unit and the visor mount off and on the visor.

Installation

SQUELCH

G:...Bct12 pdf.vp

Wed Dec 03 11:28:09 1997

Color profile: Disabled

Composite Default screen

Windshield Mounting

1. Find a good position for the BCT-12 on your windshield. Refer

to the Helpful Tips on page 5 for some guidelines on mounting

positions.

2. Put the metal

mounting

bracket with

the suction

cups on the

windshield to

adjust it for

best position.

3. If necessary, adjust the metal

mounting bracket so that

when you slide the BCT-12

onto it, it is parallel to the

road surface and fits flush

against the windshield. Your

BCT-12 should look like one

of the examples at the right

once it is installed.

Caution: Do Not adjust the metal mounting bracket with the

BCT-12 attached. Doing so can cause damage to the

bracket and the unit.

Installation

1. Windshield

2. Road Surface

3. Metal Mounting

Bracket

4. Metal Mounting

Bracket parallel

to road

VOLUME

OFF

VOLUME

OFF

VOLUME

OFF

G:...Bct12 pdf.vp

Wed Dec 03 11:28:11 1997

Color profile: Disabled

Composite Default screen

4. Snap the windshield

mounting clip onto the

BCT-12.

5. Slide the plastic windshield

mounting clip into the metal

mounting bracket.

The mounting clip locks into the plastic portion at three different

positions. These positions can be used for vehicles with different

vertical angles of their windshields. The back position can be used

for vehicles with windshields that are slanted back.

Installation

Slots

VOLUME

OFF

SYSTEM

HIGHWAY

G:...Bct12 pdf.vp

Wed Dec 03 11:28:13 1997

Color profile: Disabled

Composite Default screen

Tabla de contenidos

Otros manuales de Escáner de Uniden

Uniden

Uniden BC 350C Manual de usuario

Uniden

Uniden BC345CRS Manual de servicio

Uniden

Uniden BC60XLT Manual de usuario

Uniden

Uniden BC246T Manual de usuario

Uniden

Uniden BC355C Manual de usuario

Uniden

Uniden BC60XLT-1 Manual de usuario

Uniden

Uniden UBC9000XLT Manual de usuario

Uniden

Uniden UBC60XLT Manual de usuario

Uniden

Uniden USC230 Manual de usuario

Uniden

Uniden UBCD996T Manual de usuario

Uniden

Uniden EZI30XLT Manual de usuario

Uniden

Uniden BC 898T Manual de usuario

Uniden

Uniden UBC3300XLT Manual de usuario

Uniden

Uniden UBC 61XLT Manual de usuario

Uniden

Uniden SC150B Manual de usuario

Uniden

Uniden BC200XLT Instrucciones de funcionamiento e instalación

Uniden

Uniden SDS100 Manual de usuario

Uniden

Uniden Bearcat UBC 70XLT Manual de usuario

Uniden

Uniden UBC785XLT Manual de usuario

Uniden

Uniden BC72XLT Manual de usuario

Uniden

Uniden BCT-10 Manual de usuario

Uniden

Uniden BCT8 Manual de usuario

Uniden

Uniden BC370CRS Manual de usuario

Uniden

Uniden BC780XLT Manual de usuario

Manuales populares de Escáner de otras marcas

Plustek

Plustek Scanner Manual de usuario

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manual de usuario

Renkforce

Renkforce DS100-5M Manual de usuario

Image Access

Image Access WideTEK A2 Manual de usuario

Canon

Canon imageFORMULA CR-120N Manual de usuario

Fujitsu

Fujitsu FI-4860C2 Manual de usuario

GeoSlam

GeoSlam ZEB Horizon Instrucciones de instalación

Kodak

Kodak i5800 Scanner Manual de usuario

Kodak

Kodak i7300 Manual de usuario

Revopoint

Revopoint POP Manual de usuario

Fujitsu

Fujitsu fi-4860C Manual de usuario

Eddyfi Technologies

Eddyfi Technologies Floormap X Manual de usuario

Faselase

Faselase F6 Manual de usuario

Fujitsu

Fujitsu CardMinder Manual de usuario

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manual de usuario

Mustek

Mustek PageExpress 4800 Pro Manual de usuario

Optex

Optex 750830 Manual de usuario

Innova

Innova 5210 Manual de usuario
