Owner’s Manual

Printed in Vietnam

U01UT394ZZZ(0)

PC687

CONTENTS

SAFETY NOTICE ........................................................................... 4

UNPACKING ................................................................................. 4

DESCRIPTION .............................................................................. 5

FEATURES ...................................................................................................... 5

EMERGENCY OPERATION .......................................................... 6

CONTROLS AND FUNCTIONS ..................................................... 6

INSTALLATION ............................................................................. 8

MOBILE INSTALLATION .............................................................................. 8

Mobile Antenna ........................................................................................... 8

Wireless CB Microphone Installation (Optional) ........................................ 9

Connecting the Power Cords ...................................................................... 9

Ground Information ................................................................................... 9

USING YOUR PC687 ................................................................... 10

TURN PC687 ON/OFF .................................................................................. 10

CB MODE ...................................................................................................... 10

Basic Settings ........................................................................................... 10

PA MODE ...................................................................................................... 11

PREVENTIVE MAINTENANCE ................................................... 12

MAINTENANCE ......................................................................... 12

TROUBLESHOOTING ................................................................ 12

SERVICING YOUR TRANSCEIVER ............................................. 13

Uniden is a registered trademark of Uniden America Corporation.

Bearcat is a registered trademark of Uniden America Corporation.

Features, specications, and availability of optional accessories are all

subject to change without notice.

SPECIFICATIONS ........................................................................ 13

RADIO CODE DEFINITIONS ...................................................... 15

10CODES ..................................................................................................... 15

FCC PART 15 INFORMATION..................................................... 16

TWOYEAR EXTENDED WARRANTY ........................................ 16

SAFETY NOTICE

The antenna used for this radio must be properly installed and

maintained and must provide a separation distance of at least 34 cm

(13.4 Inches) from all persons and must not be collocated or operated in

conjunction with any other antenna or transmitter. Never transmit if any

person is closer than the specified distance to the antenna.

Note that Uniden does not specify or supply any antenna with this

transceiver. While a 0 dBi gain antenna is normal for a typical installation,

the above limit applies to any antenna with up to 3 dBi gain.

L’appareil est conforme aux normes d’Industrie Canada. Son

fonctionnement est soumis aux deux conditions suivantes : (1) Ce

dispositif ne doit pas causer d’interférences et (2), il doit pouvoir accepter

les interférences, incluant celles pouvant nuire à son fonctionnement

normal.

Changes or modifications to this product or use of accessories not

expressly approved by Uniden, or operation of this product in any way

other than as provided in the Uniden Owner’s Manual could void your

authority to operate this product.

A complete Owner’s Manual in French can be downloaded from http://

www.uniden.com/.

UNPACKING

Your PC687 contains the following:

PC687 CB 2-way mobile radio

Microphone and hanger

Mounting Bracket Kit

DC Power Cord

Reference Guide

Part 95 Subpart D (FCC Rules)

If any items are missing or damaged, contact your place of purchase

immediately.

DESCRIPTION

Your PC687 represents the highest quality communications device

designed for use in the Citizens Band Radio Service. It will operate on any

of the 40 AM frequencies authorized by the Federal Communications

Commission (FCC).

The Citizens Band Radio Service is under the jurisdiction of the Federal

Communications Commission (FCC). Any adjustments or alterations

which would alter the performance of the transceiver's original FCC type

acceptance, or which would change the frequency determining method,

are strictly prohibited.

Replacement or substitution of crystal, transistors, ICs, regulator

diodes, or any other part of a unique nature, with parts other than those

recommend by Uniden, may cause violations of the technical regulations

in Part 95 of the FCC Rules or in violation of type acceptance requirements

in Part 2 of the rules.

FEATURES

CB AM 40 channels (4W)

7 weather channels with Weather Alert (Weather Alert in CB

mode only)

Public Address function (External speaker required - not

provided)

Automatic Noise Limiter

Noise Blanker

High Cut

Transmit/Receive LED (Red and yellow-green)

CH9 direct tune

Dimmer control (Bright/Dim)

Variable RF Gain

Variable MIC Gain

Function Meter (RF and Signal Strength)

Variable Volume control

Variable Squelch control

6-pin microphone jack

EMERGENCY OPERATION

1. Move the CH9/OFF switch to CH9; the radio automatically tunes

to Channel 9 and disables the channel selector.

2. Press and hold PTT and speak clearly. Release PTT after speaking.

3. If there is no response, move the CH9/OFF switch to OFF, go to

CB mode, and select Channel 19.

4. Press and hold PTT and speak clearly. Release PTT after speaking.

5. If there is still no response, nd a party on another channel and

ask that party to relay your emergency broadcast on Channel 9.

All channels except Channel 9 may be used for normal communication.

The FCC reserves Channel 9 for emergencies involving the immediate

safety of individuals or protection of property. Use Channel 9 to render

assistance to a motorist.

This is an FCC rule and applies to all CB radio operators.

CONTROLS AND FUNCTIONS

15131110 12 14

2 8765431 9

1. Function meter. When receiving, the meter shows the received

signal strength. When transmitting, the meter shows the output

power.

2. CB/WX/PA switch: Selects CB (Citizens Band) or WX (Weather)

modes, or activates the PA (Public Address) feature.

Do not use the PA function unless an external speaker is connected.

3. NB/ANL/OFF switch: Activates the Noise Blanker (NB) and

Automatic Noise Limiter (ANL) features. NB reduces external

noise and ANL reduces background noise from the car engine

and other sources. OFF turns o both the NB and ANL features.

4. BRT/DIM switch: Adjust backlight brightness.

5. CH9/OFF switch: Move the switch to select emergency channel 9

or turn to o for normal CB operation.

All channels except Channel 9 may be used for normal communication.

The FCC reserves Channel 9 for emergencies involving the immediate

safety of individuals or protection of property. Use Channel 9 to render

assistance to a motorist.

6. HIGH CUT/OFF switch: Select HIGH CUT to apply the High Cut

lter.

7. RX/TX LED: Indicates whether the radio is transmitting (red) or

receiving (yellow-green).

8. CH9 LED: Indicates that emergency channel 9 is selected.

9. Channel Indicator: Displays the channel currently in use.

10. 6-Pin Microphone Jack: Connects the radio to the detachable

microphone (included).

11. Channel Selector knob: Turn this knob to select CB or Weather

channels.

12. RF GAIN inner knob: Turn the inner knob to reduce interference

in strong signal areas.

13. MIC GAIN outer knob: Turn the outer knob to adjust the

microphone sensitivity.

14. VOL inner knob: Turn the inner knob to turn the radio on and o

and to adjust the volume.

15. SQUELCH outer knob: Turn the outer knob to reduce background

noise when there is no incoming signal.

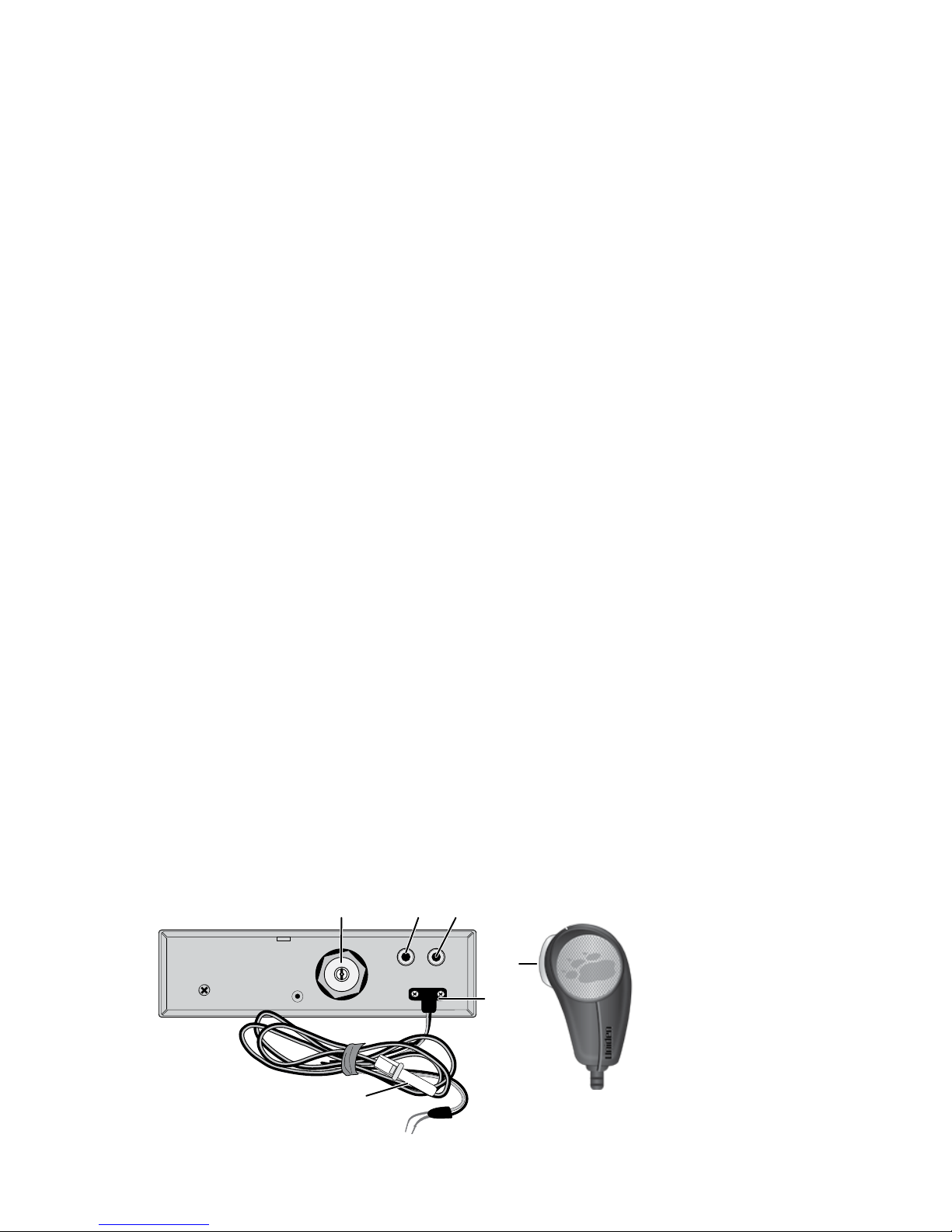

16 17 18

16. Antenna socket: Connects antenna to the unit.

17. PA SP: Connects optional external 8-ohm, over 5-watt speaker for

use as a public address system.

To prevent acoustic feedback, separate the microphone from the speaker

when operating the PA at high output levels.

18. EXT. SP: Connects optional external 8-ohm, over 5-watt speaker

for CB and WX operation.

When the external speaker is plugged in, the internal speaker is o.

19. POWER: Connects DC power to transceiver.

20. Fuse.

21. PTT: Push-to-Talk.

INSTALLATION

MOBILE INSTALLATION

Plan the location of the transceiver and microphone bracket before

beginning installation.

1. Select a location that is convenient for operating the radio but

does not interfere with the driver or passenger.

2. Install bracket with self-tapping screws provided.

3. Connect power cords (see page 9).

4. Attach the microphone bracket to side of the radio.

5. Attach radio to bracket.

Mobile Antenna

WARNING! The antenna used for this radio must be installed at least 13.4

inches (34 cm) away from all persons. The antenna must not be collocated

or used with any other antenna or transmitter.

CAUTION: Never operate your radio with no antenna or with a damaged

antenna cable. This can damage the radio.

You must purchase an antenna to operate this radio. Because the

maximum power output of the transmitter is limited by the FCC, the

quality of your antenna is very important. To achieve the maximum

transmission distance, Uniden strongly recommends that you install only

a high quality antenna. You have just purchased a superior transceiver -

don't diminish its performance by installing an inferior antenna.

Only a properly matched antenna system will allow maximum power

transfer from the 50 ohm transmission line to the radiating element.

Your Uniden dealer is qualified to help you select the proper antenna for

your requirements. A whip style antenna may be used for automobile

installation.

A short ‘loaded’ whip antenna is easier to install on an automobile, but its

efficiency is less than that of a full quarter-wave whip antenna.

Wireless CB Microphone Installation (Optional)

Your PC687 is compatible with Uniden’s BC906W Wireless CB

Microphone. With a range up to 300 feet, the BC906W allows you to use

your CB to communicate even when you need to get out of your vehicle.

Follow the instructions provided in the BC906W kit to install the wireless

microphone.

Connecting the Power Cords

Uniden recommends connecting the power lead to the Ignition Switch

Accessory Terminal. This way, the transceiver is automatically turned off

when the ignition switch is turned off.

As an alternative, the power cord may be connected to an available

terminal on the fuse block or to a point in the wiring harness. However,

caution must be taken to prevent a short circuit. If in doubt, contact your

vehicle dealer for information.

Ground Information

This transceiver may be installed and used in any 12-volt DC negative

ground system vehicle.

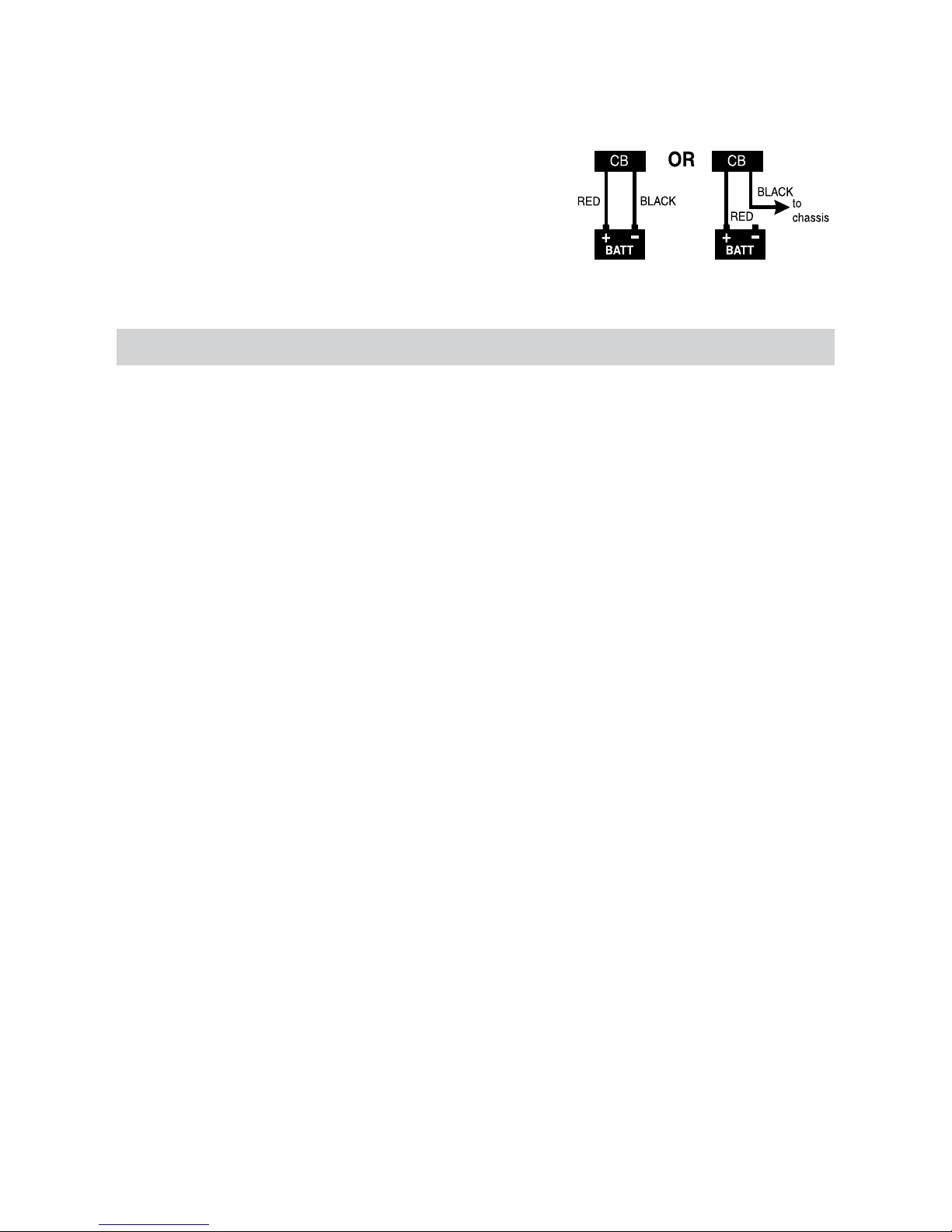

Negative Ground System

With a negative ground system, the negative (-) battery terminal is

usually connected to the vehicle motor block.

Connect the red DC power cord from the

transceiver to the positive (+) battery terminal

or other convenient point. Then connect the

black power cord to the vehicle chassis or negative (-) battery terminal.

USING YOUR PC687

TURN PC687 ON/OFF

Turn the VOL knob clockwise until the unit turns on and the display

backlight turns on.

Turn the VOL knob counter-clockwise to turn the unit off.

CB MODE

Be sure that the power source, antenna, and microphone are properly

connected before proceeding.

Basic Settings

1. Turn unit on. Set volume to a comfortable level.

2. Set switch to CB.

3. Select a CB channel (CH knob).

4. Set noise limitations as desired (NB/ANL/OFF switch).

5. Adjust squelch.

• Turn SQ knob fully clockwise so only strong signals can get

through.

• Turn SQ knob fully counterclockwise until you hear a hiss.

Everything gets through - noise, weak signals, and strong

signals

• Turn SQ knob clockwise until the hiss stops. Only clearer

signals get through.

Set SQUELCH only when the radio is not receiving a strong signal.

6. Press and hold PTT and check the multifunction meter. It will

Otros manuales para Bearcat PC687

Tabla de contenidos

Otros manuales de Radio de Uniden

Uniden

Uniden Bearcat PC787 Guía del usuario

Uniden

Uniden PB010 Manual de usuario

Uniden

Uniden BC-880FM Manual de usuario

Uniden

Uniden PMR845-2CK Manual de usuario

Uniden

Uniden CMX560 Manual de usuario

Uniden

Uniden HomePatrol - II Manual de usuario

Uniden

Uniden BC75XLT Manual de usuario

Uniden

Uniden X76 Manual de usuario

Uniden

Uniden BC 245XLT Trunk Tracker II Manual de usuario

Uniden

Uniden BEARCAT 680 Manual de usuario

Uniden

Uniden PRO505XL Manual de usuario

Uniden

Uniden BC75XLT Manual de servicio

Uniden

Uniden Bearcat 880FM Manual de usuario

Uniden

Uniden HOMEPATROL-1 Manual de usuario

Uniden

Uniden BC 235XLT Manual de usuario

Uniden

Uniden Bearcat BCD396T Manual de usuario

Uniden

Uniden GRANT Manual de usuario

Uniden

Uniden Bearcat BC148XLT Manual de usuario

Uniden

Uniden PMR1189-2CK Manual de usuario

Uniden

Uniden PC68LTD Manual de usuario

Uniden

Uniden FRS420 series Manual de usuario

Uniden

Uniden UH820SX-NB Manual de usuario

Uniden

Uniden UBC355XLT Manual de usuario

Uniden

Uniden Trunk Tracker IV BCD996T Manual de usuario

Manuales populares de Radio de otras marcas

EisSound

EisSound KBSound iSelect Manual de usuario

Midland

Midland 1001LWX Manual de usuario

Konig

Konig HAV-SR41 Manual de usuario

Roberts

Roberts exprssion Manual de usuario

VDigi

VDigi DD3.0 Manual de usuario

Radio Shack

Radio Shack 21-1863 Manual de usuario

Roberts

Roberts Stream 207 Manual de usuario

Sony

Sony Walkman SRF-M97 Manual de usuario

Stanley

Stanley FatMax FMC770 Manual de usuario

auna

auna DAB-Radio 10026947 Manual de usuario

SOUNDMASTER

SOUNDMASTER UR190 Manual de usuario

HYT

HYT TC-320 Manual de usuario

auna multimedia

auna multimedia Yellowstone 10026851 Manual de usuario

B-Tech

B-Tech GMRS-V2 Manual de usuario

Weierwei

Weierwei VEV-V8 Manual de usuario

SOUNDMASTER

SOUNDMASTER DAB750 Manual de usuario

Telefunken

Telefunken TF-1505 Manual de usuario

Makita

Makita LXRM03 Manual de usuario
