TMTM
INSTALLATION
GUIDE
MODEL
PARTS
RFK4BAM (DATA-AM ANTENNA)
DATA AM
x2
REMOTESANTENNA
REMOTES MAY BE
DIFFERENT THAN
PICTURED
PROGRAMMING
ultrastarters.com REV.09/20/18
DATA PROTOCOL SELECTION
With the Antenna plugged in and powered up:
1 . Leave Ignition in OFF position
2 . Press programming button (antenna button) 8x within 10 seconds (White LED will flash 2x)
3 . Choose your protocol below by pressing the programming button:
TYPE 1 - Press 2x - ULTRA RF (Default)
TYPE 2 - Press 4x - iDatalink RF
TYPE 3 - Press 6x - Fortin RF
TYPE 4 - Press 8x - D2D
TYPE 5 - Press 10x - Future Use
4 . After 3 seconds White LED will flash the number of times according to your selection.
REMOTE
PROGRAMMING
REMOTE PROGRAMMING - ONLY REQUIRED FOR D2D
Follow the “Remote Programming Procedure” from the manufactures programming instructions.
Visit the appropriate website or download the “RFK4BAM Full Guide” at
www.ultrastarters.com
For Devices that do not have a remote coding procedure follow the procedure below.
STEP 1STEP 2STEP 3STEP 4STEP 5
Turn the
Ignition ON then
OFF 2x leaving it in
the ON position at
the 2nd time.
Press and release the
programming button on
the antenna 2 times.
The LED will flash
1x then 2x.
Turn the
Ignition OFF
to exit
programming.
Press and hold for 3 seconds
until LED flashes turns on
solid. Release
programming button.
Press the button on each
transmitter. LED on
antenna will flash 1x
for each remote
programmed.

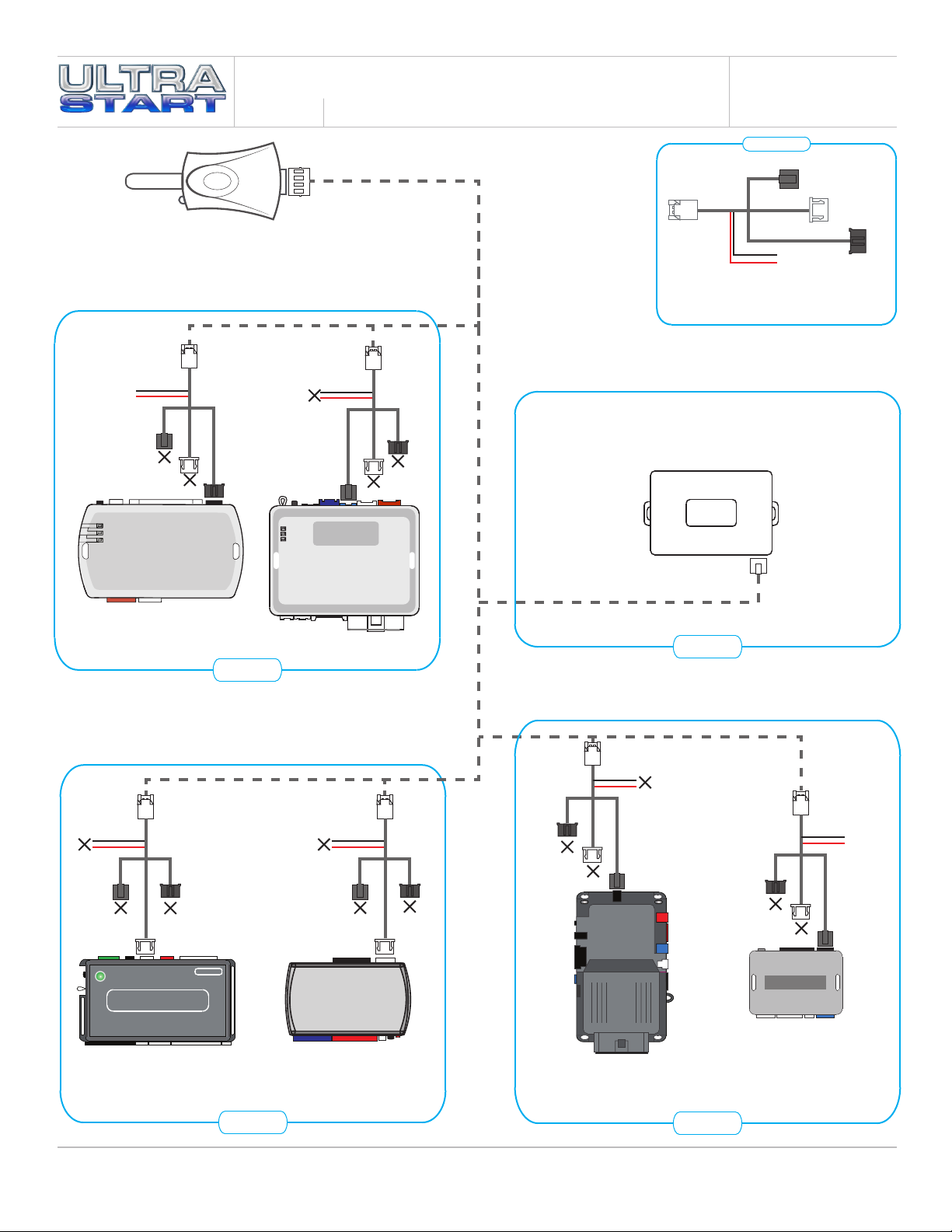

DAC-ADPT
ANTENNA IN RF CONN 2
RF CONN 3
BLACK - GROUND
RED - 12V+ (FUSED)
RF CONN 1
DATA AM
2X
DATA AM
x1
2X
