ASSEMBLY GUIDE
Expression
www.ucpwheels.org
www.ucpwheels.org
Table of Contents
1. Back Release 4
2. Footrest Assembly 5
3. Caster Wheel Assembly 6
4. Rear Wheel Assembly 8
5. Backrest Assembly 9
6. Fender Assembly (Optional) 10
7. Armrest Assembly (Optional) 11
8. Anti-Tip Assembly (Optional) 12
2
www.ucpwheels.org
Tools Needed
Phillips Screw Driver
Rubber Hammer
Rachet 19mm
2 Wrenches 10mm
Wrenches no. 19
2 Wrenches no. 13
3
www.ucpwheels.org
1. Back Release
STEP 1
Pull string
STEP 2
Lift backrest.
4
www.ucpwheels.org
2. Footrest Assembly
STEP 1
Insert the footrest.
STEP 2
Tighten both bolts very tight.
5
STEP 1
Install caster, washer, and nut.
www.ucpwheels.org
3. Caster Wheel
Assembly
STEP 2
Tighten nut. Caster should rotate freely.
6
www.ucpwheels.org
3. Caster Wheel
Assembly
STEP 3
Install plastic cap.
7
www.ucpwheels.org
4. Rear Wheel
Assembly
STEP 1
Insert axle. Check that retaining ball is in
correct position.
STEP 2
Adjust axle using a 19 mm and 13mm wrench if
ball is in wrong position.
8
www.ucpwheels.org
5. Backrest Assembly
STEP 1
Install backrest cover on velcro.
STEP 2
Attach to seat surface.
9
www.ucpwheels.org

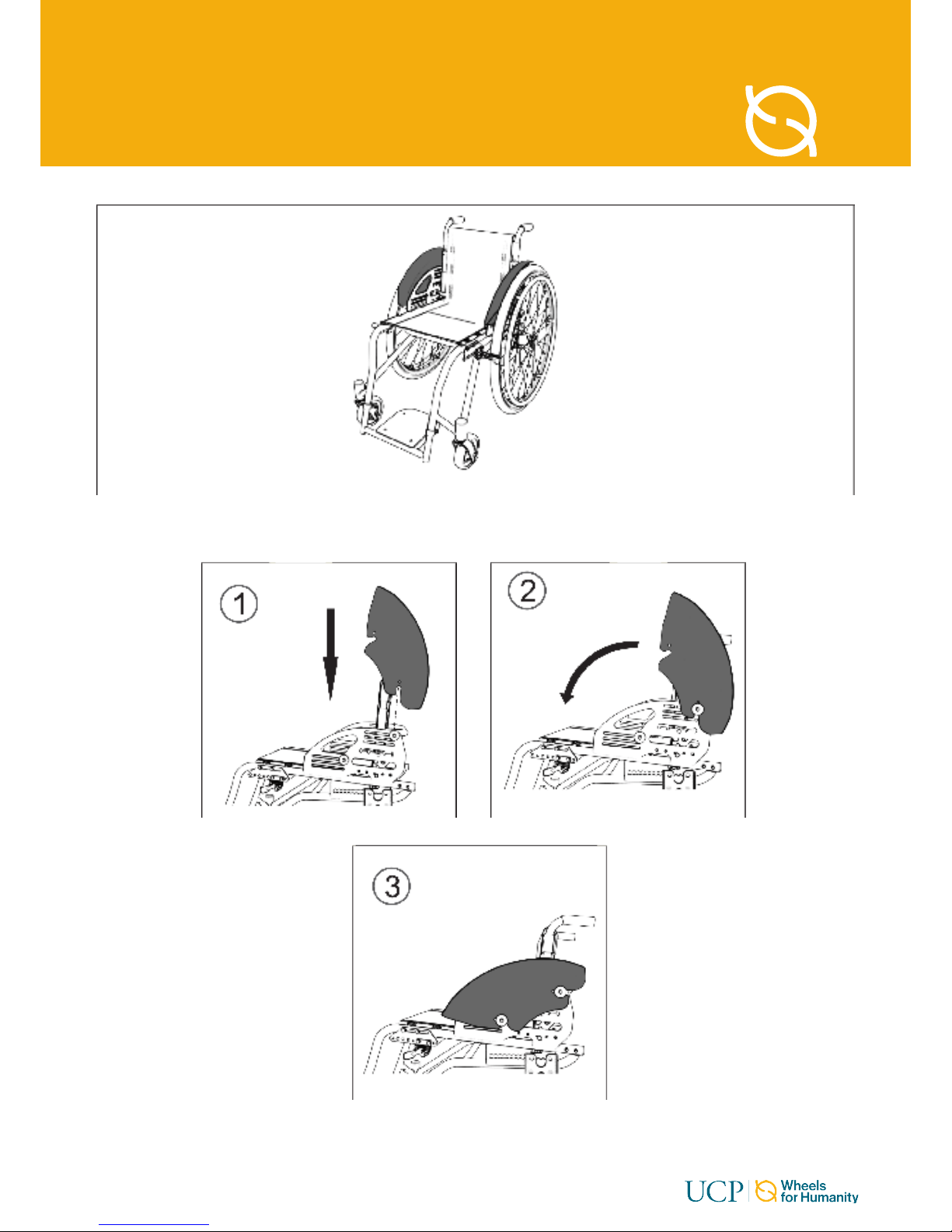

6. Fender Assembly
(Optional)
Install the fender.
10
