UCL SWIFT TEK-4 Guía de instalación
NORTH AMERICA
SWIFT TEST KIT TEK-4
TABLE OF CONTENTS
uclswiftna.com
SECTION ONE:LSSM |LASER LIGHT SOURCE |QUICK START GUIDE
SECTION TWO:LSSM |LASER LIGHT SOURCE |TECHNICAL GUIDE
SECTION THREE:OPM1 |OPTICAL POWER METER |QUICK START GUIDE
SECTION FOUR:OPM1 |OPTICAL POWER METER |REFERENCE & TEST GUIDE
TRAINING MANUAL
SECTION ONE
LSSM |LASER LIGHT SOURCE
QUICK START GUIDE
NORTH AMERICA
QUICK START GUIDE

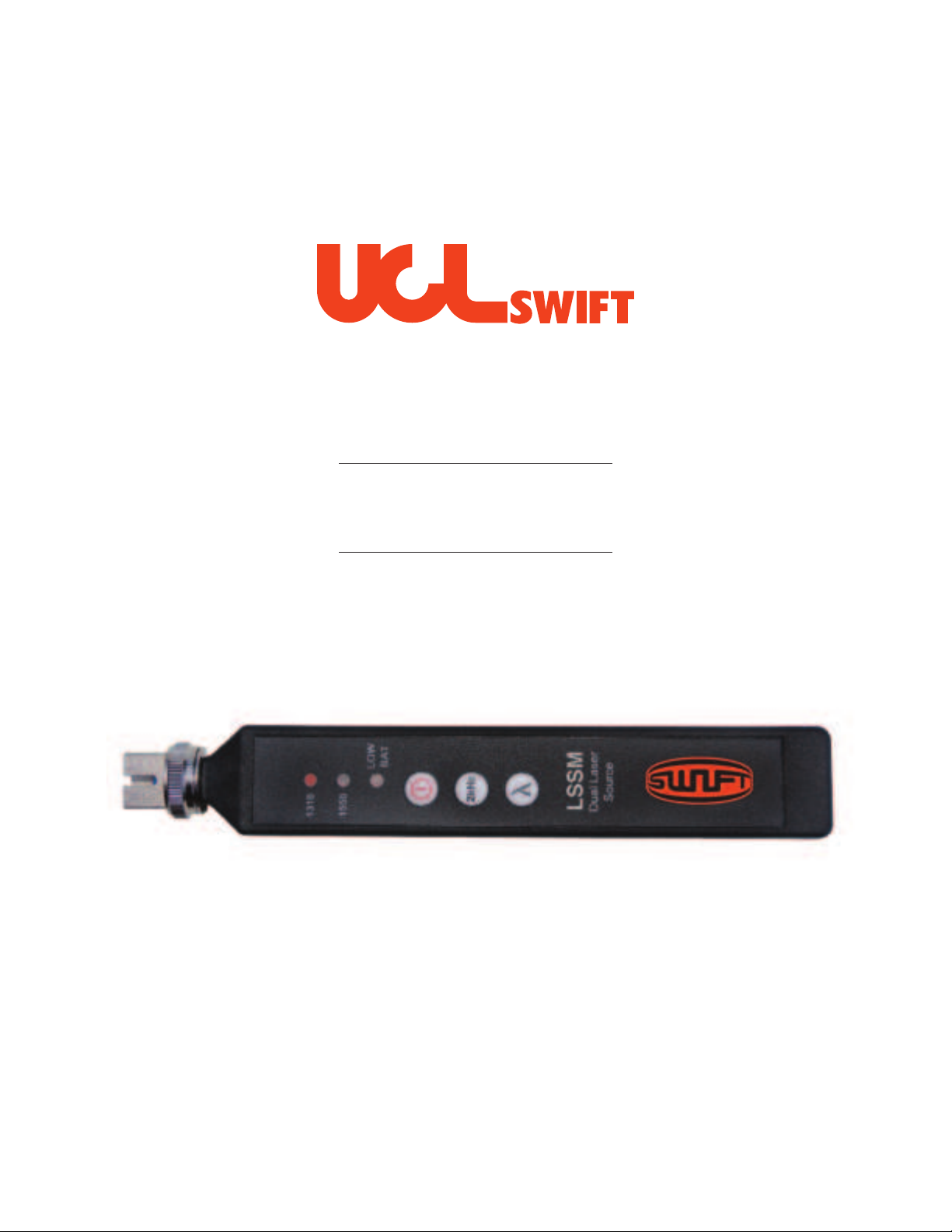

The LSSM dual laser source is a singlemode test laser used for verifying the proper function of ber optic
networks. This document will serve as an overview of the major features and functions of the device and offer
tips for troubleshooting common issues in optical networks.
FEATURES
CONNECTOR ADAPTER
(Interchangeable)
WAVELENGTH INDICATOR
LOW BAT TERY INDICATOR
POWER BUTTON
2 KHZ BUTTON
WAVELENGTH BUTTON
EXTERNAL POWER PORT
NORTH AMERICA
Laser Light Source - SM
LSSM
INTRODUCTION
Connector Adapter
Wavelength Indicator
Power Button
Change Wavelength
Button
1
2
3
4
5
67
1
2
Low Battery
Indicator
3
4
2kHz Button
External Power
Port
The LSSM comes with an SC screw-on adapter. Additional adapters are
available from SWIFT.
This unit offers 1310nm and 1550nm wavelengths. When the LSSM is
turned on, the red light indicates which wavelength is selected. The red
light blinks to indicate when the 2kHz modulation is turned ON.
A red indicator light appears when the CR2 battery power is low.
Replace or recharge the battery, depending on the battery type, to
return to normal operation of the LSSM.
Use to turn the LSSM ON and OFF. The unit will turn off automatically
after 15 minutes. To bypass auto-shutoff, hold the power button for 5
seconds when turning ON.
Toggles the modulation of currently-selected wavelength output. The
laser ashes at 2000 times per second to provide a recognizable signal
to a companion power meter. Output power of the laser is reduced by
3dB when the modulation is active.
Switches between the 1310nm and 1550nm wavelength.
The port accepts the PSD1 power supply. The power supply is not a
battery charger - just a battery bypass.
5
6
7
PAGE 2 3330 Earhart Drive, Suite 208 |Carrollton, TX 75006 | Ofce: 972.556.0916 | Fax: 972.910.8384
LSSM
WARNING
Read and understand all of the instructions and safety information in this manual before
operating this tool.
!
LASER HAZARD
Please note that 1310nm and 1550nm wavelengths are not visible to the human eye. Do not look
directly into the output port of the LSSM or directly into any fiber connector that may be live.
Since the laser is invisible to the eye, the eye’s natural blink reflex is suppressed. This can cause
damage to the retina.
!
FDA 21 CFR 1040.10 & 1040.11
IEC 60825-1: 2007-03
Class 1 Laser Product
The LSSM transmits either the 1310nm or 1550nm wavelength on singlemode ber. It is important to use a
test jumper to mate the LSSM to the ber-under-test.
TRANSMITTING LIGHT
Test Jumper
Signal Propagates Down Fiber
Mate Connectors Appropriately
The LSSM is calibrated to have an output power level of -5dBm. Variations in power level between -5dBm
and -8dBm may be normal depending on the quality and age of the test jumper, the LSSM output port, and
other factors.
Always ensure that the LSSM is transmitting an acceptable power level before performing an insertion loss
test. Simply insert the test jumper (plugged into the LSSM) into a companion power meter set to the dBm
mode. The power meter will indicate the measured output power of the laser.
OUTPUT POWER
OPM1
Test Jumper Plugged
into Power Meter Power Meter Displays
Output Power of Laser
Ofce: 972.556.0916 Fax: 972.910.8384 3330 Earhart Drive, Suite 208 |Carrollton, TX 75006 | Ofce: 972.556.0916 | Fax: 972.910.8384 PAGE 3
TO CLEAN THE FERRULE:
• Unplug the test jumper
• Unscrew the adapter until it spins freely, then pull
• Inspect the ferrule with an approved microscope,
clean if necessary, and replace adapter
The LSSM utilizes a physical ber connection at the output port. It ensures a steady power level for performing
insertion loss tests.
Ensure that any test jumpers are inspected and cleaned before plugging into the LSSM unit. If soiled or damaged
connectors are inserted, they can cause damage to the LSSM output port and the unit may need to be repaired.
OUTPUT PORT MAINTENANCE
LSSM
When the LSSM’s 2kHz modulation is active, the selected wavelength indicator will blink. The modulation
is recognized by optical power meters further down the ber and indicated by a 2kHz notication on the
screen and a loud beep. The modulated tone can also be recognized through the ber jacket when a Fiber
Identier is used.
USING THE 2KHZ FUNCTION
Test Jumper has physical contact with the
ferrule inside the LSSM
The Fiber Identier introduces a bend into the ber which leaks light from the core onto the detector of the
power meter. When using a Fiber Identier, expect a 30 to 35dB offset in core power.
PAGE 4 3330 Earhart Drive, Suite 208 |Carrollton, TX 75006 | Ofce: 972.556.0916 | Fax: 972.910.8384
Blue connectors (UPC) have a straight ferrule with a domed interface. Green connectors (APC) have an
eight-degree angled ferrule with a domed interface.
UPC and APC connectors are not compatible. NEVER connect UPC and APC connectors together, OR plug
an APC connector into the LSSM unit. This can cause irreparable damage to both connectors.
TESTING NOTES
LSSM
UNPACKING & INSPECTION
The LSSM is supplied with a soft carry case, SC adapter installed on the unit, 3.0V CR2 battery, and an
instruction card. Contact SWIFT immediately if any part of the unit or packaging is damaged, or otherwise
unsatisfactory.
LOW BATTERY
The LSSM provides over 1000 operations under normal conditions. When the LOW BAT LED indicator is
illuminated on the device, the CR2 battery should be replaced or recharged, depending on the battery type.
OPTICAL CONNECTOR INTERFACE
The LSSM is equipped with a SC/UPC connector adapter that is compatible with only SC/UPC optical
connectors. The connector adapter interface should be kept covered and protected from contamination.
Care must be taken to avoid objects that may damage the ber inside the adapter mount. Always inspect
and clean bers before mating them to the device. If scratches or breaks occur on the ber surface, please
contact SWIFT for proper service.
CALIBRATION
All SWIFT brand products include a 2-year warranty. SWIFT recommends recalibration every two years to
ensure adherence to NIST measurement standards. The rst recalibration is free within the warranty period.
MAINTENANCE
Ofce: 972.556.0916 Fax: 972.910.8384
SWIFT offers the PSD1 wall plug for users who wish to leave their LSSM turned on for long periods of time.
This is NOT a charger, but rather powers the unit from a wall outlet.
PSD1 BATTERY BYPASS
SPECIFICATIONS
Wavelength
Output Power
Output Stability
Spectral Width
Optical Interface
Tone Output
Power
Battery
Operating Temperature
Storage Temperature
Dimensions
Weight
DUAL SINGLEMODE LASER SOURCE
1310nm & 1550nm
-5.0dBm
±0.05dB (1 hour)
±0.03dB long-term (15 min warm-up)
5nm/5nm
SC/FC/ST/LC interchangeable
2kHz
Push button toggle/auto-off
CR2
-10º to +50ºC
-30º to +60ºC
6.1” x 0.94” x 0.75” (15.5 x 2.83 x 1.9cm)
3oz. (85.4g)
3330 Earhart Drive, Suite 208 |Carrollton, TX 75006 | Ofce: 972.556.0916 | Fax: 972.910.8384 PAGE 5
LSSM
CK-01
Bag, 9x8x3 zippered
Swabs, package of 25
AquaKleen cleaner, 2 fl oz bottle
FiberKleen wipes, pk of 50 wipes
Brush
Screwdriver
Tweezers
Illuminated jeweler’s loupe
Instruction sheet
Zipper pull
Sharpie, medium point
CK-02
Bag, 9x8x3 zippered
Swabs, package of 25
AquaKleen cleaner, 2 fl oz bottle
FiberKleen wipes, pk of 50 wipes
IBC-SC
IBC-LC
Optipop-R
Instruction sheet
Zipper pull
PAGE 6 3330 Earhart Drive, Suite 208 |Carrollton, TX 75006 | Ofce: 972.556.0916 | Fax: 972.910.8384
This product conforms with health, safety, and environmental protection standards for products sold within
the European Economic Area (EEA). This product was tested by an ISO 17025 accredited laboratory and
complies with the following CE directives and standards listed below:
DIRECTIVES: Electromagnetic Compatibilities (2014/30/EU)
STANDARDS: EMC: EN 61326-1:2013 Industrial;
Safety: EN/IEC61010- 1:2010+A1:2016
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-
ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CERTIFICATIONS
LSSM
Contact us with any questions pertaining to this or any other SWIFT product.
uclswiftna.com
Ofce: 972.556.0916
Fax: 972.910.8384
CONTACT
SECTION TWO
LSSM |LASER LIGHT SOURCE
TECHNICAL GUIDE
NORTH AMERICA
TECHNICAL GUIDE
The LSSM dual laser source provides stabilized optical power levels for accurate loss measurements on
singlemode ber systems. Technicians can utilize each of the wavelengths included in this light source to
reference and test with UCL Swift’s optical power meters and gather measurements to meet international
standards.
The LSSM provides a 2kHz tone output which is recognized by optical power meters; the incoming 2kHz
signal is identied and an audible alert is provided by the power meter. This 2kHz signal will also allow ber
identication when used with non-invasive ber identier devices, such as our FI2K.
Easy removal of the included SC adapter allows the light source ferrule to be cleaned, preventing
contamination of test jumpers. Additional adapters are available.
This device maintains full compliance with all FDA and CFR standards for light-emitting products.
FEATURES
Small form-factor for fast, simple testing in the eld
Single output port ensures faster switching when
testing at multiple wavelengths
NIST-traceable laser output
Long-lasting battery
Combine LSSM with an optical
power meter (OPM1 pictured)
to perform insertion loss tests
on singlemode ber.
The 2kHz tone output of the
LSSM can be recognized
through the ber jacket when
a Fiber Identier is used.
Quick-change adapters allow
users to adjust the LSSM output
to match their testing situation.
NORTH AMERICA
Laser Light Source - SM
LSSM
INTRODUCTION
